Plug-In view default implementation. More...

#include "pluginview.h"

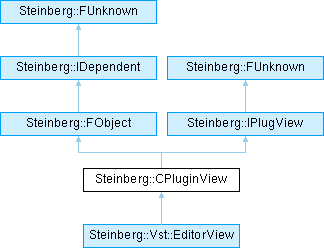

Inheritance diagram for Steinberg::CPluginView:

Public Member Functions
	CPluginView (const ViewRect *rect=nullptr)

const ViewRect &	getRect () const
	Returns its current frame rectangle.

void	setRect (const ViewRect &r)
	Sets a new frame rectangle.

bool	isAttached () const
	Checks if this view is attached to its parent view.

virtual void	attachedToParent ()
	Calls when this view will be attached to its parent view.

virtual void	removedFromParent ()
	Calls when this view will be removed from its parent view.

tresult PLUGIN_API	isPlatformTypeSupported (FIDString type) SMTG_OVERRIDE
	Is Platform UI Type supported.

tresult PLUGIN_API	attached (void *parent, FIDString type) SMTG_OVERRIDE
	The parent window of the view has been created, the (platform) representation of the view should now be created as well.

tresult PLUGIN_API	removed () SMTG_OVERRIDE
	The parent window of the view is about to be destroyed.

tresult PLUGIN_API	onWheel (float) SMTG_OVERRIDE
	Handling of mouse wheel.

tresult PLUGIN_API	onKeyDown (char16, int16, int16) SMTG_OVERRIDE
	Handling of keyboard events : Key Down.

tresult PLUGIN_API	onKeyUp (char16, int16, int16) SMTG_OVERRIDE
	Handling of keyboard events : Key Up.

tresult PLUGIN_API	getSize (ViewRect *size) SMTG_OVERRIDE
	Returns the size of the platform representation of the view.

tresult PLUGIN_API	onSize (ViewRect *newSize) SMTG_OVERRIDE
	Resizes the platform representation of the view to the given rect.

tresult PLUGIN_API	onFocus (TBool) SMTG_OVERRIDE
	Focus changed message.

tresult PLUGIN_API	setFrame (IPlugFrame *frame) SMTG_OVERRIDE
	Sets IPlugFrame object to allow the plug-in to inform the host about resizing.

tresult PLUGIN_API	canResize () SMTG_OVERRIDE
	Is view sizable by user.

tresult PLUGIN_API	checkSizeConstraint (ViewRect *) SMTG_OVERRIDE
	On live resize this is called to check if the view can be resized to the given rect, if not adjust the rect to the allowed size.

Public Member Functions inherited from Steinberg::FObject
	FObject ()=default
	default constructor...

	FObject (const FObject &)

FObject &	operator= (const FObject &)
	overloads operator "=" as the reference assignment

virtual	~FObject ()
	destructor...

virtual FClassID	isA () const
	a local alternative to getFClassID ()

virtual bool	isA (FClassID s) const
	evaluates if the passed ID is of the FObject type

virtual bool	isTypeOf (FClassID s, bool=true) const
	evaluates if the passed ID is of the FObject type

int32	getRefCount ()
	returns the current interface reference count

FUnknown *	unknownCast ()
	get FUnknown interface from object

tresult PLUGIN_API	queryInterface (const TUID _iid, void **obj) SMTG_OVERRIDE
	please refer to FUnknown::queryInterface ()

uint32 PLUGIN_API	addRef () SMTG_OVERRIDE
	please refer to FUnknown::addref ()

uint32 PLUGIN_API	release () SMTG_OVERRIDE
	please refer to FUnknown::release ()

void PLUGIN_API	update (FUnknown *, int32) SMTG_OVERRIDE
	empty virtual method that should be overridden by derived classes for data updates upon changes

virtual void	addDependent (IDependent *dep)
	adds dependency to the object

virtual void	removeDependent (IDependent *dep)
	removes dependency from the object

virtual void	changed (int32 msg=kChanged)
	Inform all dependents, that the object has changed.

virtual void	deferUpdate (int32 msg=kChanged)
	Similar to triggerUpdates, except only delivered in idle (usefull in collecting updates).

virtual void	updateDone (int32)
	empty virtual method that should be overridden by derived classes

virtual bool	isEqualInstance (FUnknown *d)

Protected Attributes
ViewRect	rect

void *	systemWindow

IPtr< IPlugFrame >	plugFrame

Protected Attributes inherited from Steinberg::FObject
int32	refCount
	COM-model local reference count.

Additional Inherited Members
Public Types inherited from Steinberg::IDependent
enum	ChangeMessage { kWillChange , kChanged , kDestroyed , kWillDestroy , kStdChangeMessageLast }

Static Public Member Functions inherited from Steinberg::FObject
static FClassID	getFClassID ()
	return Class ID as an ASCII string (statically)

static void	setUpdateHandler (IUpdateHandler *handler)
	set method for the local attribute

static IUpdateHandler *	getUpdateHandler ()
	get method for the local attribute

static bool	classIDsEqual (FClassID ci1, FClassID ci2)
	compares (evaluates) 2 class IDs

static FObject *	unknownToObject (FUnknown *unknown)
	pointer conversion from FUnknown to FObject

Static Public Attributes inherited from Steinberg::FObject
static const FUID	iid
	Special UID that is used to cast an FUnknown pointer to a FObject.

Static Public Attributes inherited from Steinberg::IDependent
static const FUID	iid

Static Public Attributes inherited from Steinberg::FUnknown
static const FUID	iid

Static Public Attributes inherited from Steinberg::IPlugView
static const FUID	iid

Static Protected Attributes inherited from Steinberg::FObject
static IUpdateHandler *	gUpdateHandler

Detailed Description

Plug-In view default implementation.

Can be used as base class for an IPlugView implementation.

Definition at line 49 of file pluginview.h.

Constructor & Destructor Documentation

◆ CPluginView()

Steinberg::CPluginView::CPluginView ( const ViewRect * rect = nullptr )

Definition at line 44 of file pluginview.cpp.

◆ ~CPluginView()

Steinberg::CPluginView::~CPluginView ( )

Definition at line 52 of file pluginview.cpp.

Member Function Documentation

◆ attached()

tresult PLUGIN_API Steinberg::CPluginView::attached	(	void *	parent,
		FIDString	type
	)

virtual

The parent window of the view has been created, the (platform) representation of the view should now be created as well.

Note that the parent is owned by the caller and you are not allowed to alter it in any way other than adding your own views. Note that in this call the plug-in could call a IPlugFrame::resizeView ()!

Parameters

parent	: platform handle of the parent window or view
type	: Platform UI Types which should be created

Implements Steinberg::IPlugView.

Definition at line 65 of file pluginview.cpp.

◆ attachedToParent()

virtual void Steinberg::CPluginView::attachedToParent ( )

virtual

Calls when this view will be attached to its parent view.

Reimplemented in Steinberg::Vst::EditorView.

Definition at line 66 of file pluginview.h.

◆ canResize()

tresult PLUGIN_API Steinberg::CPluginView::canResize ( )

virtual

Is view sizable by user.

Implements Steinberg::IPlugView.

Definition at line 96 of file pluginview.h.

◆ checkSizeConstraint()

tresult PLUGIN_API Steinberg::CPluginView::checkSizeConstraint ( ViewRect * rect )

virtual

On live resize this is called to check if the view can be resized to the given rect, if not adjust the rect to the allowed size.

Implements Steinberg::IPlugView.

Definition at line 97 of file pluginview.h.

◆ getRect()

const ViewRect & Steinberg::CPluginView::getRect ( ) const

Returns its current frame rectangle.

Definition at line 57 of file pluginview.h.

◆ getSize()

tresult PLUGIN_API Steinberg::CPluginView::getSize ( ViewRect * size )

virtual

Returns the size of the platform representation of the view.

Implements Steinberg::IPlugView.

Definition at line 91 of file pluginview.cpp.

◆ isAttached()

bool Steinberg::CPluginView::isAttached ( ) const

Checks if this view is attached to its parent view.

Definition at line 63 of file pluginview.h.

◆ isPlatformTypeSupported()

tresult PLUGIN_API Steinberg::CPluginView::isPlatformTypeSupported ( FIDString type )

virtual

Is Platform UI Type supported.

Parameters

type	: IDString of Platform UI Types

Implements Steinberg::IPlugView.

Definition at line 59 of file pluginview.cpp.

◆ onFocus()

tresult PLUGIN_API Steinberg::CPluginView::onFocus ( TBool state )

virtual

Focus changed message.

Implements Steinberg::IPlugView.

Definition at line 89 of file pluginview.h.

◆ onKeyDown()

tresult PLUGIN_API Steinberg::CPluginView::onKeyDown	(	char16	key,
		int16	keyCode,
		int16	modifiers
	)

virtual

Handling of keyboard events : Key Down.

Parameters

key	: unicode code of key
keyCode	: virtual keycode for non ascii keys - see VirtualKeyCodes in keycodes.h
modifiers	: any combination of modifiers - see KeyModifier in keycodes.h

Returns: kResultTrue if the key is handled, otherwise kResultFalse.
Please note that kResultTrue must only be returned if the key has really been handled. Otherwise key command handling of the host might be blocked!

Implements Steinberg::IPlugView.

Definition at line 77 of file pluginview.h.

◆ onKeyUp()

tresult PLUGIN_API Steinberg::CPluginView::onKeyUp	(	char16	key,
		int16	keyCode,
		int16	modifiers
	)

virtual

Handling of keyboard events : Key Up.

Parameters

key	: unicode code of key
keyCode	: virtual keycode for non ascii keys - see VirtualKeyCodes in keycodes.h
modifiers	: any combination of KeyModifier - see KeyModifier in keycodes.h

Returns: kResultTrue if the key is handled, otherwise return kResultFalse.

Implements Steinberg::IPlugView.

Definition at line 82 of file pluginview.h.

◆ onSize()

tresult PLUGIN_API Steinberg::CPluginView::onSize ( ViewRect * newSize )

virtual

Resizes the platform representation of the view to the given rect.

Note that if the plug-in requests a resize (IPlugFrame::resizeView ()) onSize has to be called afterward.

Implements Steinberg::IPlugView.

Definition at line 83 of file pluginview.cpp.

◆ onWheel()

tresult PLUGIN_API Steinberg::CPluginView::onWheel ( float distance )

virtual

Handling of mouse wheel.

Implements Steinberg::IPlugView.

Definition at line 76 of file pluginview.h.

◆ removed()

tresult PLUGIN_API Steinberg::CPluginView::removed ( )

virtual

The parent window of the view is about to be destroyed.

You have to remove all your own views from the parent window or view.

Implements Steinberg::IPlugView.

Definition at line 74 of file pluginview.cpp.

◆ removedFromParent()

virtual void Steinberg::CPluginView::removedFromParent ( )

virtual

Calls when this view will be removed from its parent view.

Reimplemented in Steinberg::Vst::EditorView.

Definition at line 69 of file pluginview.h.

◆ setFrame()

tresult PLUGIN_API Steinberg::CPluginView::setFrame ( IPlugFrame * frame )

virtual

Sets IPlugFrame object to allow the plug-in to inform the host about resizing.

Implements Steinberg::IPlugView.

Definition at line 90 of file pluginview.h.

◆ setRect()

void Steinberg::CPluginView::setRect ( const ViewRect & r )

Sets a new frame rectangle.

Definition at line 60 of file pluginview.h.

Member Data Documentation

◆ plugFrame

IPtr<IPlugFrame> Steinberg::CPluginView::plugFrame

protected

Definition at line 112 of file pluginview.h.

◆ rect

ViewRect Steinberg::CPluginView::rect

protected

Definition at line 110 of file pluginview.h.

◆ systemWindow

void* Steinberg::CPluginView::systemWindow

protected

Definition at line 111 of file pluginview.h.

The documentation for this class was generated from the following files:

juce_audio_processors/format_types/VST3_SDK/public.sdk/source/common/pluginview.h
juce_audio_processors/format_types/VST3_SDK/public.sdk/source/common/pluginview.cpp
