UpdateHandler implements IUpdateManager and IUpdateHandler to handle dependencies between objects to store and forward messages to dependent objects. More...

#include "updatehandler.h"

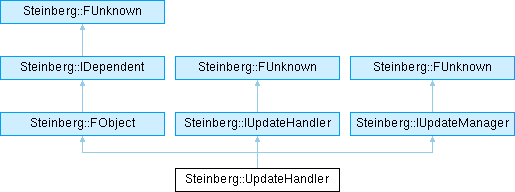

Inheritance diagram for Steinberg::UpdateHandler:

Public Member Functions
tresult PLUGIN_API	addDependent (FUnknown object, IDependent dependent) SMTG_OVERRIDE
	register

tresult PLUGIN_API	removeDependent (FUnknown object, IDependent dependent, size_t &earseCount)
	unregister

tresult PLUGIN_API	removeDependent (FUnknown object, IDependent dependent) SMTG_OVERRIDE
	Remove a previously installed dependency.

tresult PLUGIN_API	triggerUpdates (FUnknown *object, int32 message) SMTG_OVERRIDE
	send

tresult PLUGIN_API	deferUpdates (FUnknown *object, int32 message) SMTG_OVERRIDE
	send

tresult PLUGIN_API	cancelUpdates (FUnknown *object) SMTG_OVERRIDE
	cancel pending messages send by

tresult PLUGIN_API	triggerDeferedUpdates (FUnknown *object=nullptr) SMTG_OVERRIDE
	send pending messages send by

size_t	countDependencies (FUnknown *object=nullptr)

virtual void	addDependent (IDependent *dep)
	adds dependency to the object

virtual void	removeDependent (IDependent *dep)
	removes dependency from the object

virtual void	deferUpdate (int32 msg=kChanged)
	Similar to triggerUpdates, except only delivered in idle (usefull in collecting updates).

Public Member Functions inherited from Steinberg::FObject
	FObject ()=default
	default constructor...

	FObject (const FObject &)

FObject &	operator= (const FObject &)
	overloads operator "=" as the reference assignment

virtual	~FObject ()
	destructor...

virtual FClassID	isA () const
	a local alternative to getFClassID ()

virtual bool	isA (FClassID s) const
	evaluates if the passed ID is of the FObject type

virtual bool	isTypeOf (FClassID s, bool=true) const
	evaluates if the passed ID is of the FObject type

int32	getRefCount ()
	returns the current interface reference count

FUnknown *	unknownCast ()
	get FUnknown interface from object

tresult PLUGIN_API	queryInterface (const TUID _iid, void **obj) SMTG_OVERRIDE
	please refer to FUnknown::queryInterface ()

uint32 PLUGIN_API	addRef () SMTG_OVERRIDE
	please refer to FUnknown::addref ()

uint32 PLUGIN_API	release () SMTG_OVERRIDE
	please refer to FUnknown::release ()

void PLUGIN_API	update (FUnknown *, int32) SMTG_OVERRIDE
	empty virtual method that should be overridden by derived classes for data updates upon changes

virtual void	changed (int32 msg=kChanged)
	Inform all dependents, that the object has changed.

virtual void	updateDone (int32)
	empty virtual method that should be overridden by derived classes

virtual bool	isEqualInstance (FUnknown *d)

Friends
class	FObject

Additional Inherited Members
Public Types inherited from Steinberg::IDependent
enum	ChangeMessage { kWillChange , kChanged , kDestroyed , kWillDestroy , kStdChangeMessageLast }

Static Public Member Functions inherited from Steinberg::FObject
static FClassID	getFClassID ()
	return Class ID as an ASCII string (statically)

static void	setUpdateHandler (IUpdateHandler *handler)
	set method for the local attribute

static IUpdateHandler *	getUpdateHandler ()
	get method for the local attribute

static bool	classIDsEqual (FClassID ci1, FClassID ci2)
	compares (evaluates) 2 class IDs

static FObject *	unknownToObject (FUnknown *unknown)
	pointer conversion from FUnknown to FObject

Static Public Attributes inherited from Steinberg::FObject
static const FUID	iid
	Special UID that is used to cast an FUnknown pointer to a FObject.

Static Public Attributes inherited from Steinberg::IDependent
static const FUID	iid

Static Public Attributes inherited from Steinberg::FUnknown
static const FUID	iid

Static Public Attributes inherited from Steinberg::IUpdateHandler
static const FUID	iid

Static Public Attributes inherited from Steinberg::IUpdateManager
static const FUID	iid

Protected Attributes inherited from Steinberg::FObject
int32	refCount
	COM-model local reference count.

Static Protected Attributes inherited from Steinberg::FObject
static IUpdateHandler *	gUpdateHandler

Detailed Description

UpdateHandler implements IUpdateManager and IUpdateHandler to handle dependencies between objects to store and forward messages to dependent objects.

This implementation is thread save, so objects can send message, add or remove dependents from different threads. Do do so it uses mutex, so be aware of locking.

Definition at line 76 of file updatehandler.h.

Constructor & Destructor Documentation

◆ UpdateHandler()

Steinberg::UpdateHandler::UpdateHandler ( )

Definition at line 192 of file updatehandler.cpp.

◆ ~UpdateHandler()

Steinberg::UpdateHandler::~UpdateHandler ( )

Definition at line 200 of file updatehandler.cpp.

Member Function Documentation

◆ addDependent() [1/2]

tresult PLUGIN_API Steinberg::UpdateHandler::addDependent	(	FUnknown *	object,
		IDependent *	dependent
	)

virtual

register

Parameters

dependent	to get messages from
object

Implements Steinberg::IUpdateHandler.

Definition at line 209 of file updatehandler.cpp.

◆ addDependent() [2/2]

void Steinberg::FObject::addDependent ( IDependent * dep )

virtual

adds dependency to the object

Reimplemented from Steinberg::FObject.

Definition at line 115 of file fobject.cpp.

◆ cancelUpdates()

tresult PLUGIN_API Steinberg::UpdateHandler::cancelUpdates ( FUnknown * object )

virtual

cancel pending messages send by

Parameters

object or by any if object is 0

Implements Steinberg::IUpdateManager.

Definition at line 607 of file updatehandler.cpp.

◆ countDependencies()

size_t Steinberg::UpdateHandler::countDependencies ( FUnknown * object = nullptr )

Definition at line 629 of file updatehandler.cpp.

◆ deferUpdate()

void Steinberg::FObject::deferUpdate ( int32 msg = kChanged )

virtual

Similar to triggerUpdates, except only delivered in idle (usefull in collecting updates).

Reimplemented from Steinberg::FObject.

Definition at line 118 of file fobject.cpp.

◆ deferUpdates()

tresult PLUGIN_API Steinberg::UpdateHandler::deferUpdates	(	FUnknown *	object,
		int32	message
	)

virtual

send

Parameters

message	to all dependents of
object	when idle

Implements Steinberg::IUpdateHandler.

Definition at line 463 of file updatehandler.cpp.

◆ removeDependent() [1/3]

tresult PLUGIN_API Steinberg::UpdateHandler::removeDependent	(	FUnknown *	object,
		IDependent *	dependent
	)

virtual

Remove a previously installed dependency.

Implements Steinberg::IUpdateHandler.

Definition at line 246 of file updatehandler.cpp.

◆ removeDependent() [2/3]

tresult PLUGIN_API Steinberg::UpdateHandler::removeDependent	(	FUnknown *	object,
		IDependent *	dependent,
		size_t &	earseCount
	)

unregister

Parameters

dependent	to get no messages from
object

Definition at line 253 of file updatehandler.cpp.

◆ removeDependent() [3/3]

void Steinberg::FObject::removeDependent ( IDependent * dep )

virtual

removes dependency from the object

Reimplemented from Steinberg::FObject.

Definition at line 116 of file fobject.cpp.

◆ triggerDeferedUpdates()

tresult PLUGIN_API Steinberg::UpdateHandler::triggerDeferedUpdates ( FUnknown * object = nullptr )

virtual

send pending messages send by

Parameters

object or by any if object is 0

Implements Steinberg::IUpdateManager.

Definition at line 503 of file updatehandler.cpp.

◆ triggerUpdates()

tresult PLUGIN_API Steinberg::UpdateHandler::triggerUpdates	(	FUnknown *	object,
		int32	message
	)

virtual

send

Parameters

message	to all dependents of
object	immediately

Implements Steinberg::IUpdateHandler.

Definition at line 457 of file updatehandler.cpp.

Friends And Related Symbol Documentation

◆ FObject

friend class FObject

friend

Definition at line 89 of file updatehandler.h.

The documentation for this class was generated from the following files:

juce_audio_processors/format_types/VST3_SDK/base/source/updatehandler.h
juce_audio_processors/format_types/VST3_SDK/base/source/updatehandler.cpp
