#include "vstbus.h"

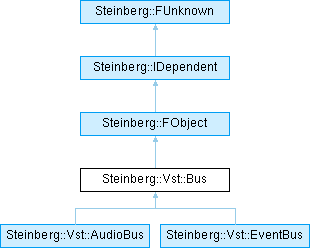

Inheritance diagram for Steinberg::Vst::Bus:
Public Member Functions | |
| Bus (const TChar *name, BusType busType, int32 flags) | |
| Constructor. | |
| TBool | isActive () const |
| Returns true if the bus is active. | |
| void | setActive (TBool state) |
| Activates the bus. | |
| void | setName (const std::u16string &newName) |
| Sets a new name for this bus. | |
| void | setBusType (BusType newBusType) |
| Sets a new busType for this bus. | |
| void | setFlags (uint32 newFlags) |
| Sets a new flags for this bus. | |
| virtual bool | getInfo (BusInfo &) |
| Gets the BusInfo of this bus. | |
 Public Member Functions inherited from Steinberg::FObject | |
| FObject ()=default | |
| default constructor... | |
| FObject (const FObject &) | |
| FObject & | operator= (const FObject &) |
| overloads operator "=" as the reference assignment | |
| virtual | ~FObject () |
| destructor... | |
| virtual FClassID | isA () const |
| a local alternative to getFClassID () | |
| virtual bool | isA (FClassID s) const |
| evaluates if the passed ID is of the FObject type | |
| virtual bool | isTypeOf (FClassID s, bool=true) const |
| evaluates if the passed ID is of the FObject type | |
| int32 | getRefCount () |
| returns the current interface reference count | |
| FUnknown * | unknownCast () |
| get FUnknown interface from object | |
| tresult PLUGIN_API | queryInterface (const TUID _iid, void **obj) SMTG_OVERRIDE |
| please refer to FUnknown::queryInterface () | |
| uint32 PLUGIN_API | addRef () SMTG_OVERRIDE |
| please refer to FUnknown::addref () | |
| uint32 PLUGIN_API | release () SMTG_OVERRIDE |
| please refer to FUnknown::release () | |
| void PLUGIN_API | update (FUnknown *, int32) SMTG_OVERRIDE |
| empty virtual method that should be overridden by derived classes for data updates upon changes | |
| virtual void | addDependent (IDependent *dep) |
| adds dependency to the object | |
| virtual void | removeDependent (IDependent *dep) |
| removes dependency from the object | |
| virtual void | changed (int32 msg=kChanged) |
| Inform all dependents, that the object has changed. | |
| virtual void | deferUpdate (int32 msg=kChanged) |
| Similar to triggerUpdates, except only delivered in idle (usefull in collecting updates). | |
| virtual void | updateDone (int32) |
| empty virtual method that should be overridden by derived classes | |
| virtual bool | isEqualInstance (FUnknown *d) |
Protected Attributes | |
| std::u16string | name |
| name | |
| BusType | busType |
| kMain or kAux, see BusTypes | |
| int32 | flags |
| flags, see BusInfo::BusFlags | |
| TBool | active |
| activation state | |
| Protected Attributes inherited from Steinberg::FObject | |
| int32 | refCount |
| COM-model local reference count. | |
Additional Inherited Members | |
| Public Types inherited from Steinberg::IDependent | |
| enum | ChangeMessage { kWillChange , kChanged , kDestroyed , kWillDestroy , kStdChangeMessageLast } |
| Static Public Member Functions inherited from Steinberg::FObject | |
| static FClassID | getFClassID () |
| return Class ID as an ASCII string (statically) | |
| static void | setUpdateHandler (IUpdateHandler *handler) |
| set method for the local attribute | |
| static IUpdateHandler * | getUpdateHandler () |
| get method for the local attribute | |
| static bool | classIDsEqual (FClassID ci1, FClassID ci2) |
| compares (evaluates) 2 class IDs | |
| static FObject * | unknownToObject (FUnknown *unknown) |
| pointer conversion from FUnknown to FObject | |
| Static Public Attributes inherited from Steinberg::FObject | |
| static const FUID | iid |
| Special UID that is used to cast an FUnknown pointer to a FObject. | |
| Static Public Attributes inherited from Steinberg::IDependent | |
| static const FUID | iid |
| Static Public Attributes inherited from Steinberg::FUnknown | |
| static const FUID | iid |
| Static Protected Attributes inherited from Steinberg::FObject | |
| static IUpdateHandler * | gUpdateHandler |
Detailed Description
Constructor & Destructor Documentation
◆ Bus()
Constructor.
Definition at line 45 of file vstbus.cpp.
Member Function Documentation
◆ getInfo()
Gets the BusInfo of this bus.
Reimplemented in Steinberg::Vst::EventBus, and Steinberg::Vst::AudioBus.
Definition at line 51 of file vstbus.cpp.
◆ isActive()
| TBool Steinberg::Vst::Bus::isActive | ( | ) | const |
◆ setActive()
| void Steinberg::Vst::Bus::setActive | ( | TBool | state | ) |
◆ setBusType()
| void Steinberg::Vst::Bus::setBusType | ( | BusType | newBusType | ) |
◆ setFlags()
| void Steinberg::Vst::Bus::setFlags | ( | uint32 | newFlags | ) |
◆ setName()
| void Steinberg::Vst::Bus::setName | ( | const std::u16string & | newName | ) |
Member Data Documentation
◆ active
|
protected |
◆ busType
|
protected |
◆ flags
|
protected |
flags, see BusInfo::BusFlags
◆ name
|
protected |
The documentation for this class was generated from the following files:
- juce_audio_processors/format_types/VST3_SDK/public.sdk/source/vst/vstbus.h
- juce_audio_processors/format_types/VST3_SDK/public.sdk/source/vst/vstbus.cpp
