Default implementation for a VST 3 Component. More...

#include "vstcomponent.h"

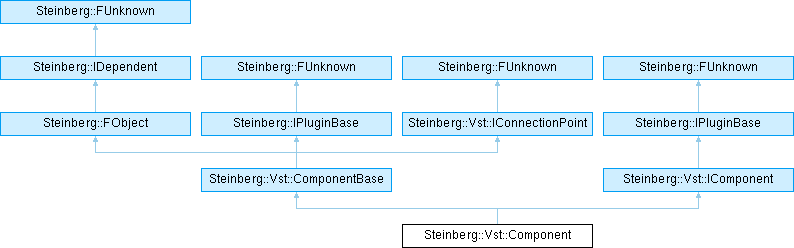

Inheritance diagram for Steinberg::Vst::Component:

Public Member Functions
	Component ()
	Constructor.

void	setControllerClass (const FUID &cid)
	Sets the controller Class ID associated to its component.

void	setControllerClass (const TUID &cid)

tresult	removeAudioBusses ()
	Removes all Audio Busses.

tresult	removeEventBusses ()
	Removes all Event Busses.

tresult	renameBus (MediaType type, BusDirection dir, int32 index, const String128 newName)
	Renames a specific bus.

tresult PLUGIN_API	getControllerClassId (TUID classID) SMTG_OVERRIDE
	Called before initializing the component to get information about the controller class.

tresult PLUGIN_API	setIoMode (IoMode mode) SMTG_OVERRIDE
	Called before 'initialize' to set the component usage (optional).

int32 PLUGIN_API	getBusCount (MediaType type, BusDirection dir) SMTG_OVERRIDE
	Called after the plug-in is initialized.

tresult PLUGIN_API	getBusInfo (MediaType type, BusDirection dir, int32 index, BusInfo &info) SMTG_OVERRIDE
	Called after the plug-in is initialized.

tresult PLUGIN_API	getRoutingInfo (RoutingInfo &inInfo, RoutingInfo &outInfo) SMTG_OVERRIDE
	Retrieves routing information (to be implemented when more than one regular input or output bus exists).

tresult PLUGIN_API	activateBus (MediaType type, BusDirection dir, int32 index, TBool state) SMTG_OVERRIDE
	Called upon (de-)activating a bus in the host application.

tresult PLUGIN_API	setActive (TBool state) SMTG_OVERRIDE
	Activates / deactivates the component.

tresult PLUGIN_API	setState (IBStream *state) SMTG_OVERRIDE
	Sets complete state of component.

tresult PLUGIN_API	getState (IBStream *state) SMTG_OVERRIDE
	Retrieves complete state of component.

tresult PLUGIN_API	initialize (FUnknown *context) SMTG_OVERRIDE
	The host passes a number of interfaces as context to initialize the plug-in class.

tresult PLUGIN_API	terminate () SMTG_OVERRIDE
	This function is called before the plug-in is unloaded and can be used for cleanups.

Public Member Functions inherited from Steinberg::Vst::ComponentBase
FUnknown *	getHostContext () const
	Returns the hostContext (set by the host during initialize call).

IConnectionPoint *	getPeer () const
	Returns the peer for the messaging communication (you can only use IConnectionPoint::notify for communicate between peers, do not try to cast peerConnection.

IMessage *	allocateMessage () const
	Allocates a message instance (do not forget to release it).

tresult	sendMessage (IMessage *message) const
	Sends the given message to the peer.

tresult	sendTextMessage (const char8 *text) const
	Sends a simple text message to the peer (max 255 characters).

tresult	sendMessageID (const char8 *messageID) const
	Sends a message with a given ID without any other payload.

virtual tresult	receiveText (const char8 *text)
	Receives a simple text message from the peer (max 255 characters).

tresult PLUGIN_API	initialize (FUnknown *context) SMTG_OVERRIDE
	The host passes a number of interfaces as context to initialize the plug-in class.

tresult PLUGIN_API	terminate () SMTG_OVERRIDE
	This function is called before the plug-in is unloaded and can be used for cleanups.

tresult PLUGIN_API	connect (IConnectionPoint *other) SMTG_OVERRIDE
	Connects this instance with another connection point.

tresult PLUGIN_API	disconnect (IConnectionPoint *other) SMTG_OVERRIDE
	Disconnects a given connection point from this.

tresult PLUGIN_API	notify (IMessage *message) SMTG_OVERRIDE
	Called when a message has been sent from the connection point to this.

Public Member Functions inherited from Steinberg::FObject
	FObject ()=default
	default constructor...

	FObject (const FObject &)

FObject &	operator= (const FObject &)
	overloads operator "=" as the reference assignment

virtual	~FObject ()
	destructor...

virtual FClassID	isA () const
	a local alternative to getFClassID ()

virtual bool	isA (FClassID s) const
	evaluates if the passed ID is of the FObject type

virtual bool	isTypeOf (FClassID s, bool=true) const
	evaluates if the passed ID is of the FObject type

int32	getRefCount ()
	returns the current interface reference count

FUnknown *	unknownCast ()
	get FUnknown interface from object

tresult PLUGIN_API	queryInterface (const TUID _iid, void **obj) SMTG_OVERRIDE
	please refer to FUnknown::queryInterface ()

uint32 PLUGIN_API	addRef () SMTG_OVERRIDE
	please refer to FUnknown::addref ()

uint32 PLUGIN_API	release () SMTG_OVERRIDE
	please refer to FUnknown::release ()

void PLUGIN_API	update (FUnknown *, int32) SMTG_OVERRIDE
	empty virtual method that should be overridden by derived classes for data updates upon changes

virtual void	addDependent (IDependent *dep)
	adds dependency to the object

virtual void	removeDependent (IDependent *dep)
	removes dependency from the object

virtual void	changed (int32 msg=kChanged)
	Inform all dependents, that the object has changed.

virtual void	deferUpdate (int32 msg=kChanged)
	Similar to triggerUpdates, except only delivered in idle (usefull in collecting updates).

virtual void	updateDone (int32)
	empty virtual method that should be overridden by derived classes

virtual bool	isEqualInstance (FUnknown *d)

Protected Member Functions
BusList *	getBusList (MediaType type, BusDirection dir)

tresult	removeAllBusses ()

Protected Attributes
FUID	controllerClass

BusList	audioInputs

BusList	audioOutputs

BusList	eventInputs

BusList	eventOutputs

Protected Attributes inherited from Steinberg::Vst::ComponentBase
IPtr< FUnknown >	hostContext

IPtr< IConnectionPoint >	peerConnection

Protected Attributes inherited from Steinberg::FObject
int32	refCount
	COM-model local reference count.

Additional Inherited Members
Public Types inherited from Steinberg::IDependent
enum	ChangeMessage { kWillChange , kChanged , kDestroyed , kWillDestroy , kStdChangeMessageLast }

Static Public Member Functions inherited from Steinberg::FObject
static FClassID	getFClassID ()
	return Class ID as an ASCII string (statically)

static void	setUpdateHandler (IUpdateHandler *handler)
	set method for the local attribute

static IUpdateHandler *	getUpdateHandler ()
	get method for the local attribute

static bool	classIDsEqual (FClassID ci1, FClassID ci2)
	compares (evaluates) 2 class IDs

static FObject *	unknownToObject (FUnknown *unknown)
	pointer conversion from FUnknown to FObject

Static Public Attributes inherited from Steinberg::FObject
static const FUID	iid
	Special UID that is used to cast an FUnknown pointer to a FObject.

Static Public Attributes inherited from Steinberg::IDependent
static const FUID	iid

Static Public Attributes inherited from Steinberg::FUnknown
static const FUID	iid

Static Public Attributes inherited from Steinberg::IPluginBase
static const FUID	iid

Static Public Attributes inherited from Steinberg::Vst::IConnectionPoint
static const FUID	iid

Static Public Attributes inherited from Steinberg::Vst::IComponent
static const FUID	iid

Static Protected Attributes inherited from Steinberg::FObject
static IUpdateHandler *	gUpdateHandler

Detailed Description

Default implementation for a VST 3 Component.

Can be used as base class for a VST 3 component implementation.

Definition at line 52 of file vstcomponent.h.

Constructor & Destructor Documentation

◆ Component()

Steinberg::Vst::Component::Component ( )

Constructor.

Definition at line 45 of file vstcomponent.cpp.

Member Function Documentation

◆ activateBus()

tresult PLUGIN_API Steinberg::Vst::Component::activateBus	(	MediaType	type,
		BusDirection	dir,
		int32	index,
		TBool	state
	)

virtual

Called upon (de-)activating a bus in the host application.

The plug-in should only processed an activated bus, the host could provide less see AudioBusBuffers in the process call (see IAudioProcessor::process) if last busses are not activated. An already activated bus does not need to be reactivated after a IAudioProcessor::setBusArrangements call.

Implements Steinberg::Vst::IComponent.

Definition at line 156 of file vstcomponent.cpp.

◆ getBusCount()

int32 PLUGIN_API Steinberg::Vst::Component::getBusCount	(	MediaType	type,
		BusDirection	dir
	)

virtual

Called after the plug-in is initialized.

See MediaTypes, BusDirections

Implements Steinberg::Vst::IComponent.

Definition at line 123 of file vstcomponent.cpp.

◆ getBusInfo()

tresult PLUGIN_API Steinberg::Vst::Component::getBusInfo	(	MediaType	type,
		BusDirection	dir,
		int32	index,
		BusInfo &	bus
	)

virtual

Called after the plug-in is initialized.

See MediaTypes, BusDirections

Implements Steinberg::Vst::IComponent.

Definition at line 130 of file vstcomponent.cpp.

◆ getBusList()

BusList * Steinberg::Vst::Component::getBusList	(	MediaType	type,
		BusDirection	dir
	)

protected

Definition at line 69 of file vstcomponent.cpp.

◆ getControllerClassId()

tresult PLUGIN_API Steinberg::Vst::Component::getControllerClassId ( TUID classId )

virtual

Called before initializing the component to get information about the controller class.

Implements Steinberg::Vst::IComponent.

Definition at line 106 of file vstcomponent.cpp.

◆ getRoutingInfo()

tresult PLUGIN_API Steinberg::Vst::Component::getRoutingInfo	(	RoutingInfo &	inInfo,
		RoutingInfo &	outInfo
	)

virtual

Retrieves routing information (to be implemented when more than one regular input or output bus exists).

The inInfo always refers to an input bus while the returned outInfo must refer to an output bus!

Implements Steinberg::Vst::IComponent.

Definition at line 150 of file vstcomponent.cpp.

◆ getState()

tresult PLUGIN_API Steinberg::Vst::Component::getState ( IBStream * state )

virtual

Retrieves complete state of component.

Implements Steinberg::Vst::IComponent.

Definition at line 185 of file vstcomponent.cpp.

◆ initialize()

tresult PLUGIN_API Steinberg::Vst::Component::initialize ( FUnknown * context )

virtual

The host passes a number of interfaces as context to initialize the plug-in class.

Parameters

context,passed by the host, is mandatory and should implement IHostApplication

Note: Extensive memory allocations etc. should be performed in this method rather than in the class' constructor! If the method does NOT return kResultOk, the object is released immediately. In this case terminate is not called!

Implements Steinberg::IPluginBase.

Definition at line 54 of file vstcomponent.cpp.

◆ removeAllBusses()

tresult Steinberg::Vst::Component::removeAllBusses ( )

protected

Definition at line 97 of file vstcomponent.cpp.

◆ removeAudioBusses()

tresult Steinberg::Vst::Component::removeAudioBusses ( )

Removes all Audio Busses.

Definition at line 79 of file vstcomponent.cpp.

◆ removeEventBusses()

tresult Steinberg::Vst::Component::removeEventBusses ( )

Removes all Event Busses.

Definition at line 88 of file vstcomponent.cpp.

◆ renameBus()

tresult Steinberg::Vst::Component::renameBus	(	MediaType	type,
		BusDirection	dir,
		int32	index,
		const String128	newName
	)

Renames a specific bus.

Do not forget to inform the host about this (see IComponentHandler::restartComponent (kIoTitlesChanged)).

Definition at line 191 of file vstcomponent.cpp.

◆ setActive()

tresult PLUGIN_API Steinberg::Vst::Component::setActive ( TBool state )

virtual

Activates / deactivates the component.

Implements Steinberg::Vst::IComponent.

Definition at line 173 of file vstcomponent.cpp.

◆ setControllerClass() [1/2]

void Steinberg::Vst::Component::setControllerClass ( const FUID & cid )

Sets the controller Class ID associated to its component.

Definition at line 61 of file vstcomponent.h.

◆ setControllerClass() [2/2]

void Steinberg::Vst::Component::setControllerClass ( const TUID & cid )

Definition at line 62 of file vstcomponent.h.

◆ setIoMode()

tresult PLUGIN_API Steinberg::Vst::Component::setIoMode ( IoMode mode )

virtual

Called before 'initialize' to set the component usage (optional).

See IoModes

Implements Steinberg::Vst::IComponent.

Definition at line 117 of file vstcomponent.cpp.

◆ setState()

tresult PLUGIN_API Steinberg::Vst::Component::setState ( IBStream * state )

virtual

Sets complete state of component.

Implements Steinberg::Vst::IComponent.

Definition at line 179 of file vstcomponent.cpp.

◆ terminate()

tresult PLUGIN_API Steinberg::Vst::Component::terminate ( )

virtual

This function is called before the plug-in is unloaded and can be used for cleanups.

You have to release all references to any host application interfaces.

Implements Steinberg::IPluginBase.

Definition at line 60 of file vstcomponent.cpp.

Member Data Documentation

◆ audioInputs

BusList Steinberg::Vst::Component::audioInputs

protected

Definition at line 99 of file vstcomponent.h.

◆ audioOutputs

BusList Steinberg::Vst::Component::audioOutputs

protected

Definition at line 100 of file vstcomponent.h.

◆ controllerClass

FUID Steinberg::Vst::Component::controllerClass

protected

Definition at line 98 of file vstcomponent.h.

◆ eventInputs

BusList Steinberg::Vst::Component::eventInputs

protected

Definition at line 101 of file vstcomponent.h.

◆ eventOutputs

BusList Steinberg::Vst::Component::eventOutputs

protected

Definition at line 102 of file vstcomponent.h.

The documentation for this class was generated from the following files:

juce_audio_processors/format_types/VST3_SDK/public.sdk/source/vst/vstcomponent.h
juce_audio_processors/format_types/VST3_SDK/public.sdk/source/vst/vstcomponent.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Component()

Member Function Documentation

◆ activateBus()

◆ getBusCount()

◆ getBusInfo()

◆ getBusList()

◆ getControllerClassId()

◆ getRoutingInfo()

◆ getState()

◆ initialize()

◆ removeAllBusses()

◆ removeAudioBusses()

◆ removeEventBusses()

◆ renameBus()

◆ setActive()

◆ setControllerClass() [1/2]

◆ setControllerClass() [2/2]

◆ setIoMode()

◆ setState()

◆ terminate()

Member Data Documentation

◆ audioInputs

◆ audioOutputs

◆ controllerClass

◆ eventInputs

◆ eventOutputs
