This abstract base class is used by some AudioProcessorParameter helper classes. More...

#include "juce_AudioProcessorParameterWithID.h"

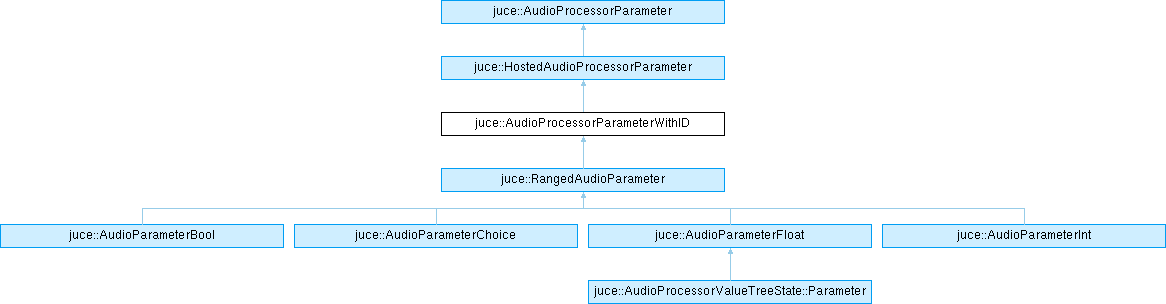

Inheritance diagram for juce::AudioProcessorParameterWithID:

Public Member Functions
	AudioProcessorParameterWithID (const ParameterID &parameterID, const String &parameterName, const AudioProcessorParameterWithIDAttributes &attributes={})
	The creation of this object requires providing a name and ID which will be constant for its lifetime.

	AudioProcessorParameterWithID (const ParameterID &parameterID, const String &parameterName, const String &parameterLabel, Category parameterCategory=AudioProcessorParameter::genericParameter)
	The creation of this object requires providing a name and ID which will be constant for its lifetime.

String	getName (int) const override
	Returns the name to display for this parameter, which should be made to fit within the given string length.

String	getLabel () const override
	Some parameters may be able to return a label string for their units.

Category	getCategory () const override
	Returns the parameter's category.

String	getParameterID () const override
	Returns an ID that is unique to this parameter.

bool	isMetaParameter () const override
	Should return true if this parameter is a "meta" parameter.

bool	isAutomatable () const override
	Returns true if the host can automate this parameter.

bool	isOrientationInverted () const override
	This can be overridden to tell the host that this parameter operates in the reverse direction.

Public Member Functions inherited from juce::HostedAudioProcessorParameter
	AudioProcessorParameter () noexcept=default

	AudioProcessorParameter (int versionHint)
	The version hint supplied to this constructor is used in Audio Unit plugins to aid ordering parameter identifiers when JUCE_FORCE_USE_LEGACY_PARAM_IDS is not enabled.

Public Member Functions inherited from juce::AudioProcessorParameter
	AudioProcessorParameter (int versionHint)
	The version hint supplied to this constructor is used in Audio Unit plugins to aid ordering parameter identifiers when JUCE_FORCE_USE_LEGACY_PARAM_IDS is not enabled.

virtual	~AudioProcessorParameter ()
	Destructor.

virtual float	getValue () const =0
	Called by the host to find out the value of this parameter.

virtual void	setValue (float newValue)=0
	The host will call this method to change the value of a parameter.

void	setValueNotifyingHost (float newValue)
	A processor should call this when it needs to change one of its parameters.

void	beginChangeGesture ()
	Sends a signal to the host to tell it that the user is about to start changing this parameter.

void	endChangeGesture ()
	Tells the host that the user has finished changing this parameter.

virtual float	getDefaultValue () const =0
	This should return the default value for this parameter.

virtual int	getNumSteps () const
	Returns the number of steps that this parameter's range should be quantised into.

virtual bool	isDiscrete () const
	Returns whether the parameter uses discrete values, based on the result of getNumSteps, or allows the host to select values continuously.

virtual bool	isBoolean () const
	Returns whether the parameter represents a boolean switch, typically with "On" and "Off" states.

virtual String	getText (float normalisedValue, int) const
	Returns a textual version of the supplied normalised parameter value.

virtual float	getValueForText (const String &text) const =0
	Should parse a string and return the appropriate value for it.

int	getParameterIndex () const noexcept
	Returns the index of this parameter in its parent processor's parameter list.

virtual String	getCurrentValueAsText () const
	Returns the current value of the parameter as a String.

virtual StringArray	getAllValueStrings () const
	Returns the set of strings which represent the possible states a parameter can be in.

int	getVersionHint () const

void	addListener (Listener *newListener)
	Registers a listener to receive events when the parameter's state changes.

void	removeListener (Listener *listener)
	Removes a previously registered parameter listener.

void	sendValueChangedMessageToListeners (float newValue)

Public Attributes
const String	paramID
	Provides access to the parameter's ID string.

const String	name
	Provides access to the parameter's name.

const String	label
	Provides access to the parameter's label.

const Category	category
	Provides access to the parameter's category.

Additional Inherited Members
Public Types inherited from juce::AudioProcessorParameter
enum	Category { genericParameter , inputGain , outputGain , inputMeter , outputMeter , compressorLimiterGainReductionMeter , expanderGateGainReductionMeter , analysisMeter , otherMeter }

Detailed Description

This abstract base class is used by some AudioProcessorParameter helper classes.

See also: AudioParameterFloat, AudioParameterInt, AudioParameterBool, AudioParameterChoice

@tags{Audio}

Definition at line 121 of file juce_AudioProcessorParameterWithID.h.

Constructor & Destructor Documentation

◆ AudioProcessorParameterWithID() [1/2]

juce::AudioProcessorParameterWithID::AudioProcessorParameterWithID	(	const ParameterID &	parameterID,
		const String &	parameterName,
		const AudioProcessorParameterWithIDAttributes &	attributes = `{}`
	)

The creation of this object requires providing a name and ID which will be constant for its lifetime.

Given that AudioProcessorParameterWithID is abstract, you'll probably call this constructor from a derived class constructor, e.g.

MyParameterType (String paramID, String name, String label, bool automatable)
    : AudioProcessorParameterWithID (paramID, name, AudioProcessorParameterWithIDAttributes().withLabel (label)
                                                                                             .withAutomatable (automatable))
{
}

Parameters

parameterID	Specifies the identifier, and optionally the parameter's version hint.
parameterName	The user-facing parameter name.
attributes	Other parameter properties.

Definition at line 29 of file juce_AudioProcessorParameterWithID.cpp.

◆ AudioProcessorParameterWithID() [2/2]

juce::AudioProcessorParameterWithID::AudioProcessorParameterWithID	(	const ParameterID &	parameterID,
		const String &	parameterName,
		const String &	parameterLabel,
		Category	parameterCategory = `AudioProcessorParameter::genericParameter`
	)

The creation of this object requires providing a name and ID which will be constant for its lifetime.

Parameters

parameterID	Used to uniquely identify the parameter
parameterName	The user-facing name of the parameter
parameterLabel	An optional label for the parameter's value
parameterCategory	The semantics of this parameter

Definition at line 153 of file juce_AudioProcessorParameterWithID.h.

Member Function Documentation

◆ getCategory()

AudioProcessorParameter::Category juce::AudioProcessorParameterWithID::getCategory ( ) const

overridevirtual

Returns the parameter's category.

Reimplemented from juce::AudioProcessorParameter.

Definition at line 45 of file juce_AudioProcessorParameterWithID.cpp.

◆ getLabel()

String juce::AudioProcessorParameterWithID::getLabel ( ) const

overridevirtual

Some parameters may be able to return a label string for their units.

For example "Hz" or "%".

Implements juce::AudioProcessorParameter.

Definition at line 44 of file juce_AudioProcessorParameterWithID.cpp.

◆ getName()

String juce::AudioProcessorParameterWithID::getName ( int maximumStringLength ) const

overridevirtual

Returns the name to display for this parameter, which should be made to fit within the given string length.

Implements juce::AudioProcessorParameter.

Definition at line 43 of file juce_AudioProcessorParameterWithID.cpp.

◆ getParameterID()

String juce::AudioProcessorParameterWithID::getParameterID ( ) const

overridevirtual

Returns an ID that is unique to this parameter.

Parameter indices are unstable across plugin versions, which means that the parameter found at a particular index in one version of a plugin might move to a different index in the subsequent version.

Unlike the parameter index, the ID returned by this function should be somewhat stable (depending on the format of the plugin), so it is more suitable for storing/recalling automation data.

Implements juce::HostedAudioProcessorParameter.

Definition at line 180 of file juce_AudioProcessorParameterWithID.h.
