juce::AAXClientExtensions Struct Reference

An interface to allow an AudioProcessor to implement extended AAX-specific functionality. More...

#include "juce_AAXClientExtensions.h"

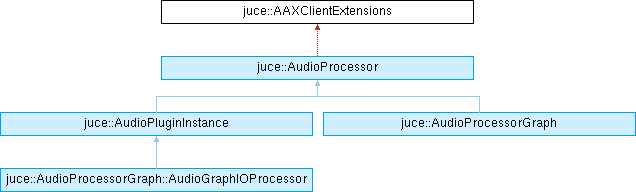

Inheritance diagram for juce::AAXClientExtensions:

Public Member Functions
virtual int32	getPluginIDForMainBusConfig (const AudioChannelSet &mainInputLayout, const AudioChannelSet &mainOutputLayout, bool idForAudioSuite) const
	AAX plug-ins need to report a unique "plug-in id" for every audio layout configuration that your AudioProcessor supports on the main bus.
virtual String	getPageFileName () const
	Returns an optional filename (including extension) for a page file to be used.
virtual File	getPageFileSearchPath () const
	Optionally returns a search path for finding a page table file.

Detailed Description

An interface to allow an AudioProcessor to implement extended AAX-specific functionality.

To use this class, create an object that inherits from it, implement the methods, then return a pointer to the object in your AudioProcessor getAAXClientExtensions() method.

See also

AudioProcessor, VST2ClientExtensions, VST3ClientExtensions

@tags{Audio}

Definition at line 39 of file juce_AAXClientExtensions.h.

Member Function Documentation

getPageFileName()

String juce::AAXClientExtensions::getPageFileName ( ) const

virtual

Returns an optional filename (including extension) for a page file to be used.

A page file allows an AAX plugin to specify how its parameters are displayed on various control surfaces. For more information read the Page Table Guide in the AAX SDK documentation.

By default this file will be searched for in *.aaxplugin/Contents/Resources.

See also

getPageFileSearchPath

Definition at line 158 of file juce_AAXClientExtensions.cpp.

getPageFileSearchPath()

virtual File juce::AAXClientExtensions::getPageFileSearchPath ( ) const

virtual

Optionally returns a search path for finding a page table file.

This can be useful for specifying a location outside the plugin bundle so users can make changes to a page table file without breaking any code signatures.

If this function returns a default-constructed File, then a default location will be used. The AAX SDK states this location will be *.aaxplugin/Contents/Resources.

Note

The returned path should be an absolute path to a directory.

See also

getPageFileName

Definition at line 80 of file juce_AAXClientExtensions.h.

getPluginIDForMainBusConfig()

int32 juce::AAXClientExtensions::getPluginIDForMainBusConfig ( const AudioChannelSet &  mainInputLayout, const AudioChannelSet &  mainOutputLayout, bool  idForAudioSuite  ) const

virtual

AAX plug-ins need to report a unique "plug-in id" for every audio layout configuration that your AudioProcessor supports on the main bus.

Override this function if you want your AudioProcessor to use a custom "plug-in id" (for example to stay backward compatible with older versions of JUCE).

The default implementation will compute a unique integer from the input and output layout and add this value to the 4 character code 'jcaa' (for native AAX) or 'jyaa' (for AudioSuite plug-ins).

Definition at line 124 of file juce_AAXClientExtensions.cpp.

---

The documentation for this struct was generated from the following files:

• juce_audio_processors/utilities/juce_AAXClientExtensions.h
• juce_audio_processors/utilities/juce_AAXClientExtensions.cpp
