juce::Slider::LookAndFeelMethods Struct Reference

This abstract base class is implemented by LookAndFeel classes to provide slider drawing functionality. More...

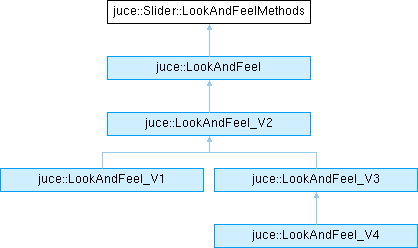

Inheritance diagram for juce::Slider::LookAndFeelMethods:

Public Member Functions
virtual void	drawLinearSlider (Graphics &, int x, int y, int width, int height, float sliderPos, float minSliderPos, float maxSliderPos, Slider::SliderStyle, Slider &)=0

virtual void	drawLinearSliderBackground (Graphics &, int x, int y, int width, int height, float sliderPos, float minSliderPos, float maxSliderPos, Slider::SliderStyle, Slider &)=0

virtual void	drawLinearSliderOutline (Graphics &, int x, int y, int width, int height, Slider::SliderStyle, Slider &)=0

virtual void	drawLinearSliderThumb (Graphics &, int x, int y, int width, int height, float sliderPos, float minSliderPos, float maxSliderPos, Slider::SliderStyle, Slider &)=0

virtual int	getSliderThumbRadius (Slider &)=0

virtual void	drawRotarySlider (Graphics &, int x, int y, int width, int height, float sliderPosProportional, float rotaryStartAngle, float rotaryEndAngle, Slider &)=0

virtual Button *	createSliderButton (Slider &, bool isIncrement)=0

virtual Label *	createSliderTextBox (Slider &)=0

virtual ImageEffectFilter *	getSliderEffect (Slider &)=0

virtual Font	getSliderPopupFont (Slider &)=0

virtual int	getSliderPopupPlacement (Slider &)=0

virtual SliderLayout	getSliderLayout (Slider &)=0

Detailed Description

This abstract base class is implemented by LookAndFeel classes to provide slider drawing functionality.

Definition at line 917 of file juce_Slider.h.

The documentation for this struct was generated from the following file:
