SmartThumnail automatically tracks changes to an AudioFile and will update its cache if the file changes. More...

#include "tracktion_SmartThumbnail.h"

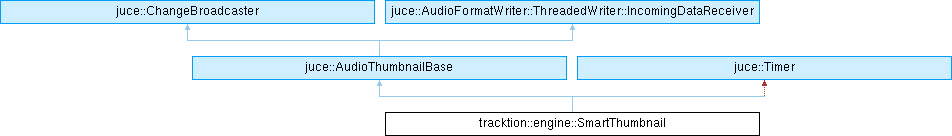

Inheritance diagram for tracktion::engine::SmartThumbnail:

Public Member Functions
	SmartThumbnail (Engine &, const AudioFile &, juce::Component &componentToRepaint, Edit *)
	Creates a SmartThumbnail for an AudioFile which will automatically repaint a Component as it it loaded.

	SmartThumbnail (Engine &, const AudioFile &, juce::Component &componentToRepaint, Edit *, std::unique_ptr< juce::AudioThumbnailBase > thumbnailToUse)
	Creates a SmartThumbnail for an AudioFile which will automatically repaint a Component as it it loaded.

	~SmartThumbnail () override
	Destructor.

void	setNewFile (const AudioFile &)
	Sets a new file to display.

bool	isGeneratingProxy () const noexcept
	Returns true if this is a proxy file being generated by the AudioProxyGenerator.

float	getProxyProgress () const noexcept
	Returns the progress of the current proxy file creation.

bool	isOutOfDate () const noexcept
	Returns true if the file has been changed and a new thumbnail has not yet been generated.

void	drawChannel (juce::Graphics &, juce::Rectangle< int >, TimeRange, int channelNum, float verticalZoomFactor)
	Draws one of the channels, optionally using a hi-res algorithm.

void	drawChannels (juce::Graphics &, juce::Rectangle< int >, TimeRange, float verticalZoomFactor)
	Draws all of the channels, optionally using a hi-res algorithm.

double	getProportionComplete () const noexcept
	Returns the proportion of the thumbnail that has been generated.

void	clear () override

bool	setSource (juce::InputSource *) override

void	setReader (juce::AudioFormatReader *, juce::int64 hashCode) override

bool	loadFrom (juce::InputStream &) override

void	saveTo (juce::OutputStream &) const override

int	getNumChannels () const noexcept override

double	getTotalLength () const noexcept override

bool	isFullyLoaded () const noexcept override

juce::int64	getNumSamplesFinished () const noexcept override

float	getApproximatePeak () const override

void	getApproximateMinMax (double startTime, double endTime, int channelIndex, float &minValue, float &maxValue) const noexcept override

juce::int64	getHashCode () const override

void	reset (int numChannels, double sampleRate, juce::int64 totalSamplesInSource) override

void	addBlock (juce::int64 sampleNumberInSource, const juce::AudioBuffer< float > &, int startOffsetInBuffer, int numSamples) override

void	audioFileChanged ()

void	releaseFile ()

Public Member Functions inherited from juce::ChangeBroadcaster
void	addChangeListener (ChangeListener *listener)

void	removeChangeListener (ChangeListener *listener)

void	removeAllChangeListeners ()

void	sendChangeMessage ()

void	sendSynchronousChangeMessage ()

void	dispatchPendingMessages ()

Static Public Member Functions
static void	setEnabled (bool e)
	Enable/disable all smart thumbnail generation.

static bool	areThumbnailsFullyLoaded (Engine &)
	Returns true if any thumbnails are currently being generated for the given Edit.

Public Attributes
AudioFile	file

Engine &	engine

Edit *const	edit

Detailed Description

SmartThumnail automatically tracks changes to an AudioFile and will update its cache if the file changes.

Additionally, if this file is a wav proxy file that's being generated, you can use this to find out about its progress.

Definition at line 21 of file tracktion_SmartThumbnail.h.

Constructor & Destructor Documentation

◆ SmartThumbnail() [1/2]

tracktion::engine::SmartThumbnail::SmartThumbnail	(	Engine &	e,
		const AudioFile &	f,
		juce::Component &	componentToRepaint,
		Edit *	ed
	)

Creates a SmartThumbnail for an AudioFile which will automatically repaint a Component as it it loaded.

You can optionally supply an Edit to use its temporary directory for the thumbnail file storage.

Definition at line 491 of file tracktion_AudioFile.cpp.

◆ SmartThumbnail() [2/2]

tracktion::engine::SmartThumbnail::SmartThumbnail	(	Engine &	e,
		const AudioFile &	f,
		juce::Component &	componentToRepaint,
		Edit *	ed,
		std::unique_ptr< juce::AudioThumbnailBase >	thumbnailToUse
	)

Creates a SmartThumbnail for an AudioFile which will automatically repaint a Component as it it loaded.

You can optionally supply an Edit to use its temporary directory for the thumbnail file storage.

Parameters

thumbnailToUse The thumbnail instance to use if you want custom thumbs

Definition at line 499 of file tracktion_AudioFile.cpp.

◆ ~SmartThumbnail()

tracktion::engine::SmartThumbnail::~SmartThumbnail ( )

override

Destructor.

Definition at line 517 of file tracktion_AudioFile.cpp.

Member Function Documentation

◆ addBlock()

void tracktion::engine::SmartThumbnail::addBlock	(	juce::int64	sampleNumberInSource,
		const juce::AudioBuffer< float > &	buffer,
		int	startOffsetInBuffer,
		int	numSamples
	)

override

Definition at line 724 of file tracktion_AudioFile.cpp.

◆ areThumbnailsFullyLoaded()

bool tracktion::engine::SmartThumbnail::areThumbnailsFullyLoaded ( Engine & engine )

static

Returns true if any thumbnails are currently being generated for the given Edit.

Definition at line 526 of file tracktion_AudioFile.cpp.

◆ audioFileChanged()

void tracktion::engine::SmartThumbnail::audioFileChanged ( )

Definition at line 611 of file tracktion_AudioFile.cpp.

◆ clear()

void tracktion::engine::SmartThumbnail::clear ( )

overridevirtual

Implements juce::AudioThumbnailBase.

Definition at line 631 of file tracktion_AudioFile.cpp.

◆ drawChannel()

void tracktion::engine::SmartThumbnail::drawChannel	(	juce::Graphics &	g,
		juce::Rectangle< int >	r,
		TimeRange	time,
		int	channelNum,
		float	verticalZoomFactor
	)

Draws one of the channels, optionally using a hi-res algorithm.

Definition at line 549 of file tracktion_AudioFile.cpp.

◆ drawChannels()

void tracktion::engine::SmartThumbnail::drawChannels	(	juce::Graphics &	g,
		juce::Rectangle< int >	r,
		TimeRange	time,
		float	verticalZoomFactor
	)

Draws all of the channels, optionally using a hi-res algorithm.

Definition at line 557 of file tracktion_AudioFile.cpp.

◆ getApproximateMinMax()

void tracktion::engine::SmartThumbnail::getApproximateMinMax	(	double	startTime,
		double	endTime,
		int	channelIndex,
		float &	minValue,
		float &	maxValue
	)		const

overridevirtualnoexcept

Implements juce::AudioThumbnailBase.

Definition at line 707 of file tracktion_AudioFile.cpp.

◆ getApproximatePeak()

float tracktion::engine::SmartThumbnail::getApproximatePeak ( ) const

overridevirtual

Implements juce::AudioThumbnailBase.

Definition at line 702 of file tracktion_AudioFile.cpp.

◆ getHashCode()

juce::int64 tracktion::engine::SmartThumbnail::getHashCode ( ) const

overridevirtual

Implements juce::AudioThumbnailBase.

Definition at line 714 of file tracktion_AudioFile.cpp.

◆ getNumChannels()

int tracktion::engine::SmartThumbnail::getNumChannels ( ) const

overridevirtualnoexcept

Implements juce::AudioThumbnailBase.

Definition at line 656 of file tracktion_AudioFile.cpp.

◆ getNumSamplesFinished()

juce::int64 tracktion::engine::SmartThumbnail::getNumSamplesFinished ( ) const

overridevirtualnoexcept

Implements juce::AudioThumbnailBase.

Definition at line 697 of file tracktion_AudioFile.cpp.

◆ getProportionComplete()

double tracktion::engine::SmartThumbnail::getProportionComplete ( ) const

noexcept

Returns the proportion of the thumbnail that has been generated.

Definition at line 565 of file tracktion_AudioFile.cpp.

◆ getProxyProgress()

float tracktion::engine::SmartThumbnail::getProxyProgress ( ) const

noexcept

Returns the progress of the current proxy file creation.

Definition at line 59 of file tracktion_SmartThumbnail.h.

◆ getTotalLength()

double tracktion::engine::SmartThumbnail::getTotalLength ( ) const

overridevirtualnoexcept

Implements juce::AudioThumbnailBase.

Definition at line 661 of file tracktion_AudioFile.cpp.

◆ isFullyLoaded()

bool tracktion::engine::SmartThumbnail::isFullyLoaded ( ) const

overridevirtualnoexcept

Implements juce::AudioThumbnailBase.

Definition at line 692 of file tracktion_AudioFile.cpp.

◆ isGeneratingProxy()

bool tracktion::engine::SmartThumbnail::isGeneratingProxy ( ) const

noexcept

Returns true if this is a proxy file being generated by the AudioProxyGenerator.

Definition at line 56 of file tracktion_SmartThumbnail.h.

◆ isOutOfDate()

bool tracktion::engine::SmartThumbnail::isOutOfDate ( ) const

noexcept

Returns true if the file has been changed and a new thumbnail has not yet been generated.

Definition at line 62 of file tracktion_SmartThumbnail.h.

◆ loadFrom()

bool tracktion::engine::SmartThumbnail::loadFrom ( juce::InputStream & stream )

overridevirtual

Implements juce::AudioThumbnailBase.

Definition at line 646 of file tracktion_AudioFile.cpp.

◆ releaseFile()

void tracktion::engine::SmartThumbnail::releaseFile ( )

Definition at line 577 of file tracktion_AudioFile.cpp.

◆ reset()

void tracktion::engine::SmartThumbnail::reset	(	int	numChannels,
		double	sampleRate,
		juce::int64	totalSamplesInSource
	)

override

Definition at line 719 of file tracktion_AudioFile.cpp.

◆ saveTo()

void tracktion::engine::SmartThumbnail::saveTo ( juce::OutputStream & stream ) const

overridevirtual

Implements juce::AudioThumbnailBase.

Definition at line 651 of file tracktion_AudioFile.cpp.

◆ setEnabled()

static void tracktion::engine::SmartThumbnail::setEnabled ( bool e )

static

Enable/disable all smart thumbnail generation.

Definition at line 46 of file tracktion_SmartThumbnail.h.

◆ setNewFile()

void tracktion::engine::SmartThumbnail::setNewFile ( const AudioFile & newFile )

Sets a new file to display.

Definition at line 537 of file tracktion_AudioFile.cpp.

◆ setReader()

void tracktion::engine::SmartThumbnail::setReader	(	juce::AudioFormatReader *	reader,
		juce::int64	hashCode
	)

overridevirtual

Implements juce::AudioThumbnailBase.

Definition at line 641 of file tracktion_AudioFile.cpp.

◆ setSource()

bool tracktion::engine::SmartThumbnail::setSource ( juce::InputSource * source )

overridevirtual

Implements juce::AudioThumbnailBase.

Definition at line 636 of file tracktion_AudioFile.cpp.

Member Data Documentation

◆ edit

Edit* const tracktion::engine::SmartThumbnail::edit

Definition at line 117 of file tracktion_SmartThumbnail.h.

◆ engine

Engine& tracktion::engine::SmartThumbnail::engine

Definition at line 116 of file tracktion_SmartThumbnail.h.

◆ file

AudioFile tracktion::engine::SmartThumbnail::file

Definition at line 115 of file tracktion_SmartThumbnail.h.

The documentation for this class was generated from the following files:

tracktion_engine/audio_files/tracktion_SmartThumbnail.h
tracktion_engine/audio_files/tracktion_AudioFile.cpp
