tracktion::engine::AutomationSource Struct Reference

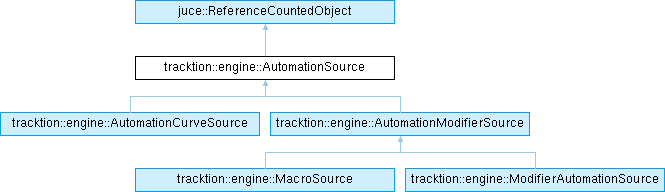

Inheritance diagram for tracktion::engine::AutomationSource:

Public Member Functions
	AutomationSource (const juce::ValueTree &v)
virtual float	getValueAt (TimePosition)=0
	Must return the value of automation at the given time.
virtual bool	isEnabledAt (TimePosition)=0
	Must return if the source is enabled at the given time.
virtual void	setPosition (TimePosition)=0
	Should set the position of the source to a specific time in the Edit.
virtual bool	isEnabled ()=0
	Should return true if the source is enabled at the current position.
virtual float	getCurrentValue ()=0
	Should return the current value of the source.
Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept
void	decReferenceCount () noexcept
bool	decReferenceCountWithoutDeleting () noexcept
int	getReferenceCount () const noexcept

Public Attributes
juce::ValueTree	state

Additional Inherited Members
Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept
	ReferenceCountedObject (ReferenceCountedObject &&) noexcept
ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept
ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept
void	resetReferenceCount () noexcept

Detailed Description

Definition at line 72 of file tracktion_AutomatableParameter.cpp.

Constructor & Destructor Documentation

AutomationSource()

tracktion::engine::AutomationSource::AutomationSource

(

const juce::ValueTree &

v

)

Definition at line 74 of file tracktion_AutomatableParameter.cpp.

Member Function Documentation

getCurrentValue()

virtual float tracktion::engine::AutomationSource::getCurrentValue ( )

pure virtual

Should return the current value of the source.

Implemented in tracktion::engine::ModifierAutomationSource, tracktion::engine::AutomationCurveSource, and tracktion::engine::MacroSource.

getValueAt()

virtual float tracktion::engine::AutomationSource::getValueAt ( TimePosition  )

pure virtual

Must return the value of automation at the given time.

This is called from the message thread and can be used for drawing etc. so shouldn't reposition the streams.

Implemented in tracktion::engine::AutomationCurveSource, tracktion::engine::MacroSource, and tracktion::engine::ModifierAutomationSource.

isEnabled()

virtual bool tracktion::engine::AutomationSource::isEnabled ( )

pure virtual

Should return true if the source is enabled at the current position.

Implemented in tracktion::engine::ModifierAutomationSource, tracktion::engine::AutomationCurveSource, and tracktion::engine::MacroSource.

isEnabledAt()

virtual bool tracktion::engine::AutomationSource::isEnabledAt ( TimePosition  )

pure virtual

Must return if the source is enabled at the given time.

This is called from the message thread and can be used for drawing etc. so shouldn't reposition the streams.

Implemented in tracktion::engine::ModifierAutomationSource, tracktion::engine::AutomationCurveSource, and tracktion::engine::MacroSource.

setPosition()

virtual void tracktion::engine::AutomationSource::setPosition ( TimePosition  )

pure virtual

Should set the position of the source to a specific time in the Edit.

This must be thread safe as it could be called from multiple threads.

Implemented in tracktion::engine::ModifierAutomationSource, tracktion::engine::AutomationCurveSource, and tracktion::engine::MacroSource.

Member Data Documentation

state

juce::ValueTree tracktion::engine::AutomationSource::state

Definition at line 100 of file tracktion_AutomatableParameter.cpp.

---

The documentation for this struct was generated from the following file:

• tracktion_engine/model/automation/tracktion_AutomatableParameter.cpp
