Default implementation for a VST 3 edit controller. More...

#include "vsteditcontroller.h"

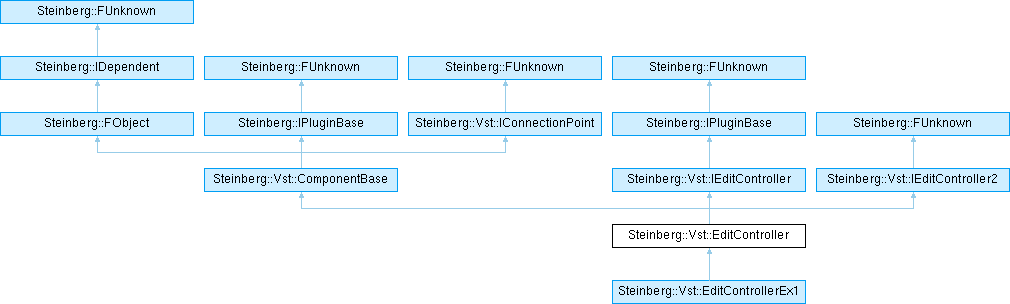

Inheritance diagram for Steinberg::Vst::EditController:

Public Member Functions
tresult PLUGIN_API	setComponentState (IBStream *state) SMTG_OVERRIDE
	Receives the component state.

tresult PLUGIN_API	setState (IBStream *state) SMTG_OVERRIDE
	Sets the controller state.

tresult PLUGIN_API	getState (IBStream *state) SMTG_OVERRIDE
	Gets the controller state.

int32 PLUGIN_API	getParameterCount () SMTG_OVERRIDE
	Returns the number of parameters exported.

tresult PLUGIN_API	getParameterInfo (int32 paramIndex, ParameterInfo &info) SMTG_OVERRIDE
	Gets for a given index the parameter information.

tresult PLUGIN_API	getParamStringByValue (ParamID tag, ParamValue valueNormalized, String128 string) SMTG_OVERRIDE
	Gets for a given paramID and normalized value its associated string representation.

tresult PLUGIN_API	getParamValueByString (ParamID tag, TChar *string, ParamValue &valueNormalized) SMTG_OVERRIDE
	Gets for a given paramID and string its normalized value.

ParamValue PLUGIN_API	normalizedParamToPlain (ParamID tag, ParamValue valueNormalized) SMTG_OVERRIDE
	Returns for a given paramID and a normalized value its plain representation (for example -6 for -6dB - see vst3AutomationIntro).

ParamValue PLUGIN_API	plainParamToNormalized (ParamID tag, ParamValue plainValue) SMTG_OVERRIDE
	Returns for a given paramID and a plain value its normalized value.

ParamValue PLUGIN_API	getParamNormalized (ParamID tag) SMTG_OVERRIDE
	Returns the normalized value of the parameter associated to the paramID.

tresult PLUGIN_API	setParamNormalized (ParamID tag, ParamValue value) SMTG_OVERRIDE
	Sets the normalized value to the parameter associated to the paramID.

tresult PLUGIN_API	setComponentHandler (IComponentHandler *handler) SMTG_OVERRIDE
	Gets from host a handler which allows the Plugin-in to communicate with the host.

IPlugView *PLUGIN_API	createView (FIDString) SMTG_OVERRIDE
	Creates the editor view of the plug-in, currently only "editor" is supported, see ViewType.

tresult PLUGIN_API	setKnobMode (KnobMode mode) SMTG_OVERRIDE
	Host could set the Knob Mode for the plug-in.

tresult PLUGIN_API	openHelp (TBool) SMTG_OVERRIDE
	Host could ask to open the plug-in help (could be: opening a PDF document or link to a web page).

tresult PLUGIN_API	openAboutBox (TBool) SMTG_OVERRIDE
	Host could ask to open the plug-in about box.

tresult PLUGIN_API	initialize (FUnknown *context) SMTG_OVERRIDE
	The host passes a number of interfaces as context to initialize the plug-in class.

tresult PLUGIN_API	terminate () SMTG_OVERRIDE
	This function is called before the plug-in is unloaded and can be used for cleanups.

virtual tresult	beginEdit (ParamID tag)
	to be called before a serie of performEdit

virtual tresult	performEdit (ParamID tag, ParamValue valueNormalized)
	will inform the host about the value change

virtual tresult	endEdit (ParamID tag)
	to be called after a serie of performEdit

virtual tresult	startGroupEdit ()
	calls IComponentHandler2::startGroupEdit() if host supports it

virtual tresult	finishGroupEdit ()
	calls IComponentHandler2::finishGroupEdit() if host supports it

virtual void	editorDestroyed (EditorView *)
	called from EditorView if it was destroyed

virtual void	editorAttached (EditorView *)
	called from EditorView if it was attached to a parent

virtual void	editorRemoved (EditorView *)
	called from EditorView if it was removed from a parent

virtual Parameter *	getParameterObject (ParamID tag)
	Gets for a given tag the parameter object.

virtual tresult	getParameterInfoByTag (ParamID tag, ParameterInfo &info)
	Gets for a given tag the parameter information.

virtual tresult	setDirty (TBool state)
	Calls IComponentHandler2::setDirty (state) if host supports it.

virtual tresult	requestOpenEditor (FIDString name=ViewType::kEditor)
	Calls IComponentHandler2::requestOpenEditor (name) if host supports it.

IComponentHandler *	getComponentHandler () const

Public Member Functions inherited from Steinberg::Vst::ComponentBase
FUnknown *	getHostContext () const
	Returns the hostContext (set by the host during initialize call).

IConnectionPoint *	getPeer () const
	Returns the peer for the messaging communication (you can only use IConnectionPoint::notify for communicate between peers, do not try to cast peerConnection.

IMessage *	allocateMessage () const
	Allocates a message instance (do not forget to release it).

tresult	sendMessage (IMessage *message) const
	Sends the given message to the peer.

tresult	sendTextMessage (const char8 *text) const
	Sends a simple text message to the peer (max 255 characters).

tresult	sendMessageID (const char8 *messageID) const
	Sends a message with a given ID without any other payload.

virtual tresult	receiveText (const char8 *text)
	Receives a simple text message from the peer (max 255 characters).

tresult PLUGIN_API	connect (IConnectionPoint *other) SMTG_OVERRIDE
	Connects this instance with another connection point.

tresult PLUGIN_API	disconnect (IConnectionPoint *other) SMTG_OVERRIDE
	Disconnects a given connection point from this.

tresult PLUGIN_API	notify (IMessage *message) SMTG_OVERRIDE
	Called when a message has been sent from the connection point to this.

Public Member Functions inherited from Steinberg::FObject
	FObject ()=default
	default constructor...

	FObject (const FObject &)

FObject &	operator= (const FObject &)
	overloads operator "=" as the reference assignment

virtual	~FObject ()
	destructor...

virtual FClassID	isA () const
	a local alternative to getFClassID ()

virtual bool	isA (FClassID s) const
	evaluates if the passed ID is of the FObject type

virtual bool	isTypeOf (FClassID s, bool=true) const
	evaluates if the passed ID is of the FObject type

int32	getRefCount ()
	returns the current interface reference count

FUnknown *	unknownCast ()
	get FUnknown interface from object

tresult PLUGIN_API	queryInterface (const TUID _iid, void **obj) SMTG_OVERRIDE
	please refer to FUnknown::queryInterface ()

uint32 PLUGIN_API	addRef () SMTG_OVERRIDE
	please refer to FUnknown::addref ()

uint32 PLUGIN_API	release () SMTG_OVERRIDE
	please refer to FUnknown::release ()

void PLUGIN_API	update (FUnknown *, int32) SMTG_OVERRIDE
	empty virtual method that should be overridden by derived classes for data updates upon changes

virtual void	addDependent (IDependent *dep)
	adds dependency to the object

virtual void	removeDependent (IDependent *dep)
	removes dependency from the object

virtual void	changed (int32 msg=kChanged)
	Inform all dependents, that the object has changed.

virtual void	deferUpdate (int32 msg=kChanged)
	Similar to triggerUpdates, except only delivered in idle (usefull in collecting updates).

virtual void	updateDone (int32)
	empty virtual method that should be overridden by derived classes

virtual bool	isEqualInstance (FUnknown *d)

Static Public Member Functions
static KnobMode	getHostKnobMode ()
	return host knob mode

Static Public Member Functions inherited from Steinberg::FObject
static FClassID	getFClassID ()
	return Class ID as an ASCII string (statically)

static void	setUpdateHandler (IUpdateHandler *handler)
	set method for the local attribute

static IUpdateHandler *	getUpdateHandler ()
	get method for the local attribute

static bool	classIDsEqual (FClassID ci1, FClassID ci2)
	compares (evaluates) 2 class IDs

static FObject *	unknownToObject (FUnknown *unknown)
	pointer conversion from FUnknown to FObject

Protected Attributes
IPtr< IComponentHandler >	componentHandler

IPtr< IComponentHandler2 >	componentHandler2

ParameterContainer	parameters

Protected Attributes inherited from Steinberg::Vst::ComponentBase
IPtr< FUnknown >	hostContext

IPtr< IConnectionPoint >	peerConnection

Protected Attributes inherited from Steinberg::FObject
int32	refCount
	COM-model local reference count.

Static Protected Attributes
static KnobMode	hostKnobMode

Static Protected Attributes inherited from Steinberg::FObject
static IUpdateHandler *	gUpdateHandler

Additional Inherited Members
Public Types inherited from Steinberg::IDependent
enum	ChangeMessage { kWillChange , kChanged , kDestroyed , kWillDestroy , kStdChangeMessageLast }

Static Public Attributes inherited from Steinberg::FObject
static const FUID	iid
	Special UID that is used to cast an FUnknown pointer to a FObject.

Static Public Attributes inherited from Steinberg::IDependent
static const FUID	iid

Static Public Attributes inherited from Steinberg::FUnknown
static const FUID	iid

Static Public Attributes inherited from Steinberg::IPluginBase
static const FUID	iid

Static Public Attributes inherited from Steinberg::Vst::IConnectionPoint
static const FUID	iid

Static Public Attributes inherited from Steinberg::Vst::IEditController
static const FUID	iid

Static Public Attributes inherited from Steinberg::Vst::IEditController2
static const FUID	iid

Detailed Description

Default implementation for a VST 3 edit controller.

Can be used as base class for a specific controller implementation

Definition at line 61 of file vsteditcontroller.h.

Constructor & Destructor Documentation

◆ EditController()

Steinberg::Vst::EditController::EditController ( )

Definition at line 51 of file vsteditcontroller.cpp.

Member Function Documentation

◆ beginEdit()

tresult Steinberg::Vst::EditController::beginEdit ( ParamID tag )

virtual

to be called before a serie of performEdit

Definition at line 195 of file vsteditcontroller.cpp.

◆ createView()

IPlugView *PLUGIN_API Steinberg::Vst::EditController::createView ( FIDString name )

virtual

Creates the editor view of the plug-in, currently only "editor" is supported, see ViewType.

The life time of the editor view will never exceed the life time of this controller instance.

Implements Steinberg::Vst::IEditController.

Definition at line 80 of file vsteditcontroller.h.

◆ editorAttached()

virtual void Steinberg::Vst::EditController::editorAttached ( EditorView * )

virtual

called from EditorView if it was attached to a parent

Definition at line 99 of file vsteditcontroller.h.

◆ editorDestroyed()

virtual void Steinberg::Vst::EditController::editorDestroyed ( EditorView * )

virtual

called from EditorView if it was destroyed

Definition at line 98 of file vsteditcontroller.h.

◆ editorRemoved()

virtual void Steinberg::Vst::EditController::editorRemoved ( EditorView * )

virtual

called from EditorView if it was removed from a parent

Definition at line 100 of file vsteditcontroller.h.

◆ endEdit()

tresult Steinberg::Vst::EditController::endEdit ( ParamID tag )

virtual

to be called after a serie of performEdit

Definition at line 215 of file vsteditcontroller.cpp.

◆ finishGroupEdit()

tresult Steinberg::Vst::EditController::finishGroupEdit ( )

virtual

calls IComponentHandler2::finishGroupEdit() if host supports it

Definition at line 235 of file vsteditcontroller.cpp.

◆ getComponentHandler()

IComponentHandler * Steinberg::Vst::EditController::getComponentHandler ( ) const

Definition at line 117 of file vsteditcontroller.h.

◆ getHostKnobMode()

static KnobMode Steinberg::Vst::EditController::getHostKnobMode ( )

static

return host knob mode

Definition at line 102 of file vsteditcontroller.h.

◆ getParameterCount()

int32 PLUGIN_API Steinberg::Vst::EditController::getParameterCount ( )

virtual

Returns the number of parameters exported.

Implements Steinberg::Vst::IEditController.

Definition at line 91 of file vsteditcontroller.cpp.

◆ getParameterInfo()

tresult PLUGIN_API Steinberg::Vst::EditController::getParameterInfo	(	int32	paramIndex,
		ParameterInfo &	info
	)

virtual

Gets for a given index the parameter information.

Implements Steinberg::Vst::IEditController.

Definition at line 97 of file vsteditcontroller.cpp.

◆ getParameterInfoByTag()

tresult Steinberg::Vst::EditController::getParameterInfoByTag	(	ParamID	tag,
		ParameterInfo &	info
	)

virtual

Gets for a given tag the parameter information.

Definition at line 245 of file vsteditcontroller.cpp.

◆ getParameterObject()

virtual Parameter * Steinberg::Vst::EditController::getParameterObject ( ParamID tag )

virtual

Gets for a given tag the parameter object.

Definition at line 105 of file vsteditcontroller.h.

◆ getParamNormalized()

ParamValue PLUGIN_API Steinberg::Vst::EditController::getParamNormalized ( ParamID id )

virtual

Returns the normalized value of the parameter associated to the paramID.

Implements Steinberg::Vst::IEditController.

Definition at line 155 of file vsteditcontroller.cpp.

◆ getParamStringByValue()

tresult PLUGIN_API Steinberg::Vst::EditController::getParamStringByValue	(	ParamID	id,
		ParamValue	valueNormalized,
		String128	string
	)

virtual

Gets for a given paramID and normalized value its associated string representation.

Implements Steinberg::Vst::IEditController.

Definition at line 108 of file vsteditcontroller.cpp.

◆ getParamValueByString()

tresult PLUGIN_API Steinberg::Vst::EditController::getParamValueByString	(	ParamID	id,
		TChar *	string,
		ParamValue &	valueNormalized
	)

virtual

Gets for a given paramID and string its normalized value.

Implements Steinberg::Vst::IEditController.

Definition at line 120 of file vsteditcontroller.cpp.

◆ getState()

tresult PLUGIN_API Steinberg::Vst::EditController::getState ( IBStream * state )

virtual

Gets the controller state.

Implements Steinberg::Vst::IEditController.

Definition at line 85 of file vsteditcontroller.cpp.

◆ initialize()

tresult PLUGIN_API Steinberg::Vst::EditController::initialize ( FUnknown * context )

virtual

The host passes a number of interfaces as context to initialize the plug-in class.

Parameters

context,passed by the host, is mandatory and should implement IHostApplication

Note: Extensive memory allocations etc. should be performed in this method rather than in the class' constructor! If the method does NOT return kResultOk, the object is released immediately. In this case terminate is not called!

Reimplemented from Steinberg::Vst::ComponentBase.

Definition at line 56 of file vsteditcontroller.cpp.

◆ normalizedParamToPlain()

ParamValue PLUGIN_API Steinberg::Vst::EditController::normalizedParamToPlain	(	ParamID	id,
		ParamValue	valueNormalized
	)

virtual

Returns for a given paramID and a normalized value its plain representation (for example -6 for -6dB - see vst3AutomationIntro).

Implements Steinberg::Vst::IEditController.

Definition at line 134 of file vsteditcontroller.cpp.

◆ openAboutBox()

tresult PLUGIN_API Steinberg::Vst::EditController::openAboutBox ( TBool onlyCheck )

virtual

Host could ask to open the plug-in about box.

The host could call it with onlyCheck set to true for testing support of open AboutBox. Return kResultFalse means not supported function.

Implements Steinberg::Vst::IEditController2.

Definition at line 85 of file vsteditcontroller.h.

◆ openHelp()

tresult PLUGIN_API Steinberg::Vst::EditController::openHelp ( TBool onlyCheck )

virtual

Host could ask to open the plug-in help (could be: opening a PDF document or link to a web page).

The host could call it with onlyCheck set to true for testing support of open Help. Return kResultFalse means not supported function.

Implements Steinberg::Vst::IEditController2.

Definition at line 84 of file vsteditcontroller.h.

◆ performEdit()

tresult Steinberg::Vst::EditController::performEdit	(	ParamID	tag,
		ParamValue	valueNormalized
	)

virtual

will inform the host about the value change

Definition at line 205 of file vsteditcontroller.cpp.

◆ plainParamToNormalized()

ParamValue PLUGIN_API Steinberg::Vst::EditController::plainParamToNormalized	(	ParamID	id,
		ParamValue	plainValue
	)

virtual

Returns for a given paramID and a plain value its normalized value.

(see vst3AutomationIntro)

Implements Steinberg::Vst::IEditController.

Definition at line 145 of file vsteditcontroller.cpp.

◆ requestOpenEditor()

tresult Steinberg::Vst::EditController::requestOpenEditor ( FIDString name = ViewType::kEditor )

virtual

Calls IComponentHandler2::requestOpenEditor (name) if host supports it.

Definition at line 266 of file vsteditcontroller.cpp.

◆ setComponentHandler()

tresult PLUGIN_API Steinberg::Vst::EditController::setComponentHandler ( IComponentHandler * handler )

virtual

Gets from host a handler which allows the Plugin-in to communicate with the host.

Note: This is mandatory if the host is using the IEditController!

Implements Steinberg::Vst::IEditController.

Definition at line 176 of file vsteditcontroller.cpp.

◆ setComponentState()

tresult PLUGIN_API Steinberg::Vst::EditController::setComponentState ( IBStream * state )

virtual

Receives the component state.

Implements Steinberg::Vst::IEditController.

Definition at line 73 of file vsteditcontroller.cpp.

◆ setDirty()

tresult Steinberg::Vst::EditController::setDirty ( TBool state )

virtual

Calls IComponentHandler2::setDirty (state) if host supports it.

Definition at line 256 of file vsteditcontroller.cpp.

◆ setKnobMode()

tresult PLUGIN_API Steinberg::Vst::EditController::setKnobMode ( KnobMode mode )

virtual

Host could set the Knob Mode for the plug-in.

Return kResultFalse means not supported mode.

See also: KnobModes.

Implements Steinberg::Vst::IEditController2.

Definition at line 83 of file vsteditcontroller.h.

◆ setParamNormalized()

tresult PLUGIN_API Steinberg::Vst::EditController::setParamNormalized	(	ParamID	id,
		ParamValue	value
	)

virtual

Sets the normalized value to the parameter associated to the paramID.

The controller must never pass this value-change back to the host via the IComponentHandler. It should update the according GUI element(s) only!

Implements Steinberg::Vst::IEditController.

Definition at line 165 of file vsteditcontroller.cpp.

◆ setState()

tresult PLUGIN_API Steinberg::Vst::EditController::setState ( IBStream * state )

virtual

Sets the controller state.

Implements Steinberg::Vst::IEditController.

Definition at line 79 of file vsteditcontroller.cpp.

◆ startGroupEdit()

tresult Steinberg::Vst::EditController::startGroupEdit ( )

virtual

calls IComponentHandler2::startGroupEdit() if host supports it

Definition at line 225 of file vsteditcontroller.cpp.

◆ terminate()

tresult PLUGIN_API Steinberg::Vst::EditController::terminate ( )

virtual

This function is called before the plug-in is unloaded and can be used for cleanups.

You have to release all references to any host application interfaces.

Reimplemented from Steinberg::Vst::ComponentBase.

Reimplemented in Steinberg::Vst::EditControllerEx1.

Definition at line 62 of file vsteditcontroller.cpp.

Member Data Documentation

◆ componentHandler

IPtr<IComponentHandler> Steinberg::Vst::EditController::componentHandler

protected

Definition at line 128 of file vsteditcontroller.h.

◆ componentHandler2

IPtr<IComponentHandler2> Steinberg::Vst::EditController::componentHandler2

protected

Definition at line 129 of file vsteditcontroller.h.

◆ hostKnobMode

KnobMode Steinberg::Vst::EditController::hostKnobMode

staticprotected

Definition at line 133 of file vsteditcontroller.h.

◆ parameters

ParameterContainer Steinberg::Vst::EditController::parameters

protected

Definition at line 131 of file vsteditcontroller.h.

The documentation for this class was generated from the following files:

juce_audio_processors/format_types/VST3_SDK/public.sdk/source/vst/vsteditcontroller.h
juce_audio_processors/format_types/VST3_SDK/public.sdk/source/vst/vsteditcontroller.cpp

Public Member Functions

Static Public Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EditController()

Member Function Documentation

◆ beginEdit()

◆ createView()

◆ editorAttached()

◆ editorDestroyed()

◆ editorRemoved()

◆ endEdit()

◆ finishGroupEdit()

◆ getComponentHandler()

◆ getHostKnobMode()

◆ getParameterCount()

◆ getParameterInfo()

◆ getParameterInfoByTag()

◆ getParameterObject()

◆ getParamNormalized()

◆ getParamStringByValue()

◆ getParamValueByString()

◆ getState()

◆ initialize()

◆ normalizedParamToPlain()

◆ openAboutBox()

◆ openHelp()

◆ performEdit()

◆ plainParamToNormalized()

◆ requestOpenEditor()

◆ setComponentHandler()

◆ setComponentState()

◆ setDirty()

◆ setKnobMode()

◆ setParamNormalized()

◆ setState()

◆ startGroupEdit()

◆ terminate()

Member Data Documentation

◆ componentHandler

◆ componentHandler2

◆ hostKnobMode

◆ parameters
