Advanced implementation (support IUnitInfo) for a VST 3 edit controller. More...

#include "vsteditcontroller.h"

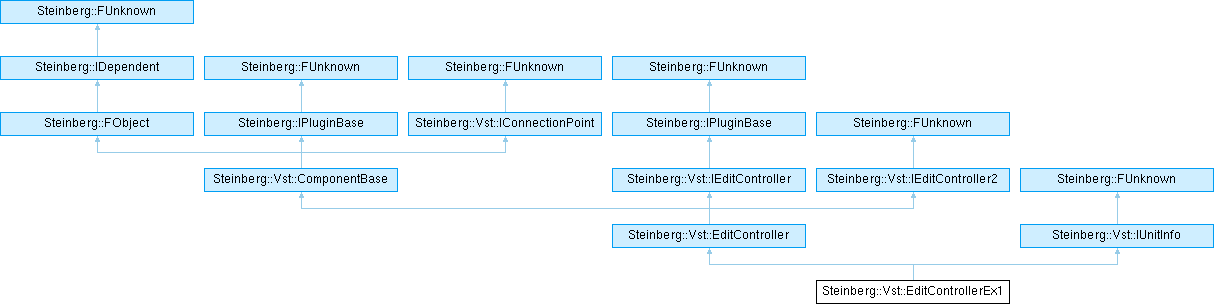

Inheritance diagram for Steinberg::Vst::EditControllerEx1:

Public Member Functions
tresult PLUGIN_API	terminate () SMTG_OVERRIDE
	This function is called before the plug-in is unloaded and can be used for cleanups.

bool	addUnit (Unit *unit)
	Adds a given unit.

bool	addProgramList (ProgramList *list)
	Adds a given program list.

ProgramList *	getProgramList (ProgramListID listId) const
	Returns the ProgramList associated to a given listId.

tresult	notifyProgramListChange (ProgramListID listId, int32 programIndex=kAllProgramInvalid)
	Notifies the host about program list changes.

int32 PLUGIN_API	getUnitCount () SMTG_OVERRIDE
	Returns the flat count of units.

tresult PLUGIN_API	getUnitInfo (int32 unitIndex, UnitInfo &info) SMTG_OVERRIDE
	Gets UnitInfo for a given index in the flat list of unit.

int32 PLUGIN_API	getProgramListCount () SMTG_OVERRIDE
	Component intern program structure.

tresult PLUGIN_API	getProgramListInfo (int32 listIndex, ProgramListInfo &info) SMTG_OVERRIDE
	Gets for a given index the Program List Info.

tresult PLUGIN_API	getProgramName (ProgramListID listId, int32 programIndex, String128 name) SMTG_OVERRIDE
	Gets for a given program list ID and program index its program name.

tresult PLUGIN_API	getProgramInfo (ProgramListID listId, int32 programIndex, CString attributeId, String128 attributeValue) SMTG_OVERRIDE
	Gets for a given program list ID, program index and attributeId the associated attribute value.

tresult PLUGIN_API	hasProgramPitchNames (ProgramListID listId, int32 programIndex) SMTG_OVERRIDE
	Returns kResultTrue if the given program index of a given program list ID supports PitchNames.

tresult PLUGIN_API	getProgramPitchName (ProgramListID listId, int32 programIndex, int16 midiPitch, String128 name) SMTG_OVERRIDE
	Gets the PitchName for a given program list ID, program index and pitch.

virtual tresult	setProgramName (ProgramListID listId, int32 programIndex, const String128 name)

UnitID PLUGIN_API	getSelectedUnit () SMTG_OVERRIDE
	Gets the current selected unit.

tresult PLUGIN_API	selectUnit (UnitID unitId) SMTG_OVERRIDE
	Sets a new selected unit.

tresult PLUGIN_API	getUnitByBus (MediaType, BusDirection, int32, int32, UnitID &) SMTG_OVERRIDE
	Gets the according unit if there is an unambiguous relation between a channel or a bus and a unit.

tresult PLUGIN_API	setUnitProgramData (int32, int32, IBStream *) SMTG_OVERRIDE
	Receives a preset data stream.

virtual tresult	notifyUnitSelection ()
	Notifies the host about the selected Unit.

void PLUGIN_API	update (FUnknown *changedUnknown, int32 message) SMTG_OVERRIDE
	Inform the dependent, that the passed FUnknown has changed.

Public Member Functions inherited from Steinberg::Vst::EditController
tresult PLUGIN_API	setComponentState (IBStream *state) SMTG_OVERRIDE
	Receives the component state.

tresult PLUGIN_API	setState (IBStream *state) SMTG_OVERRIDE
	Sets the controller state.

tresult PLUGIN_API	getState (IBStream *state) SMTG_OVERRIDE
	Gets the controller state.

int32 PLUGIN_API	getParameterCount () SMTG_OVERRIDE
	Returns the number of parameters exported.

tresult PLUGIN_API	getParameterInfo (int32 paramIndex, ParameterInfo &info) SMTG_OVERRIDE
	Gets for a given index the parameter information.

tresult PLUGIN_API	getParamStringByValue (ParamID tag, ParamValue valueNormalized, String128 string) SMTG_OVERRIDE
	Gets for a given paramID and normalized value its associated string representation.

tresult PLUGIN_API	getParamValueByString (ParamID tag, TChar *string, ParamValue &valueNormalized) SMTG_OVERRIDE
	Gets for a given paramID and string its normalized value.

ParamValue PLUGIN_API	normalizedParamToPlain (ParamID tag, ParamValue valueNormalized) SMTG_OVERRIDE
	Returns for a given paramID and a normalized value its plain representation (for example -6 for -6dB - see vst3AutomationIntro).

ParamValue PLUGIN_API	plainParamToNormalized (ParamID tag, ParamValue plainValue) SMTG_OVERRIDE
	Returns for a given paramID and a plain value its normalized value.

ParamValue PLUGIN_API	getParamNormalized (ParamID tag) SMTG_OVERRIDE
	Returns the normalized value of the parameter associated to the paramID.

tresult PLUGIN_API	setParamNormalized (ParamID tag, ParamValue value) SMTG_OVERRIDE
	Sets the normalized value to the parameter associated to the paramID.

tresult PLUGIN_API	setComponentHandler (IComponentHandler *handler) SMTG_OVERRIDE
	Gets from host a handler which allows the Plugin-in to communicate with the host.

IPlugView *PLUGIN_API	createView (FIDString) SMTG_OVERRIDE
	Creates the editor view of the plug-in, currently only "editor" is supported, see ViewType.

tresult PLUGIN_API	setKnobMode (KnobMode mode) SMTG_OVERRIDE
	Host could set the Knob Mode for the plug-in.

tresult PLUGIN_API	openHelp (TBool) SMTG_OVERRIDE
	Host could ask to open the plug-in help (could be: opening a PDF document or link to a web page).

tresult PLUGIN_API	openAboutBox (TBool) SMTG_OVERRIDE
	Host could ask to open the plug-in about box.

tresult PLUGIN_API	initialize (FUnknown *context) SMTG_OVERRIDE
	The host passes a number of interfaces as context to initialize the plug-in class.

virtual tresult	beginEdit (ParamID tag)
	to be called before a serie of performEdit

virtual tresult	performEdit (ParamID tag, ParamValue valueNormalized)
	will inform the host about the value change

virtual tresult	endEdit (ParamID tag)
	to be called after a serie of performEdit

virtual tresult	startGroupEdit ()
	calls IComponentHandler2::startGroupEdit() if host supports it

virtual tresult	finishGroupEdit ()
	calls IComponentHandler2::finishGroupEdit() if host supports it

virtual void	editorDestroyed (EditorView *)
	called from EditorView if it was destroyed

virtual void	editorAttached (EditorView *)
	called from EditorView if it was attached to a parent

virtual void	editorRemoved (EditorView *)
	called from EditorView if it was removed from a parent

virtual Parameter *	getParameterObject (ParamID tag)
	Gets for a given tag the parameter object.

virtual tresult	getParameterInfoByTag (ParamID tag, ParameterInfo &info)
	Gets for a given tag the parameter information.

virtual tresult	setDirty (TBool state)
	Calls IComponentHandler2::setDirty (state) if host supports it.

virtual tresult	requestOpenEditor (FIDString name=ViewType::kEditor)
	Calls IComponentHandler2::requestOpenEditor (name) if host supports it.

IComponentHandler *	getComponentHandler () const

Public Member Functions inherited from Steinberg::Vst::ComponentBase
FUnknown *	getHostContext () const
	Returns the hostContext (set by the host during initialize call).

IConnectionPoint *	getPeer () const
	Returns the peer for the messaging communication (you can only use IConnectionPoint::notify for communicate between peers, do not try to cast peerConnection.

IMessage *	allocateMessage () const
	Allocates a message instance (do not forget to release it).

tresult	sendMessage (IMessage *message) const
	Sends the given message to the peer.

tresult	sendTextMessage (const char8 *text) const
	Sends a simple text message to the peer (max 255 characters).

tresult	sendMessageID (const char8 *messageID) const
	Sends a message with a given ID without any other payload.

virtual tresult	receiveText (const char8 *text)
	Receives a simple text message from the peer (max 255 characters).

tresult PLUGIN_API	connect (IConnectionPoint *other) SMTG_OVERRIDE
	Connects this instance with another connection point.

tresult PLUGIN_API	disconnect (IConnectionPoint *other) SMTG_OVERRIDE
	Disconnects a given connection point from this.

tresult PLUGIN_API	notify (IMessage *message) SMTG_OVERRIDE
	Called when a message has been sent from the connection point to this.

Public Member Functions inherited from Steinberg::FObject
	FObject ()=default
	default constructor...

	FObject (const FObject &)

FObject &	operator= (const FObject &)
	overloads operator "=" as the reference assignment

virtual	~FObject ()
	destructor...

virtual FClassID	isA () const
	a local alternative to getFClassID ()

virtual bool	isA (FClassID s) const
	evaluates if the passed ID is of the FObject type

virtual bool	isTypeOf (FClassID s, bool=true) const
	evaluates if the passed ID is of the FObject type

int32	getRefCount ()
	returns the current interface reference count

FUnknown *	unknownCast ()
	get FUnknown interface from object

tresult PLUGIN_API	queryInterface (const TUID _iid, void **obj) SMTG_OVERRIDE
	please refer to FUnknown::queryInterface ()

uint32 PLUGIN_API	addRef () SMTG_OVERRIDE
	please refer to FUnknown::addref ()

uint32 PLUGIN_API	release () SMTG_OVERRIDE
	please refer to FUnknown::release ()

void PLUGIN_API	update (FUnknown *, int32) SMTG_OVERRIDE
	empty virtual method that should be overridden by derived classes for data updates upon changes

virtual void	addDependent (IDependent *dep)
	adds dependency to the object

virtual void	removeDependent (IDependent *dep)
	removes dependency from the object

virtual void	changed (int32 msg=kChanged)
	Inform all dependents, that the object has changed.

virtual void	deferUpdate (int32 msg=kChanged)
	Similar to triggerUpdates, except only delivered in idle (usefull in collecting updates).

virtual void	updateDone (int32)
	empty virtual method that should be overridden by derived classes

virtual bool	isEqualInstance (FUnknown *d)

Protected Types
using	ProgramListVector = std::vector< IPtr< ProgramList > >

using	ProgramIndexMap = std::map< ProgramListID, ProgramListVector::size_type >

using	UnitVector = std::vector< IPtr< Unit > >

Protected Attributes
UnitVector	units

ProgramListVector	programLists

ProgramIndexMap	programIndexMap

UnitID	selectedUnit

Protected Attributes inherited from Steinberg::Vst::EditController
IPtr< IComponentHandler >	componentHandler

IPtr< IComponentHandler2 >	componentHandler2

ParameterContainer	parameters

Protected Attributes inherited from Steinberg::Vst::ComponentBase
IPtr< FUnknown >	hostContext

IPtr< IConnectionPoint >	peerConnection

Protected Attributes inherited from Steinberg::FObject
int32	refCount
	COM-model local reference count.

Additional Inherited Members
Public Types inherited from Steinberg::IDependent
enum	ChangeMessage { kWillChange , kChanged , kDestroyed , kWillDestroy , kStdChangeMessageLast }

Static Public Member Functions inherited from Steinberg::Vst::EditController
static KnobMode	getHostKnobMode ()
	return host knob mode

Static Public Member Functions inherited from Steinberg::FObject
static FClassID	getFClassID ()
	return Class ID as an ASCII string (statically)

static void	setUpdateHandler (IUpdateHandler *handler)
	set method for the local attribute

static IUpdateHandler *	getUpdateHandler ()
	get method for the local attribute

static bool	classIDsEqual (FClassID ci1, FClassID ci2)
	compares (evaluates) 2 class IDs

static FObject *	unknownToObject (FUnknown *unknown)
	pointer conversion from FUnknown to FObject

Static Public Attributes inherited from Steinberg::FObject
static const FUID	iid
	Special UID that is used to cast an FUnknown pointer to a FObject.

Static Public Attributes inherited from Steinberg::IDependent
static const FUID	iid

Static Public Attributes inherited from Steinberg::FUnknown
static const FUID	iid

Static Public Attributes inherited from Steinberg::IPluginBase
static const FUID	iid

Static Public Attributes inherited from Steinberg::Vst::IConnectionPoint
static const FUID	iid

Static Public Attributes inherited from Steinberg::Vst::IEditController
static const FUID	iid

Static Public Attributes inherited from Steinberg::Vst::IEditController2
static const FUID	iid

Static Public Attributes inherited from Steinberg::Vst::IUnitInfo
static const FUID	iid

Static Protected Attributes inherited from Steinberg::Vst::EditController
static KnobMode	hostKnobMode

Static Protected Attributes inherited from Steinberg::FObject
static IUpdateHandler *	gUpdateHandler

Detailed Description

Advanced implementation (support IUnitInfo) for a VST 3 edit controller.

[extends EditController]

Definition at line 288 of file vsteditcontroller.h.

Member Typedef Documentation

◆ ProgramIndexMap

using Steinberg::Vst::EditControllerEx1::ProgramIndexMap = std::map<ProgramListID, ProgramListVector::size_type>

protected

Definition at line 364 of file vsteditcontroller.h.

◆ ProgramListVector

using Steinberg::Vst::EditControllerEx1::ProgramListVector = std::vector<IPtr<ProgramList> >

protected

Definition at line 363 of file vsteditcontroller.h.

◆ UnitVector

using Steinberg::Vst::EditControllerEx1::UnitVector = std::vector<IPtr<Unit> >

protected

Definition at line 365 of file vsteditcontroller.h.

Constructor & Destructor Documentation

◆ EditControllerEx1()

Steinberg::Vst::EditControllerEx1::EditControllerEx1 ( )

Definition at line 316 of file vsteditcontroller.cpp.

◆ ~EditControllerEx1()

Steinberg::Vst::EditControllerEx1::~EditControllerEx1 ( )

override

Definition at line 322 of file vsteditcontroller.cpp.

Member Function Documentation

◆ addProgramList()

bool Steinberg::Vst::EditControllerEx1::addProgramList ( ProgramList * list )

Adds a given program list.

Definition at line 373 of file vsteditcontroller.cpp.

◆ addUnit()

bool Steinberg::Vst::EditControllerEx1::addUnit ( Unit * unit )

Adds a given unit.

Definition at line 343 of file vsteditcontroller.cpp.

◆ getProgramInfo()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::getProgramInfo	(	ProgramListID	listId,
		int32	programIndex,
		CString	attributeId,
		String128	attributeValue
	)

virtual

Gets for a given program list ID, program index and attributeId the associated attribute value.

Implements Steinberg::Vst::IUnitInfo.

Definition at line 439 of file vsteditcontroller.cpp.

◆ getProgramList()

ProgramList * Steinberg::Vst::EditControllerEx1::getProgramList ( ProgramListID listId ) const

Returns the ProgramList associated to a given listId.

Definition at line 382 of file vsteditcontroller.cpp.

◆ getProgramListCount()

int32 PLUGIN_API Steinberg::Vst::EditControllerEx1::getProgramListCount ( )

virtual

Component intern program structure.

Gets the count of Program List.

Implements Steinberg::Vst::IUnitInfo.

Definition at line 399 of file vsteditcontroller.cpp.

◆ getProgramListInfo()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::getProgramListInfo	(	int32	listIndex,
		ProgramListInfo &	info
	)

virtual

Gets for a given index the Program List Info.

Implements Steinberg::Vst::IUnitInfo.

Definition at line 405 of file vsteditcontroller.cpp.

◆ getProgramName()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::getProgramName	(	ProgramListID	listId,
		int32	programIndex,
		String128	name
	)

virtual

Gets for a given program list ID and program index its program name.

Implements Steinberg::Vst::IUnitInfo.

Definition at line 415 of file vsteditcontroller.cpp.

◆ getProgramPitchName()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::getProgramPitchName	(	ProgramListID	listId,
		int32	programIndex,
		int16	midiPitch,
		String128	name
	)

virtual

Gets the PitchName for a given program list ID, program index and pitch.

If PitchNames are changed the plug-in should inform the host with IUnitHandler::notifyProgramListChange.

Implements Steinberg::Vst::IUnitInfo.

Definition at line 464 of file vsteditcontroller.cpp.

◆ getSelectedUnit()

UnitID PLUGIN_API Steinberg::Vst::EditControllerEx1::getSelectedUnit ( )

virtual

Gets the current selected unit.

Implements Steinberg::Vst::IUnitInfo.

Definition at line 331 of file vsteditcontroller.h.

◆ getUnitByBus()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::getUnitByBus	(	MediaType	type,
		BusDirection	dir,
		int32	busIndex,
		int32	channel,
		UnitID &	unitId
	)

virtual

Gets the according unit if there is an unambiguous relation between a channel or a bus and a unit.

This method mainly is intended to find out which unit is related to a given MIDI input channel.

Implements Steinberg::Vst::IUnitInfo.

Definition at line 338 of file vsteditcontroller.h.

◆ getUnitCount()

int32 PLUGIN_API Steinberg::Vst::EditControllerEx1::getUnitCount ( )

virtual

Returns the flat count of units.

Implements Steinberg::Vst::IUnitInfo.

Definition at line 310 of file vsteditcontroller.h.

◆ getUnitInfo()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::getUnitInfo	(	int32	unitIndex,
		UnitInfo &	info
	)

virtual

Gets UnitInfo for a given index in the flat list of unit.

Implements Steinberg::Vst::IUnitInfo.

Definition at line 350 of file vsteditcontroller.cpp.

◆ hasProgramPitchNames()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::hasProgramPitchNames	(	ProgramListID	listId,
		int32	programIndex
	)

virtual

Returns kResultTrue if the given program index of a given program list ID supports PitchNames.

Implements Steinberg::Vst::IUnitInfo.

Definition at line 452 of file vsteditcontroller.cpp.

◆ notifyProgramListChange()

tresult Steinberg::Vst::EditControllerEx1::notifyProgramListChange	(	ProgramListID	listId,
		int32	programIndex = `kAllProgramInvalid`
	)

Notifies the host about program list changes.

Definition at line 389 of file vsteditcontroller.cpp.

◆ notifyUnitSelection()

tresult Steinberg::Vst::EditControllerEx1::notifyUnitSelection ( )

virtual

Notifies the host about the selected Unit.

Definition at line 363 of file vsteditcontroller.cpp.

◆ selectUnit()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::selectUnit ( UnitID unitId )

virtual

Sets a new selected unit.

Implements Steinberg::Vst::IUnitInfo.

Definition at line 332 of file vsteditcontroller.h.

◆ setProgramName()

tresult Steinberg::Vst::EditControllerEx1::setProgramName	(	ProgramListID	listId,
		int32	programIndex,
		const String128	name
	)

virtual

Definition at line 427 of file vsteditcontroller.cpp.

◆ setUnitProgramData()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::setUnitProgramData	(	int32	listOrUnitId,
		int32	programIndex,
		IBStream *	data
	)

virtual

Receives a preset data stream.

If the component supports program list data (IProgramListData), the destination of the data stream is the program specified by list-Id and program index (first and second parameter)
If the component supports unit data (IUnitData), the destination is the unit specified by the first parameter - in this case parameter programIndex is < 0).

Implements Steinberg::Vst::IUnitInfo.

Definition at line 343 of file vsteditcontroller.h.

◆ terminate()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::terminate ( )

virtual

This function is called before the plug-in is unloaded and can be used for cleanups.

You have to release all references to any host application interfaces.

Reimplemented from Steinberg::Vst::EditController.

Definition at line 327 of file vsteditcontroller.cpp.

◆ update()

void PLUGIN_API Steinberg::Vst::EditControllerEx1::update	(	FUnknown *	changedUnknown,
		int32	message
	)

virtual

Inform the dependent, that the passed FUnknown has changed.

Implements Steinberg::IDependent.

Definition at line 476 of file vsteditcontroller.cpp.

Member Data Documentation

◆ programIndexMap

ProgramIndexMap Steinberg::Vst::EditControllerEx1::programIndexMap

protected

Definition at line 368 of file vsteditcontroller.h.

◆ programLists

ProgramListVector Steinberg::Vst::EditControllerEx1::programLists

protected

Definition at line 367 of file vsteditcontroller.h.

◆ selectedUnit

UnitID Steinberg::Vst::EditControllerEx1::selectedUnit

protected

Definition at line 369 of file vsteditcontroller.h.

◆ units

UnitVector Steinberg::Vst::EditControllerEx1::units

protected

Definition at line 366 of file vsteditcontroller.h.

The documentation for this class was generated from the following files:

juce_audio_processors/format_types/VST3_SDK/public.sdk/source/vst/vsteditcontroller.h
juce_audio_processors/format_types/VST3_SDK/public.sdk/source/vst/vsteditcontroller.cpp

Public Member Functions

Protected Types

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ProgramIndexMap

◆ ProgramListVector

◆ UnitVector

Constructor & Destructor Documentation

◆ EditControllerEx1()

◆ ~EditControllerEx1()

Member Function Documentation

◆ addProgramList()

◆ addUnit()

◆ getProgramInfo()

◆ getProgramList()

◆ getProgramListCount()

◆ getProgramListInfo()

◆ getProgramName()

◆ getProgramPitchName()

◆ getSelectedUnit()

◆ getUnitByBus()

◆ getUnitCount()

◆ getUnitInfo()

◆ hasProgramPitchNames()

◆ notifyProgramListChange()

◆ notifyUnitSelection()

◆ selectUnit()

◆ setProgramName()

◆ setUnitProgramData()

◆ terminate()

◆ update()

Member Data Documentation

◆ programIndexMap

◆ programLists

◆ selectedUnit

◆ units
