Base class for Component::Positioners that are based upon relative coordinates. More...

#include "juce_RelativeCoordinatePositioner.h"

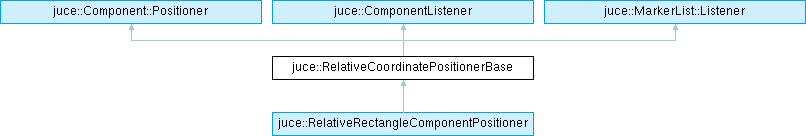

Inheritance diagram for juce::RelativeCoordinatePositionerBase:

Classes
class	ComponentScope
	Used for resolving a RelativeCoordinate expression in the context of a component. More...

class	DependencyFinderScope

Public Member Functions
	RelativeCoordinatePositionerBase (Component &)

void	componentMovedOrResized (Component &, bool, bool) override
	Called when the component's position or size changes.

void	componentParentHierarchyChanged (Component &) override
	Called to indicate that the component's parents have changed.

void	componentChildrenChanged (Component &) override
	Called when the component has children added or removed, or their z-order changes.

void	componentBeingDeleted (Component &) override
	Called when the component is in the process of being deleted.

void	markersChanged (MarkerList *) override
	Called when something in the given marker list changes.

void	markerListBeingDeleted (MarkerList *) override
	Called when the given marker list is being deleted.

void	apply ()

bool	addCoordinate (const RelativeCoordinate &)

bool	addPoint (const RelativePoint &)

Public Member Functions inherited from juce::Component::Positioner
	Positioner (Component &component) noexcept
	Creates a Positioner which can control the specified component.

virtual	~Positioner ()=default
	Destructor.

Component &	getComponent () const noexcept
	Returns the component that this positioner controls.

virtual void	applyNewBounds (const Rectangle< int > &newBounds)=0
	Attempts to set the component's position to the given rectangle.

Public Member Functions inherited from juce::ComponentListener
virtual	~ComponentListener ()=default
	Destructor.

virtual void	componentBroughtToFront (Component &component)
	Called when the component is brought to the top of the z-order.

virtual void	componentVisibilityChanged (Component &component)
	Called when the component is made visible or invisible.

virtual void	componentNameChanged (Component &component)
	Called when the component's name is changed.

virtual void	componentEnablementChanged (Component &component)

Public Member Functions inherited from juce::MarkerList::Listener
virtual	~Listener ()=default
	Destructor.

Protected Member Functions
virtual bool	registerCoordinates ()=0

virtual void	applyToComponentBounds ()=0

Friends
class	DependencyFinderScope

Detailed Description

Base class for Component::Positioners that are based upon relative coordinates.

@tags{GUI}

Definition at line 35 of file juce_RelativeCoordinatePositioner.h.

Constructor & Destructor Documentation

◆ RelativeCoordinatePositionerBase()

juce::RelativeCoordinatePositionerBase::RelativeCoordinatePositionerBase ( Component & comp )

Definition at line 236 of file juce_RelativeCoordinatePositioner.cpp.

◆ ~RelativeCoordinatePositionerBase()

juce::RelativeCoordinatePositionerBase::~RelativeCoordinatePositionerBase ( )

override

Definition at line 241 of file juce_RelativeCoordinatePositioner.cpp.

Member Function Documentation

◆ addCoordinate()

bool juce::RelativeCoordinatePositionerBase::addCoordinate ( const RelativeCoordinate & coord )

Definition at line 291 of file juce_RelativeCoordinatePositioner.cpp.

◆ addPoint()

bool juce::RelativeCoordinatePositionerBase::addPoint ( const RelativePoint & point )

Definition at line 299 of file juce_RelativeCoordinatePositioner.cpp.

◆ apply()

void juce::RelativeCoordinatePositionerBase::apply ( )

Definition at line 280 of file juce_RelativeCoordinatePositioner.cpp.

◆ componentBeingDeleted()

void juce::RelativeCoordinatePositionerBase::componentBeingDeleted ( Component & component )

overridevirtual

Called when the component is in the process of being deleted.

This callback is made from inside the destructor, so be very, very cautious about what you do in here.

In particular, bear in mind that it's the Component base class's destructor that calls this - so if the object that's being deleted is a subclass of Component, then the subclass layers of the object will already have been destructed when it gets to this point!

Parameters

component the component that was deleted

Reimplemented from juce::ComponentListener.

Definition at line 262 of file juce_RelativeCoordinatePositioner.cpp.

◆ componentChildrenChanged()

void juce::RelativeCoordinatePositionerBase::componentChildrenChanged ( Component & component )

overridevirtual

Called when the component has children added or removed, or their z-order changes.

Parameters

component the component whose children have changed

See also: Component::childrenChanged, Component::addChildComponent, Component::removeChildComponent

Reimplemented from juce::ComponentListener.

Definition at line 256 of file juce_RelativeCoordinatePositioner.cpp.

◆ componentMovedOrResized()

void juce::RelativeCoordinatePositionerBase::componentMovedOrResized	(	Component &	component,
		bool	wasMoved,
		bool	wasResized
	)

overridevirtual

Called when the component's position or size changes.

Parameters

component	the component that was moved or resized
wasMoved	true if the component's top-left corner has just moved
wasResized	true if the component's width or height has just changed

See also: Component::setBounds, Component::resized, Component::moved

Reimplemented from juce::ComponentListener.

Definition at line 246 of file juce_RelativeCoordinatePositioner.cpp.

◆ componentParentHierarchyChanged()

void juce::RelativeCoordinatePositionerBase::componentParentHierarchyChanged ( Component & component )

overridevirtual

Called to indicate that the component's parents have changed.

When a component is added or removed from its parent, all of its children will produce this notification (recursively - so all children of its children will also be called as well).

Parameters

component the component that this listener is registered with
