Used for resolving a RelativeCoordinate expression in the context of a component. More...

#include "juce_RelativeCoordinatePositioner.h"

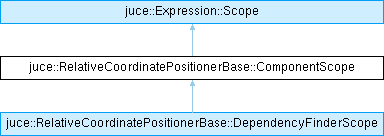

Inheritance diagram for juce::RelativeCoordinatePositionerBase::ComponentScope:

Public Member Functions
	ComponentScope (Component &)

Expression	getSymbolValue (const String &symbol) const override
	Returns the value of a symbol.

void	visitRelativeScope (const String &scopeName, Visitor &) const override
	Creates a Scope object for a named scope, and then calls a visitor to do some kind of processing with this new scope.

String	getScopeUID () const override
	Returns some kind of globally unique ID that identifies this scope.

Public Member Functions inherited from juce::Expression::Scope
virtual double	evaluateFunction (const String &functionName, const double *parameters, int numParameters) const
	Executes a named function.

Protected Member Functions
Component *	findSiblingComponent (const String &componentID) const

Protected Attributes
Component &	component

Detailed Description

Used for resolving a RelativeCoordinate expression in the context of a component.

Definition at line 57 of file juce_RelativeCoordinatePositioner.h.

Constructor & Destructor Documentation

◆ ComponentScope()

juce::RelativeCoordinatePositionerBase::ComponentScope::ComponentScope ( Component & comp )

Definition at line 99 of file juce_RelativeCoordinatePositioner.cpp.

Member Function Documentation

◆ findSiblingComponent()

Component * juce::RelativeCoordinatePositionerBase::ComponentScope::findSiblingComponent ( const String & componentID ) const

protected

Definition at line 150 of file juce_RelativeCoordinatePositioner.cpp.

◆ getScopeUID()

String juce::RelativeCoordinatePositionerBase::ComponentScope::getScopeUID ( ) const

overridevirtual

Returns some kind of globally unique ID that identifies this scope.

Reimplemented from juce::Expression::Scope.

Definition at line 145 of file juce_RelativeCoordinatePositioner.cpp.

◆ getSymbolValue()

Expression juce::RelativeCoordinatePositionerBase::ComponentScope::getSymbolValue ( const String & symbol ) const

overridevirtual

Returns the value of a symbol.

If the symbol is unknown, this can throw an Expression::EvaluationError exception. The member value is set to the part of the symbol that followed the dot, if there is one, e.g. for "foo.bar", symbol = "foo" and member = "bar".

Exceptions

Expression::EvaluationError

Reimplemented from juce::Expression::Scope.

Reimplemented in juce::RelativeCoordinatePositionerBase::DependencyFinderScope.

Definition at line 104 of file juce_RelativeCoordinatePositioner.cpp.

◆ visitRelativeScope()

void juce::RelativeCoordinatePositionerBase::ComponentScope::visitRelativeScope	(	const String &	scopeName,
		Visitor &	visitor
	)		const

overridevirtual

Creates a Scope object for a named scope, and then calls a visitor to do some kind of processing with this new scope.

If the name is valid, this method must create a suitable (temporary) Scope object to represent it, and must call the Visitor::visit() method with this new scope.

Reimplemented from juce::Expression::Scope.

Reimplemented in juce::RelativeCoordinatePositionerBase::DependencyFinderScope.

Definition at line 135 of file juce_RelativeCoordinatePositioner.cpp.
