tracktion::engine::ClipEffect Class Reference

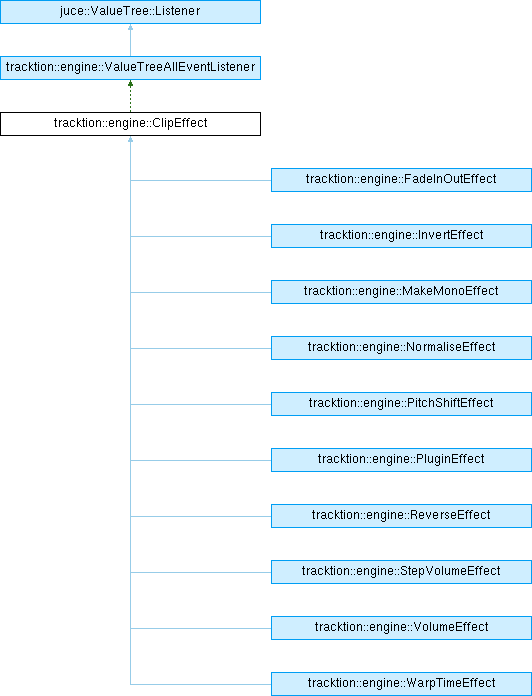

Inheritance diagram for tracktion::engine::ClipEffect:

Classes
struct	ClipEffectRenderJob

Public Types
enum class	EffectType {   none , volume , fadeInOut , tapeStartStop ,   stepVolume , pitchShift , warpTime , normalise ,   makeMono , reverse , invert , filter ,   firstEffect , lastEffect }

Public Member Functions
virtual void	initialise ()
	ClipEffect (const juce::ValueTree &, ClipEffects &)
EffectType	getType () const
virtual juce::ReferenceCountedObjectPtr< ClipEffectRenderJob >	createRenderJob (const AudioFile &sourceFile, double sourceLength)=0
	Subclasses should return a job that can render the source.
virtual bool	hasProperties ()
	Return true here to show a properties button in the editor and enable the propertiesButtonPressed callback.
virtual void	propertiesButtonPressed (SelectionManager &)
virtual void	sourceChanged ()
	Callback to indicate the destination file has changed.
HashCode	getHash () const
	Returns the hash for this effect.
AudioFile	getSourceFile () const
AudioFile	getDestinationFile () const
bool	isUsingFile (const AudioFile &) const
virtual void	flushStateToValueTree ()
juce::UndoManager &	getUndoManager ()
AudioClipBase &	getClip ()

Static Public Member Functions
static juce::ValueTree	create (EffectType)
static ClipEffect *	create (const juce::ValueTree &, ClipEffects &)
static void	createEffectAndAddToValueTree (Edit &, juce::ValueTree parent, ClipEffect::EffectType, int index)
static juce::String	getTypeDisplayName (EffectType)
static void	addEffectsToMenu (juce::PopupMenu &)

Public Attributes
Edit &	edit
juce::ValueTree	state
ClipEffects &	clipEffects

Protected Member Functions
virtual HashCode	getIndividualHash () const
void	valueTreeChanged () override
Protected Member Functions inherited from tracktion::engine::ValueTreeAllEventListener
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override
void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override
void	valueTreeChildRemoved (juce::ValueTree &, juce::ValueTree &, int) override
void	valueTreeChildOrderChanged (juce::ValueTree &, int, int) override
void	valueTreeParentChanged (juce::ValueTree &) override
void	valueTreeRedirected (juce::ValueTree &) override

Friends
class	ClipEffects

Detailed Description

Definition at line 17 of file tracktion_ClipEffects.h.

Member Enumeration Documentation

EffectType

enum class tracktion::engine::ClipEffect::EffectType

strong

Definition at line 20 of file tracktion_ClipEffects.h.

Constructor & Destructor Documentation

ClipEffect()

tracktion::engine::ClipEffect::ClipEffect	(	const juce::ValueTree &	v,
		ClipEffects &	o
	)

Definition at line 224 of file tracktion_ClipEffects.cpp.

Member Function Documentation

addEffectsToMenu()

void tracktion::engine::ClipEffect::addEffectsToMenu ( juce::PopupMenu &  m )

static

Definition at line 294 of file tracktion_ClipEffects.cpp.

create() [1/2]

ClipEffect * tracktion::engine::ClipEffect::create ( const juce::ValueTree &  v, ClipEffects &  ce  )

static

Definition at line 1687 of file tracktion_ClipEffects.cpp.

create() [2/2]

juce::ValueTree tracktion::engine::ClipEffect::create ( EffectType  t )

static

Definition at line 230 of file tracktion_ClipEffects.cpp.

createEffectAndAddToValueTree()

void tracktion::engine::ClipEffect::createEffectAndAddToValueTree ( Edit &  edit, juce::ValueTree  parent, ClipEffect::EffectType  effectType, int  index  )

static

Definition at line 236 of file tracktion_ClipEffects.cpp.

createRenderJob()

virtual juce::ReferenceCountedObjectPtr< ClipEffectRenderJob > tracktion::engine::ClipEffect::createRenderJob ( const AudioFile &  sourceFile, double  sourceLength  )

pure virtual

Subclasses should return a job that can render the source.

N.B. because the sourceFile may not be valid at the time of job creation you should use the sourceLength parameter to determine how to build the render node.

Implemented in tracktion::engine::WarpTimeEffect, tracktion::engine::PluginEffect, tracktion::engine::MakeMonoEffect, tracktion::engine::ReverseEffect, tracktion::engine::InvertEffect, tracktion::engine::VolumeEffect, tracktion::engine::FadeInOutEffect, tracktion::engine::StepVolumeEffect, tracktion::engine::PitchShiftEffect, and tracktion::engine::NormaliseEffect.

flushStateToValueTree()

virtual void tracktion::engine::ClipEffect::flushStateToValueTree ( )

virtual

Definition at line 79 of file tracktion_ClipEffects.h.

getClip()

AudioClipBase & tracktion::engine::ClipEffect::getClip

(

)

Definition at line 350 of file tracktion_ClipEffects.cpp.

getDestinationFile()

AudioFile tracktion::engine::ClipEffect::getDestinationFile

(

)

const

Definition at line 342 of file tracktion_ClipEffects.cpp.

getHash()

HashCode tracktion::engine::ClipEffect::getHash

(

)

const

Returns the hash for this effect.

N.B. as effects are serial their hash will change if any preceeding effects change.

See also

getIndividualHash

Definition at line 320 of file tracktion_ClipEffects.cpp.

getIndividualHash()

HashCode tracktion::engine::ClipEffect::getIndividualHash ( ) const

protectedvirtual

Definition at line 315 of file tracktion_ClipEffects.cpp.

getSourceFile()

AudioFile tracktion::engine::ClipEffect::getSourceFile

(

)

const

Definition at line 334 of file tracktion_ClipEffects.cpp.

getType()

ClipEffect::EffectType tracktion::engine::ClipEffect::getType

(

)

const

Definition at line 310 of file tracktion_ClipEffects.cpp.

getTypeDisplayName()

juce::String tracktion::engine::ClipEffect::getTypeDisplayName ( EffectType  t )

static

Definition at line 274 of file tracktion_ClipEffects.cpp.

getUndoManager()

juce::UndoManager & tracktion::engine::ClipEffect::getUndoManager

(

)

Definition at line 355 of file tracktion_ClipEffects.cpp.

hasProperties()

virtual bool tracktion::engine::ClipEffect::hasProperties ( )

virtual

Return true here to show a properties button in the editor and enable the propertiesButtonPressed callback.

Reimplemented in tracktion::engine::VolumeEffect, tracktion::engine::StepVolumeEffect, tracktion::engine::PitchShiftEffect, tracktion::engine::PluginEffect, tracktion::engine::NormaliseEffect, and tracktion::engine::MakeMonoEffect.

Definition at line 62 of file tracktion_ClipEffects.h.

initialise()

virtual void tracktion::engine::ClipEffect::initialise ( )

virtual

Definition at line 44 of file tracktion_ClipEffects.h.

isUsingFile()

bool tracktion::engine::ClipEffect::isUsingFile

(

const AudioFile &

af

)

const

Definition at line 360 of file tracktion_ClipEffects.cpp.

propertiesButtonPressed()

virtual void tracktion::engine::ClipEffect::propertiesButtonPressed ( SelectionManager &  )

virtual

Definition at line 63 of file tracktion_ClipEffects.h.

sourceChanged()

virtual void tracktion::engine::ClipEffect::sourceChanged ( )

virtual

Callback to indicate the destination file has changed.

Reimplemented in tracktion::engine::WarpTimeEffect.

Definition at line 66 of file tracktion_ClipEffects.h.

valueTreeChanged()

void tracktion::engine::ClipEffect::valueTreeChanged ( )

overrideprotectedvirtual

Implements tracktion::engine::ValueTreeAllEventListener.

Definition at line 365 of file tracktion_ClipEffects.cpp.

Friends And Related Symbol Documentation

ClipEffects

friend class ClipEffects

friend

Definition at line 93 of file tracktion_ClipEffects.h.

Member Data Documentation

clipEffects

ClipEffects& tracktion::engine::ClipEffect::clipEffects

Definition at line 86 of file tracktion_ClipEffects.h.

edit

Edit& tracktion::engine::ClipEffect::edit

Definition at line 84 of file tracktion_ClipEffects.h.

state

juce::ValueTree tracktion::engine::ClipEffect::state

Definition at line 85 of file tracktion_ClipEffects.h.

---

The documentation for this class was generated from the following files:

• tracktion_engine/model/clips/tracktion_ClipEffects.h
• tracktion_engine/model/clips/tracktion_ClipEffects.cpp
