Base class for Clips that produce some kind of audio e.g. More...

#include "tracktion_AudioClipBase.h"

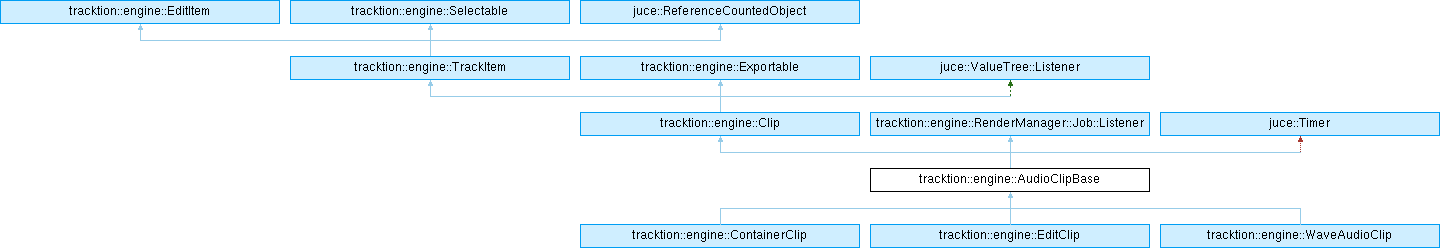

Inheritance diagram for tracktion::engine::AudioClipBase:

Classes
struct	ProxyRenderingInfo
	Holds information about how to render a proxy for this clip. More...

class	TempoDetectTask
	Performs a tempo detection task on a background thread. More...

Public Types
enum	FadeBehaviour { gainFade , speedRamp }
	Describes the fade behaviour. More...

enum	AutoPitchMode { pitchTrack , chordTrackMono , chordTrackPoly }
	Defines the auto pitch mode. More...

enum class	ClipDirection { previous , next , none }
	Defines a prevous/next direction. More...

using	Ptr = juce::ReferenceCountedObjectPtr< AudioClipBase >

Public Types inherited from tracktion::engine::Clip
enum class	FollowActionDurationType { beats , loops }
	Defines the types of duration follow actions can use. More...

enum	SyncType { syncBarsBeats , syncAbsolute }
	Determines the clip sync type. More...

using	Ptr = juce::ReferenceCountedObjectPtr< Clip >

using	Array = juce::ReferenceCountedArray< Clip >

Public Types inherited from tracktion::engine::TrackItem
enum class	Type { unknown , wave , midi , edit , step , marker , pitch , timeSig , collection , video , recording , chord , arranger , container }
	Defines the types of item that can live on Track[s]. More...

Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Public Member Functions
	AudioClipBase (const juce::ValueTree &, EditItemID, Type, ClipOwner &)
	Creates a basic AudioClip.

	~AudioClipBase () override
	Destructor.

TimeDuration	getMaximumLength () override
	Returns the maximum length for this clip.

virtual TimeDuration	getSourceLength () const =0
	Must return the length in seconds of the source material e.g.

virtual AudioFile	getAudioFile () const
	Returns the file used to play back the source and will get proxied etc.

AudioFile	getPlaybackFile ()
	Returns the current AudioFile being used by the Clip, either the original source or a proxy.

virtual juce::File	getOriginalFile () const =0
	Must return the file that the source ProjectItemID refers to.

virtual HashCode	getHash () const =0
	Must return a unique hash for this clip's source.

virtual AudioFileInfo	getWaveInfo ()
	Returns the WaveInfo for a clip.

void	markAsDirty ()
	Resets the dirty flag so that a new render will be attempted.

void	updateSourceFile ()
	Checks the current source file to see if it's up to date and then triggers a source render if needed.

virtual bool	needsRender () const
	Subclasses should override this to return true if they need the rest of the render callbacks.

virtual RenderManager::Job::Ptr	getRenderJob (const AudioFile &)
	Subclasses should override this to return a RenderJob suitable for rendering its source file.

virtual void	renderComplete ()
	Callback to indicate that the render has completed.

virtual juce::String	getRenderMessage ()
	Override this to return a custom message to be displayed over waveforms during rendering.

virtual juce::String	getClipMessage ()
	Override this to return a custom message to display over the clip where the "file missing" text usually goes.

void	cancelCurrentRender ()
	If a render is in progress, this will cancel it.

void	setGainDB (float dB)
	Sets the gain of the clip in dB.

float	getGainDB () const noexcept
	Returns the gain of the clip in dB.

float	getGain () const noexcept
	Returns the gain of the clip.

void	setPan (float pan)
	Sets the pan of the clip.

float	getPan () const noexcept
	Returns the pan of the clip from -1 to 1.

void	setMuted (bool shouldBeMuted) override
	Mutes or unmutes the clip.

bool	isMuted () const override
	Returns true if the clip is muted.

LiveClipLevel	getLiveClipLevel ()
	Returns a LiveClipLevel which can be used to read the gain, pan and mute statuses.

void	setLeftChannelActive (bool)
	Enables the left channel of the clip.

bool	isLeftChannelActive () const
	Returns whether the left channel of the clip is enabled.

void	setRightChannelActive (bool)
	Enables the right channel of the clip.

bool	isRightChannelActive () const
	Returns whether the right channel of the clip is enabled.

juce::AudioChannelSet	getActiveChannels () const
	Returns the layout of the active channels.

bool	setFadeIn (TimeDuration length)
	Sets the fade in duration in seconds.

TimeDuration	getFadeIn () const
	Returns the fade in duration in seconds.

bool	setFadeOut (TimeDuration length)
	Sets the fade out duration in seconds.

TimeDuration	getFadeOut () const
	Returns the fade out duration in seconds.

void	setFadeInType (AudioFadeCurve::Type)
	Sets the curve shape for the fade in to use.

AudioFadeCurve::Type	getFadeInType () const
	Returns the curve shape for the fade in to use.

void	setFadeOutType (AudioFadeCurve::Type newType)
	Sets the curve shape for the fade out to use.

AudioFadeCurve::Type	getFadeOutType () const
	Returns the curve shape for the fade out to use.

void	setAutoCrossfade (bool shouldAutoCrossfade)
	Enables/disables auto-crossfading.

bool	getAutoCrossfade () const noexcept
	Returns whether auto-crossfade is enabled.

void	updateAutoCrossfadesAsync (bool updateOverlapped)
	Triggers an update of the auto-crossfades.

void	applyEdgeFades ()
	Sets the fade in/out lengths to be 0.03s to avoid any clicks at the start/end of th clip.

void	copyFadeToAutomation (bool fadeIn, bool removeClipFade)
	Copies the fade in curve to a volume automation curve.

void	setFadeInBehaviour (FadeBehaviour newBehaviour)
	Sets the fade in behaviour.

FadeBehaviour	getFadeInBehaviour () const
	Returns the fade in behaviour.

void	setFadeOutBehaviour (FadeBehaviour newBehaviour)
	Sets the fade out behaviour.

FadeBehaviour	getFadeOutBehaviour () const
	Returns the fade out behaviour.

virtual void	setLoopDefaults ()=0
	Override this to fill in the LoopInfo structure as best fits the source.

void	setLoopInfo (const LoopInfo &)
	Sets a LoopInfo to describe this clip's tempo, time sig etc.

const LoopInfo &	getLoopInfo () const
	Returns the LoopInfo being used to describe this clip.

LoopInfo &	getLoopInfo ()
	Returns the LoopInfo being used to describe this clip.

TimeRange	getLoopRange () const
	Returns the loop range in seconds.

bool	canLoop () const override
	Returns true if this clip is capable of looping.

bool	isLooping () const override
	Returns true if this clip is currently looping.

bool	beatBasedLooping () const override
	Returns true if this clip's looping is based on beats or false if absolute time.

void	setNumberOfLoops (int num) override
	Sets the clip looping a number of times.

void	disableLooping () override
	Disables all looping.

BeatPosition	getLoopStartBeats () const override
	Returns the beat position of the loop start point.

TimePosition	getLoopStart () const override
	Returns the start time of the loop start point.

BeatDuration	getLoopLengthBeats () const override
	Returns the length of loop in beats.

TimeDuration	getLoopLength () const override
	Returns the length of loop in seconds.

void	setLoopRange (TimeRange) override
	Sets the loop range the clip should use in seconds.

void	setLoopRangeBeats (BeatRange) override
	Sets the loop range the clip should use in beats.

void	setAutoDetectBeats (bool)
	Enables auto-detection of beats.

bool	getAutoDetectBeats () const
	Returns true if auto-detect of beats is enabled.

void	setBeatSensitivity (float s)
	Sets the beat sensitivity, triggering a LoopInfo update if auto-detect is enabled.

float	getBeatSensitivity () const
	Returns the beat sensitivity.

void	pitchTempoTrackChanged () override
	Called when there are pitch or tempo changes made which might require clips to adjust timing information.

void	setSpeedRatio (double newSpeed) override
	Sets a speed ratio i.e.

void	setTimeStretchMode (TimeStretcher::Mode mode)
	Sets a time-stretch mode to use.

TimeStretcher::Mode	getTimeStretchMode () const noexcept
	Returns the time-stretch mode that has been set.

TimeStretcher::Mode	getActualTimeStretchMode () const noexcept
	Returns the time-stretch mode that is in use.

void	setAutoTempo (bool shouldUseAutoTempo)
	Enables/disables auto-tempo.

bool	getAutoTempo () const
	Returns true if auto-tempo has been set.

void	setAutoPitch (bool shouldUseAutoPitch)
	Enables/disables auto-pitch.

bool	getAutoPitch () const
	Returns true if auto-pitch has been set.

void	setAutoPitchMode (AutoPitchMode m)
	Sets the AutoPitchMode to use.

AutoPitchMode	getAutoPitchMode ()
	Returns the AutoPitchMode in use.

void	setWarpTime (bool shouldUseWarpTime)
	Enables/disables warp time.

bool	getWarpTime () const
	Returns true if warp time is enabled.

WarpTimeManager &	getWarpTimeManager () const
	Returns the WarpTimeManager for this clip used to maipluate warp markers.

void	setTranspose (int numSemitones)
	Sets the number of semitones to transpose the clip by.

int	getTransposeSemiTones (bool includeAutoPitch) const
	Returns the number of semitones this clip will be changed by.

void	setPitchChange (float semitones)
	Sets the number of semitones to transpose the clip by.

float	getPitchChange () const
	Returns the number of semitones to transpose the clip by.

float	getPitchRatio () const
	Returns the pitch change as a normalised ratio.

void	setIsReversed (bool shouldBeReversed)
	Enables reversing of the clip's source material.

bool	getIsReversed () const noexcept
	Returns true if the clip's source material is reversed.

LoopInfo	autoDetectBeatMarkers (const LoopInfo &current, bool autoBeat, float sensitivity) const
	Scans the current source file for any beats and adds them to the LoopInfo returned.

bool	performTempoDetect ()
	Performs a tempo-detection task and if successful sets the clip's LoopInfo tempo to this.

juce::StringArray	getPitchChoices ()
	Returns an array describng what pitch each semitone change will be.

virtual bool	canHaveEffects () const
	Returns true if this clip can have ClipEffects added to it.

void	enableEffects (bool enable, bool warn)
	Enables/disables ClipEffects for this clip.

bool	effectsEnabled () const
	Returns true if ClipEffects are enabled.

void	addEffect (const juce::ValueTree &effectsTree)
	Adds a ClipEffect to this clip.

void	setEffectsVisible (bool b)
	Sets the effectsVisible flag for this clip.

bool	getEffectsVisible () const
	Returns true if the effectsVisible flag is set for this clip.

ClipEffects *	getClipEffects () const noexcept
	Returns the ClipEffects for this clip if it has been enabled.

bool	canSnapToOriginalBWavTime ()
	Returns true if source file has a bwav time reference metadata property.

void	snapToOriginalBWavTime ()
	Moves the clip to the bwav time reference metadata property time.

virtual juce::Array< ProjectItemID >	getTakes () const
	Returns the ProjectItemID of the clip's takes.

juce::String	canAddClipPlugin (const Plugin::Ptr &) const
	Returns an empty string if this plugin can be added, otherwise an error message due to the clip plugin being an incorrect type (e.g.

virtual bool	isUsingFile (const AudioFile &)
	Should return true if the clip is referencing the file in any way.

AudioFile	getProxyFileToCreate (bool renderTimestretched)
	Returns the AudioFile to create to play this clip back.

void	setUsesProxy (bool canUseProxy) noexcept
	Can be used to disable proxy file generation for this clip.

bool	canUseProxy () const noexcept
	Retuns true if this clip can use a proxy file.

bool	usesTimeStretchedProxy () const
	Retuns true if this clip use a proxy file due to timestretching.

std::unique_ptr< ProxyRenderingInfo >	createProxyRenderingInfo ()
	Creates a ProxyRenderingInfo object to decribe the stretch segements of this clip.

HashCode	getProxyHash ()
	Returns a hash identifying the proxy settings.

void	beginRenderingNewProxyIfNeeded ()
	Triggers creation of a new proxy file if one is required.

const AudioSegmentList &	getAudioSegmentList ()
	Returns an AudioSegmentList describing this file if it is using auto-tempo.

void	setResamplingQuality (ResamplingQuality)
	Sets the resampling qulity to use.

ResamplingQuality	getResamplingQuality () const
	Returns the resampling quality to the be used.

void	reverseLoopPoints ()
	Reverses the loop points to expose the same section of the source file but reversed.

void	checkFadeLengthsForOverrun ()
	Trims the fade in out lengths to avoid any overlap between them.

AudioClipBase *	getOverlappingClip (ClipDirection) const
	Returns the previous/next overlapping clip if one exists.

bool	isUsingMelodyne () const
	Returns true if this clip is using Melodyne.

void	showMelodyneWindow ()
	Shows the Melodyne window if this clip is using Melodyne.

void	hideMelodyneWindow ()
	Hides the Melodyne window if this clip is using Melodyne.

void	melodyneConvertToMIDI ()
	If this clip is using Melodyne, this will create a new MIDI clip based on the Melodyne analysis.

void	loadMelodyneState ()

bool	setupARA (bool dontPopupErrorMessages)
	This internal method is used solely to find out if createAudioNode() should return nullptr or not.

void	initialise () override
	Initialises the Clip.

void	cloneFrom (Clip *) override
	Clones the given clip to this clip.

void	flushStateToValueTree () override
	Can be overridden to ensure any state (e.g.

void	setParent (ClipOwner *) override

bool	canBeAddedTo (ClipOwner &) override
	Tests whether this clip can go on the given parent.

void	changed () override
	This should be called to send a change notification to any SelectableListeners that are registered with this object.

juce::Colour	getDefaultColour () const override
	Returns the default colour for this clip.

PatternGenerator *	getPatternGenerator () override
	Returns the PatternGenerator for this clip if it has one.

void	addMark (TimePosition relCursorPos)

void	moveMarkTo (TimePosition relCursorPos)

void	deleteMark (TimePosition relCursorPos)

void	getRescaledMarkPoints (juce::Array< TimePosition > &rescaled, juce::Array< int > &orig) const

juce::Array< TimePosition >	getRescaledMarkPoints () const override
	Returns the mark points relative to the start of the clip, rescaled to the current speed.

juce::Array< ReferencedItem >	getReferencedItems () override

void	reassignReferencedItem (const ReferencedItem &, ProjectItemID newID, double newStartTime) override

std::shared_ptr< LaunchHandle >	getLaunchHandle () override
	Some clip types can be launched, if that's possible, this returns a handle to trigger starting/stopping the clip.

void	setUsesGlobalLaunchQuatisation (bool useGlobal) override
	Some clip types can be launched, if that's possible, this sets whether the clip's quantisation or the global quantisation should be used.

bool	usesGlobalLaunchQuatisation () override
	Some clip types can be launched, if that's possible, this returns whether the clip's quantisation or the global quantisation should be used.

LaunchQuantisation *	getLaunchQuantisation () override
	Some clip types can be launched, if that's possible, this returns a quantisation that can be used for this clip.

FollowActions *	getFollowActions () override
	Some clip types can be launched, if that's possible, this can be used to determine the action to perform after a clip has played.

bool	addClipPlugin (const Plugin::Ptr &, SelectionManager &) override
	Adds a plugin to the clip.

Plugin::Array	getAllPlugins () override
	Returns all the plugins on the clip.

void	sendMirrorUpdateToAllPlugins (Plugin &) const override
	Sends an update to all plugins mirroing the one passed in.

PluginList *	getPluginList () override
	Returns the PluginList for this clip if it has one.

Public Member Functions inherited from tracktion::engine::Clip
	Clip (const juce::ValueTree &, ClipOwner &, EditItemID, Type)
	Creates a clip of a given type from a ValueTree state.

	~Clip () override
	Destructor.

virtual void	sourceMediaChanged ()
	Called when the source media file reference (attribute "source") has changed - i.e.

virtual juce::String	getName () const override
	Returns the name of the clip.

void	setName (const juce::String &newName)
	Sets a new name for a clip.

virtual bool	isMidi () const =0
	Returns true if this is a MidiClip.

virtual bool	usesSourceFile () const
	True if it references a source file - i.e.

SourceFileReference &	getSourceFileReference ()
	Returns the SourceFileReference of the Clip.

juce::File	getCurrentSourceFile () const
	Returns the current source file, this is different to the SourceFileReference as it could be a temporary comp file, clipFX, reverse render etc.

juce::Array< ReferencedItem >	getReferencedItems () override
	Returns an array of any ReferencedItem[s] e.g.

void	reassignReferencedItem (const ReferencedItem &, ProjectItemID, double) override
	Should be implemented to change the underlying source to a new ProjectItemID.

ClipPosition	getPosition () const override
	Returns the ClipPosition on the parent Track.

BeatPosition	getContentBeatAtTime (TimePosition) const
	Returns the beat number (with offset) at the given time.

TimePosition	getTimeOfContentBeat (BeatPosition) const
	Returns time of a beat number.

virtual juce::Array< TimePosition >	getInterestingTimes ()
	Returns times for snapping to, relative to the Edit.

TimePosition	getSpottingPoint () const
	Returns the first marked time in the source file which can be used for syncronising newly added clips.

TimeRange	getLoopRange () const
	Returns the loop range in seconds.

BeatRange	getLoopRangeBeats () const
	Returns the loop range in beats.

virtual void	setSyncType (SyncType sync)
	Sets the sync type for the clip.

SyncType	getSyncType () const
	Returns the sync type clip is using.

void	setPosition (ClipPosition newPosition)
	Sets the position of the clip.

void	setStart (TimePosition newStart, bool preserveSync, bool keepLength)
	Sets the start time of the clip.

void	setLength (TimeDuration newLength, bool preserveSync)
	Sets the length of the clip.

void	setEnd (TimePosition newEnd, bool preserveSync)
	Sets the end of the clip.

void	setOffset (TimeDuration newOffset)
	Sets the offset of the clip, i.e.

void	trimAwayOverlap (TimeRange editRangeToTrim)
	Trims away any part of the clip that overlaps this region.

void	removeFromParent ()
	Removes this clip from the parent track or container clip.

bool	moveTo (ClipOwner &)
	Moves the clip to a new parent (if possible).

double	getSpeedRatio () const noexcept
	Returns the speed ratio i.e.

virtual void	rescale (TimePosition pivotTimeInEdit, double factor)
	stretches and scales this clip relative to a fixed point in the edit.

bool	isGrouped () const override
	Returns true if the clip is part of a group.

TrackItem *	getGroupParent () const override
	Returns the parent TrackItem if part of a group.

void	setGroup (EditItemID newGroupID)
	Sets the clip to be part of a group.

EditItemID	getGroupID () const noexcept
	Returns the ID of the group.

CollectionClip *	getGroupClip () const
	Returns this as a CollectionClip if it is one.

bool	isLinked () const
	Returns true if this clip is linked with any others.

void	setLinkGroupID (juce::String newLinkID)
	Sets the link ID to link this clip with others.

juce::String	getLinkGroupID () const
	Returns the link ID of this clip.

ClipOwner *	getParent () const
	Returns the parent ClipOwner this clip is on.

ClipTrack *	getClipTrack () const
	Returns the parent ClipTrack this clip is on (if any).

Track *	getTrack () const override
	Returns the parent Track this clip is on (if any).

ClipSlot *	getClipSlot () const
	Returns the parent ClipSlot this clip is on (if any).

virtual juce::Colour	getColour () const
	Returns the colour property of this clip.

void	setColour (juce::Colour col)
	Sets the colour property of this clip.

virtual void	removePlugin (const Plugin::Ptr &)
	Removes the given plugin from the clip if the clip supports plugins.

virtual void	clearTakes ()
	Clears any takes this clip has.

virtual bool	hasAnyTakes () const
	Returns true if this clip has any takes.

virtual juce::StringArray	getTakeDescriptions () const
	Returns the descriptions of any takes.

virtual void	setCurrentTake (int)
	Sets a given take index to be the current take.

virtual int	getCurrentTake () const
	Returns the current take index.

virtual int	getNumTakes (bool)
	Returns the total number of takes.

virtual bool	isCurrentTakeComp ()
	Returns true if the current take is a comp.

virtual void	setShowingTakes (bool shouldShow)
	Sets whether the clip should be showing takes.

virtual bool	isShowingTakes () const
	Returns true if the clip is showing takes.

virtual Clip::Array	unpackTakes (bool)
	Attempts to unpack the takes to new clips.

void	updateLinkedClips ()
	Triggers a call to cloneFrom for all clips with the same linkID.

void	addListener (Listener *)
	Adds a Listener.

void	removeListener (Listener *)
	Removes a Listener.

juce::ListenerList< Listener > &	getListeners ()
	Returns the listener list so Nodes can manually call them.

void	changed () override
	This should be called to send a change notification to any SelectableListeners that are registered with this object.

juce::UndoManager *	getUndoManager () const
	Returns the UndoManager.

Public Member Functions inherited from tracktion::engine::TrackItem
	TrackItem (Edit &, EditItemID, Type)
	Creates a TrackItem with an ID and type.

	~TrackItem ()
	Destructor.

TimeRange	getEditTimeRange () const
	Returns the time range of this item.

BeatRange	getEditBeatRange () const
	Returns the beat range of this item.

BeatPosition	getStartBeat () const
	Returns the start beat in the Edit of this item.

BeatPosition	getContentStartBeat () const
	Returns the start beat of the content in the Edit of this item.

BeatPosition	getEndBeat () const
	Returns the end beat in the Edit of this item.

BeatDuration	getLengthInBeats () const
	Returns the duration in beats the of this item.

TimePosition	getTimeOfRelativeBeat (BeatDuration) const
	Returns an Edit time point for a given number of beats from the start of this item.

BeatPosition	getBeatOfRelativeTime (TimeDuration) const
	Returns an Edit beat point for a given number of seconds from the start of this item.

BeatDuration	getOffsetInBeats () const
	Returns an the offset of this item in beats.

EditItemID	getTrackID () const
	Returns the ID of the Track this item lives on.

Public Member Functions inherited from tracktion::engine::EditItem
	EditItem (EditItemID, Edit &)

Public Member Functions inherited from tracktion::engine::Selectable
virtual juce::String	getSelectableDescription ()=0
	Subclasses must return a description of what they are.

virtual void	selectionStatusChanged (bool isNowSelected)
	Can be overridden to tell this object that it has just been selected or deselected.

virtual void	selectableAboutToBeDeleted ()
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

void	addListener (SelectableListener *)

void	removeListener (SelectableListener *)

void	addSelectableListener (SelectableListener *)

void	removeSelectableListener (SelectableListener *)

void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.

void	deselect ()

void	propertiesChanged ()

void	notifyListenersOfDeletion ()

WeakRef	getWeakRef ()

Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept

void	decReferenceCount () noexcept

bool	decReferenceCountWithoutDeleting () noexcept

int	getReferenceCount () const noexcept

Public Member Functions inherited from tracktion::engine::RenderManager::Job::Listener
virtual void	jobStarted (RenderManager::Job &)

Static Public Member Functions
static juce::StringArray	getRootNoteChoices (Engine &)
	Returns an array of the root note choices e.g.

Static Public Member Functions inherited from tracktion::engine::Clip
static bool	isClipState (const juce::ValueTree &)
	Checks whether a ValueTree is some kind of clip state.

static bool	isClipState (const juce::Identifier &)
	Checks whether a ValueTree type is some kind of clip state.

static Ptr	createClipForState (const juce::ValueTree &, ClipOwner &targetParent)
	Creates a clip for a given ValueTree representation.

Static Public Member Functions inherited from tracktion::engine::TrackItem
static const char *	typeToString (Type)
	Returns the string version of a TrackItem::Type.

static juce::Identifier	clipTypeToXMLType (Type)
	Returns an Identifier version of a TrackItem::Type.

static TrackItem::Type	xmlTagToType (juce::StringRef)
	Returns the TrackItem::Type of a type string.

static TrackItem::Type	stringToType (const juce::String &)
	Returns the TrackItem::Type of a type string.

static juce::String	getSuggestedNameForNewItem (Type)
	Returns a text string for a new clip of the given type.

template<typename ArrayType >
static void	sortByTime (ArrayType &items)
	Helper function to sort an array of TrackItem[s] by their start time.

template<typename ArrayType >
static void	stableSortByTime (ArrayType &items)
	Helper function to sort an array of TrackItem[s] by their start time without changing the order of items at the same time.

Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()

static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.

Static Public Member Functions inherited from tracktion::engine::Exportable
static juce::Array< Exportable * >	addAllExportables (Edit &)
	Returns all the Exportables contained in an Edit.

Public Attributes
juce::ReferenceCountedObjectPtr< MelodyneFileReader >	melodyneProxy
	The MelodyneFileReader proxy if this clip is using Melodyne.

juce::CachedValue< TimeStretcher::ElastiqueProOptions >	elastiqueProOptions
	The ElastiqueProOptions for fine tuning Elastique (if available).

Public Attributes inherited from tracktion::engine::Clip
juce::CachedValue< FollowActionDurationType >	followActionDurationType
	The type of duration to use for when to trigger the follow action.

juce::CachedValue< BeatDuration >	followActionBeats
	Determines the time for which a launched clip will play before a follow action is taken.

juce::CachedValue< double >	followActionNumLoops
	Determines the number of loops for which a launched clip will play before a follow action is taken.

juce::ValueTree	state
	The ValueTree of the Clip state.

juce::CachedValue< juce::Colour >	colour
	The colour property.

juce::CachedValue< bool >	disabled
	Whether the Clip is disabled or not.

Public Attributes inherited from tracktion::engine::TrackItem
const Type	type
	The type of this item.

Public Attributes inherited from tracktion::engine::EditItem
Edit &	edit

const EditItemID	itemID
	Every EditItem has an ID which is unique within the edit.

Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference

Protected Member Functions
void	updateLeftRightChannelActivenessFlags ()

void	createNewProxyAsync ()
	Triggers a source or proxy render after a timeout.

void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeChildAdded (juce::ValueTree &parent, juce::ValueTree &) override

void	valueTreeChildRemoved (juce::ValueTree &parent, juce::ValueTree &, int) override

void	valueTreeChildOrderChanged (juce::ValueTree &, int, int) override

void	valueTreeParentChanged (juce::ValueTree &) override

Protected Member Functions inherited from tracktion::engine::Clip
void	setCurrentSourceFile (const juce::File &)
	Sets a new source file for this clip.

void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeParentChanged (juce::ValueTree &) override

Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept

	ReferenceCountedObject (ReferenceCountedObject &&) noexcept

ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept

ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept

void	resetReferenceCount () noexcept

Protected Member Functions inherited from juce::ValueTree::Listener
virtual void	valueTreeRedirected (ValueTree &treeWhichHasBeenChanged)

Protected Attributes
std::shared_ptr< ClipLevel >	level

juce::CachedValue< juce::String >	channels

juce::CachedValue< TimeDuration >	fadeIn

juce::CachedValue< TimeDuration >	fadeOut

TimeDuration	autoFadeIn

TimeDuration	autoFadeOut

juce::CachedValue< AudioFadeCurve::Type >	fadeInType

juce::CachedValue< AudioFadeCurve::Type >	fadeOutType

juce::CachedValue< bool >	autoCrossfade

juce::CachedValue< FadeBehaviour >	fadeInBehaviour

juce::CachedValue< FadeBehaviour >	fadeOutBehaviour

juce::CachedValue< ResamplingQuality >	resamplingQuality

juce::CachedValue< TimePosition >	loopStart

juce::CachedValue< TimeDuration >	loopLength

juce::CachedValue< BeatPosition >	loopStartBeats

juce::CachedValue< BeatDuration >	loopLengthBeats

juce::CachedValue< int >	proxyAllowed

juce::CachedValue< int >	transpose

juce::CachedValue< float >	pitchChange

LoopInfo	loopInfo

juce::CachedValue< float >	beatSensitivity

juce::CachedValue< TimeStretcher::Mode >	timeStretchMode

juce::CachedValue< bool >	autoPitch

juce::CachedValue< bool >	autoTempo

juce::CachedValue< bool >	isReversed

juce::CachedValue< bool >	autoDetectBeats

juce::CachedValue< bool >	warpTime

juce::CachedValue< bool >	clipEffectsVisible

juce::CachedValue< AutoPitchMode >	autoPitchMode

WarpTimeManager::Ptr	warpTimeManager

std::unique_ptr< AudioSegmentList >	audioSegmentList

std::unique_ptr< ClipEffects >	clipEffects

AsyncFunctionCaller	asyncFunctionCaller

juce::AudioChannelSet	activeChannels

PluginList	pluginList

bool	lastRenderJobFailed

RenderManager::Job::Ptr	renderJob

AudioFile	lastProxy

Protected Attributes inherited from tracktion::engine::Clip
bool	isInitialised

bool	cloneInProgress

juce::CachedValue< juce::String >	clipName

ClipOwner *	parent

juce::CachedValue< TimePosition >	clipStart

juce::CachedValue< TimeDuration >	length

juce::CachedValue< TimeDuration >	offset

juce::CachedValue< double >	speedRatio

SourceFileReference	sourceFileReference

juce::CachedValue< EditItemID >	groupID

juce::CachedValue< juce::String >	linkID

juce::File	currentSourceFile

juce::CachedValue< SyncType >	syncType

juce::CachedValue< bool >	showingTakes

std::unique_ptr< PatternGenerator >	patternGenerator

AsyncCaller	updateLinkedClipsCaller

juce::ListenerList< Listener >	listeners

Friends
class	WaveCompManager

Detailed Description

Base class for Clips that produce some kind of audio e.g.

WaveAudioClip or EditClip. This class contains the common functionality such as gains, fades, plugins etc.

If your source if dynamically generated override needsRender to return true. This will then trigger the rest of the render callbacks which should be used to generate the source and fill in any update messages etc.

If your source is static override getAudioFile to return the source file. Note that this may be changed by the UI so it is a good idea to also overrride sourceMediaChanged and getSourceLength to update properties accordingly when the source ProjectItemID is re-assigned.

Either way you must override getHash which should return a hash of the current source e.g. an AudioFile hash or hash describing the current render set-up of an Edit.

Definition at line 31 of file tracktion_AudioClipBase.h.

Member Typedef Documentation

◆ Ptr

using tracktion::engine::AudioClipBase::Ptr = juce::ReferenceCountedObjectPtr<AudioClipBase>

Definition at line 43 of file tracktion_AudioClipBase.h.

Member Enumeration Documentation

◆ AutoPitchMode

enum tracktion::engine::AudioClipBase::AutoPitchMode

Defines the auto pitch mode.

Enumerator
pitchTrack	Clip tracks the Edit's PitchSequence.
chordTrackMono	Clip tracks the chord track with a monophonic pitch change.
chordTrackPoly	Clip tracks the pitch track with a polyphonic pitch change.

Definition at line 305 of file tracktion_AudioClipBase.h.

◆ ClipDirection

enum class tracktion::engine::AudioClipBase::ClipDirection

strong

Defines a prevous/next direction.

See also: getOverlappingClip

Definition at line 510 of file tracktion_AudioClipBase.h.

◆ FadeBehaviour

enum tracktion::engine::AudioClipBase::FadeBehaviour

Describes the fade behaviour.

Enumerator
gainFade	Fade is a volume/gain ramp.
speedRamp	Fade is a change of playback speed for tape start/stop effects.

Definition at line 212 of file tracktion_AudioClipBase.h.

Constructor & Destructor Documentation

◆ AudioClipBase()

tracktion::engine::AudioClipBase::AudioClipBase	(	const juce::ValueTree &	v,
		EditItemID	id,
		Type	t,
		ClipOwner &	targetParent
	)

Creates a basic AudioClip.

Definition at line 200 of file tracktion_AudioClipBase.cpp.

◆ ~AudioClipBase()

tracktion::engine::AudioClipBase::~AudioClipBase ( )

override

Destructor.

Definition at line 277 of file tracktion_AudioClipBase.cpp.

Member Function Documentation

◆ addClipPlugin()

bool tracktion::engine::AudioClipBase::addClipPlugin	(	const Plugin::Ptr &	,
		SelectionManager &
	)

overridevirtual

Adds a plugin to the clip.

Returns: false if the clip contain plugins.

Reimplemented from tracktion::engine::Clip.

Definition at line 1586 of file tracktion_AudioClipBase.cpp.

◆ addEffect()

void tracktion::engine::AudioClipBase::addEffect ( const juce::ValueTree & effectsTree )

Adds a ClipEffect to this clip.

Definition at line 1325 of file tracktion_AudioClipBase.cpp.

◆ addMark()

void tracktion::engine::AudioClipBase::addMark ( TimePosition relCursorPos )

Definition at line 1369 of file tracktion_AudioClipBase.cpp.

◆ applyEdgeFades()

void tracktion::engine::AudioClipBase::applyEdgeFades ( )

Sets the fade in/out lengths to be 0.03s to avoid any clicks at the start/end of th clip.

Definition at line 759 of file tracktion_AudioClipBase.cpp.

◆ autoDetectBeatMarkers()

LoopInfo tracktion::engine::AudioClipBase::autoDetectBeatMarkers	(	const LoopInfo &	current,
		bool	autoBeat,
		float	sensitivity
	)		const

Scans the current source file for any beats and adds them to the LoopInfo returned.

Parameters

current	A LoopInfo to initialise the result from
autoBeat	Whether to auto detect the beats from the source file
sensitivity	The sensitivity to use 0-1 [[ blocks ]]

Definition at line 1194 of file tracktion_AudioClipBase.cpp.

◆ beatBasedLooping()

bool tracktion::engine::AudioClipBase::beatBasedLooping ( ) const

overridevirtual

Returns true if this clip's looping is based on beats or false if absolute time.

Reimplemented from tracktion::engine::Clip.

Definition at line 249 of file tracktion_AudioClipBase.h.

◆ beginRenderingNewProxyIfNeeded()

void tracktion::engine::AudioClipBase::beginRenderingNewProxyIfNeeded ( )

Triggers creation of a new proxy file if one is required.

Definition at line 2224 of file tracktion_AudioClipBase.cpp.

◆ canAddClipPlugin()

juce::String tracktion::engine::AudioClipBase::canAddClipPlugin ( const Plugin::Ptr & p ) const

Returns an empty string if this plugin can be added, otherwise an error message due to the clip plugin being an incorrect type (e.g.

MIDI) or the list is full.

Definition at line 1572 of file tracktion_AudioClipBase.cpp.

◆ canBeAddedTo()

bool tracktion::engine::AudioClipBase::canBeAddedTo ( ClipOwner & )

overridevirtual

Tests whether this clip can go on the given parent.

Implements tracktion::engine::Clip.

Definition at line 391 of file tracktion_AudioClipBase.cpp.

◆ cancelCurrentRender()

void tracktion::engine::AudioClipBase::cancelCurrentRender ( )

If a render is in progress, this will cancel it.

Definition at line 2272 of file tracktion_AudioClipBase.cpp.

◆ canHaveEffects()

virtual bool tracktion::engine::AudioClipBase::canHaveEffects ( ) const

virtual

Returns true if this clip can have ClipEffects added to it.

Reimplemented in tracktion::engine::EditClip.

Definition at line 394 of file tracktion_AudioClipBase.h.

◆ canLoop()

bool tracktion::engine::AudioClipBase::canLoop ( ) const

overridevirtual

Returns true if this clip is capable of looping.

Reimplemented from tracktion::engine::Clip.

Definition at line 936 of file tracktion_AudioClipBase.cpp.

◆ canSnapToOriginalBWavTime()

bool tracktion::engine::AudioClipBase::canSnapToOriginalBWavTime ( )

Returns true if source file has a bwav time reference metadata property.

Definition at line 1443 of file tracktion_AudioClipBase.cpp.

◆ canUseProxy()

bool tracktion::engine::AudioClipBase::canUseProxy ( ) const

noexcept

Retuns true if this clip can use a proxy file.

Definition at line 470 of file tracktion_AudioClipBase.h.

◆ changed()

void tracktion::engine::AudioClipBase::changed ( )

overridevirtual

This should be called to send a change notification to any SelectableListeners that are registered with this object.

Reimplemented from tracktion::engine::Selectable.

Reimplemented in tracktion::engine::EditClip.

Definition at line 396 of file tracktion_AudioClipBase.cpp.

◆ checkFadeLengthsForOverrun()

void tracktion::engine::AudioClipBase::checkFadeLengthsForOverrun ( )

Trims the fade in out lengths to avoid any overlap between them.

Definition at line 677 of file tracktion_AudioClipBase.cpp.

◆ cloneFrom()

void tracktion::engine::AudioClipBase::cloneFrom ( Clip * c )

overridevirtual

Clones the given clip to this clip.

Reimplemented from tracktion::engine::Clip.

Reimplemented in tracktion::engine::ContainerClip, tracktion::engine::EditClip, and tracktion::engine::WaveAudioClip.

Definition at line 306 of file tracktion_AudioClipBase.cpp.

◆ copyFadeToAutomation()

void tracktion::engine::AudioClipBase::copyFadeToAutomation	(	bool	fadeIn,
		bool	removeClipFade
	)

Copies the fade in curve to a volume automation curve.

Parameters

fadeIn	If true, this copies the fade-in, if false, the fade-out
removeClipFade	If true, the fade in will be set to 0

See also: setFadeIn

Definition at line 767 of file tracktion_AudioClipBase.cpp.

◆ createNewProxyAsync()

void tracktion::engine::AudioClipBase::createNewProxyAsync ( )

protected

Triggers a source or proxy render after a timeout.

Call this if something changes that may affect either the source or the proxy e.g. Edit clip tracks or tempo sequence.

Definition at line 2266 of file tracktion_AudioClipBase.cpp.

◆ createProxyRenderingInfo()

std::unique_ptr< AudioClipBase::ProxyRenderingInfo > tracktion::engine::AudioClipBase::createProxyRenderingInfo ( )

Creates a ProxyRenderingInfo object to decribe the stretch segements of this clip.

Definition at line 2108 of file tracktion_AudioClipBase.cpp.

◆ deleteMark()

void tracktion::engine::AudioClipBase::deleteMark ( TimePosition relCursorPos )

Definition at line 1411 of file tracktion_AudioClipBase.cpp.

◆ disableLooping()

void tracktion::engine::AudioClipBase::disableLooping ( )

overridevirtual

Disables all looping.

Reimplemented from tracktion::engine::Clip.

Definition at line 903 of file tracktion_AudioClipBase.cpp.

◆ effectsEnabled()

bool tracktion::engine::AudioClipBase::effectsEnabled ( ) const

Returns true if ClipEffects are enabled.

Definition at line 403 of file tracktion_AudioClipBase.h.

◆ enableEffects()

void tracktion::engine::AudioClipBase::enableEffects	(	bool	enable,
		bool	warn
	)

Enables/disables ClipEffects for this clip.

Parameters

enable	Whether to turn on/off clip FX for this clip
warn	If true and clip FX are enabled, this will show a confirmation dialog to the user first

Definition at line 1300 of file tracktion_AudioClipBase.cpp.

◆ flushStateToValueTree()

void tracktion::engine::AudioClipBase::flushStateToValueTree ( )

overridevirtual

Can be overridden to ensure any state (e.g.

clip plugins) is flushed to the ValueTree ready for saving.

Reimplemented from tracktion::engine::Clip.

Reimplemented in tracktion::engine::ContainerClip.

Definition at line 366 of file tracktion_AudioClipBase.cpp.

◆ getActiveChannels()

juce::AudioChannelSet tracktion::engine::AudioClipBase::getActiveChannels ( ) const

Returns the layout of the active channels.

Definition at line 158 of file tracktion_AudioClipBase.h.

◆ getActualTimeStretchMode()

TimeStretcher::Mode tracktion::engine::AudioClipBase::getActualTimeStretchMode ( ) const

noexcept

Returns the time-stretch mode that is in use.

Note that even if not time-stretch mode has been set e.g. for speed changes, if auto-pitch or auto-tempo is enabled, a time-stretch mode will have to be used and this returns it.

Definition at line 591 of file tracktion_AudioClipBase.cpp.

◆ getAllPlugins()

Plugin::Array tracktion::engine::AudioClipBase::getAllPlugins ( )

overridevirtual

Returns all the plugins on the clip.

Reimplemented from tracktion::engine::Clip.

Definition at line 1597 of file tracktion_AudioClipBase.cpp.

◆ getAudioFile()

virtual AudioFile tracktion::engine::AudioClipBase::getAudioFile ( ) const

virtual

Returns the file used to play back the source and will get proxied etc.

Reimplemented in tracktion::engine::EditClip.

Definition at line 59 of file tracktion_AudioClipBase.h.

◆ getAudioSegmentList()

const AudioSegmentList & tracktion::engine::AudioClipBase::getAudioSegmentList ( )

Returns an AudioSegmentList describing this file if it is using auto-tempo.

This can be useful for drawing waveforms. [[ message_thread ]]

Definition at line 1049 of file tracktion_AudioClipBase.cpp.

◆ getAutoCrossfade()

bool tracktion::engine::AudioClipBase::getAutoCrossfade ( ) const

noexcept

Returns whether auto-crossfade is enabled.

Definition at line 193 of file tracktion_AudioClipBase.h.

◆ getAutoDetectBeats()

bool tracktion::engine::AudioClipBase::getAutoDetectBeats ( ) const

Returns true if auto-detect of beats is enabled.

Definition at line 274 of file tracktion_AudioClipBase.h.

◆ getAutoPitch()

bool tracktion::engine::AudioClipBase::getAutoPitch ( ) const

Returns true if auto-pitch has been set.

Definition at line 326 of file tracktion_AudioClipBase.h.

◆ getAutoPitchMode()

AutoPitchMode tracktion::engine::AudioClipBase::getAutoPitchMode ( )

Returns the AutoPitchMode in use.

Definition at line 332 of file tracktion_AudioClipBase.h.

◆ getAutoTempo()

bool tracktion::engine::AudioClipBase::getAutoTempo ( ) const

Returns true if auto-tempo has been set.

Definition at line 318 of file tracktion_AudioClipBase.h.

◆ getBeatSensitivity()

float tracktion::engine::AudioClipBase::getBeatSensitivity ( ) const

Returns the beat sensitivity.

Definition at line 281 of file tracktion_AudioClipBase.h.

◆ getClipEffects()

ClipEffects * tracktion::engine::AudioClipBase::getClipEffects ( ) const

noexcept

Returns the ClipEffects for this clip if it has been enabled.

Definition at line 415 of file tracktion_AudioClipBase.h.

◆ getClipMessage()

virtual juce::String tracktion::engine::AudioClipBase::getClipMessage ( )

virtual

Override this to return a custom message to display over the clip where the "file missing" text usually goes.

Reimplemented in tracktion::engine::EditClip.

Definition at line 118 of file tracktion_AudioClipBase.h.

◆ getDefaultColour()

juce::Colour tracktion::engine::AudioClipBase::getDefaultColour ( ) const

overridevirtual

Returns the default colour for this clip.

Implements tracktion::engine::Clip.

Definition at line 407 of file tracktion_AudioClipBase.cpp.

◆ getEffectsVisible()

bool tracktion::engine::AudioClipBase::getEffectsVisible ( ) const

Returns true if the effectsVisible flag is set for this clip.

Definition at line 412 of file tracktion_AudioClipBase.h.

◆ getFadeIn()

TimeDuration tracktion::engine::AudioClipBase::getFadeIn ( ) const

Returns the fade in duration in seconds.

Definition at line 539 of file tracktion_AudioClipBase.cpp.

◆ getFadeInBehaviour()

FadeBehaviour tracktion::engine::AudioClipBase::getFadeInBehaviour ( ) const

Returns the fade in behaviour.

Definition at line 221 of file tracktion_AudioClipBase.h.

◆ getFadeInType()

AudioFadeCurve::Type tracktion::engine::AudioClipBase::getFadeInType ( ) const

Returns the curve shape for the fade in to use.

Definition at line 180 of file tracktion_AudioClipBase.h.

◆ getFadeOut()

TimeDuration tracktion::engine::AudioClipBase::getFadeOut ( ) const

Returns the fade out duration in seconds.

Definition at line 554 of file tracktion_AudioClipBase.cpp.

◆ getFadeOutBehaviour()

FadeBehaviour tracktion::engine::AudioClipBase::getFadeOutBehaviour ( ) const

Returns the fade out behaviour.

Definition at line 226 of file tracktion_AudioClipBase.h.

◆ getFadeOutType()

AudioFadeCurve::Type tracktion::engine::AudioClipBase::getFadeOutType ( ) const

Returns the curve shape for the fade out to use.

Definition at line 185 of file tracktion_AudioClipBase.h.

◆ getFollowActions()

FollowActions * tracktion::engine::AudioClipBase::getFollowActions ( )

overridevirtual

Some clip types can be launched, if that's possible, this can be used to determine the action to perform after a clip has played.

Reimplemented from tracktion::engine::Clip.

Definition at line 1562 of file tracktion_AudioClipBase.cpp.

◆ getGain()

float tracktion::engine::AudioClipBase::getGain ( ) const

noexcept

Returns the gain of the clip.

Definition at line 129 of file tracktion_AudioClipBase.h.

◆ getGainDB()

float tracktion::engine::AudioClipBase::getGainDB ( ) const

noexcept

Returns the gain of the clip in dB.

Definition at line 127 of file tracktion_AudioClipBase.h.

◆ getHash()

virtual HashCode tracktion::engine::AudioClipBase::getHash ( ) const

pure virtual

Must return a unique hash for this clip's source.

This should be the same until the clip changes as it is used to determine if the proxy needs regenerating.

Implemented in tracktion::engine::ContainerClip, tracktion::engine::EditClip, and tracktion::engine::WaveAudioClip.

◆ getIsReversed()

bool tracktion::engine::AudioClipBase::getIsReversed ( ) const

noexcept

Returns true if the clip's source material is reversed.

Definition at line 370 of file tracktion_AudioClipBase.h.

◆ getLaunchHandle()

std::shared_ptr< LaunchHandle > tracktion::engine::AudioClipBase::getLaunchHandle ( )

overridevirtual

Some clip types can be launched, if that's possible, this returns a handle to trigger starting/stopping the clip.

Reimplemented from tracktion::engine::Clip.

Definition at line 1546 of file tracktion_AudioClipBase.cpp.

◆ getLaunchQuantisation()

LaunchQuantisation * tracktion::engine::AudioClipBase::getLaunchQuantisation ( )

overridevirtual

Some clip types can be launched, if that's possible, this returns a quantisation that can be used for this clip.

N.B. This will always be the clip's LaunchQuantisation, to find out if you should use the Edit's LaunchQuantisation, check usesGlobalLaunchQuatisation first

Reimplemented from tracktion::engine::Clip.

Definition at line 1554 of file tracktion_AudioClipBase.cpp.

◆ getLiveClipLevel()

LiveClipLevel tracktion::engine::AudioClipBase::getLiveClipLevel ( )

Returns a LiveClipLevel which can be used to read the gain, pan and mute statuses.

Definition at line 1651 of file tracktion_AudioClipBase.cpp.

◆ getLoopInfo() [1/2]

LoopInfo & tracktion::engine::AudioClipBase::getLoopInfo ( )

Returns the LoopInfo being used to describe this clip.

Definition at line 239 of file tracktion_AudioClipBase.h.

◆ getLoopInfo() [2/2]

const LoopInfo & tracktion::engine::AudioClipBase::getLoopInfo ( ) const

Returns the LoopInfo being used to describe this clip.

Definition at line 237 of file tracktion_AudioClipBase.h.

◆ getLoopLength()

TimeDuration tracktion::engine::AudioClipBase::getLoopLength ( ) const

overridevirtual

Returns the length of loop in seconds.

Reimplemented from tracktion::engine::Clip.

Definition at line 950 of file tracktion_AudioClipBase.cpp.

◆ getLoopLengthBeats()

BeatDuration tracktion::engine::AudioClipBase::getLoopLengthBeats ( ) const

overridevirtual

Returns the length of loop in beats.

Reimplemented from tracktion::engine::Clip.

Definition at line 966 of file tracktion_AudioClipBase.cpp.

◆ getLoopRange()

TimeRange tracktion::engine::AudioClipBase::getLoopRange ( ) const

Returns the loop range in seconds.

Definition at line 925 of file tracktion_AudioClipBase.cpp.

◆ getLoopStart()

TimePosition tracktion::engine::AudioClipBase::getLoopStart ( ) const

overridevirtual

Returns the start time of the loop start point.

Reimplemented from tracktion::engine::Clip.

Definition at line 942 of file tracktion_AudioClipBase.cpp.

◆ getLoopStartBeats()

BeatPosition tracktion::engine::AudioClipBase::getLoopStartBeats ( ) const

overridevirtual

Returns the beat position of the loop start point.

Reimplemented from tracktion::engine::Clip.

Definition at line 958 of file tracktion_AudioClipBase.cpp.

◆ getMaximumLength()

TimeDuration tracktion::engine::AudioClipBase::getMaximumLength ( )

overridevirtual

Returns the maximum length for this clip.

This can change depending on the clips properties e.g. if the clip is timestretched then this will return a proportion of getSourceLength, if it is looped this will return infinite.

Reimplemented from tracktion::engine::Clip.

Definition at line 413 of file tracktion_AudioClipBase.cpp.

◆ getOriginalFile()

virtual juce::File tracktion::engine::AudioClipBase::getOriginalFile ( ) const

pure virtual

Must return the file that the source ProjectItemID refers to.

Implemented in tracktion::engine::ContainerClip, tracktion::engine::EditClip, and tracktion::engine::WaveAudioClip.

◆ getOverlappingClip()

AudioClipBase * tracktion::engine::AudioClipBase::getOverlappingClip ( ClipDirection direction ) const

Returns the previous/next overlapping clip if one exists.

Definition at line 698 of file tracktion_AudioClipBase.cpp.

◆ getPan()

float tracktion::engine::AudioClipBase::getPan ( ) const

noexcept

Returns the pan of the clip from -1 to 1.

See also: setPan.

Definition at line 136 of file tracktion_AudioClipBase.h.

◆ getPatternGenerator()

PatternGenerator * tracktion::engine::AudioClipBase::getPatternGenerator ( )

overridevirtual

Returns the PatternGenerator for this clip if it has one.

See also: MidiClip

Reimplemented from tracktion::engine::Clip.

Definition at line 374 of file tracktion_AudioClipBase.cpp.

◆ getPitchChange()

float tracktion::engine::AudioClipBase::getPitchChange ( ) const

Returns the number of semitones to transpose the clip by.

Definition at line 361 of file tracktion_AudioClipBase.h.

◆ getPitchChoices()

juce::StringArray tracktion::engine::AudioClipBase::getPitchChoices ( )

Returns an array describng what pitch each semitone change will be.

Definition at line 1267 of file tracktion_AudioClipBase.cpp.

◆ getPitchRatio()

float tracktion::engine::AudioClipBase::getPitchRatio ( ) const

Returns the pitch change as a normalised ratio.

0 = no change, <0 = pitched down, >0 = pitched up.

Definition at line 364 of file tracktion_AudioClipBase.h.

◆ getPlaybackFile()

AudioFile tracktion::engine::AudioClipBase::getPlaybackFile ( )

Returns the current AudioFile being used by the Clip, either the original source or a proxy.

Definition at line 2166 of file tracktion_AudioClipBase.cpp.

◆ getPluginList()

PluginList * tracktion::engine::AudioClipBase::getPluginList ( )

overridevirtual

Returns the PluginList for this clip if it has one.

Reimplemented from tracktion::engine::Clip.

Definition at line 614 of file tracktion_AudioClipBase.h.

◆ getProxyFileToCreate()

AudioFile tracktion::engine::AudioClipBase::getProxyFileToCreate ( bool renderTimestretched )

Returns the AudioFile to create to play this clip back.

Parameters

renderTimestretched If true, this should be a time-stretched version of the clip

See also: setAutoTempo

Definition at line 1899 of file tracktion_AudioClipBase.cpp.

◆ getProxyHash()

HashCode tracktion::engine::AudioClipBase::getProxyHash ( )

Returns a hash identifying the proxy settings.

Definition at line 2194 of file tracktion_AudioClipBase.cpp.

◆ getReferencedItems()

juce::Array< Exportable::ReferencedItem > tracktion::engine::AudioClipBase::getReferencedItems ( )

overridevirtual

Implements tracktion::engine::Exportable.

Definition at line 1462 of file tracktion_AudioClipBase.cpp.

◆ getRenderJob()

virtual RenderManager::Job::Ptr tracktion::engine::AudioClipBase::getRenderJob ( const AudioFile & )

virtual

Subclasses should override this to return a RenderJob suitable for rendering its source file.

Note that because we can only render one source this should also check to see if the source should be reversed and do so accordingly. This will be called on the message thread so should complete quickly, if your source needs some time consuming setup (e.g. loading Edits) then make sure your render job does this in its render thread.

Reimplemented in tracktion::engine::EditClip, and tracktion::engine::WaveAudioClip.

Definition at line 103 of file tracktion_AudioClipBase.h.

◆ getRenderMessage()

virtual juce::String tracktion::engine::AudioClipBase::getRenderMessage ( )

virtual

Override this to return a custom message to be displayed over waveforms during rendering.

This is called periodically once a render has started. Once you are done, this should return an empty string to let the AudioStripBase know to stop updating.

Reimplemented in tracktion::engine::EditClip, and tracktion::engine::WaveAudioClip.

Definition at line 115 of file tracktion_AudioClipBase.h.

◆ getResamplingQuality()

ResamplingQuality tracktion::engine::AudioClipBase::getResamplingQuality ( ) const

Returns the resampling quality to the be used.

Definition at line 1065 of file tracktion_AudioClipBase.cpp.

◆ getRescaledMarkPoints() [1/2]

juce::Array< TimePosition > tracktion::engine::AudioClipBase::getRescaledMarkPoints ( ) const

overridevirtual

Returns the mark points relative to the start of the clip, rescaled to the current speed.

Reimplemented from tracktion::engine::Clip.

Definition at line 1747 of file tracktion_AudioClipBase.cpp.

◆ getRescaledMarkPoints() [2/2]

void tracktion::engine::AudioClipBase::getRescaledMarkPoints	(	juce::Array< TimePosition > &	rescaled,
		juce::Array< int > &	orig
	)		const

Definition at line 1755 of file tracktion_AudioClipBase.cpp.

◆ getRootNoteChoices()

juce::StringArray tracktion::engine::AudioClipBase::getRootNoteChoices ( Engine & e )

static

Returns an array of the root note choices e.g.

"C#" etc.

Definition at line 1256 of file tracktion_AudioClipBase.cpp.

◆ getSourceLength()

virtual TimeDuration tracktion::engine::AudioClipBase::getSourceLength ( ) const

pure virtual

Must return the length in seconds of the source material e.g.

the length of the audio file or edit.

Implemented in tracktion::engine::ContainerClip, tracktion::engine::EditClip, and tracktion::engine::WaveAudioClip.

◆ getTakes()

juce::Array< ProjectItemID > tracktion::engine::AudioClipBase::getTakes ( ) const

virtual

Returns the ProjectItemID of the clip's takes.

Reimplemented in tracktion::engine::WaveAudioClip.

Definition at line 1539 of file tracktion_AudioClipBase.cpp.

◆ getTimeStretchMode()

TimeStretcher::Mode tracktion::engine::AudioClipBase::getTimeStretchMode ( ) const

noexcept

Returns the time-stretch mode that has been set.

Definition at line 586 of file tracktion_AudioClipBase.cpp.

◆ getTransposeSemiTones()

int tracktion::engine::AudioClipBase::getTransposeSemiTones ( bool includeAutoPitch ) const

Returns the number of semitones this clip will be changed by.

N.B. this is used if auto-pitch is enabled.

Parameters

includeAutoPitch If true, this will include the changes defined by auto-pitch. If false, this will only be the number explicitly set in setTranspose

Definition at line 1178 of file tracktion_AudioClipBase.cpp.

◆ getWarpTime()

bool tracktion::engine::AudioClipBase::getWarpTime ( ) const

Returns true if warp time is enabled.

Definition at line 340 of file tracktion_AudioClipBase.h.

◆ getWarpTimeManager()

WarpTimeManager & tracktion::engine::AudioClipBase::getWarpTimeManager ( ) const

Returns the WarpTimeManager for this clip used to maipluate warp markers.

Definition at line 1165 of file tracktion_AudioClipBase.cpp.

◆ getWaveInfo()

AudioFileInfo tracktion::engine::AudioClipBase::getWaveInfo ( )

virtual

Returns the WaveInfo for a clip.

By default this just looks in the AudioSegmentList cache but subclasses can override this to return a custom WaveInfo if they don't reference source files..

Reimplemented in tracktion::engine::EditClip.

Definition at line 2182 of file tracktion_AudioClipBase.cpp.

◆ hideMelodyneWindow()

void tracktion::engine::AudioClipBase::hideMelodyneWindow ( )

Hides the Melodyne window if this clip is using Melodyne.

Definition at line 1100 of file tracktion_AudioClipBase.cpp.

◆ initialise()

void tracktion::engine::AudioClipBase::initialise ( )

overridevirtual

Initialises the Clip.

Called once automatically after construction.

Reimplemented from tracktion::engine::Clip.

Reimplemented in tracktion::engine::ContainerClip, tracktion::engine::EditClip, and tracktion::engine::WaveAudioClip.

Definition at line 286 of file tracktion_AudioClipBase.cpp.

◆ isLeftChannelActive()

bool tracktion::engine::AudioClipBase::isLeftChannelActive ( ) const

Returns whether the left channel of the clip is enabled.

Definition at line 465 of file tracktion_AudioClipBase.cpp.

◆ isLooping()

bool tracktion::engine::AudioClipBase::isLooping ( ) const

overridevirtual

Returns true if this clip is currently looping.

Reimplemented from tracktion::engine::Clip.

Definition at line 247 of file tracktion_AudioClipBase.h.

◆ isMuted()

bool tracktion::engine::AudioClipBase::isMuted ( ) const

overridevirtual

Returns true if the clip is muted.

Implements tracktion::engine::Clip.

Definition at line 141 of file tracktion_AudioClipBase.h.

◆ isRightChannelActive()

bool tracktion::engine::AudioClipBase::isRightChannelActive ( ) const

Returns whether the right channel of the clip is enabled.

Definition at line 492 of file tracktion_AudioClipBase.cpp.

◆ isUsingFile()

bool tracktion::engine::AudioClipBase::isUsingFile ( const AudioFile & af )

virtual

Should return true if the clip is referencing the file in any way.

Reimplemented in tracktion::engine::ContainerClip, tracktion::engine::WaveAudioClip, and tracktion::engine::EditClip.

Definition at line 1867 of file tracktion_AudioClipBase.cpp.

◆ isUsingMelodyne()

bool tracktion::engine::AudioClipBase::isUsingMelodyne ( ) const

Returns true if this clip is using Melodyne.

Definition at line 1084 of file tracktion_AudioClipBase.cpp.

◆ loadMelodyneState()

void tracktion::engine::AudioClipBase::loadMelodyneState ( )

Definition at line 1089 of file tracktion_AudioClipBase.cpp.

◆ markAsDirty()

void tracktion::engine::AudioClipBase::markAsDirty ( )

Resets the dirty flag so that a new render will be attempted.

Call this whenever one of your clips properties that will change the source file change. This flag is used to avoid constantly re-rendering failed sources.

Definition at line 1657 of file tracktion_AudioClipBase.cpp.

◆ melodyneConvertToMIDI()

void tracktion::engine::AudioClipBase::melodyneConvertToMIDI ( )

If this clip is using Melodyne, this will create a new MIDI clip based on the Melodyne analysis.

Definition at line 1106 of file tracktion_AudioClipBase.cpp.

◆ moveMarkTo()

void tracktion::engine::AudioClipBase::moveMarkTo ( TimePosition relCursorPos )

Definition at line 1379 of file tracktion_AudioClipBase.cpp.

◆ needsRender()

virtual bool tracktion::engine::AudioClipBase::needsRender ( ) const

virtual

Subclasses should override this to return true if they need the rest of the render callbacks.

Reimplemented in tracktion::engine::EditClip, and tracktion::engine::WaveAudioClip.

Definition at line 95 of file tracktion_AudioClipBase.h.

◆ performTempoDetect()

bool tracktion::engine::AudioClipBase::performTempoDetect ( )

Performs a tempo-detection task and if successful sets the clip's LoopInfo tempo to this.

Returns: true if the tempo was sensibly detected [[ blocks ]]

Definition at line 1241 of file tracktion_AudioClipBase.cpp.

◆ pitchTempoTrackChanged()

void tracktion::engine::AudioClipBase::pitchTempoTrackChanged ( )

overridevirtual

Called when there are pitch or tempo changes made which might require clips to adjust timing information.

Reimplemented from tracktion::engine::Clip.

Reimplemented in tracktion::engine::ContainerClip.

Definition at line 1032 of file tracktion_AudioClipBase.cpp.

◆ reassignReferencedItem()

void tracktion::engine::AudioClipBase::reassignReferencedItem	(	const ReferencedItem &	item,
		ProjectItemID	newID,
		double	newStartTime
	)

overridevirtual

Implements tracktion::engine::Exportable.

Definition at line 1519 of file tracktion_AudioClipBase.cpp.

◆ renderComplete()

void tracktion::engine::AudioClipBase::renderComplete ( )

virtual

Callback to indicate that the render has completed.

If you override this, make sure to call the base class implementation first.

Reimplemented in tracktion::engine::EditClip, and tracktion::engine::WaveAudioClip.

Definition at line 1736 of file tracktion_AudioClipBase.cpp.

◆ reverseLoopPoints()

void tracktion::engine::AudioClipBase::reverseLoopPoints ( )

Reverses the loop points to expose the same section of the source file but reversed.

Definition at line 602 of file tracktion_AudioClipBase.cpp.

◆ sendMirrorUpdateToAllPlugins()

void tracktion::engine::AudioClipBase::sendMirrorUpdateToAllPlugins ( Plugin & ) const

overridevirtual

Sends an update to all plugins mirroing the one passed in.

Reimplemented from tracktion::engine::Clip.

Definition at line 1602 of file tracktion_AudioClipBase.cpp.

◆ setAutoCrossfade()

void tracktion::engine::AudioClipBase::setAutoCrossfade ( bool shouldAutoCrossfade )

Enables/disables auto-crossfading.

When enabled, the fade in/out length will automatically be set to the length of any overlapping clip regions.

Definition at line 191 of file tracktion_AudioClipBase.h.

◆ setAutoDetectBeats()

void tracktion::engine::AudioClipBase::setAutoDetectBeats ( bool b )

Enables auto-detection of beats.

If this is true the LoopInfo will be set based on what beats were detected. This will aso updat eif the sensitivity is changed

See also: setBeatSensitivity. [[ blocks ]]

Definition at line 1020 of file tracktion_AudioClipBase.cpp.

◆ setAutoPitch()

void tracktion::engine::AudioClipBase::setAutoPitch ( bool shouldUseAutoPitch )

Enables/disables auto-pitch.

If enabled, this clip will adjust its playback pitch to stay in sync with the Edit's PitchSequence.

Definition at line 323 of file tracktion_AudioClipBase.h.

◆ setAutoPitchMode()

void tracktion::engine::AudioClipBase::setAutoPitchMode ( AutoPitchMode m )

Sets the AutoPitchMode to use.

Definition at line 329 of file tracktion_AudioClipBase.h.

◆ setAutoTempo()

void tracktion::engine::AudioClipBase::setAutoTempo ( bool shouldUseAutoTempo )

Enables/disables auto-tempo.

If enabled, this clip will adjust its playback speed to stay in sync with the Edit's TempoSequence.

Definition at line 315 of file tracktion_AudioClipBase.h.

◆ setBeatSensitivity()

void tracktion::engine::AudioClipBase::setBeatSensitivity ( float s )

Sets the beat sensitivity, triggering a LoopInfo update if auto-detect is enabled.

See also: setAutoDetectBeats

Definition at line 1026 of file tracktion_AudioClipBase.cpp.

◆ setEffectsVisible()

void tracktion::engine::AudioClipBase::setEffectsVisible ( bool b )

Sets the effectsVisible flag for this clip.

Definition at line 409 of file tracktion_AudioClipBase.h.

◆ setFadeIn()

bool tracktion::engine::AudioClipBase::setFadeIn ( TimeDuration length )

Sets the fade in duration in seconds.

If the duration is longer than the clip or overlaps the fade out, this will reduce the fade out accordingly.

Definition at line 498 of file tracktion_AudioClipBase.cpp.

◆ setFadeInBehaviour()

void tracktion::engine::AudioClipBase::setFadeInBehaviour ( FadeBehaviour newBehaviour )

Sets the fade in behaviour.

Definition at line 219 of file tracktion_AudioClipBase.h.

◆ setFadeInType()

void tracktion::engine::AudioClipBase::setFadeInType ( AudioFadeCurve::Type t )

Sets the curve shape for the fade in to use.

Definition at line 569 of file tracktion_AudioClipBase.cpp.

◆ setFadeOut()

bool tracktion::engine::AudioClipBase::setFadeOut ( TimeDuration length )

Sets the fade out duration in seconds.

If the duration is longer than the clip or overlaps the fade in, this will reduce the fade in accordingly.

Definition at line 519 of file tracktion_AudioClipBase.cpp.

◆ setFadeOutBehaviour()

void tracktion::engine::AudioClipBase::setFadeOutBehaviour ( FadeBehaviour newBehaviour )

Sets the fade out behaviour.

Definition at line 224 of file tracktion_AudioClipBase.h.

◆ setFadeOutType()

void tracktion::engine::AudioClipBase::setFadeOutType ( AudioFadeCurve::Type newType )

Sets the curve shape for the fade out to use.

Definition at line 577 of file tracktion_AudioClipBase.cpp.

◆ setGainDB()

void tracktion::engine::AudioClipBase::setGainDB ( float dB )

Sets the gain of the clip in dB.

Definition at line 431 of file tracktion_AudioClipBase.cpp.

◆ setIsReversed()

void tracktion::engine::AudioClipBase::setIsReversed ( bool shouldBeReversed )

Enables reversing of the clip's source material.

Definition at line 367 of file tracktion_AudioClipBase.h.

◆ setLeftChannelActive()

void tracktion::engine::AudioClipBase::setLeftChannelActive ( bool b )

Enables the left channel of the clip.

Definition at line 443 of file tracktion_AudioClipBase.cpp.

◆ setLoopDefaults()

virtual void tracktion::engine::AudioClipBase::setLoopDefaults ( )

pure virtual

Override this to fill in the LoopInfo structure as best fits the source.

Implemented in tracktion::engine::ContainerClip, tracktion::engine::EditClip, and tracktion::engine::WaveAudioClip.

◆ setLoopInfo()

void tracktion::engine::AudioClipBase::setLoopInfo ( const LoopInfo & loopInfo_ )

Sets a LoopInfo to describe this clip's tempo, time sig etc.

which is used when syncing to the TempoSequence and PitchSequence.

See also: LoopInfo.

Definition at line 871 of file tracktion_AudioClipBase.cpp.

◆ setLoopRange()

void tracktion::engine::AudioClipBase::setLoopRange ( TimeRange )

overridevirtual

Sets the loop range the clip should use in seconds.

Reimplemented from tracktion::engine::Clip.

Definition at line 974 of file tracktion_AudioClipBase.cpp.

◆ setLoopRangeBeats()

void tracktion::engine::AudioClipBase::setLoopRangeBeats ( BeatRange )

overridevirtual

Sets the loop range the clip should use in beats.

Reimplemented from tracktion::engine::Clip.

Reimplemented in tracktion::engine::ContainerClip.

Definition at line 1005 of file tracktion_AudioClipBase.cpp.

◆ setMuted()

void tracktion::engine::AudioClipBase::setMuted ( bool )

overridevirtual

Mutes or unmutes the clip.

Reimplemented from tracktion::engine::Clip.

Definition at line 139 of file tracktion_AudioClipBase.h.

◆ setNumberOfLoops()

void tracktion::engine::AudioClipBase::setNumberOfLoops ( int )

overridevirtual

Sets the clip looping a number of times.

Reimplemented from tracktion::engine::Clip.

Definition at line 876 of file tracktion_AudioClipBase.cpp.

◆ setPan()

void tracktion::engine::AudioClipBase::setPan ( float pan )

Sets the pan of the clip.

Parameters

pan	-1 = full left, 0 = centre, 1 = full right

Definition at line 436 of file tracktion_AudioClipBase.cpp.

◆ setParent()

void tracktion::engine::AudioClipBase::setParent ( ClipOwner * co )

overridevirtual

Reimplemented from tracktion::engine::Clip.

Definition at line 384 of file tracktion_AudioClipBase.cpp.

◆ setPitchChange()

void tracktion::engine::AudioClipBase::setPitchChange ( float semitones )

Sets the number of semitones to transpose the clip by.

N.B. this is only used if auto-pitch is disabled.

Definition at line 358 of file tracktion_AudioClipBase.h.

◆ setResamplingQuality()

void tracktion::engine::AudioClipBase::setResamplingQuality ( ResamplingQuality rq )

Sets the resampling qulity to use.

This is only applicable if setUsesProxy has been set to false. If a proxy is used, Lagrange interpolation will be used. N.B. the higher the quality, the more higher the CPU usage during playback.

Definition at line 1060 of file tracktion_AudioClipBase.cpp.

◆ setRightChannelActive()

void tracktion::engine::AudioClipBase::setRightChannelActive ( bool b )

Enables the right channel of the clip.

Definition at line 470 of file tracktion_AudioClipBase.cpp.

◆ setSpeedRatio()

void tracktion::engine::AudioClipBase::setSpeedRatio ( double r )

overridevirtual

Sets a speed ratio i.e.

how quickly the clip plays back.

Reimplemented from tracktion::engine::Clip.

Definition at line 1071 of file tracktion_AudioClipBase.cpp.

◆ setTimeStretchMode()

void tracktion::engine::AudioClipBase::setTimeStretchMode ( TimeStretcher::Mode mode )

Sets a time-stretch mode to use.

Definition at line 1157 of file tracktion_AudioClipBase.cpp.

◆ setTranspose()

void tracktion::engine::AudioClipBase::setTranspose ( int numSemitones )

Sets the number of semitones to transpose the clip by.

Definition at line 346 of file tracktion_AudioClipBase.h.

◆ setupARA()

bool tracktion::engine::AudioClipBase::setupARA ( bool dontPopupErrorMessages )

This internal method is used solely to find out if createAudioNode() should return nullptr or not.

Though a bit spaghetti, the ARA node generation will be handled elsewhere, the parent AudioTrack, for the sake of live-play.

Returns

False if something went wrong!

     It's possible no ARA-compatible plugins were found,
     or that ARA complained about something resulting
     in failure to set it up accordingly.
     Celemony's ARA is really flaky and touchy, so the latter
     is most likely!

Definition at line 1608 of file tracktion_AudioClipBase.cpp.

◆ setUsesGlobalLaunchQuatisation()

void tracktion::engine::AudioClipBase::setUsesGlobalLaunchQuatisation ( bool )

overridevirtual

Some clip types can be launched, if that's possible, this sets whether the clip's quantisation or the global quantisation should be used.

See also: getLaunchQuantisation, Edit::getLaunchQuantisation

Reimplemented from tracktion::engine::Clip.

Definition at line 598 of file tracktion_AudioClipBase.h.

◆ setUsesProxy()

void tracktion::engine::AudioClipBase::setUsesProxy ( bool canUseProxy )

noexcept

Can be used to disable proxy file generation for this clip.

If disabled, the audio engine will time-stretch the file in real time which may use more CPU.

Definition at line 1878 of file tracktion_AudioClipBase.cpp.

◆ setWarpTime()

void tracktion::engine::AudioClipBase::setWarpTime ( bool shouldUseWarpTime )

Enables/disables warp time.

Warp Time enables segmented warping of the audio.

See also: WarpTimeManager

Definition at line 337 of file tracktion_AudioClipBase.h.

◆ showMelodyneWindow()

void tracktion::engine::AudioClipBase::showMelodyneWindow ( )

Shows the Melodyne window if this clip is using Melodyne.

Definition at line 1094 of file tracktion_AudioClipBase.cpp.

◆ snapToOriginalBWavTime()

void tracktion::engine::AudioClipBase::snapToOriginalBWavTime ( )

Moves the clip to the bwav time reference metadata property time.

Definition at line 1448 of file tracktion_AudioClipBase.cpp.

◆ updateAutoCrossfadesAsync()

void tracktion::engine::AudioClipBase::updateAutoCrossfadesAsync ( bool updateOverlapped )

Triggers an update of the auto-crossfades.

N.B. you shouldn't normally need to call this, it's called by the AudioTrack when clips are moved.

Parameters

updateOverlapped If true, this will also update any other clips that overlap this one.

Definition at line 728 of file tracktion_AudioClipBase.cpp.

◆ updateLeftRightChannelActivenessFlags()

void tracktion::engine::AudioClipBase::updateLeftRightChannelActivenessFlags ( )

protected

Definition at line 354 of file tracktion_AudioClipBase.cpp.

◆ updateSourceFile()

void tracktion::engine::AudioClipBase::updateSourceFile ( )

Checks the current source file to see if it's up to date and then triggers a source render if needed.

This uses the needsRender and getHash methods to determine the source file to be used. Call this if something changes that will affect the render e.g. tracks in an EditClip.

Definition at line 1663 of file tracktion_AudioClipBase.cpp.

◆ usesGlobalLaunchQuatisation()

bool tracktion::engine::AudioClipBase::usesGlobalLaunchQuatisation ( )

overridevirtual

Some clip types can be launched, if that's possible, this returns whether the clip's quantisation or the global quantisation should be used.

See also: getLaunchQuantisation, Edit::getLaunchQuantisation

Reimplemented from tracktion::engine::Clip.

Definition at line 600 of file tracktion_AudioClipBase.h.

◆ usesTimeStretchedProxy()

bool tracktion::engine::AudioClipBase::usesTimeStretchedProxy ( ) const

Retuns true if this clip use a proxy file due to timestretching.

This can be because auto-tempo, auto-pitch or a pitch change has been set.

Definition at line 1884 of file tracktion_AudioClipBase.cpp.

◆ valueTreeChildAdded()

void tracktion::engine::AudioClipBase::valueTreeChildAdded	(	juce::ValueTree &	parent,
		juce::ValueTree &	child
	)

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 2427 of file tracktion_AudioClipBase.cpp.

◆ valueTreeChildOrderChanged()

void tracktion::engine::AudioClipBase::valueTreeChildOrderChanged	(	juce::ValueTree &	parentState,
		int	oldIndex,
		int	newIndex
	)

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 2473 of file tracktion_AudioClipBase.cpp.

◆ valueTreeChildRemoved()

void tracktion::engine::AudioClipBase::valueTreeChildRemoved	(	juce::ValueTree &	parent,
		juce::ValueTree &	child,
		int	oldIndex
	)

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 2450 of file tracktion_AudioClipBase.cpp.

◆ valueTreeParentChanged()

void tracktion::engine::AudioClipBase::valueTreeParentChanged ( juce::ValueTree & child )

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 2478 of file tracktion_AudioClipBase.cpp.

◆ valueTreePropertyChanged()

void tracktion::engine::AudioClipBase::valueTreePropertyChanged	(	juce::ValueTree &	tree,
		const juce::Identifier &	id
	)

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 2332 of file tracktion_AudioClipBase.cpp.

Friends And Related Symbol Documentation

◆ WaveCompManager

friend class WaveCompManager

friend

Definition at line 618 of file tracktion_AudioClipBase.h.

Member Data Documentation

◆ activeChannels

juce::AudioChannelSet tracktion::engine::AudioClipBase::activeChannels

protected

Definition at line 651 of file tracktion_AudioClipBase.h.

◆ asyncFunctionCaller

AsyncFunctionCaller tracktion::engine::AudioClipBase::asyncFunctionCaller

mutableprotected

Definition at line 649 of file tracktion_AudioClipBase.h.

◆ audioSegmentList

std::unique_ptr<AudioSegmentList> tracktion::engine::AudioClipBase::audioSegmentList

mutableprotected

Definition at line 647 of file tracktion_AudioClipBase.h.

◆ autoCrossfade

juce::CachedValue<bool> tracktion::engine::AudioClipBase::autoCrossfade

protected

Definition at line 627 of file tracktion_AudioClipBase.h.

◆ autoDetectBeats

juce::CachedValue<bool> tracktion::engine::AudioClipBase::autoDetectBeats

protected

Definition at line 643 of file tracktion_AudioClipBase.h.

◆ autoFadeIn

TimeDuration tracktion::engine::AudioClipBase::autoFadeIn

protected

Definition at line 625 of file tracktion_AudioClipBase.h.

◆ autoFadeOut

TimeDuration tracktion::engine::AudioClipBase::autoFadeOut

protected

Definition at line 625 of file tracktion_AudioClipBase.h.

◆ autoPitch

juce::CachedValue<bool> tracktion::engine::AudioClipBase::autoPitch

protected

Definition at line 643 of file tracktion_AudioClipBase.h.

◆ autoPitchMode

juce::CachedValue<AutoPitchMode> tracktion::engine::AudioClipBase::autoPitchMode

protected

Definition at line 644 of file tracktion_AudioClipBase.h.

◆ autoTempo

juce::CachedValue<bool> tracktion::engine::AudioClipBase::autoTempo

protected

Definition at line 643 of file tracktion_AudioClipBase.h.

◆ beatSensitivity

juce::CachedValue<float> tracktion::engine::AudioClipBase::beatSensitivity

protected

Definition at line 641 of file tracktion_AudioClipBase.h.

◆ channels

juce::CachedValue<juce::String> tracktion::engine::AudioClipBase::channels

protected

Definition at line 622 of file tracktion_AudioClipBase.h.

◆ clipEffects

std::unique_ptr<ClipEffects> tracktion::engine::AudioClipBase::clipEffects

protected

Definition at line 648 of file tracktion_AudioClipBase.h.

◆ clipEffectsVisible

juce::CachedValue<bool> tracktion::engine::AudioClipBase::clipEffectsVisible

protected

Definition at line 643 of file tracktion_AudioClipBase.h.

◆ elastiqueProOptions

juce::CachedValue<TimeStretcher::ElastiqueProOptions> tracktion::engine::AudioClipBase::elastiqueProOptions

The ElastiqueProOptions for fine tuning Elastique (if available).

Definition at line 553 of file tracktion_AudioClipBase.h.

◆ fadeIn

juce::CachedValue<TimeDuration> tracktion::engine::AudioClipBase::fadeIn

protected

Definition at line 624 of file tracktion_AudioClipBase.h.

◆ fadeInBehaviour

juce::CachedValue<FadeBehaviour> tracktion::engine::AudioClipBase::fadeInBehaviour

protected

Definition at line 628 of file tracktion_AudioClipBase.h.

◆ fadeInType

juce::CachedValue<AudioFadeCurve::Type> tracktion::engine::AudioClipBase::fadeInType

protected

Definition at line 626 of file tracktion_AudioClipBase.h.

◆ fadeOut

juce::CachedValue<TimeDuration> tracktion::engine::AudioClipBase::fadeOut

protected

Definition at line 624 of file tracktion_AudioClipBase.h.

◆ fadeOutBehaviour

juce::CachedValue<FadeBehaviour> tracktion::engine::AudioClipBase::fadeOutBehaviour

protected

Definition at line 628 of file tracktion_AudioClipBase.h.

◆ fadeOutType

juce::CachedValue<AudioFadeCurve::Type> tracktion::engine::AudioClipBase::fadeOutType

protected

Definition at line 626 of file tracktion_AudioClipBase.h.

◆ isReversed

juce::CachedValue<bool> tracktion::engine::AudioClipBase::isReversed

protected

Definition at line 643 of file tracktion_AudioClipBase.h.

◆ lastProxy

AudioFile tracktion::engine::AudioClipBase::lastProxy

protected

Definition at line 659 of file tracktion_AudioClipBase.h.

◆ lastRenderJobFailed

bool tracktion::engine::AudioClipBase::lastRenderJobFailed

protected

Definition at line 656 of file tracktion_AudioClipBase.h.

◆ level

std::shared_ptr<ClipLevel> tracktion::engine::AudioClipBase::level

protected

Definition at line 621 of file tracktion_AudioClipBase.h.

◆ loopInfo

LoopInfo tracktion::engine::AudioClipBase::loopInfo

protected

Definition at line 639 of file tracktion_AudioClipBase.h.

◆ loopLength

juce::CachedValue<TimeDuration> tracktion::engine::AudioClipBase::loopLength

protected

Definition at line 632 of file tracktion_AudioClipBase.h.

◆ loopLengthBeats

juce::CachedValue<BeatDuration> tracktion::engine::AudioClipBase::loopLengthBeats

protected

Definition at line 634 of file tracktion_AudioClipBase.h.

◆ loopStart

juce::CachedValue<TimePosition> tracktion::engine::AudioClipBase::loopStart

protected

Definition at line 631 of file tracktion_AudioClipBase.h.

◆ loopStartBeats

juce::CachedValue<BeatPosition> tracktion::engine::AudioClipBase::loopStartBeats

protected

Definition at line 633 of file tracktion_AudioClipBase.h.

◆ melodyneProxy

juce::ReferenceCountedObjectPtr<MelodyneFileReader> tracktion::engine::AudioClipBase::melodyneProxy

The MelodyneFileReader proxy if this clip is using Melodyne.

Definition at line 517 of file tracktion_AudioClipBase.h.

◆ pitchChange

juce::CachedValue<float> tracktion::engine::AudioClipBase::pitchChange

protected

Definition at line 638 of file tracktion_AudioClipBase.h.

◆ pluginList

PluginList tracktion::engine::AudioClipBase::pluginList

protected

Definition at line 654 of file tracktion_AudioClipBase.h.

◆ proxyAllowed

juce::CachedValue<int> tracktion::engine::AudioClipBase::proxyAllowed

protected

Definition at line 636 of file tracktion_AudioClipBase.h.

◆ renderJob

RenderManager::Job::Ptr tracktion::engine::AudioClipBase::renderJob

protected

Definition at line 658 of file tracktion_AudioClipBase.h.

◆ resamplingQuality

juce::CachedValue<ResamplingQuality> tracktion::engine::AudioClipBase::resamplingQuality

protected

Definition at line 629 of file tracktion_AudioClipBase.h.

◆ timeStretchMode

juce::CachedValue<TimeStretcher::Mode> tracktion::engine::AudioClipBase::timeStretchMode

protected

Definition at line 642 of file tracktion_AudioClipBase.h.

◆ transpose

juce::CachedValue<int> tracktion::engine::AudioClipBase::transpose

protected

Definition at line 637 of file tracktion_AudioClipBase.h.

◆ warpTime

juce::CachedValue<bool> tracktion::engine::AudioClipBase::warpTime

protected

Definition at line 643 of file tracktion_AudioClipBase.h.

◆ warpTimeManager

WarpTimeManager::Ptr tracktion::engine::AudioClipBase::warpTimeManager

mutableprotected

Definition at line 646 of file tracktion_AudioClipBase.h.

The documentation for this class was generated from the following files:

tracktion_engine/model/clips/tracktion_AudioClipBase.h
tracktion_engine/model/clips/tracktion_AudioClipBase.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ Ptr

Member Enumeration Documentation

◆ AutoPitchMode

◆ ClipDirection

◆ FadeBehaviour

Constructor & Destructor Documentation

◆ AudioClipBase()

◆ ~AudioClipBase()

Member Function Documentation

◆ addClipPlugin()

◆ addEffect()

◆ addMark()

◆ applyEdgeFades()

◆ autoDetectBeatMarkers()

◆ beatBasedLooping()

◆ beginRenderingNewProxyIfNeeded()

◆ canAddClipPlugin()

◆ canBeAddedTo()

◆ cancelCurrentRender()

◆ canHaveEffects()

◆ canLoop()

◆ canSnapToOriginalBWavTime()

◆ canUseProxy()

◆ changed()

◆ checkFadeLengthsForOverrun()

◆ cloneFrom()

◆ copyFadeToAutomation()

◆ createNewProxyAsync()

◆ createProxyRenderingInfo()

◆ deleteMark()

◆ disableLooping()

◆ effectsEnabled()

◆ enableEffects()

◆ flushStateToValueTree()

◆ getActiveChannels()

◆ getActualTimeStretchMode()

◆ getAllPlugins()

◆ getAudioFile()

◆ getAudioSegmentList()

◆ getAutoCrossfade()

◆ getAutoDetectBeats()

◆ getAutoPitch()

◆ getAutoPitchMode()

◆ getAutoTempo()

◆ getBeatSensitivity()

◆ getClipEffects()

◆ getClipMessage()

◆ getDefaultColour()

◆ getEffectsVisible()

◆ getFadeIn()

◆ getFadeInBehaviour()

◆ getFadeInType()

◆ getFadeOut()

◆ getFadeOutBehaviour()

◆ getFadeOutType()

◆ getFollowActions()

◆ getGain()

◆ getGainDB()

◆ getHash()

◆ getIsReversed()

◆ getLaunchHandle()

◆ getLaunchQuantisation()

◆ getLiveClipLevel()

◆ getLoopInfo() [1/2]

◆ getLoopInfo() [2/2]

◆ getLoopLength()

◆ getLoopLengthBeats()

◆ getLoopRange()

◆ getLoopStart()

◆ getLoopStartBeats()
