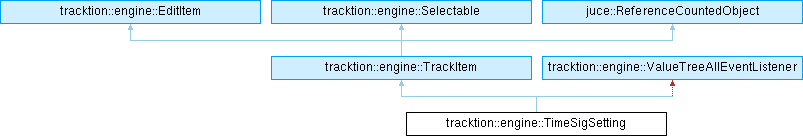

Inheritance diagram for tracktion::engine::TimeSigSetting:
Public Types | |
| using | Ptr = juce::ReferenceCountedObjectPtr< TimeSigSetting > |
| using | Array = juce::ReferenceCountedArray< TimeSigSetting > |
 Public Types inherited from tracktion::engine::TrackItem | |
| enum class | Type { unknown , wave , midi , edit , step , marker , pitch , timeSig , collection , video , recording , chord , arranger , container } |
| Defines the types of item that can live on Track[s]. More... | |
| Public Types inherited from tracktion::engine::Selectable | |
| using | WeakRef = juce::WeakReference< Selectable > |
Public Member Functions | |
| TimeSigSetting (TempoSequence &, const juce::ValueTree &) | |
| ClipPosition | getPosition () const override |
| Must return the position of this item. | |
| BeatPosition | getStartBeat () const |
| juce::String | getStringTimeSig () const |
| void | setStringTimeSig (const juce::String &) |
| void | removeFromEdit () |
| Track * | getTrack () const override |
| Must return the track this item lives on. | |
| juce::String | getName () const override |
| juce::String | getSelectableDescription () override |
| Subclasses must return a description of what they are. | |
| Public Member Functions inherited from tracktion::engine::TrackItem | |
| TrackItem (Edit &, EditItemID, Type) | |
| Creates a TrackItem with an ID and type. | |
| ~TrackItem () | |
| Destructor. | |
| virtual bool | isGrouped () const |
| Should return true if this clip is part of a group. | |
| virtual TrackItem * | getGroupParent () const |
| If this clip is part of a group, this should return the parent item it belongs to. | |
| TimeRange | getEditTimeRange () const |
| Returns the time range of this item. | |
| BeatRange | getEditBeatRange () const |
| Returns the beat range of this item. | |
| BeatPosition | getStartBeat () const |
| Returns the start beat in the Edit of this item. | |
| BeatPosition | getContentStartBeat () const |
| Returns the start beat of the content in the Edit of this item. | |
| BeatPosition | getEndBeat () const |
| Returns the end beat in the Edit of this item. | |
| BeatDuration | getLengthInBeats () const |
| Returns the duration in beats the of this item. | |
| TimePosition | getTimeOfRelativeBeat (BeatDuration) const |
| Returns an Edit time point for a given number of beats from the start of this item. | |
| BeatPosition | getBeatOfRelativeTime (TimeDuration) const |
| Returns an Edit beat point for a given number of seconds from the start of this item. | |
| BeatDuration | getOffsetInBeats () const |
| Returns an the offset of this item in beats. | |
| EditItemID | getTrackID () const |
| Returns the ID of the Track this item lives on. | |
| Public Member Functions inherited from tracktion::engine::EditItem | |
| EditItem (EditItemID, Edit &) | |
| Public Member Functions inherited from tracktion::engine::Selectable | |
| virtual void | selectionStatusChanged (bool isNowSelected) |
| Can be overridden to tell this object that it has just been selected or deselected. | |
| virtual void | changed () |
| This should be called to send a change notification to any SelectableListeners that are registered with this object. | |
| virtual void | selectableAboutToBeDeleted () |
| Called just before the selectable is about to be deleted so any subclasses should still be valid at this point. | |
| void | addListener (SelectableListener *) |
| void | removeListener (SelectableListener *) |
| void | addSelectableListener (SelectableListener *) |
| void | removeSelectableListener (SelectableListener *) |
| void | cancelAnyPendingUpdates () |
| If changed() has been called, this will cancel any pending async change notificaions. | |
| void | deselect () |
| void | propertiesChanged () |
| void | notifyListenersOfDeletion () |
| WeakRef | getWeakRef () |
| Public Member Functions inherited from juce::ReferenceCountedObject | |
| void | incReferenceCount () noexcept |
| void | decReferenceCount () noexcept |
| bool | decReferenceCountWithoutDeleting () noexcept |
| int | getReferenceCount () const noexcept |
Public Attributes | |
| juce::ValueTree | state |
| TempoSequence & | ownerSequence |
| juce::CachedValue< BeatPosition > | startBeatNumber |
| juce::CachedValue< int > | numerator |
| juce::CachedValue< int > | denominator |
| juce::CachedValue< bool > | triplets |
| TimePosition | startTime |
| TimePosition | endTime |
| Public Attributes inherited from tracktion::engine::TrackItem | |
| const Type | type |
| The type of this item. | |
| Public Attributes inherited from tracktion::engine::EditItem | |
| Edit & | edit |
| const EditItemID | itemID |
| Every EditItem has an ID which is unique within the edit. | |
| Public Attributes inherited from tracktion::engine::Selectable | |
| WeakRef::Master | masterReference |
Additional Inherited Members | |
| Static Public Member Functions inherited from tracktion::engine::TrackItem | |
| static const char * | typeToString (Type) |
| Returns the string version of a TrackItem::Type. | |
| static juce::Identifier | clipTypeToXMLType (Type) |
| Returns an Identifier version of a TrackItem::Type. | |
| static TrackItem::Type | xmlTagToType (juce::StringRef) |
| Returns the TrackItem::Type of a type string. | |
| static TrackItem::Type | stringToType (const juce::String &) |
| Returns the TrackItem::Type of a type string. | |
| static juce::String | getSuggestedNameForNewItem (Type) |
| Returns a text string for a new clip of the given type. | |
| template<typename ArrayType > | |
| static void | sortByTime (ArrayType &items) |
| Helper function to sort an array of TrackItem[s] by their start time. | |
| template<typename ArrayType > | |
| static void | stableSortByTime (ArrayType &items) |
| Helper function to sort an array of TrackItem[s] by their start time without changing the order of items at the same time. | |
| Static Public Member Functions inherited from tracktion::engine::Selectable | |
| static void | initialise () |
| static bool | isSelectableValid (const Selectable *) noexcept |
| checks whether this object has been deleted. | |
| Protected Member Functions inherited from juce::ReferenceCountedObject | |
| ReferenceCountedObject (const ReferenceCountedObject &) noexcept | |
| ReferenceCountedObject (ReferenceCountedObject &&) noexcept | |
| ReferenceCountedObject & | operator= (const ReferenceCountedObject &) noexcept |
| ReferenceCountedObject & | operator= (ReferenceCountedObject &&) noexcept |
| void | resetReferenceCount () noexcept |
Detailed Description
Definition at line 17 of file tracktion_TimeSigSetting.h.
Member Typedef Documentation
◆ Array
Definition at line 25 of file tracktion_TimeSigSetting.h.
◆ Ptr
Definition at line 24 of file tracktion_TimeSigSetting.h.
Constructor & Destructor Documentation
◆ TimeSigSetting()
| tracktion::engine::TimeSigSetting::TimeSigSetting | ( | TempoSequence & | ts, |
| const juce::ValueTree & | v | ||
| ) |
Definition at line 14 of file tracktion_TimeSigSetting.cpp.
◆ ~TimeSigSetting()
|
override |
Definition at line 28 of file tracktion_TimeSigSetting.cpp.
Member Function Documentation
◆ getName()
|
overridevirtual |
Implements tracktion::engine::EditItem.
Definition at line 76 of file tracktion_TimeSigSetting.cpp.
◆ getPosition()
|
overridevirtual |
Must return the position of this item.
Implements tracktion::engine::TrackItem.
Definition at line 65 of file tracktion_TimeSigSetting.cpp.
◆ getSelectableDescription()
|
overridevirtual |
Subclasses must return a description of what they are.
Implements tracktion::engine::Selectable.
Definition at line 35 of file tracktion_TimeSigSetting.cpp.
◆ getStartBeat()
| BeatPosition tracktion::engine::TimeSigSetting::getStartBeat | ( | ) | const |
Definition at line 29 of file tracktion_TimeSigSetting.h.
◆ getStringTimeSig()
| juce::String tracktion::engine::TimeSigSetting::getStringTimeSig | ( | ) | const |
Definition at line 40 of file tracktion_TimeSigSetting.cpp.
◆ getTrack()
|
overridevirtual |
Must return the track this item lives on.
Implements tracktion::engine::TrackItem.
Definition at line 60 of file tracktion_TimeSigSetting.cpp.
◆ removeFromEdit()
| void tracktion::engine::TimeSigSetting::removeFromEdit | ( | ) |
Definition at line 54 of file tracktion_TimeSigSetting.cpp.
◆ setStringTimeSig()
| void tracktion::engine::TimeSigSetting::setStringTimeSig | ( | const juce::String & | s | ) |
Definition at line 45 of file tracktion_TimeSigSetting.cpp.
Member Data Documentation
◆ denominator
| juce::CachedValue<int> tracktion::engine::TimeSigSetting::denominator |
Definition at line 50 of file tracktion_TimeSigSetting.h.
◆ endTime
| TimePosition tracktion::engine::TimeSigSetting::endTime |
Definition at line 54 of file tracktion_TimeSigSetting.h.
◆ numerator
| juce::CachedValue<int> tracktion::engine::TimeSigSetting::numerator |
Definition at line 50 of file tracktion_TimeSigSetting.h.
◆ ownerSequence
| TempoSequence& tracktion::engine::TimeSigSetting::ownerSequence |
Definition at line 47 of file tracktion_TimeSigSetting.h.
◆ startBeatNumber
| juce::CachedValue<BeatPosition> tracktion::engine::TimeSigSetting::startBeatNumber |
Definition at line 49 of file tracktion_TimeSigSetting.h.
◆ startTime
| TimePosition tracktion::engine::TimeSigSetting::startTime |
Definition at line 53 of file tracktion_TimeSigSetting.h.
◆ state
| juce::ValueTree tracktion::engine::TimeSigSetting::state |
Definition at line 46 of file tracktion_TimeSigSetting.h.
◆ triplets
| juce::CachedValue<bool> tracktion::engine::TimeSigSetting::triplets |
Definition at line 51 of file tracktion_TimeSigSetting.h.
The documentation for this class was generated from the following files:
- tracktion_engine/model/edit/tracktion_TimeSigSetting.h
- tracktion_engine/model/edit/tracktion_TimeSigSetting.cpp
