An iterable list of Track[s] that live either in an Edit or as subtracks of a Track. More...

#include "tracktion_TrackUtils.h"

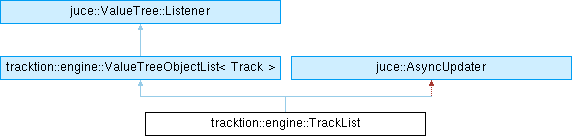

Inheritance diagram for tracktion::engine::TrackList:

Public Member Functions
	TrackList (Edit &, const juce::ValueTree &parent)
	Creates a TrackList for a parent state.

	~TrackList () override
	Destructor.

Track *	getTrackFor (const juce::ValueTree &) const
	Returns a Track for a given state.

bool	visitAllRecursive (const std::function< bool(Track &)> &) const
	Calls the given function on all Track[s].

void	visitAllTopLevel (const std::function< bool(Track &)> &) const
	Calls the given function on all top-level Track[s].

void	visitAllTracks (const std::function< bool(Track &)> &, bool recursive) const
	Calls the given function on all Track[s], optionally recursively.

bool	isSuitableType (const juce::ValueTree &) const override

Track *	createNewObject (const juce::ValueTree &) override

void	deleteObject (Track *t) override

void	newObjectAdded (Track *t) override

void	objectRemoved (Track *) override

void	objectOrderChanged () override

Public Member Functions inherited from tracktion::engine::ValueTreeObjectList< Track >
	ValueTreeObjectList (const juce::ValueTree &parentTree)

int	size () const

bool	isEmpty () const noexcept

Track *	operator[] (int idx) const

Track *	at (int idx)

Track **	begin ()

Track const	begin () const

Track **	end ()

Track const	end () const

void	rebuildObjects ()

void	freeObjects ()

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &tree) override

void	valueTreeChildRemoved (juce::ValueTree &exParent, juce::ValueTree &tree, int) override

void	valueTreeChildOrderChanged (juce::ValueTree &tree, int, int) override

void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeParentChanged (juce::ValueTree &) override

void	valueTreeRedirected (juce::ValueTree &) override

int	compareElements (Track first, Track second) const

	ValueTreeObjectList (const juce::ValueTree &parentTree)

int	size () const

bool	isEmpty () const noexcept

Track *	operator[] (int idx) const

Track *	at (int idx)

Track **	begin ()

Track const	begin () const

Track **	end ()

Track const	end () const

void	rebuildObjects ()

void	freeObjects ()

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &tree) override

void	valueTreeChildRemoved (juce::ValueTree &exParent, juce::ValueTree &tree, int) override

void	valueTreeChildOrderChanged (juce::ValueTree &tree, int, int) override

void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeParentChanged (juce::ValueTree &) override

void	valueTreeRedirected (juce::ValueTree &) override

int	compareElements (Track first, Track second) const

Static Public Member Functions
static bool	isMovableTrack (const juce::ValueTree &) noexcept
	Returns true if the track is movable.

static bool	isArrangerTrack (const juce::ValueTree &) noexcept
	Returns true if the state is for an ArrangerTrack.

static bool	isChordTrack (const juce::ValueTree &) noexcept
	Returns true if the state is for a ChordTrack.

static bool	isMarkerTrack (const juce::ValueTree &) noexcept
	Returns true if the state is for a MarkerTrack.

static bool	isTempoTrack (const juce::ValueTree &) noexcept
	Returns true if the state is for a TempoTrack.

static bool	isMasterTrack (const juce::ValueTree &) noexcept
	Returns true if the state is for a MasterTrack.

static bool	isFixedTrack (const juce::ValueTree &) noexcept
	Returns true if the track is fixed.

static bool	isTrack (const juce::ValueTree &) noexcept
	Returns true if the given ValeTree is for a known Track type.

static bool	isTrack (const juce::Identifier &) noexcept
	Returns true if the given Identifier is for a known Track type.

static bool	hasAnySubTracks (const juce::ValueTree &)
	Returns true if the track has any sub tracks.

static void	sortTracksByType (juce::ValueTree &editState, juce::UndoManager *)
	Sorts a list of tracks by their type, placing global tracks at the top.

Public Attributes
Edit &	edit

bool	rebuilding

Public Attributes inherited from tracktion::engine::ValueTreeObjectList< Track >
juce::Array< Track * >	objects

juce::DummyCriticalSection	arrayLock

juce::Array< Track * >	objects

juce::DummyCriticalSection	arrayLock

Additional Inherited Members
Public Types inherited from tracktion::engine::ValueTreeObjectList< Track >
using	ScopedLockType = typename CriticalSectionType::ScopedLockType

using	ScopedLockType = typename CriticalSectionType::ScopedLockType

Protected Member Functions inherited from tracktion::engine::ValueTreeObjectList< Track >
void	deleteAllObjects ()

bool	isChildTree (juce::ValueTree &v) const

int	indexOf (const juce::ValueTree &v) const noexcept

void	sortArray ()

void	deleteAllObjects ()

bool	isChildTree (juce::ValueTree &v) const

int	indexOf (const juce::ValueTree &v) const noexcept

void	sortArray ()

Protected Attributes inherited from tracktion::engine::ValueTreeObjectList< Track >
juce::ValueTree	parent

juce::ValueTree	parent

Detailed Description

An iterable list of Track[s] that live either in an Edit or as subtracks of a Track.

See also: Edit::getTrackList, Track::getSubTrackList

Definition at line 53 of file tracktion_TrackUtils.h.

Constructor & Destructor Documentation

◆ TrackList()

tracktion::engine::TrackList::TrackList	(	Edit &	e,
		const juce::ValueTree &	parent
	)

Creates a TrackList for a parent state.

Definition at line 71 of file tracktion_TrackUtils.cpp.

◆ ~TrackList()

tracktion::engine::TrackList::~TrackList ( )

override

Destructor.

Definition at line 78 of file tracktion_TrackUtils.cpp.

Member Function Documentation

◆ createNewObject()

Track * tracktion::engine::TrackList::createNewObject ( const juce::ValueTree & v )

overridevirtual

Implements tracktion::engine::ValueTreeObjectList< Track >.

Definition at line 162 of file tracktion_TrackUtils.cpp.

◆ deleteObject()

void tracktion::engine::TrackList::deleteObject ( Track * t )

overridevirtual

Implements tracktion::engine::ValueTreeObjectList< Track >.

Definition at line 196 of file tracktion_TrackUtils.cpp.

◆ getTrackFor()

Track * tracktion::engine::TrackList::getTrackFor ( const juce::ValueTree & v ) const

Returns a Track for a given state.

Definition at line 83 of file tracktion_TrackUtils.cpp.

◆ hasAnySubTracks()

bool tracktion::engine::TrackList::hasAnySubTracks ( const juce::ValueTree & v )

static

Returns true if the track has any sub tracks.

See also: FolderTrack, AutomationTrack

Definition at line 148 of file tracktion_TrackUtils.cpp.

◆ isArrangerTrack()

bool tracktion::engine::TrackList::isArrangerTrack ( const juce::ValueTree & v )

staticnoexcept

Returns true if the state is for an ArrangerTrack.

Definition at line 127 of file tracktion_TrackUtils.cpp.

◆ isChordTrack()

bool tracktion::engine::TrackList::isChordTrack ( const juce::ValueTree & v )

staticnoexcept

Returns true if the state is for a ChordTrack.

Definition at line 128 of file tracktion_TrackUtils.cpp.

◆ isFixedTrack()

bool tracktion::engine::TrackList::isFixedTrack ( const juce::ValueTree & v )

staticnoexcept

Returns true if the track is fixed.

I.e. a global track.

See also: TempoTrack, MarkerTrack, ChordTrack, ArrangerTrack

Definition at line 133 of file tracktion_TrackUtils.cpp.

◆ isMarkerTrack()

bool tracktion::engine::TrackList::isMarkerTrack ( const juce::ValueTree & v )

staticnoexcept

Returns true if the state is for a MarkerTrack.

Definition at line 129 of file tracktion_TrackUtils.cpp.

◆ isMasterTrack()

bool tracktion::engine::TrackList::isMasterTrack ( const juce::ValueTree & v )

staticnoexcept

Returns true if the state is for a MasterTrack.

Definition at line 131 of file tracktion_TrackUtils.cpp.

◆ isMovableTrack()

bool tracktion::engine::TrackList::isMovableTrack ( const juce::ValueTree & v )

staticnoexcept

Returns true if the track is movable.

I.e. not a global track.

Definition at line 122 of file tracktion_TrackUtils.cpp.

◆ isSuitableType()

bool tracktion::engine::TrackList::isSuitableType ( const juce::ValueTree & v ) const

overridevirtual

Implements tracktion::engine::ValueTreeObjectList< Track >.

Definition at line 157 of file tracktion_TrackUtils.cpp.

◆ isTempoTrack()

bool tracktion::engine::TrackList::isTempoTrack ( const juce::ValueTree & v )

staticnoexcept

Returns true if the state is for a TempoTrack.

Definition at line 130 of file tracktion_TrackUtils.cpp.

◆ isTrack() [1/2]

bool tracktion::engine::TrackList::isTrack ( const juce::Identifier & i )

staticnoexcept

Returns true if the given Identifier is for a known Track type.

Definition at line 141 of file tracktion_TrackUtils.cpp.

◆ isTrack() [2/2]

bool tracktion::engine::TrackList::isTrack ( const juce::ValueTree & v )

staticnoexcept

Returns true if the given ValeTree is for a known Track type.

Definition at line 139 of file tracktion_TrackUtils.cpp.

◆ newObjectAdded()

void tracktion::engine::TrackList::newObjectAdded ( Track * t )

overridevirtual

Implements tracktion::engine::ValueTreeObjectList< Track >.

Definition at line 203 of file tracktion_TrackUtils.cpp.

◆ objectOrderChanged()

void tracktion::engine::TrackList::objectOrderChanged ( )

overridevirtual

Implements tracktion::engine::ValueTreeObjectList< Track >.

Definition at line 221 of file tracktion_TrackUtils.cpp.

◆ objectRemoved()

void tracktion::engine::TrackList::objectRemoved ( Track * )

overridevirtual

Implements tracktion::engine::ValueTreeObjectList< Track >.

Definition at line 219 of file tracktion_TrackUtils.cpp.

◆ sortTracksByType()

void tracktion::engine::TrackList::sortTracksByType	(	juce::ValueTree &	editState,
		juce::UndoManager *	um
	)

static

Sorts a list of tracks by their type, placing global tracks at the top.

Definition at line 226 of file tracktion_TrackUtils.cpp.

◆ visitAllRecursive()

bool tracktion::engine::TrackList::visitAllRecursive ( const std::function< bool(Track &)> & f ) const

Calls the given function on all Track[s].

Return false from the function to stop the traversal.

Returns: true if all tracks were visited, false otherwise

Definition at line 92 of file tracktion_TrackUtils.cpp.

◆ visitAllTopLevel()

void tracktion::engine::TrackList::visitAllTopLevel ( const std::function< bool(Track &)> & f ) const

Calls the given function on all top-level Track[s].

Return false from the function to stop the traversal.

Returns: true if all tracks were visited, false otherwise

Definition at line 107 of file tracktion_TrackUtils.cpp.

◆ visitAllTracks()

void tracktion::engine::TrackList::visitAllTracks	(	const std::function< bool(Track &)> &	f,
		bool	recursive
	)		const

Calls the given function on all Track[s], optionally recursively.

Return false from the function to stop the traversal.

Parameters

recursive Whether nested tracks should be visited

Returns: true if all tracks were visited, false otherwise

Definition at line 114 of file tracktion_TrackUtils.cpp.

Member Data Documentation

◆ edit

Edit& tracktion::engine::TrackList::edit

Definition at line 138 of file tracktion_TrackUtils.h.

◆ rebuilding

bool tracktion::engine::TrackList::rebuilding

Definition at line 139 of file tracktion_TrackUtils.h.

The documentation for this struct was generated from the following files:

tracktion_engine/model/tracks/tracktion_TrackUtils.h
tracktion_engine/model/tracks/tracktion_TrackUtils.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TrackList()

◆ ~TrackList()

Member Function Documentation

◆ createNewObject()

◆ deleteObject()

◆ getTrackFor()

◆ hasAnySubTracks()

◆ isArrangerTrack()

◆ isChordTrack()

◆ isFixedTrack()

◆ isMarkerTrack()

◆ isMasterTrack()

◆ isMovableTrack()

◆ isSuitableType()

◆ isTempoTrack()

◆ isTrack() [1/2]

◆ isTrack() [2/2]

◆ newObjectAdded()

◆ objectOrderChanged()

◆ objectRemoved()

◆ sortTracksByType()

◆ visitAllRecursive()

◆ visitAllTopLevel()

◆ visitAllTracks()

Member Data Documentation

◆ edit

◆ rebuilding
