A track similar to the MarkerTrack but can be used to move sections of an Edit around. More...

#include "tracktion_ArrangerTrack.h"

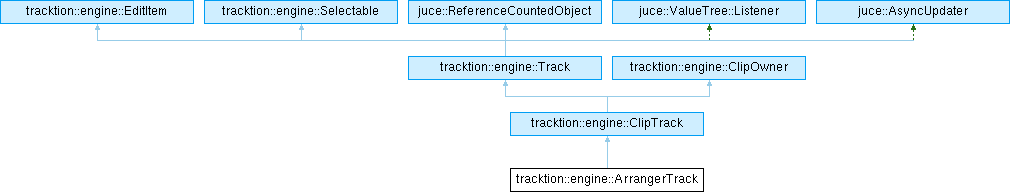

Inheritance diagram for tracktion::engine::ArrangerTrack:

Public Member Functions
	ArrangerTrack (Edit &, const juce::ValueTree &)

bool	isArrangerTrack () const override
	Returns true if this is an ArrangerTrack.

juce::String	getSelectableDescription () override
	Subclasses must return a description of what they are.

juce::String	getName () const override

bool	canContainPlugin (Plugin *) const override
	Returns true if this track can contain a specific Plugin.

Public Member Functions inherited from tracktion::engine::ClipTrack
	ClipTrack (Edit &, const juce::ValueTree &, bool hasModifierList)

void	initialise () override
	Initialises the Track.

void	flushStateToValueTree () override
	Flushes all plugin states on the track to the state object.

Clip *	findClipForID (EditItemID) const override
	Returns a clip one with a matching ID can be found on this Track.

CollectionClip *	getCollectionClip (int index) const noexcept

CollectionClip *	getCollectionClip (Clip *) const

int	getNumCollectionClips () const noexcept

int	indexOfCollectionClip (CollectionClip *) const

int	getIndexOfNextCollectionClipAt (TimePosition)

CollectionClip *	getNextCollectionClipAt (TimePosition)

bool	contains (CollectionClip *) const

void	addCollectionClip (CollectionClip *)

void	removeCollectionClip (CollectionClip *)

int	getNumTrackItems () const override
	Should return the number of TrackItem[s] on this Track.

TrackItem *	getTrackItem (int idx) const override
	Should return the TrackItem at the given index.

int	indexOfTrackItem (TrackItem *) const override
	Should return the index of the given TrackItem.

int	getIndexOfNextTrackItemAt (TimePosition) override
	Should return the index of the TrackItem after this time.

TrackItem *	getNextTrackItemAt (TimePosition) override
	Should return the TrackItem after this time.

void	insertSpaceIntoTrack (TimePosition, TimeDuration) override
	inserts space and moves everything up

TimeDuration	getLength () const

TimeDuration	getLengthIncludingInputTracks () const

TimeRange	getTotalRange () const

bool	addClip (const Clip::Ptr &)

Clip *	insertClipWithState (juce::ValueTree)

Clip *	insertClipWithState (const juce::ValueTree &stateToUse, const juce::String &name, TrackItem::Type type, ClipPosition position, bool deleteExistingClips, bool allowSpottingAdjustment)

Clip *	insertNewClip (TrackItem::Type, TimeRange position, SelectionManager *selectionManagerToSelectWith)

Clip *	insertNewClip (TrackItem::Type, const juce::String &name, TimeRange position, SelectionManager *selectionManagerToSelectWith)

Clip *	insertNewClip (TrackItem::Type, const juce::String &name, ClipPosition position, SelectionManager *selectionManagerToSelectWith)

juce::ReferenceCountedObjectPtr< WaveAudioClip >	insertWaveClip (const juce::String &name, const juce::File &sourceFile, ClipPosition position, bool deleteExistingClips)

juce::ReferenceCountedObjectPtr< WaveAudioClip >	insertWaveClip (const juce::String &name, ProjectItemID sourceID, ClipPosition position, bool deleteExistingClips)

juce::ReferenceCountedObjectPtr< MidiClip >	insertMIDIClip (TimeRange position, SelectionManager *selectionManagerToSelectWith)

juce::ReferenceCountedObjectPtr< MidiClip >	insertMIDIClip (const juce::String &name, TimeRange position, SelectionManager *selectionManagerToSelectWith)

juce::ReferenceCountedObjectPtr< EditClip >	insertEditClip (TimeRange position, ProjectItemID sourceID)

void	deleteRegion (TimeRange, SelectionManager *)

void	deleteRegionOfClip (Clip::Ptr, TimeRange, SelectionManager *)

Clip *	splitClip (Clip &, TimePosition)
	breaks a clip into 2 bits

void	splitAt (TimePosition)
	split all clips at this time

TimePosition	getNextTimeOfInterest (TimePosition afterThisTime)
	finds the next cut point

TimePosition	getPreviousTimeOfInterest (TimePosition beforeThisTime)

bool	containsPlugin (const Plugin *) const override
	Tests whether this Track or a clip on it contains the given plugin.

Plugin::Array	getAllPlugins () const override
	Returns all pugins on this Track.

void	sendMirrorUpdateToAllPlugins (Plugin &) const override
	Sends a message to all plugins that the given plugin has changed.

bool	areAnyClipsUsingFile (const AudioFile &)

bool	containsAnyMIDIClips () const

juce::ValueTree &	getClipOwnerState () override
	Must return the state of this ClipOwner.

EditItemID	getClipOwnerID () override
	Must return the ID of this ClipOwner.

Selectable *	getClipOwnerSelectable () override
	Must return the selectable if this ClipOwner is one.

Edit &	getClipOwnerEdit () override
	Must return the Edit this ClipOwner belongs to.

void	clipCreated (Clip &) override
	Called when a clip is created which could be during Edit load.

void	clipAddedOrRemoved () override
	Called when a clip is added or removed.

void	clipOrderChanged () override
	Called when clips have moved times so that their order has changed.

void	clipPositionChanged () override
	Called when a clip start or end position has changed.

Public Member Functions inherited from tracktion::engine::Track
	Track (Edit &, const juce::ValueTree &, bool hasModifierList)
	Creates a track with a given state.

	~Track () override
	Destructor.

void	refreshCurrentAutoParam ()
	Updates the current parameter bases on the set IDs.

juce::String	getName () const override
	Returns the name of the Track.

void	setName (const juce::String &)
	Sets the name of the Track.

void	resetName ()
	Sets the name of the Track to an empty string.

virtual void	sanityCheckName ()
	Sub-classes can impliment this to avoid certain characters being used in a name.

virtual bool	isAudioTrack () const
	Returns true if this is an AudioTrack.

virtual bool	isAutomationTrack () const
	Returns true if this is an AutomationTrack.

virtual bool	isFolderTrack () const
	Returns true if this is a FolderTrack.

virtual bool	isMarkerTrack () const
	Returns true if this is a MarkerTrack.

virtual bool	isTempoTrack () const
	Returns true if this is a TempoTrack.

virtual bool	isChordTrack () const
	Returns true if this is a ChordTrack.

virtual bool	isMasterTrack () const
	Returns true if this is a MasterTrack.

bool	canContainMarkers () const
	Returns true if this Track can contain MarkerClip[s].

bool	canContainMIDI () const
	Returns true if this Track can contain MidiClip[s].

bool	canContainAudio () const
	Returns true if this Track can contain WaveAudioClip[s].

bool	canContainEditClips () const
	Returns true if this Track can contain EditClip[s].

bool	canContainPlugins () const
	Returns true if this Track can contain Plugin[s].

bool	isMovable () const
	Returns true if this Track is movable.

bool	acceptsInput () const
	Returns true if this track can have inputs assigned to it.

bool	createsOutput () const
	Returns true if this track creates audible output.

bool	wantsAutomation () const
	Returns true if this track can show automation.

virtual bool	isFrozen (FreezeType) const
	Returns true if this track is frozen using the given type.

virtual void	setFrozen (bool, FreezeType)
	Attempts to freeze or unfreeze the track using a given FreezeType.

bool	isHidden () const
	Returns true if this track should be hidden from view.

void	setHidden (bool h)
	Sets whether this track should be hidden from view.

bool	isProcessing (bool includeParents) const
	Returns true if this track should be included in playback.

void	setProcessing (bool p)
	Sets whether this track should be included in playback.

virtual bool	processAudioNodesWhileMuted () const
	Subclasses can override this to ensure track contents are still played even when the track is muted.

virtual juce::Array< Track * >	getInputTracks () const
	Should return any tracks which feed into this track.

juce::Array< Track * >	getAllSubTracks (bool recursive) const
	Returns all nested tracks.

juce::Array< AudioTrack * >	getAllAudioSubTracks (bool recursive) const
	Returns all nested AudioTrack[s].

TrackList *	getSubTrackList () const
	Returns the TrackList if this Track has any sub-tracks.

bool	hasSubTracks () const
	Returns true if this track has any subtracks.

Track *	getSiblingTrack (int delta, bool keepWithinSameParent) const
	Returns a sibling Track to this one.

juce::ValueTree	getParentTrackTree () const
	Returns the state of the parent Track.

Track *	getParentTrack () const
	Returns the parent Track if this is a nested track.

FolderTrack *	getParentFolderTrack () const
	Returns the parent FolderTrack if this is nested in one.

bool	isAChildOf (const Track &possibleParent) const
	Tests whether this is a child of a given Track.

bool	isPartOfSubmix () const
	Tests whether this nested within a submix FolderTrack.

int	getIndexInEditTrackList () const
	Returns the index of this track in a flat list of tracks contained in an Edit.

int	getTrackDepth () const
	Returns the number of parents within which this track is nested.

virtual bool	isMuted (bool) const
	Returns true if this track is muted.

virtual bool	isSolo (bool) const
	Returns true if this track is soloed.

virtual bool	isSoloIsolate (bool) const
	Returns true if this track is solo isolated.

virtual void	setMute (bool)
	Subclasses should implement this to mute themselves.

virtual void	setSolo (bool)
	Subclasses should implement this to solo themselves.

virtual void	setSoloIsolate (bool)
	Subclasses should implement this to solo isolate themselves.

MuteAndSoloLightState	getMuteAndSoloLightState () const
	Returns the mute a solo status.

bool	shouldBePlayed () const noexcept
	Tests whether this track should be audible in the playback graph i.e.

void	updateAudibility (bool areAnyTracksSolo)
	Updates the audibility state of the Track.

juce::Array< AutomatableParameter * >	getAllAutomatableParams () const
	Returns all the parameters for this track's Plugin[s] and Modifier[s].

void	visitAllAutomatableParams (const std::function< void(AutomatableParameter &)> &) const
	Visits all the parameters for this track's Plugin[s] and Modifier[s].

AutomatableParameter *	getCurrentlyShownAutoParam () const noexcept
	Returns the parameter whos curve should be shown on this Track.

void	setCurrentlyShownAutoParam (const AutomatableParameter::Ptr &)
	Sets a parameter to display on this Track.

void	hideAutomatableParametersForSource (EditItemID pluginOrParameterID)
	Hides a shown parameter if it matches the given ID.

bool	hasFreezePointPlugin () const
	Tests whether this Track contains a FreezePointPlugin.

juce::Array< AutomatableEditItem * >	getAllAutomatableEditItems () const
	Returns all AutomatableEditItem[s] on this Track.

void	flipAllPluginsEnablement ()
	Toggles the Plugin::isEnabled state for all Plugin[s] on this Track.

ModifierList *	getModifierList () const
	Returns the ModifierList for this track, if it has one.

void	setColour (juce::Colour newColour)
	Sets a colour for this track to use.

juce::Colour	getColour () const
	Returns the the of this.

bool	canShowImage () const
	Tests whether this Track can show an image.

void	setTrackImage (const juce::String &idOrData)
	Sets some image data to use.

juce::String	getTrackImage () const
	Returns previously set image data.

bool	imageHasChanged ()
	Tests and resets a flag internally kept when the image changes.

void	setTags (const juce::StringArray &)
	Sets an array of Strings to use as tags.

juce::String	getTags () const
	Returns the tags as a pipe-separated single String.

const juce::StringArray &	getTagsArray () const noexcept
	Returns the array of tags.

Public Member Functions inherited from tracktion::engine::EditItem
	EditItem (EditItemID, Edit &)

Public Member Functions inherited from tracktion::engine::Selectable
virtual void	selectionStatusChanged (bool isNowSelected)
	Can be overridden to tell this object that it has just been selected or deselected.

virtual void	changed ()
	This should be called to send a change notification to any SelectableListeners that are registered with this object.

virtual void	selectableAboutToBeDeleted ()
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

void	addListener (SelectableListener *)

void	removeListener (SelectableListener *)

void	addSelectableListener (SelectableListener *)

void	removeSelectableListener (SelectableListener *)

void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.

void	deselect ()

void	propertiesChanged ()

void	notifyListenersOfDeletion ()

WeakRef	getWeakRef ()

Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept

void	decReferenceCount () noexcept

bool	decReferenceCountWithoutDeleting () noexcept

int	getReferenceCount () const noexcept

Public Member Functions inherited from tracktion::engine::ClipOwner
	ClipOwner ()
	Constructs an empty ClipOwner.

virtual	~ClipOwner ()
	Destructor.

const juce::Array< Clip * > &	getClips () const
	Returns the clips this owner contains.

Additional Inherited Members
Public Types inherited from tracktion::engine::ClipTrack
using	Ptr = juce::ReferenceCountedObjectPtr< ClipTrack >

Public Types inherited from tracktion::engine::Track
enum	FreezeType { groupFreeze , individualFreeze , anyFreeze }
	Determines the type of freeze. More...

enum	MuteAndSoloLightState { soloLit , soloFlashing , soloIsolate , muteLit , muteFlashing }
	Determines the status of the mute and solo indicators. More...

using	Ptr = juce::ReferenceCountedObjectPtr< Track >

using	Array = juce::ReferenceCountedArray< Track >

Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()

static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.

Public Attributes inherited from tracktion::engine::Track
juce::ValueTree	state
	The state of this Track.

PluginList	pluginList
	The Track's PluginList.

Public Attributes inherited from tracktion::engine::EditItem
Edit &	edit

const EditItemID	itemID
	Every EditItem has an ID which is unique within the edit.

Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference

Static Public Attributes inherited from tracktion::engine::Track
static const int	minTrackHeightForDetail
	The minimim height to show track contents at.

static const int	trackHeightForEditor
	The height at which inline editors should be shown.

static const int	frozenTrackHeight
	The height to show group frozen tracks.

Protected Member Functions inherited from tracktion::engine::ClipTrack
juce::Array< TimePosition >	findAllTimesOfInterest ()

void	refreshTrackItems () const

Protected Member Functions inherited from tracktion::engine::Track
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override

void	valueTreeChildRemoved (juce::ValueTree &, juce::ValueTree &, int) override

void	valueTreeChildOrderChanged (juce::ValueTree &, int, int) override

void	valueTreeParentChanged (juce::ValueTree &) override

void	handleAsyncUpdate () override

virtual bool	isTrackAudible (bool areAnyTracksSolo) const
	Returns whether this Track should be audible.

Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept

	ReferenceCountedObject (ReferenceCountedObject &&) noexcept

ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept

ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept

void	resetReferenceCount () noexcept

Protected Member Functions inherited from juce::ValueTree::Listener
virtual void	valueTreeRedirected (ValueTree &treeWhichHasBeenChanged)

Protected Member Functions inherited from juce::AsyncUpdater
void	triggerAsyncUpdate ()

void	cancelPendingUpdate () noexcept

void	handleUpdateNowIfNeeded ()

bool	isUpdatePending () const noexcept

Protected Member Functions inherited from tracktion::engine::ClipOwner
void	initialiseClipOwner (Edit &, juce::ValueTree clipParentState)
	Must be called once from the subclass constructor to init the clip owner.

Protected Attributes inherited from tracktion::engine::ClipTrack
std::unique_ptr< CollectionClipList >	collectionClipList

bool	trackItemsDirty

juce::Array< TrackItem * >	trackItems
