Interface class for graphics context objects, used internally by the Graphics class. More...

#include "juce_LowLevelGraphicsContext.h"

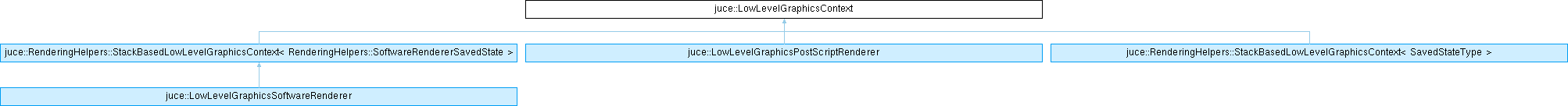

Inheritance diagram for juce::LowLevelGraphicsContext:

Public Member Functions
virtual bool	isVectorDevice () const =0
	Returns true if this device is vector-based, e.g.

virtual void	setOrigin (Point< int >)=0
	Moves the origin to a new position.

virtual void	addTransform (const AffineTransform &)=0

virtual float	getPhysicalPixelScaleFactor ()=0

virtual bool	clipToRectangle (const Rectangle< int > &)=0

virtual bool	clipToRectangleList (const RectangleList< int > &)=0

virtual void	excludeClipRectangle (const Rectangle< int > &)=0

virtual void	clipToPath (const Path &, const AffineTransform &)=0

virtual void	clipToImageAlpha (const Image &, const AffineTransform &)=0

virtual bool	clipRegionIntersects (const Rectangle< int > &)=0

virtual Rectangle< int >	getClipBounds () const =0

virtual bool	isClipEmpty () const =0

virtual void	saveState ()=0

virtual void	restoreState ()=0

virtual void	beginTransparencyLayer (float opacity)=0

virtual void	endTransparencyLayer ()=0

virtual void	setFill (const FillType &)=0

virtual void	setOpacity (float)=0

virtual void	setInterpolationQuality (Graphics::ResamplingQuality)=0

virtual void	fillAll ()

virtual void	fillRect (const Rectangle< int > &, bool replaceExistingContents)=0

virtual void	fillRect (const Rectangle< float > &)=0

virtual void	fillRectList (const RectangleList< float > &)=0

virtual void	fillPath (const Path &, const AffineTransform &)=0

virtual void	drawImage (const Image &, const AffineTransform &)=0

virtual void	drawLine (const Line< float > &)=0

virtual void	setFont (const Font &)=0

virtual const Font &	getFont ()=0

virtual void	drawGlyph (int glyphNumber, const AffineTransform &)=0

virtual bool	drawTextLayout (const AttributedString &, const Rectangle< float > &)

Detailed Description

Interface class for graphics context objects, used internally by the Graphics class.

Users are not supposed to create instances of this class directly - do your drawing via the Graphics object instead.

It's a base class for different types of graphics context, that may perform software-based or OS-accelerated rendering.

E.g. the LowLevelGraphicsSoftwareRenderer renders onto an image in memory, but other subclasses could render directly to a windows HDC, a Quartz context, or an OpenGL context.

@tags{Graphics}

Definition at line 45 of file juce_LowLevelGraphicsContext.h.
