A lowest-common-denominator implementation of LowLevelGraphicsContext that does all its rendering in memory. More...

#include "juce_LowLevelGraphicsSoftwareRenderer.h"

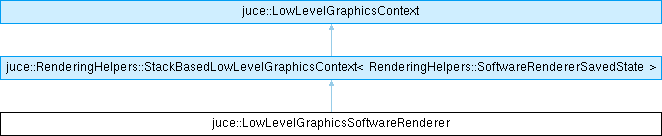

Inheritance diagram for juce::LowLevelGraphicsSoftwareRenderer:

Public Member Functions
	LowLevelGraphicsSoftwareRenderer (const Image &imageToRenderOnto)
	Creates a context to render into an image.

	LowLevelGraphicsSoftwareRenderer (const Image &imageToRenderOnto, Point< int > origin, const RectangleList< int > &initialClip)
	Creates a context to render into a clipped subsection of an image.

	~LowLevelGraphicsSoftwareRenderer () override
	Destructor.

Public Member Functions inherited from juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >
bool	isVectorDevice () const override
	Returns true if this device is vector-based, e.g.

void	setOrigin (Point< int > o) override
	Moves the origin to a new position.

void	addTransform (const AffineTransform &t) override

float	getPhysicalPixelScaleFactor () override

Rectangle< int >	getClipBounds () const override

bool	isClipEmpty () const override

bool	clipRegionIntersects (const Rectangle< int > &r) override

bool	clipToRectangle (const Rectangle< int > &r) override

bool	clipToRectangleList (const RectangleList< int > &r) override

void	excludeClipRectangle (const Rectangle< int > &r) override

void	clipToPath (const Path &path, const AffineTransform &t) override

void	clipToImageAlpha (const Image &im, const AffineTransform &t) override

void	saveState () override

void	restoreState () override

void	beginTransparencyLayer (float opacity) override

void	endTransparencyLayer () override

void	setFill (const FillType &fillType) override

void	setOpacity (float newOpacity) override

void	setInterpolationQuality (Graphics::ResamplingQuality quality) override

void	fillRect (const Rectangle< int > &r, bool replace) override

void	fillRect (const Rectangle< float > &r) override

void	fillRectList (const RectangleList< float > &list) override

void	fillPath (const Path &path, const AffineTransform &t) override

void	drawImage (const Image &im, const AffineTransform &t) override

void	drawGlyph (int glyphNumber, const AffineTransform &t) override

void	drawLine (const Line< float > &line) override

void	setFont (const Font &newFont) override

const Font &	getFont () override

Public Member Functions inherited from juce::LowLevelGraphicsContext
virtual void	fillAll ()

virtual bool	drawTextLayout (const AttributedString &, const Rectangle< float > &)

Additional Inherited Members
Protected Member Functions inherited from juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >
	StackBasedLowLevelGraphicsContext (RenderingHelpers::SoftwareRendererSavedState *initialState)

Protected Attributes inherited from juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >
RenderingHelpers::SavedStateStack< RenderingHelpers::SoftwareRendererSavedState >	stack

Detailed Description

A lowest-common-denominator implementation of LowLevelGraphicsContext that does all its rendering in memory.

User code is not supposed to create instances of this class directly - do all your rendering via the Graphics class instead.

@tags{Graphics}

Definition at line 39 of file juce_LowLevelGraphicsSoftwareRenderer.h.

Constructor & Destructor Documentation

◆ LowLevelGraphicsSoftwareRenderer() [1/2]

juce::LowLevelGraphicsSoftwareRenderer::LowLevelGraphicsSoftwareRenderer ( const Image & imageToRenderOnto )

Creates a context to render into an image.

Definition at line 29 of file juce_LowLevelGraphicsSoftwareRenderer.cpp.

◆ LowLevelGraphicsSoftwareRenderer() [2/2]

juce::LowLevelGraphicsSoftwareRenderer::LowLevelGraphicsSoftwareRenderer	(	const Image &	imageToRenderOnto,
		Point< int >	origin,
		const RectangleList< int > &	initialClip
	)

Creates a context to render into a clipped subsection of an image.

Definition at line 35 of file juce_LowLevelGraphicsSoftwareRenderer.cpp.

◆ ~LowLevelGraphicsSoftwareRenderer()

juce::LowLevelGraphicsSoftwareRenderer::~LowLevelGraphicsSoftwareRenderer ( )

override

Destructor.

Definition at line 42 of file juce_LowLevelGraphicsSoftwareRenderer.cpp.

The documentation for this class was generated from the following files:

juce_graphics/contexts/juce_LowLevelGraphicsSoftwareRenderer.h
juce_graphics/contexts/juce_LowLevelGraphicsSoftwareRenderer.cpp
