Represents an input device. More...

#include "tracktion_InputDevice.h"

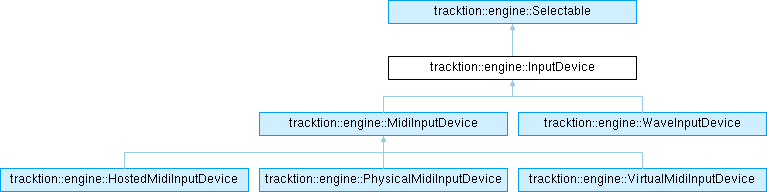

Inheritance diagram for tracktion::engine::InputDevice:

Public Types
enum	DeviceType { waveDevice , trackWaveDevice , physicalMidiDevice , virtualMidiDevice , trackMidiDevice }
	enum to allow quick querying of the device type. More...

enum class	MonitorMode { off , automatic , on }
	Enum to describe monitor modes. More...

Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Public Member Functions
	InputDevice (Engine &, juce::String type, juce::String name, juce::String deviceID)

const juce::String &	getName () const

const juce::String &	getType () const

juce::String	getDeviceID () const

virtual DeviceType	getDeviceType () const =0

bool	isTrackDevice () const

juce::String	getAlias () const
	the alias is the name shown in the draggable input device components

void	setAlias (const juce::String &newAlias)

virtual bool	isAvailableToEdit () const

bool	isEnabled () const

virtual void	setEnabled (bool)=0

virtual bool	isMidi () const

MonitorMode	getMonitorMode () const

void	setMonitorMode (MonitorMode)

virtual InputDeviceInstance *	createInstance (EditPlaybackContext &)=0
	Creates an instance to use for a given playback context.

virtual void	masterTimeUpdate (double time)=0
	This is a bit of a hack but allows the time for MIDI devices to be set through the base class interface.

virtual void	updateRetrospectiveBufferLength (double length)=0

juce::String	getSelectableDescription () override
	Subclasses must return a description of what they are.

virtual void	saveProps ()=0

Public Member Functions inherited from tracktion::engine::Selectable
virtual void	selectionStatusChanged (bool isNowSelected)
	Can be overridden to tell this object that it has just been selected or deselected.

virtual void	changed ()
	This should be called to send a change notification to any SelectableListeners that are registered with this object.

virtual void	selectableAboutToBeDeleted ()
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

void	addListener (SelectableListener *)

void	removeListener (SelectableListener *)

void	addSelectableListener (SelectableListener *)

void	removeSelectableListener (SelectableListener *)

void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.

void	deselect ()

void	propertiesChanged ()

void	notifyListenersOfDeletion ()

WeakRef	getWeakRef ()

Static Public Member Functions
static void	setRetrospectiveLock (Engine &, const juce::Array< InputDeviceInstance * > &, bool lock)

Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()

static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.

Public Attributes
Engine &	engine

LevelMeasurer	levelMeasurer

Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference

Protected Attributes
std::atomic< bool >	enabled

MonitorMode	monitorMode

MonitorMode	defaultMonitorMode

bool	retrospectiveRecordLock

Detailed Description

Represents an input device.

A single InputDevice object exists for each device in the system. For each InputDevice, there may be multiple InputDeviceInstance objects, for all the active EditPlaybackContexts

Definition at line 21 of file tracktion_InputDevice.h.

Member Enumeration Documentation

◆ DeviceType

enum tracktion::engine::InputDevice::DeviceType

enum to allow quick querying of the device type.

Definition at line 25 of file tracktion_InputDevice.h.

◆ MonitorMode

enum class tracktion::engine::InputDevice::MonitorMode

strong

Enum to describe monitor modes.

Enumerator
off	Live input is never audible.
automatic	Live input is audible when record is enabled.
on	Live input is always audible.

Definition at line 59 of file tracktion_InputDevice.h.

Constructor & Destructor Documentation

◆ InputDevice()

tracktion::engine::InputDevice::InputDevice	(	Engine &	e,
		juce::String	type,
		juce::String	name,
		juce::String	deviceID
	)

Definition at line 14 of file tracktion_InputDevice.cpp.

◆ ~InputDevice()

tracktion::engine::InputDevice::~InputDevice ( )

override

Definition at line 20 of file tracktion_InputDevice.cpp.

Member Function Documentation

◆ createInstance()

virtual InputDeviceInstance * tracktion::engine::InputDevice::createInstance ( EditPlaybackContext & )

pure virtual

Creates an instance to use for a given playback context.

Implemented in tracktion::engine::PhysicalMidiInputDevice, tracktion::engine::VirtualMidiInputDevice, tracktion::engine::WaveInputDevice, and tracktion::engine::HostedMidiInputDevice.

◆ getAlias()

juce::String tracktion::engine::InputDevice::getAlias ( ) const

the alias is the name shown in the draggable input device components

Definition at line 35 of file tracktion_InputDevice.cpp.

◆ getDeviceID()

juce::String tracktion::engine::InputDevice::getDeviceID ( ) const

Definition at line 42 of file tracktion_InputDevice.h.

◆ getMonitorMode()

MonitorMode tracktion::engine::InputDevice::getMonitorMode ( ) const

Definition at line 66 of file tracktion_InputDevice.h.

◆ getName()

const juce::String & tracktion::engine::InputDevice::getName ( ) const

Definition at line 39 of file tracktion_InputDevice.h.

◆ getSelectableDescription()

juce::String tracktion::engine::InputDevice::getSelectableDescription ( )

overridevirtual

Subclasses must return a description of what they are.

Implements tracktion::engine::Selectable.

Reimplemented in tracktion::engine::VirtualMidiInputDevice, and tracktion::engine::WaveInputDevice.

Definition at line 75 of file tracktion_InputDevice.cpp.

◆ getType()

const juce::String & tracktion::engine::InputDevice::getType ( ) const

Definition at line 40 of file tracktion_InputDevice.h.

◆ isAvailableToEdit()

virtual bool tracktion::engine::InputDevice::isAvailableToEdit ( ) const

virtual

Definition at line 51 of file tracktion_InputDevice.h.

◆ isEnabled()

bool tracktion::engine::InputDevice::isEnabled ( ) const

Definition at line 59 of file tracktion_InputDevice.cpp.

◆ isMidi()

virtual bool tracktion::engine::InputDevice::isMidi ( ) const

virtual

Definition at line 56 of file tracktion_InputDevice.h.

◆ isTrackDevice()

bool tracktion::engine::InputDevice::isTrackDevice ( ) const

Definition at line 29 of file tracktion_InputDevice.cpp.

◆ masterTimeUpdate()

virtual void tracktion::engine::InputDevice::masterTimeUpdate ( double time )

pure virtual

This is a bit of a hack but allows the time for MIDI devices to be set through the base class interface.

Implemented in tracktion::engine::MidiInputDevice, and tracktion::engine::WaveInputDevice.

◆ setAlias()

void tracktion::engine::InputDevice::setAlias ( const juce::String & newAlias )

Definition at line 43 of file tracktion_InputDevice.cpp.

◆ setMonitorMode()

void tracktion::engine::InputDevice::setMonitorMode ( MonitorMode newMode )

Definition at line 64 of file tracktion_InputDevice.cpp.

◆ setRetrospectiveLock()

void tracktion::engine::InputDevice::setRetrospectiveLock	(	Engine &	e,
		const juce::Array< InputDeviceInstance * > &	devices,
		bool	lock
	)

static

Definition at line 80 of file tracktion_InputDevice.cpp.

Member Data Documentation

◆ defaultMonitorMode

MonitorMode tracktion::engine::InputDevice::defaultMonitorMode

protected

Definition at line 89 of file tracktion_InputDevice.h.

◆ enabled

std::atomic<bool> tracktion::engine::InputDevice::enabled

protected

Definition at line 87 of file tracktion_InputDevice.h.

◆ engine

Engine& tracktion::engine::InputDevice::engine

Definition at line 83 of file tracktion_InputDevice.h.

◆ levelMeasurer

LevelMeasurer tracktion::engine::InputDevice::levelMeasurer

Definition at line 84 of file tracktion_InputDevice.h.

◆ monitorMode

MonitorMode tracktion::engine::InputDevice::monitorMode

protected

Definition at line 88 of file tracktion_InputDevice.h.

◆ retrospectiveRecordLock

bool tracktion::engine::InputDevice::retrospectiveRecordLock

protected

Definition at line 90 of file tracktion_InputDevice.h.

The documentation for this class was generated from the following files:

tracktion_engine/playback/devices/tracktion_InputDevice.h
tracktion_engine/playback/devices/tracktion_InputDevice.cpp
