An instance of an InputDevice that's available to an Edit. More...

#include "tracktion_InputDevice.h"

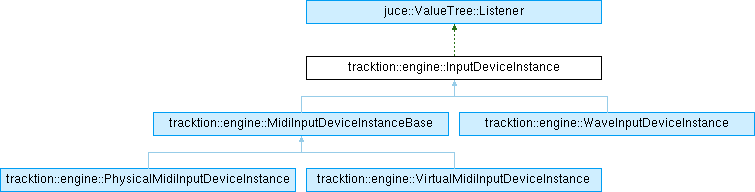

Inheritance diagram for tracktion::engine::InputDeviceInstance:

Classes
struct	Consumer
	Base class for classes that want to listen to an InputDevice and get a callback for each block of input. More...

struct	Destination

struct	DestinationList

struct	MidiInputDestination

class	RecordingContext
	Base class for RecordingContexts. More...

struct	RecordingParameters

struct	StopRecordingParameters
	The params passed to stopRecording. More...

struct	VirtualMidiInputDestination

struct	WaveInputDestination

Public Types
using	PreparedContext = std::vector< tl::expected< std::unique_ptr< RecordingContext >, juce::String > >
	An array of either valid RecordingContexts or an error message if the recording couldn't be started.

Public Member Functions
	InputDeviceInstance (InputDevice &, EditPlaybackContext &)

	~InputDeviceInstance () override
	Destructor.

InputDevice &	getInputDevice () noexcept
	Returns the InputDevice this instance belongs to.

juce::Array< EditItemID >	getTargets () const
	Returns the targets this instance is assigned to.

tl::expected< Destination *, juce::String >	setTarget (EditItemID targetID, bool moveToTrack, juce::UndoManager *, std::optional< int > index=std::nullopt)
	Assigns this input to either an AudioTrack or a ClipSlot.

juce::Result	removeTarget (EditItemID targetID, juce::UndoManager *)
	Removes the destination with the given targetID.

virtual bool	isLivePlayEnabled (const Track &) const
	Whether the track should monitor the input or not.

virtual bool	isRecordingActive () const
	Returns true if recording is enabled and the input is connected to any target.

virtual bool	isRecordingActive (EditItemID) const
	Returns true if recording is enabled and the input is connected the given target.

virtual bool	isRecordingQueuedToStop (EditItemID)=0
	Returns true if the async stopRecording function has been used and this target is waiting to stop.

bool	isRecordingEnabled (EditItemID) const
	Returns true if recording is enabled for the given target.

void	setRecordingEnabled (EditItemID, bool)
	Enabled/disables recording for a given target.

virtual bool	shouldTrackContentsBeMuted (const Track &)
	Should return true if this input is currently actively recording into a track and it wants the existing track contents to be muted.

virtual PreparedContext	prepareToRecord (RecordingParameters)=0
	Prepares a recording operation.

virtual std::vector< std::unique_ptr< RecordingContext > >	startRecording (std::vector< std::unique_ptr< RecordingContext > >)=0
	Starts a recording.

virtual tl::expected< Clip::Array, juce::String >	stopRecording (StopRecordingParameters)=0
	Stops a recording.

virtual void	stopRecording (StopRecordingParameters, std::function< void(tl::expected< Clip::Array, juce::String >)>)=0
	Stops a recording asyncronously.

virtual bool	isRecording (EditItemID)=0
	Returns true if there are any active recordings for this device.

virtual bool	isRecording ()=0
	Returns true if there are any active recordings for this device.

virtual juce::File	getRecordingFile (EditItemID) const
	Returns the File that the given target is currently recording to.

virtual std::shared_ptr< choc::fifo::SingleReaderSingleWriterFIFO< juce::MidiMessage > >	getRecordingNotes (EditItemID) const
	Returns a fifo of recorded MIDInotes that can be used for drawing UI components.

virtual TimePosition	getPunchInTime (EditItemID)=0
	Returns the time that a given target started recording.

virtual juce::Array< Clip * >	applyRetrospectiveRecord (bool armedOnly)=0
	Takes the retrospective buffer and creates clips from it, as if recording had been triggered in the past and stopped at the time of calling this function.

virtual void	addConsumer (Consumer *)=0
	Base classes should override this to add any Consumers internally.

virtual void	removeConsumer (Consumer *)=0
	Base classes should override this to remove the Consumer internally.

Public Attributes
juce::ValueTree	state

InputDevice &	owner
	The state of this instance.

EditPlaybackContext &	context
	The EditPlaybackContext this instance belongs to.

Edit &	edit
	The Edit this instance belongs to.

DestinationList	destinations
	The list of assigned destinations.

Protected Member Functions
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override

void	valueTreeChildRemoved (juce::ValueTree &, juce::ValueTree &, int) override

ClipSlot *	getFreeSlot (AudioTrack &)

Protected Member Functions inherited from juce::ValueTree::Listener
virtual void	valueTreeChildOrderChanged (ValueTree &parentTreeWhoseChildrenHaveMoved, int oldIndex, int newIndex)

virtual void	valueTreeParentChanged (ValueTree &treeWhoseParentHasChanged)

virtual void	valueTreeRedirected (ValueTree &treeWhichHasBeenChanged)

Detailed Description

An instance of an InputDevice that's available to an Edit.

Whereas InputDevice[s] are Engine level objects, instances apply to an Edit and can therefore be assigned to slots/tracks etc.

See also: EditInputDevices

Definition at line 108 of file tracktion_InputDevice.h.

Class Documentation

◆ tracktion::engine::InputDeviceInstance::RecordingParameters

struct tracktion::engine::InputDeviceInstance::RecordingParameters

Definition at line 161 of file tracktion_InputDevice.h.

Class Members
TimeRange	punchRange	The transport time range at which the recording should happen.
vector< EditItemID >	targets	The targets to record to, if this is empty, all armed targets will be added.

◆ tracktion::engine::InputDeviceInstance::StopRecordingParameters

struct tracktion::engine::InputDeviceInstance::StopRecordingParameters

The params passed to stopRecording.

Definition at line 208 of file tracktion_InputDevice.h.

Class Members
bool	discardRecordings	Whether to discard recordings or keep them.
bool	isLooping	Whether to treat the stopped recordings as looped or not.
TimeRange	markedRange	The marked range used for either loop or punch times.
vector< EditItemID >	targetsToStop	The targets to stop, others will continue allowing you to punch out only specific targets. If this is empty, all active recordings will be stopped.
TimePosition	unloopedTimeToEndRecording	The TimePosition this recording should be stopped at. See also EditPlaybackContext::getUnloopedPosition.

Member Typedef Documentation

◆ PreparedContext

using tracktion::engine::InputDeviceInstance::PreparedContext = std::vector<tl::expected<std::unique_ptr<RecordingContext>, juce::String> >

An array of either valid RecordingContexts or an error message if the recording couldn't be started.

See also

Definition at line 189 of file tracktion_InputDevice.h.

Constructor & Destructor Documentation

◆ InputDeviceInstance()

tracktion::engine::InputDeviceInstance::InputDeviceInstance	(	InputDevice &	d,
		EditPlaybackContext &	c
	)

Definition at line 89 of file tracktion_InputDevice.cpp.

◆ ~InputDeviceInstance()

tracktion::engine::InputDeviceInstance::~InputDeviceInstance ( )

override

Destructor.

Definition at line 110 of file tracktion_InputDevice.cpp.

Member Function Documentation

◆ addConsumer()

virtual void tracktion::engine::InputDeviceInstance::addConsumer ( Consumer * )

pure virtual

Base classes should override this to add any Consumers internally.

Implemented in tracktion::engine::WaveInputDeviceInstance.

◆ applyRetrospectiveRecord()

virtual juce::Array< Clip * > tracktion::engine::InputDeviceInstance::applyRetrospectiveRecord ( bool armedOnly )

pure virtual

Takes the retrospective buffer and creates clips from it, as if recording had been triggered in the past and stopped at the time of calling this function.

Implemented in tracktion::engine::MidiInputDeviceInstanceBase, and tracktion::engine::WaveInputDeviceInstance.

◆ getFreeSlot()

ClipSlot * tracktion::engine::InputDeviceInstance::getFreeSlot ( AudioTrack & t )

protected

Definition at line 291 of file tracktion_InputDevice.cpp.

◆ getInputDevice()

InputDevice & tracktion::engine::InputDeviceInstance::getInputDevice ( )

noexcept

Returns the InputDevice this instance belongs to.

Definition at line 122 of file tracktion_InputDevice.h.

◆ getPunchInTime()

virtual TimePosition tracktion::engine::InputDeviceInstance::getPunchInTime ( EditItemID )

pure virtual

Returns the time that a given target started recording.

Implemented in tracktion::engine::MidiInputDeviceInstanceBase, and tracktion::engine::WaveInputDeviceInstance.

◆ getRecordingFile()

virtual juce::File tracktion::engine::InputDeviceInstance::getRecordingFile ( EditItemID ) const

virtual

Returns the File that the given target is currently recording to.

Reimplemented in tracktion::engine::WaveInputDeviceInstance.

Definition at line 240 of file tracktion_InputDevice.h.

◆ getRecordingNotes()

virtual std::shared_ptr< choc::fifo::SingleReaderSingleWriterFIFO< juce::MidiMessage > > tracktion::engine::InputDeviceInstance::getRecordingNotes ( EditItemID ) const

virtual

Returns a fifo of recorded MIDInotes that can be used for drawing UI components.

Reimplemented in tracktion::engine::MidiInputDeviceInstanceBase.

Definition at line 243 of file tracktion_InputDevice.h.

◆ getTargets()

juce::Array< EditItemID > tracktion::engine::InputDeviceInstance::getTargets ( ) const

Returns the targets this instance is assigned to.

Definition at line 115 of file tracktion_InputDevice.cpp.

◆ isLivePlayEnabled()

bool tracktion::engine::InputDeviceInstance::isLivePlayEnabled ( const Track & t ) const

virtual

Whether the track should monitor the input or not.

Definition at line 224 of file tracktion_InputDevice.cpp.

◆ isRecording() [1/2]

virtual bool tracktion::engine::InputDeviceInstance::isRecording ( )

pure virtual

Returns true if there are any active recordings for this device.

Implemented in tracktion::engine::MidiInputDeviceInstanceBase, and tracktion::engine::WaveInputDeviceInstance.

◆ isRecording() [2/2]

virtual bool tracktion::engine::InputDeviceInstance::isRecording ( EditItemID )

pure virtual

Returns true if there are any active recordings for this device.

Implemented in tracktion::engine::MidiInputDeviceInstanceBase, and tracktion::engine::WaveInputDeviceInstance.

◆ isRecordingActive() [1/2]

bool tracktion::engine::InputDeviceInstance::isRecordingActive ( ) const

virtual

Returns true if recording is enabled and the input is connected to any target.

Reimplemented in tracktion::engine::MidiInputDeviceInstanceBase, and tracktion::engine::WaveInputDeviceInstance.

Definition at line 189 of file tracktion_InputDevice.cpp.

◆ isRecordingActive() [2/2]

bool tracktion::engine::InputDeviceInstance::isRecordingActive ( EditItemID targetID ) const

virtual

Returns true if recording is enabled and the input is connected the given target.

Reimplemented in tracktion::engine::MidiInputDeviceInstanceBase, and tracktion::engine::WaveInputDeviceInstance.

Definition at line 198 of file tracktion_InputDevice.cpp.

◆ isRecordingEnabled()

bool tracktion::engine::InputDeviceInstance::isRecordingEnabled ( EditItemID targetID ) const

Returns true if recording is enabled for the given target.

Definition at line 207 of file tracktion_InputDevice.cpp.

◆ isRecordingQueuedToStop()

virtual bool tracktion::engine::InputDeviceInstance::isRecordingQueuedToStop ( EditItemID )

pure virtual

Returns true if the async stopRecording function has been used and this target is waiting to stop.

Implemented in tracktion::engine::MidiInputDeviceInstanceBase, and tracktion::engine::WaveInputDeviceInstance.

◆ prepareToRecord()

virtual PreparedContext tracktion::engine::InputDeviceInstance::prepareToRecord ( RecordingParameters )

pure virtual

Prepares a recording operation.

Parameters

RecordingParameters Determines the destinations and punch ranges

Returns: An array of either valid RecordingContexts or error messages

Implemented in tracktion::engine::MidiInputDeviceInstanceBase, tracktion::engine::PhysicalMidiInputDeviceInstance, and tracktion::engine::WaveInputDeviceInstance.

◆ removeConsumer()

virtual void tracktion::engine::InputDeviceInstance::removeConsumer ( Consumer * )

pure virtual

Base classes should override this to remove the Consumer internally.

Implemented in tracktion::engine::WaveInputDeviceInstance.

◆ removeTarget()

juce::Result tracktion::engine::InputDeviceInstance::removeTarget	(	EditItemID	targetID,
		juce::UndoManager *	um
	)

Removes the destination with the given targetID.

Definition at line 173 of file tracktion_InputDevice.cpp.

◆ setRecordingEnabled()

void tracktion::engine::InputDeviceInstance::setRecordingEnabled	(	EditItemID	targetID,
		bool	b
	)

Enabled/disables recording for a given target.

If the transport is currently recording, this will start a punch-in recording.

Definition at line 217 of file tracktion_InputDevice.cpp.

◆ setTarget()

tl::expected< InputDeviceInstance::Destination *, juce::String > tracktion::engine::InputDeviceInstance::setTarget	(	EditItemID	targetID,
		bool	moveToTrack,
		juce::UndoManager *	um,
		std::optional< int >	index = `std::nullopt`
	)

Assigns this input to either an AudioTrack or a ClipSlot.

Definition at line 136 of file tracktion_InputDevice.cpp.

◆ shouldTrackContentsBeMuted()

virtual bool tracktion::engine::InputDeviceInstance::shouldTrackContentsBeMuted ( const Track & )

virtual

Should return true if this input is currently actively recording into a track and it wants the existing track contents to be muted.

Reimplemented in tracktion::engine::MidiInputDeviceInstanceBase, and tracktion::engine::WaveInputDeviceInstance.

Definition at line 157 of file tracktion_InputDevice.h.

◆ startRecording()

virtual std::vector< std::unique_ptr< RecordingContext > > tracktion::engine::InputDeviceInstance::startRecording ( std::vector< std::unique_ptr< RecordingContext > > )

pure virtual

Starts a recording.

Parameters

The	prepared recording contexts to start.

Returns: Any recording contexts that couldn't be started by this device. E.g. If the contexts are mixed MIDI and audio and this is an audio device, it will returns the MIDI contexts to pass to a MIDI device.

Implemented in tracktion::engine::MidiInputDeviceInstanceBase, and tracktion::engine::WaveInputDeviceInstance.

◆ stopRecording() [1/2]

virtual tl::expected< Clip::Array, juce::String > tracktion::engine::InputDeviceInstance::stopRecording ( StopRecordingParameters )

pure virtual

Stops a recording.

Parameters

StopRecordingParameters determines how stopped recordings are treated.

Implemented in tracktion::engine::MidiInputDeviceInstanceBase, and tracktion::engine::WaveInputDeviceInstance.

◆ stopRecording() [2/2]

virtual void tracktion::engine::InputDeviceInstance::stopRecording	(	StopRecordingParameters	,
		std::function< void(tl::expected< Clip::Array, juce::String >)>
	)

pure virtual

Stops a recording asyncronously.

This can be used to trigger a recording to stop at a time in the future. This function will return immidiately and call the provided callback when the recording actually stops.

Parameters

StopRecordingParameters	Determines how stopped recordings are treated.
recordingStoppedCallback	A callback to call when the recording stops.

Implemented in tracktion::engine::MidiInputDeviceInstanceBase, and tracktion::engine::WaveInputDeviceInstance.

◆ valueTreeChildAdded()

void tracktion::engine::InputDeviceInstance::valueTreeChildAdded	(	juce::ValueTree &	p,
		juce::ValueTree &	c
	)

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 263 of file tracktion_InputDevice.cpp.

◆ valueTreeChildRemoved()

void tracktion::engine::InputDeviceInstance::valueTreeChildRemoved	(	juce::ValueTree &	p,
		juce::ValueTree &	c,
		int
	)

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 277 of file tracktion_InputDevice.cpp.

◆ valueTreePropertyChanged()

void tracktion::engine::InputDeviceInstance::valueTreePropertyChanged	(	juce::ValueTree &	v,
		const juce::Identifier &	id
	)

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 245 of file tracktion_InputDevice.cpp.

Member Data Documentation

◆ context

EditPlaybackContext& tracktion::engine::InputDeviceInstance::context

The EditPlaybackContext this instance belongs to.

Definition at line 256 of file tracktion_InputDevice.h.

◆ destinations

DestinationList tracktion::engine::InputDeviceInstance::destinations

The list of assigned destinations.

Definition at line 364 of file tracktion_InputDevice.h.

◆ edit

Edit& tracktion::engine::InputDeviceInstance::edit

The Edit this instance belongs to.

Definition at line 257 of file tracktion_InputDevice.h.

◆ owner

InputDevice& tracktion::engine::InputDeviceInstance::owner

The state of this instance.

The InputDevice this is an instance of.

Definition at line 255 of file tracktion_InputDevice.h.

◆ state

juce::ValueTree tracktion::engine::InputDeviceInstance::state

Definition at line 254 of file tracktion_InputDevice.h.

The documentation for this class was generated from the following files:

tracktion_engine/playback/devices/tracktion_InputDevice.h
tracktion_engine/playback/devices/tracktion_InputDevice.cpp

Classes

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Detailed Description

Class Documentation

◆ tracktion::engine::InputDeviceInstance::RecordingParameters

◆ tracktion::engine::InputDeviceInstance::StopRecordingParameters

Member Typedef Documentation

◆ PreparedContext

Constructor & Destructor Documentation

◆ InputDeviceInstance()

◆ ~InputDeviceInstance()

Member Function Documentation

◆ addConsumer()

◆ applyRetrospectiveRecord()

◆ getFreeSlot()

◆ getInputDevice()

◆ getPunchInTime()

◆ getRecordingFile()

◆ getRecordingNotes()

◆ getTargets()

◆ isLivePlayEnabled()

◆ isRecording() [1/2]

◆ isRecording() [2/2]

◆ isRecordingActive() [1/2]

◆ isRecordingActive() [2/2]

◆ isRecordingEnabled()

◆ isRecordingQueuedToStop()

◆ prepareToRecord()

◆ removeConsumer()

◆ removeTarget()

◆ setRecordingEnabled()

◆ setTarget()

◆ shouldTrackContentsBeMuted()

◆ startRecording()

◆ stopRecording() [1/2]

◆ stopRecording() [2/2]

◆ valueTreeChildAdded()

◆ valueTreeChildRemoved()

◆ valueTreePropertyChanged()

Member Data Documentation

◆ context

◆ destinations

◆ edit

◆ owner

◆ state
