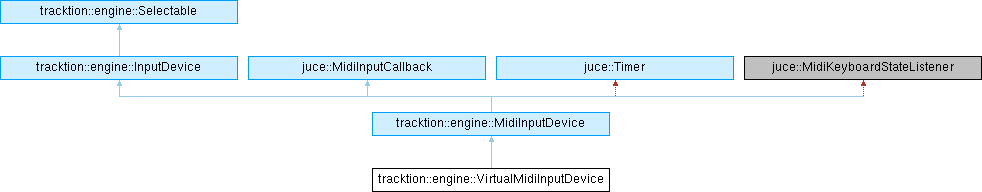

Inheritance diagram for tracktion::engine::VirtualMidiInputDevice:

Public Member Functions
	VirtualMidiInputDevice (Engine &, juce::String name, DeviceType, juce::String deviceID, bool isAllMIDIIns)

InputDeviceInstance *	createInstance (EditPlaybackContext &) override
	Creates an instance to use for a given playback context.

void	handleIncomingMidiMessage (const juce::MidiMessage &) override

juce::String	getSelectableDescription () override
	Subclasses must return a description of what they are.

void	setEnabled (bool) override

void	loadProps () override

void	saveProps () override

juce::StringArray	getMIDIInputSourceDevices () const

void	setMIDIInputSourceDevices (const juce::StringArray deviceIDs)

void	toggleMIDIInputSourceDevice (const juce::String &deviceID)

void	handleMessageFromPhysicalDevice (MidiInputDevice &, const juce::MidiMessage &)

DeviceType	getDeviceType () const override

void	handleIncomingMidiMessage (juce::MidiInput *, const juce::MidiMessage &) override

virtual void	handleIncomingMidiMessage (const juce::MidiMessage &)=0

Public Member Functions inherited from tracktion::engine::MidiInputDevice
	MidiInputDevice (Engine &, juce::String type, juce::String name, juce::String deviceID)

bool	isMidi () const override

MidiChannel	getChannelToUse () const noexcept

void	setChannelToUse (int)

int	getProgramToUse () const noexcept

void	setProgramToUse (int)

void	setBankToUse (int)

int	getBankToUse () const

void	setChannelAllowed (int midiChannel, bool)

bool	isChannelAllowed (int midiChannel) const

void	setNoteFilterRange (NoteFilterRange)

NoteFilterRange	getNoteFilterRange () const

void	setOverridingNoteVelocities (bool)

bool	isOverridingNoteVelocities () const

void	setManualAdjustmentMs (double)

double	getManualAdjustmentMs () const

void	setMinimumLengthMs (double)

double	getMinimumLengthMs () const

bool	isMPEDevice () const
	Returns true if the given device is an MPE device and so should always record incoming MIDI to Note Expression.

void	masterTimeUpdate (double time) override
	This is a bit of a hack but allows the time for MIDI devices to be set through the base class interface.

void	connectionStateChanged ()

bool	handleIncomingMessage (juce::MidiMessage &)
	Updates the timestamp of the message and handles sending it out to listeners.

void	addInstance (MidiInputDeviceInstanceBase *)

void	removeInstance (MidiInputDeviceInstanceBase *)

Clip *	addMidiAsTransaction (Edit &, EditItemID targetID, Clip *takeClip, juce::MidiMessageSequence, TimeRange markedRange, MergeMode, MidiChannel)

RetrospectiveMidiBuffer *	getRetrospectiveMidiBuffer () const

void	updateRetrospectiveBufferLength (double length) override

double	getAdjustSecs () const

juce::Array< AudioTrack * >	getDestinationTracks ()

MidiChannel	getMidiChannelFor (int rawChannelNumber) const

MidiMessageArray::MPESourceID	getMPESourceID () const

Public Member Functions inherited from tracktion::engine::InputDevice
	InputDevice (Engine &, juce::String type, juce::String name, juce::String deviceID)

const juce::String &	getName () const

const juce::String &	getType () const

juce::String	getDeviceID () const

bool	isTrackDevice () const

juce::String	getAlias () const
	the alias is the name shown in the draggable input device components

void	setAlias (const juce::String &newAlias)

virtual bool	isAvailableToEdit () const

bool	isEnabled () const

MonitorMode	getMonitorMode () const

void	setMonitorMode (MonitorMode)

Public Member Functions inherited from tracktion::engine::Selectable
virtual void	selectionStatusChanged (bool isNowSelected)
	Can be overridden to tell this object that it has just been selected or deselected.

virtual void	changed ()
	This should be called to send a change notification to any SelectableListeners that are registered with this object.

virtual void	selectableAboutToBeDeleted ()
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

void	addListener (SelectableListener *)

void	removeListener (SelectableListener *)

void	addSelectableListener (SelectableListener *)

void	removeSelectableListener (SelectableListener *)

void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.

void	deselect ()

void	propertiesChanged ()

void	notifyListenersOfDeletion ()

WeakRef	getWeakRef ()

Public Member Functions inherited from juce::MidiInputCallback
virtual void	handlePartialSysexMessage (MidiInput source, const uint8 messageData, int numBytesSoFar, double timestamp)

Public Attributes
bool	useAllInputs

Public Attributes inherited from tracktion::engine::MidiInputDevice
bool	mergeRecordings

bool	recordingEnabled

bool	replaceExistingClips

bool	recordToNoteAutomation

QuantisationType	quantisation

juce::MidiKeyboardState	keyboardState

Public Attributes inherited from tracktion::engine::InputDevice
Engine &	engine

LevelMeasurer	levelMeasurer

Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference

Additional Inherited Members
Public Types inherited from tracktion::engine::MidiInputDevice
enum class	MergeMode { always , never , optional }

Public Types inherited from tracktion::engine::InputDevice
enum	DeviceType { waveDevice , trackWaveDevice , physicalMidiDevice , virtualMidiDevice , trackMidiDevice }
	enum to allow quick querying of the device type. More...

enum class	MonitorMode { off , automatic , on }
	Enum to describe monitor modes. More...

Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Static Public Member Functions inherited from tracktion::engine::InputDevice
static void	setRetrospectiveLock (Engine &, const juce::Array< InputDeviceInstance * > &, bool lock)

Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()

static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.

Protected Member Functions inherited from tracktion::engine::MidiInputDevice
void	handleNoteOn (juce::MidiKeyboardState *, int midiChannel, int midiNoteNumber, float velocity) override

void	handleNoteOff (juce::MidiKeyboardState *, int midiChannel, int midiNoteNumber, float velocity) override

void	timerCallback () override

void	sendNoteOnToMidiKeyListeners (juce::MidiMessage &)

void	loadMidiProps (const juce::XmlElement *)

void	saveMidiProps (juce::XmlElement &)

void	sendMessageToInstances (const juce::MidiMessage &)

Protected Attributes inherited from tracktion::engine::MidiInputDevice
std::atomic< double >	adjustSecs

double	manualAdjustMs

double	minimumLengthMs

bool	overrideNoteVels

bool	eventReceivedFromDevice

juce::BigInteger	disallowedChannels

MidiChannel	channelToUse

int	programToUse

int	bankToUse

NoteFilterRange	noteFilterRange

MidiMessageArray::MPESourceID	midiSourceID

std::unique_ptr< NoteDispatcher >	noteDispatcher

std::vector< double >	lastNoteOns

juce::CriticalSection	noteLock

bool	keysDown [128]

bool	keysUp [128]

uint8_t	keyDownVelocities [128]

juce::SharedResourcePointer< MidiKeyChangeDispatcher >	midiKeyChangeDispatcher

juce::CriticalSection	instanceLock

juce::Array< MidiInputDeviceInstanceBase * >	instances

std::unique_ptr< RetrospectiveMidiBuffer >	retrospectiveBuffer

Protected Attributes inherited from tracktion::engine::InputDevice
std::atomic< bool >	enabled

MonitorMode	monitorMode

MonitorMode	defaultMonitorMode

bool	retrospectiveRecordLock

Detailed Description

Definition at line 14 of file tracktion_VirtualMidiInputDevice.h.

Constructor & Destructor Documentation

◆ VirtualMidiInputDevice()

tracktion::engine::VirtualMidiInputDevice::VirtualMidiInputDevice	(	Engine &	e,
		juce::String	name,
		DeviceType	devType,
		juce::String	deviceID,
		bool	isAllMIDIIns
	)
