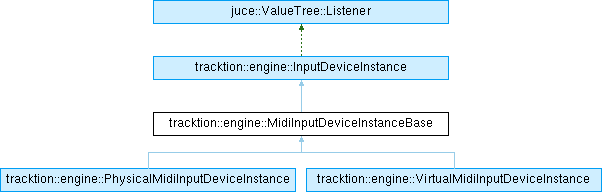

Inheritance diagram for tracktion::engine::MidiInputDeviceInstanceBase:

Classes
class	MidiRecordingContext

Public Member Functions
	MidiInputDeviceInstanceBase (MidiInputDevice &d, EditPlaybackContext &c)

bool	isRecordingActive () const override
	Returns true if recording is enabled and the input is connected to any target.

bool	isRecordingActive (EditItemID targetID) const override
	Returns true if recording is enabled and the input is connected the given target.

bool	isRecordingQueuedToStop (EditItemID targetID) override
	Returns true if the async stopRecording function has been used and this target is waiting to stop.

bool	shouldTrackContentsBeMuted (const Track &t) override
	Should return true if this input is currently actively recording into a track and it wants the existing track contents to be muted.

virtual void	handleMMCMessage (const juce::MidiMessage &)

virtual bool	handleTimecodeMessage (const juce::MidiMessage &)

std::shared_ptr< choc::fifo::SingleReaderSingleWriterFIFO< juce::MidiMessage > >	getRecordingNotes (EditItemID targetID) const override
	Returns a fifo of recorded MIDInotes that can be used for drawing UI components.

std::vector< tl::expected< std::unique_ptr< RecordingContext >, juce::String > >	prepareToRecord (RecordingParameters params) override
	Prepares a recording operation.

std::vector< std::unique_ptr< RecordingContext > >	startRecording (std::vector< std::unique_ptr< RecordingContext > > newContexts) override
	Starts a recording.

tl::expected< Clip::Array, juce::String >	stopRecording (StopRecordingParameters params) override
	Stops a recording.

void	stopRecording (StopRecordingParameters params, std::function< void(tl::expected< Clip::Array, juce::String >)> callback) override
	Stops a recording asyncronously.

TimePosition	getPunchInTime (EditItemID targetID) override
	Returns the time that a given target started recording.

bool	isRecording (EditItemID targetID) override
	Returns true if there are any active recordings for this device.

bool	isRecording () override
	Returns true if there are any active recordings for this device.

bool	handleIncomingMidiMessage (const juce::MidiMessage &message)

MidiChannel	applyChannel (juce::MidiMessageSequence &sequence, MidiChannel channelToApply)

Clip::Array	applyRecording (std::unique_ptr< MidiRecordingContext > recContext, TimePosition unloopedEndTime, bool isLooping, TimeRange loopRange, bool discardRecordings)

juce::Array< Clip * >	applyRetrospectiveRecord (bool armedOnly) override
	Takes the retrospective buffer and creates clips from it, as if recording had been triggered in the past and stopped at the time of calling this function.

void	masterTimeUpdate (double time)

MidiInputDevice &	getMidiInput () const

Public Member Functions inherited from tracktion::engine::InputDeviceInstance
	InputDeviceInstance (InputDevice &, EditPlaybackContext &)

	~InputDeviceInstance () override
	Destructor.

InputDevice &	getInputDevice () noexcept
	Returns the InputDevice this instance belongs to.

juce::Array< EditItemID >	getTargets () const
	Returns the targets this instance is assigned to.

tl::expected< Destination *, juce::String >	setTarget (EditItemID targetID, bool moveToTrack, juce::UndoManager *, std::optional< int > index=std::nullopt)
	Assigns this input to either an AudioTrack or a ClipSlot.

juce::Result	removeTarget (EditItemID targetID, juce::UndoManager *)
	Removes the destination with the given targetID.

virtual bool	isLivePlayEnabled (const Track &) const
	Whether the track should monitor the input or not.

bool	isRecordingEnabled (EditItemID) const
	Returns true if recording is enabled for the given target.

void	setRecordingEnabled (EditItemID, bool)
	Enabled/disables recording for a given target.

virtual juce::File	getRecordingFile (EditItemID) const
	Returns the File that the given target is currently recording to.

Static Public Member Functions
static void	applyTimeAdjustment (juce::MidiMessageSequence &sequence, double adjustmentMs)

Public Attributes
std::shared_mutex	contextLock

std::vector< std::unique_ptr< MidiRecordingContext > >	recordingContexts

Public Attributes inherited from tracktion::engine::InputDeviceInstance
juce::ValueTree	state

InputDevice &	owner
	The state of this instance.

EditPlaybackContext &	context
	The EditPlaybackContext this instance belongs to.

Edit &	edit
	The Edit this instance belongs to.

DestinationList	destinations
	The list of assigned destinations.

Additional Inherited Members
Public Types inherited from tracktion::engine::InputDeviceInstance
using	PreparedContext = std::vector< tl::expected< std::unique_ptr< RecordingContext >, juce::String > >
	An array of either valid RecordingContexts or an error message if the recording couldn't be started.

Protected Member Functions inherited from tracktion::engine::InputDeviceInstance
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override

ClipSlot *	getFreeSlot (AudioTrack &)

Protected Member Functions inherited from juce::ValueTree::Listener
virtual void	valueTreeChildOrderChanged (ValueTree &parentTreeWhoseChildrenHaveMoved, int oldIndex, int newIndex)

virtual void	valueTreeParentChanged (ValueTree &treeWhoseParentHasChanged)

virtual void	valueTreeRedirected (ValueTree &treeWhichHasBeenChanged)

Detailed Description

Definition at line 780 of file tracktion_MidiInputDevice.cpp.

Constructor & Destructor Documentation

◆ MidiInputDeviceInstanceBase()

tracktion::engine::MidiInputDeviceInstanceBase::MidiInputDeviceInstanceBase	(	MidiInputDevice &	d,
		EditPlaybackContext &	c
	)

Definition at line 783 of file tracktion_MidiInputDevice.cpp.

◆ ~MidiInputDeviceInstanceBase()

tracktion::engine::MidiInputDeviceInstanceBase::~MidiInputDeviceInstanceBase ( )

override

Definition at line 789 of file tracktion_MidiInputDevice.cpp.

Member Function Documentation

◆ applyChannel()

MidiChannel tracktion::engine::MidiInputDeviceInstanceBase::applyChannel	(	juce::MidiMessageSequence &	sequence,
		MidiChannel	channelToApply
	)

Definition at line 1060 of file tracktion_MidiInputDevice.cpp.

◆ applyRecording()

Clip::Array tracktion::engine::MidiInputDeviceInstanceBase::applyRecording	(	std::unique_ptr< MidiRecordingContext >	recContext,
		TimePosition	unloopedEndTime,
		bool	isLooping,
		TimeRange	loopRange,
		bool	discardRecordings
	)

Definition at line 1089 of file tracktion_MidiInputDevice.cpp.

◆ applyRetrospectiveRecord()

juce::Array< Clip * > tracktion::engine::MidiInputDeviceInstanceBase::applyRetrospectiveRecord ( bool armedOnly )

overridevirtual

Takes the retrospective buffer and creates clips from it, as if recording had been triggered in the past and stopped at the time of calling this function.

Implements tracktion::engine::InputDeviceInstance.

Definition at line 1366 of file tracktion_MidiInputDevice.cpp.

◆ applyTimeAdjustment()

static void tracktion::engine::MidiInputDeviceInstanceBase::applyTimeAdjustment	(	juce::MidiMessageSequence &	sequence,
		double	adjustmentMs
	)

static

Definition at line 1083 of file tracktion_MidiInputDevice.cpp.

◆ getMidiInput()

MidiInputDevice & tracktion::engine::MidiInputDeviceInstanceBase::getMidiInput ( ) const

Definition at line 1485 of file tracktion_MidiInputDevice.cpp.

◆ getPunchInTime()

TimePosition tracktion::engine::MidiInputDeviceInstanceBase::getPunchInTime ( EditItemID )

overridevirtual

Returns the time that a given target started recording.

Implements tracktion::engine::InputDeviceInstance.

Definition at line 1003 of file tracktion_MidiInputDevice.cpp.

◆ getRecordingNotes()

std::shared_ptr< choc::fifo::SingleReaderSingleWriterFIFO< juce::MidiMessage > > tracktion::engine::MidiInputDeviceInstanceBase::getRecordingNotes ( EditItemID ) const

overridevirtual

Returns a fifo of recorded MIDInotes that can be used for drawing UI components.

Reimplemented from tracktion::engine::InputDeviceInstance.

Definition at line 818 of file tracktion_MidiInputDevice.cpp.

◆ handleIncomingMidiMessage()

bool tracktion::engine::MidiInputDeviceInstanceBase::handleIncomingMidiMessage ( const juce::MidiMessage & message )

Definition at line 1025 of file tracktion_MidiInputDevice.cpp.

◆ handleMMCMessage()

virtual void tracktion::engine::MidiInputDeviceInstanceBase::handleMMCMessage ( const juce::MidiMessage & )

virtual

Definition at line 815 of file tracktion_MidiInputDevice.cpp.

◆ handleTimecodeMessage()

virtual bool tracktion::engine::MidiInputDeviceInstanceBase::handleTimecodeMessage ( const juce::MidiMessage & )

virtual

Definition at line 816 of file tracktion_MidiInputDevice.cpp.

◆ isRecording() [1/2]

bool tracktion::engine::MidiInputDeviceInstanceBase::isRecording ( )

overridevirtual

Returns true if there are any active recordings for this device.

Implements tracktion::engine::InputDeviceInstance.

Definition at line 1019 of file tracktion_MidiInputDevice.cpp.

◆ isRecording() [2/2]

bool tracktion::engine::MidiInputDeviceInstanceBase::isRecording ( EditItemID )

overridevirtual

Returns true if there are any active recordings for this device.

Implements tracktion::engine::InputDeviceInstance.

Definition at line 1014 of file tracktion_MidiInputDevice.cpp.

◆ isRecordingActive() [1/2]

bool tracktion::engine::MidiInputDeviceInstanceBase::isRecordingActive ( ) const

overridevirtual

Returns true if recording is enabled and the input is connected to any target.

Reimplemented from tracktion::engine::InputDeviceInstance.

Definition at line 794 of file tracktion_MidiInputDevice.cpp.

◆ isRecordingActive() [2/2]

bool tracktion::engine::MidiInputDeviceInstanceBase::isRecordingActive ( EditItemID targetID ) const

overridevirtual

Returns true if recording is enabled and the input is connected the given target.

Reimplemented from tracktion::engine::InputDeviceInstance.

Definition at line 799 of file tracktion_MidiInputDevice.cpp.

◆ isRecordingQueuedToStop()

bool tracktion::engine::MidiInputDeviceInstanceBase::isRecordingQueuedToStop ( EditItemID )

overridevirtual

Returns true if the async stopRecording function has been used and this target is waiting to stop.

Implements tracktion::engine::InputDeviceInstance.

Definition at line 804 of file tracktion_MidiInputDevice.cpp.

◆ masterTimeUpdate()

void tracktion::engine::MidiInputDeviceInstanceBase::masterTimeUpdate ( double time )

Definition at line 1472 of file tracktion_MidiInputDevice.cpp.

◆ prepareToRecord()

std::vector< tl::expected< std::unique_ptr< RecordingContext >, juce::String > > tracktion::engine::MidiInputDeviceInstanceBase::prepareToRecord ( RecordingParameters )

overridevirtual

Prepares a recording operation.

Parameters

RecordingParameters Determines the destinations and punch ranges

Returns: An array of either valid RecordingContexts or error messages

Implements tracktion::engine::InputDeviceInstance.

Reimplemented in tracktion::engine::PhysicalMidiInputDeviceInstance.

Definition at line 851 of file tracktion_MidiInputDevice.cpp.

◆ shouldTrackContentsBeMuted()

bool tracktion::engine::MidiInputDeviceInstanceBase::shouldTrackContentsBeMuted ( const Track & )

overridevirtual

Should return true if this input is currently actively recording into a track and it wants the existing track contents to be muted.

Reimplemented from tracktion::engine::InputDeviceInstance.

Definition at line 809 of file tracktion_MidiInputDevice.cpp.

◆ startRecording()

std::vector< std::unique_ptr< RecordingContext > > tracktion::engine::MidiInputDeviceInstanceBase::startRecording ( std::vector< std::unique_ptr< RecordingContext > > )

overridevirtual

Starts a recording.

Parameters

The	prepared recording contexts to start.

Returns: Any recording contexts that couldn't be started by this device. E.g. If the contexts are mixed MIDI and audio and this is an audio device, it will returns the MIDI contexts to pass to a MIDI device.

Implements tracktion::engine::InputDeviceInstance.

Definition at line 872 of file tracktion_MidiInputDevice.cpp.

◆ stopRecording() [1/2]

tl::expected< Clip::Array, juce::String > tracktion::engine::MidiInputDeviceInstanceBase::stopRecording ( StopRecordingParameters )

overridevirtual

Stops a recording.

Parameters

StopRecordingParameters determines how stopped recordings are treated.

Implements tracktion::engine::InputDeviceInstance.

Definition at line 901 of file tracktion_MidiInputDevice.cpp.

◆ stopRecording() [2/2]

void tracktion::engine::MidiInputDeviceInstanceBase::stopRecording	(	StopRecordingParameters	,
		std::function< void(tl::expected< Clip::Array, juce::String >)>
	)

overridevirtual

Stops a recording asyncronously.

This can be used to trigger a recording to stop at a time in the future. This function will return immidiately and call the provided callback when the recording actually stops.

Parameters

StopRecordingParameters	Determines how stopped recordings are treated.
recordingStoppedCallback	A callback to call when the recording stops.

Implements tracktion::engine::InputDeviceInstance.

Definition at line 955 of file tracktion_MidiInputDevice.cpp.

Member Data Documentation

◆ contextLock

std::shared_mutex tracktion::engine::MidiInputDeviceInstanceBase::contextLock

mutable

Definition at line 1487 of file tracktion_MidiInputDevice.cpp.

◆ recordingContexts

std::vector<std::unique_ptr<MidiRecordingContext> > tracktion::engine::MidiInputDeviceInstanceBase::recordingContexts

Definition at line 1488 of file tracktion_MidiInputDevice.cpp.

The documentation for this class was generated from the following file:

tracktion_engine/playback/devices/tracktion_MidiInputDevice.cpp

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MidiInputDeviceInstanceBase()

◆ ~MidiInputDeviceInstanceBase()

Member Function Documentation

◆ applyChannel()

◆ applyRecording()

◆ applyRetrospectiveRecord()

◆ applyTimeAdjustment()

◆ getMidiInput()

◆ getPunchInTime()

◆ getRecordingNotes()

◆ handleIncomingMidiMessage()

◆ handleMMCMessage()

◆ handleTimecodeMessage()

◆ isRecording() [1/2]

◆ isRecording() [2/2]

◆ isRecordingActive() [1/2]

◆ isRecordingActive() [2/2]

◆ isRecordingQueuedToStop()

◆ masterTimeUpdate()

◆ prepareToRecord()

◆ shouldTrackContentsBeMuted()

◆ startRecording()

◆ stopRecording() [1/2]

◆ stopRecording() [2/2]

Member Data Documentation

◆ contextLock

◆ recordingContexts
