A tempo value, as used in a TempoSequence. More...

#include "tracktion_TempoSetting.h"

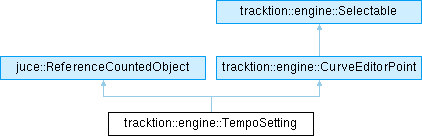

Inheritance diagram for tracktion::engine::TempoSetting:

Public Types
using	Ptr = juce::ReferenceCountedObjectPtr< TempoSetting >

Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Public Member Functions
	TempoSetting (TempoSequence &, const juce::ValueTree &)
	Constructs a TempoSetting belonging to a given TempoSequence.

	~TempoSetting () override
	Destructor.

Edit &	getEdit () const
	Returns the Edit this setting belongs to.

juce::String	getSelectableDescription () override
	Returns the description of this Selectable.

BeatPosition	getStartBeat () const
	Returns the start beat of the setting.

double	getBpm () const
	Returns the BPM of the setting.

float	getCurve () const
	Returns the curve of the setting.

TimePosition	getStartTime () const
	Returns the start time in seconds of the tempo setting.

void	set (BeatPosition, double newBpm, float newCurve, bool remapEditPositions)
	Sets the properties of this tempo setting.

void	setBpm (double newBpm)
	Sets the BPM of this tempo setting.

void	setCurve (float curve)
	Sets the curve of this tempo setting.

void	setStartBeat (BeatPosition)

void	removeFromEdit ()
	Removes the TempoSetting from the sequence.

TimeDuration	getApproxBeatLength () const
	Returns the approximate length of one beat based on the bpm and matching time sig denonimator.

TempoSetting *	getPreviousTempo () const
	Returns the previous tempo setting in the sequence.

TimeSigSetting &	getMatchingTimeSig () const
	Returns the time signature at this tempo's time in the sequence.

HashCode	getHash () const noexcept

Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept

void	decReferenceCount () noexcept

bool	decReferenceCountWithoutDeleting () noexcept

int	getReferenceCount () const noexcept

Public Member Functions inherited from tracktion::engine::CurveEditorPoint
	CurveEditorPoint (int i, CurveEditor *ed)

void	selectionStatusChanged (bool isNowSelected) override
	Can be overridden to tell this object that it has just been selected or deselected.

Public Member Functions inherited from tracktion::engine::Selectable
virtual void	changed ()
	This should be called to send a change notification to any SelectableListeners that are registered with this object.

virtual void	selectableAboutToBeDeleted ()
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

void	addListener (SelectableListener *)

void	removeListener (SelectableListener *)

void	addSelectableListener (SelectableListener *)

void	removeSelectableListener (SelectableListener *)

void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.

void	deselect ()

void	propertiesChanged ()

void	notifyListenersOfDeletion ()

WeakRef	getWeakRef ()

Static Public Member Functions
static juce::ValueTree	create (BeatPosition startBeat, double bpm, float curve)
	Creates a tree to prepresent a TempoSetting.

Static Public Member Functions inherited from tracktion::engine::CurveEditorPoint
static bool	arePointsConsecutive (const SelectableList &)

static bool	arePointsOnSameCurve (const SelectableList &)

static TimeRange	getPointTimeRange (const SelectableList &)

Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()

static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.

Public Attributes
TempoSequence &	ownerSequence

juce::ValueTree	state

juce::CachedValue< BeatPosition >	startBeatNumber

juce::CachedValue< double >	bpm

juce::CachedValue< float >	curve

TimePosition	startTime

Public Attributes inherited from tracktion::engine::CurveEditorPoint
int	index

juce::Component::SafePointer< CurveEditor >	editor

Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference

Static Public Attributes
static constexpr double	minBPM
	Minimum BPM a setting can have.

static constexpr double	maxBPM
	Maximum BPM a setting can have.

Additional Inherited Members
Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept

	ReferenceCountedObject (ReferenceCountedObject &&) noexcept

ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept

ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept

void	resetReferenceCount () noexcept

Detailed Description

A tempo value, as used in a TempoSequence.

This specifies the BPM, time sig, etc. at a particular time

Definition at line 20 of file tracktion_TempoSetting.h.

Member Typedef Documentation

◆ Ptr

using tracktion::engine::TempoSetting::Ptr = juce::ReferenceCountedObjectPtr<TempoSetting>

Definition at line 34 of file tracktion_TempoSetting.h.

Constructor & Destructor Documentation

◆ TempoSetting()

tracktion::engine::TempoSetting::TempoSetting	(	TempoSequence &	ts,
		const juce::ValueTree &	v
	)

Constructs a TempoSetting belonging to a given TempoSequence.

Don't construct these directly, use the appropriate insert methods of TempoSequence.

Definition at line 14 of file tracktion_TempoSetting.cpp.

◆ ~TempoSetting()

tracktion::engine::TempoSetting::~TempoSetting ( )

override

Destructor.

Definition at line 25 of file tracktion_TempoSetting.cpp.

Member Function Documentation

◆ create()

juce::ValueTree tracktion::engine::TempoSetting::create	(	BeatPosition	startBeat,
		double	bpm,
		float	curve
	)

static

Creates a tree to prepresent a TempoSetting.

Definition at line 29 of file tracktion_TempoSetting.cpp.

◆ getApproxBeatLength()

TimeDuration tracktion::engine::TempoSetting::getApproxBeatLength ( ) const

Returns the approximate length of one beat based on the bpm and matching time sig denonimator.

Definition at line 97 of file tracktion_TempoSetting.cpp.

◆ getBpm()

double tracktion::engine::TempoSetting::getBpm ( ) const

Returns the BPM of the setting.

Definition at line 57 of file tracktion_TempoSetting.h.

◆ getCurve()

float tracktion::engine::TempoSetting::getCurve ( ) const

Returns the curve of the setting.

Definition at line 60 of file tracktion_TempoSetting.h.

◆ getEdit()

Edit & tracktion::engine::TempoSetting::getEdit ( ) const

Returns the Edit this setting belongs to.

Definition at line 37 of file tracktion_TempoSetting.cpp.

◆ getHash()

HashCode tracktion::engine::TempoSetting::getHash ( ) const

noexcept

Definition at line 118 of file tracktion_TempoSetting.cpp.

◆ getMatchingTimeSig()

TimeSigSetting & tracktion::engine::TempoSetting::getMatchingTimeSig ( ) const

Returns the time signature at this tempo's time in the sequence.

Definition at line 113 of file tracktion_TempoSetting.cpp.

◆ getPreviousTempo()

TempoSetting * tracktion::engine::TempoSetting::getPreviousTempo ( ) const

Returns the previous tempo setting in the sequence.

Definition at line 108 of file tracktion_TempoSetting.cpp.

◆ getSelectableDescription()

juce::String tracktion::engine::TempoSetting::getSelectableDescription ( )

overridevirtual

Returns the description of this Selectable.

Implements tracktion::engine::Selectable.

Definition at line 43 of file tracktion_TempoSetting.cpp.

◆ getStartBeat()

BeatPosition tracktion::engine::TempoSetting::getStartBeat ( ) const

Returns the start beat of the setting.

Definition at line 54 of file tracktion_TempoSetting.h.

◆ getStartTime()

TimePosition tracktion::engine::TempoSetting::getStartTime ( ) const

Returns the start time in seconds of the tempo setting.

Definition at line 49 of file tracktion_TempoSetting.cpp.

◆ removeFromEdit()

void tracktion::engine::TempoSetting::removeFromEdit ( )

Removes the TempoSetting from the sequence.

Definition at line 102 of file tracktion_TempoSetting.cpp.

◆ set()

void tracktion::engine::TempoSetting::set	(	BeatPosition	newStartBeat,
		double	newBpm,
		float	newCurve,
		bool	remapEditPositions
	)

Sets the properties of this tempo setting.

Parameters

startBeatNum	The new start beat number to set.
newBpm	The new bpm value to set.
newCurve	The new curve to set.
remapEditPositions	If true, this will adjust any Edit items start/end positions so they fall on the same beat as they currently do.

Definition at line 55 of file tracktion_TempoSetting.cpp.

◆ setBpm()

void tracktion::engine::TempoSetting::setBpm ( double newBpm )

Sets the BPM of this tempo setting.

Definition at line 87 of file tracktion_TempoSetting.cpp.

◆ setCurve()

void tracktion::engine::TempoSetting::setCurve ( float curve )

Sets the curve of this tempo setting.

<0.0 is a log curve 0.0 is a linear curve >0.0 is an exponential curve

Definition at line 92 of file tracktion_TempoSetting.cpp.

◆ setStartBeat()

void tracktion::engine::TempoSetting::setStartBeat ( BeatPosition b )

Definition at line 82 of file tracktion_TempoSetting.cpp.

Member Data Documentation

◆ bpm

juce::CachedValue<double> tracktion::engine::TempoSetting::bpm

Definition at line 108 of file tracktion_TempoSetting.h.

◆ curve

juce::CachedValue<float> tracktion::engine::TempoSetting::curve

Definition at line 109 of file tracktion_TempoSetting.h.

◆ maxBPM

constexpr double tracktion::engine::TempoSetting::maxBPM

staticconstexpr

Maximum BPM a setting can have.

Definition at line 46 of file tracktion_TempoSetting.h.

◆ minBPM

constexpr double tracktion::engine::TempoSetting::minBPM

staticconstexpr

Minimum BPM a setting can have.

Definition at line 43 of file tracktion_TempoSetting.h.

◆ ownerSequence

TempoSequence& tracktion::engine::TempoSetting::ownerSequence

Definition at line 104 of file tracktion_TempoSetting.h.

◆ startBeatNumber

juce::CachedValue<BeatPosition> tracktion::engine::TempoSetting::startBeatNumber

Definition at line 107 of file tracktion_TempoSetting.h.

◆ startTime

TimePosition tracktion::engine::TempoSetting::startTime

Definition at line 112 of file tracktion_TempoSetting.h.

◆ state

juce::ValueTree tracktion::engine::TempoSetting::state

Definition at line 105 of file tracktion_TempoSetting.h.

The documentation for this class was generated from the following files:

tracktion_engine/model/edit/tracktion_TempoSetting.h
tracktion_engine/model/edit/tracktion_TempoSetting.cpp
