Bass class for parameter Modifiers. More...

#include "tracktion_Modifier.h"

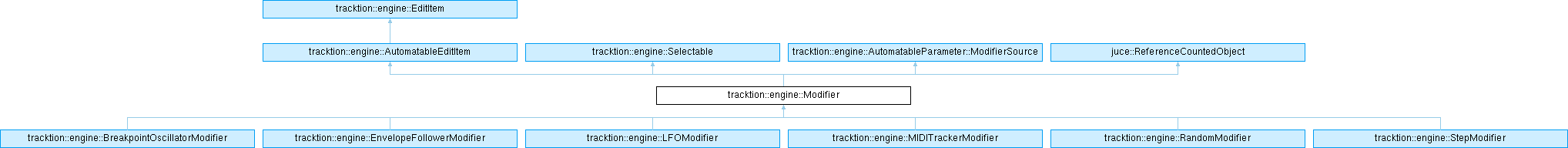

Inheritance diagram for tracktion::engine::Modifier:

Classes
class	ValueFifo

Public Types
enum class	ProcessingPosition { none , preFX , postFX }
	Determines the position in the FX chain where the modifier should be processed. More...

using	Ptr = juce::ReferenceCountedObjectPtr< Modifier >

using	Array = juce::ReferenceCountedArray< Modifier >

Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Public Member Functions
	Modifier (Edit &, const juce::ValueTree &)
	Creates a Modifier for a given state.

	~Modifier () override
	Destructor.

void	remove ()
	Removes this Modifier from its parent Track.

virtual void	initialise ()=0
	Call this once after construction to connect it to the audio graph.

virtual float	getCurrentValue ()=0
	Must return the current value of the modifier.

virtual AutomatableParameter::ModifierAssignment *	createAssignment (const juce::ValueTree &)=0
	Must return a new ModifierAssignment for a given state.

virtual juce::StringArray	getMidiInputNames ()
	Can return an array of names represeting MIDI inputs.

virtual juce::StringArray	getAudioInputNames ()
	Can return an array of names represeting audio inputs.

virtual ProcessingPosition	getProcessingPosition ()
	Should return the position in the plugin chain that this Modifier should be processed.

virtual void	initialise (double, int)
	Sub classes should implement this to initialise the Modifier.

virtual void	deinitialise ()
	Sub classes should implement this to deinitialise the Modifier.

virtual void	applyToBuffer (const PluginRenderContext &)
	Sub classes should implement this to process the Modifier.

bool	baseClassNeedsInitialising () const noexcept
	Returns true if the Modifier needs initialising.

void	baseClassInitialise (double sampleRate, int blockSizeSamples)
	Initialises the Modifier.

void	baseClassDeinitialise ()
	Deinitialises the Modifier.

void	baseClassApplyToBuffer (const PluginRenderContext &)
	Updates internal value history and calls the subclass's applyToBuffer method.

TimePosition	getCurrentTime () const
	Returns the edit time of the current value.

float	getValueAt (TimeDuration numSecondsBeforeNow) const
	Returns the value of the at a given time in the past.

std::vector< float >	getValues (TimeDuration numSecondsBeforeNow) const
	Returns a vector of previous sample values.

double	getSampleRate () const
	Returns the sample rate the Modifier has been initialised with.

void	selectableAboutToBeDeleted () override
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

Public Member Functions inherited from tracktion::engine::AutomatableEditItem
	AutomatableEditItem (Edit &, const juce::ValueTree &)

virtual void	flushPluginStateToValueTree ()

virtual void	restorePluginStateFromValueTree (const juce::ValueTree &)

juce::Array< AutomatableParameter * >	getAutomatableParameters () const

int	getNumAutomatableParameters () const

AutomatableParameter::Ptr	getAutomatableParameter (int index) const

AutomatableParameter::Ptr	getAutomatableParameterByID (const juce::String &paramID) const

void	visitAllAutomatableParams (const std::function< void(AutomatableParameter &)> &visit) const

void	deleteParameter (AutomatableParameter *)

void	deleteAutomatableParameters ()

int	indexOfAutomatableParameter (const AutomatableParameter::Ptr &) const

AutomatableParameterTree &	getParameterTree () const

juce::ReferenceCountedArray< AutomatableParameter >	getFlattenedParameterTree () const

void	addParameterListChangeListener (ParameterListChangeListener *)

void	removeParameterListChangeListener (ParameterListChangeListener *)

bool	isAutomationNeeded () const noexcept

void	setAutomatableParamPosition (TimePosition)

bool	isBeingActivelyPlayed () const

virtual void	updateAutomatableParamPosition (TimePosition)
	Updates all the auto params to their positions at this time.

void	updateParameterStreams (TimePosition)
	Updates all the parameter streams to their positions at this time.

void	updateActiveParameters ()
	Iterates all the parameters to find out which ones need to be automated.

void	resetRecordingStatus ()
	Marks the end of an automation recording stream.

Public Member Functions inherited from tracktion::engine::EditItem
	EditItem (EditItemID, Edit &)

virtual juce::String	getName () const =0

Public Member Functions inherited from tracktion::engine::Selectable
virtual juce::String	getSelectableDescription ()=0
	Subclasses must return a description of what they are.

virtual void	selectionStatusChanged (bool isNowSelected)
	Can be overridden to tell this object that it has just been selected or deselected.

virtual void	changed ()
	This should be called to send a change notification to any SelectableListeners that are registered with this object.

void	addListener (SelectableListener *)

void	removeListener (SelectableListener *)

void	addSelectableListener (SelectableListener *)

void	removeSelectableListener (SelectableListener *)

void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.

void	deselect ()

void	propertiesChanged ()

void	notifyListenersOfDeletion ()

WeakRef	getWeakRef ()

Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept

void	decReferenceCount () noexcept

bool	decReferenceCountWithoutDeleting () noexcept

int	getReferenceCount () const noexcept

Public Attributes
juce::ValueTree	state
	Modifier internal state.

juce::CachedValue< juce::Colour >	colour
	Colour property.

juce::CachedValue< float >	enabled
	Enabled property.

AutomatableParameter::Ptr	enabledParam
	Parameter to change the enabled state.

Public Attributes inherited from tracktion::engine::AutomatableEditItem
juce::ValueTree	elementState

juce::CachedValue< bool >	remapOnTempoChange

Public Attributes inherited from tracktion::engine::EditItem
Edit &	edit

const EditItemID	itemID
	Every EditItem has an ID which is unique within the edit.

Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference

Static Public Attributes
static constexpr TimeDuration	maxHistoryTime
	The max number of seconds of modifier value history that is stored.

Protected Member Functions
void	setEditTime (TimePosition newEditTime)
	Subclasses can call this to update the edit time of the current value.

Protected Member Functions inherited from tracktion::engine::AutomatableEditItem
virtual void	buildParameterTree () const

void	updateLastPlaybackTime ()

void	clearParameterList ()

void	addAutomatableParameter (const AutomatableParameter::Ptr &)

void	rebuildParameterTree ()

void	saveChangedParametersToState ()
	Saves the explicit value of any parameters that have deviated to the state.

void	restoreChangedParametersFromState ()
	Restores the value of any explicitly set parameters.

Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept

	ReferenceCountedObject (ReferenceCountedObject &&) noexcept

ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept

ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept

void	resetReferenceCount () noexcept

Additional Inherited Members
Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()

static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.

Detailed Description

Bass class for parameter Modifiers.

Modifiers are capable of controlling automatable parameters by making assignments from Modifiers to AutomatableParameters. They work similarly to AutomationCurves but can be all kinds of modification such as LFOs, random and envelopes.

See also: LFOModifier, EnvelopeFollowerModifier, RandomModifier

Definition at line 34 of file tracktion_Modifier.h.

Member Typedef Documentation

◆ Array

using tracktion::engine::Modifier::Array = juce::ReferenceCountedArray<Modifier>

Definition at line 40 of file tracktion_Modifier.h.

◆ Ptr

using tracktion::engine::Modifier::Ptr = juce::ReferenceCountedObjectPtr<Modifier>

Definition at line 39 of file tracktion_Modifier.h.

Member Enumeration Documentation

◆ ProcessingPosition

enum class tracktion::engine::Modifier::ProcessingPosition

strong

Determines the position in the FX chain where the modifier should be processed.

Enumerator
none	The Modifier needs no processing.
preFX	The Modifier is processed before the plugn chain.
postFX	The Modifier is processed after the plugn chain.

Definition at line 69 of file tracktion_Modifier.h.

Constructor & Destructor Documentation

◆ Modifier()

tracktion::engine::Modifier::Modifier	(	Edit &	e,
		const juce::ValueTree &	v
	)

Creates a Modifier for a given state.

Definition at line 89 of file tracktion_Modifier.cpp.

◆ ~Modifier()

tracktion::engine::Modifier::~Modifier ( )

override

Destructor.

Definition at line 106 of file tracktion_Modifier.cpp.

Member Function Documentation

◆ applyToBuffer()

virtual void tracktion::engine::Modifier::applyToBuffer ( const PluginRenderContext & )

virtual

Sub classes should implement this to process the Modifier.

Reimplemented in tracktion::engine::BreakpointOscillatorModifier, tracktion::engine::EnvelopeFollowerModifier, tracktion::engine::LFOModifier, tracktion::engine::MIDITrackerModifier, tracktion::engine::RandomModifier, and tracktion::engine::StepModifier.

Definition at line 85 of file tracktion_Modifier.h.

◆ baseClassApplyToBuffer()

void tracktion::engine::Modifier::baseClassApplyToBuffer ( const PluginRenderContext & prc )

Updates internal value history and calls the subclass's applyToBuffer method.

Definition at line 169 of file tracktion_Modifier.cpp.

◆ baseClassDeinitialise()

void tracktion::engine::Modifier::baseClassDeinitialise ( )

Deinitialises the Modifier.

Definition at line 155 of file tracktion_Modifier.cpp.

◆ baseClassInitialise()

void tracktion::engine::Modifier::baseClassInitialise	(	double	sampleRate,
		int	blockSizeSamples
	)

Initialises the Modifier.

Definition at line 132 of file tracktion_Modifier.cpp.

◆ baseClassNeedsInitialising()

bool tracktion::engine::Modifier::baseClassNeedsInitialising ( ) const

noexcept

Returns true if the Modifier needs initialising.

Definition at line 89 of file tracktion_Modifier.h.

◆ createAssignment()

virtual AutomatableParameter::ModifierAssignment * tracktion::engine::Modifier::createAssignment ( const juce::ValueTree & )

pure virtual

Must return a new ModifierAssignment for a given state.

Implemented in tracktion::engine::BreakpointOscillatorModifier, tracktion::engine::EnvelopeFollowerModifier, tracktion::engine::LFOModifier, tracktion::engine::MIDITrackerModifier, tracktion::engine::RandomModifier, and tracktion::engine::StepModifier.

◆ deinitialise()

virtual void tracktion::engine::Modifier::deinitialise ( )

virtual

Sub classes should implement this to deinitialise the Modifier.

Reimplemented in tracktion::engine::EnvelopeFollowerModifier.

Definition at line 83 of file tracktion_Modifier.h.

◆ getAudioInputNames()

virtual juce::StringArray tracktion::engine::Modifier::getAudioInputNames ( )

virtual

Can return an array of names represeting audio inputs.

Reimplemented in tracktion::engine::EnvelopeFollowerModifier.

Definition at line 66 of file tracktion_Modifier.h.

◆ getCurrentTime()

TimePosition tracktion::engine::Modifier::getCurrentTime ( ) const

Returns the edit time of the current value.

See also: getCurrentValue, getValueAt [[ audio_thread ]]

Definition at line 189 of file tracktion_Modifier.cpp.

◆ getCurrentValue()

virtual float tracktion::engine::Modifier::getCurrentValue ( )

pure virtual

Must return the current value of the modifier.

See also: getValueAt, getValues

Implemented in tracktion::engine::BreakpointOscillatorModifier, tracktion::engine::EnvelopeFollowerModifier, tracktion::engine::LFOModifier, tracktion::engine::MIDITrackerModifier, tracktion::engine::RandomModifier, and tracktion::engine::StepModifier.

◆ getMidiInputNames()

virtual juce::StringArray tracktion::engine::Modifier::getMidiInputNames ( )

virtual

Can return an array of names represeting MIDI inputs.

Reimplemented in tracktion::engine::MIDITrackerModifier.

Definition at line 63 of file tracktion_Modifier.h.

◆ getProcessingPosition()

virtual ProcessingPosition tracktion::engine::Modifier::getProcessingPosition ( )

virtual

Should return the position in the plugin chain that this Modifier should be processed.

Reimplemented in tracktion::engine::BreakpointOscillatorModifier, tracktion::engine::EnvelopeFollowerModifier, tracktion::engine::LFOModifier, tracktion::engine::MIDITrackerModifier, tracktion::engine::RandomModifier, and tracktion::engine::StepModifier.

Definition at line 77 of file tracktion_Modifier.h.

◆ getSampleRate()

double tracktion::engine::Modifier::getSampleRate ( ) const

Returns the sample rate the Modifier has been initialised with.

Definition at line 126 of file tracktion_Modifier.h.

◆ getValueAt()

float tracktion::engine::Modifier::getValueAt ( TimeDuration numSecondsBeforeNow ) const

Returns the value of the at a given time in the past.

[[ audio_thread ]]

Definition at line 194 of file tracktion_Modifier.cpp.

◆ getValues()

std::vector< float > tracktion::engine::Modifier::getValues ( TimeDuration numSecondsBeforeNow ) const

Returns a vector of previous sample values.

N.B. you might not get back as many seconds as requested with numSecondsBeforeNow. [[ message_thread ]]

Definition at line 202 of file tracktion_Modifier.cpp.

◆ initialise() [1/2]

virtual void tracktion::engine::Modifier::initialise ( )

pure virtual

Call this once after construction to connect it to the audio graph.

Implemented in tracktion::engine::BreakpointOscillatorModifier, tracktion::engine::EnvelopeFollowerModifier, tracktion::engine::LFOModifier, tracktion::engine::MIDITrackerModifier, tracktion::engine::RandomModifier, tracktion::engine::StepModifier, tracktion::engine::BreakpointOscillatorModifier, tracktion::engine::LFOModifier, tracktion::engine::MIDITrackerModifier, tracktion::engine::RandomModifier, and tracktion::engine::StepModifier.

◆ initialise() [2/2]

virtual void tracktion::engine::Modifier::initialise	(	double	,
		int
	)

virtual

Sub classes should implement this to initialise the Modifier.

Reimplemented in tracktion::engine::EnvelopeFollowerModifier, tracktion::engine::BreakpointOscillatorModifier, tracktion::engine::LFOModifier, tracktion::engine::MIDITrackerModifier, tracktion::engine::RandomModifier, and tracktion::engine::StepModifier.

Definition at line 81 of file tracktion_Modifier.h.

◆ remove()

void tracktion::engine::Modifier::remove ( )

Removes this Modifier from its parent Track.

Definition at line 112 of file tracktion_Modifier.cpp.

◆ selectableAboutToBeDeleted()

void tracktion::engine::Modifier::selectableAboutToBeDeleted ( )

overridevirtual

Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

Reimplemented from tracktion::engine::Selectable.

Definition at line 222 of file tracktion_Modifier.cpp.

◆ setEditTime()

void tracktion::engine::Modifier::setEditTime ( TimePosition newEditTime )

protected

Subclasses can call this to update the edit time of the current value.

Definition at line 133 of file tracktion_Modifier.h.

Member Data Documentation

◆ colour

juce::CachedValue<juce::Colour> tracktion::engine::Modifier::colour

Colour property.

Definition at line 120 of file tracktion_Modifier.h.

◆ enabled

juce::CachedValue<float> tracktion::engine::Modifier::enabled

Enabled property.

Definition at line 122 of file tracktion_Modifier.h.

◆ enabledParam

AutomatableParameter::Ptr tracktion::engine::Modifier::enabledParam

Parameter to change the enabled state.

Definition at line 123 of file tracktion_Modifier.h.

◆ maxHistoryTime

constexpr TimeDuration tracktion::engine::Modifier::maxHistoryTime

staticconstexpr

The max number of seconds of modifier value history that is stored.

Definition at line 99 of file tracktion_Modifier.h.

◆ state

juce::ValueTree tracktion::engine::Modifier::state

Modifier internal state.

Definition at line 119 of file tracktion_Modifier.h.

The documentation for this struct was generated from the following files:

tracktion_engine/model/automation/tracktion_Modifier.h
tracktion_engine/model/automation/tracktion_Modifier.cpp

Classes

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Array

◆ Ptr

Member Enumeration Documentation

◆ ProcessingPosition

Constructor & Destructor Documentation

◆ Modifier()

◆ ~Modifier()

Member Function Documentation

◆ applyToBuffer()

◆ baseClassApplyToBuffer()

◆ baseClassDeinitialise()

◆ baseClassInitialise()

◆ baseClassNeedsInitialising()

◆ createAssignment()

◆ deinitialise()

◆ getAudioInputNames()

◆ getCurrentTime()

◆ getCurrentValue()

◆ getMidiInputNames()

◆ getProcessingPosition()

◆ getSampleRate()

◆ getValueAt()

◆ getValues()

◆ initialise() [1/2]

◆ initialise() [2/2]

◆ remove()

◆ selectableAboutToBeDeleted()

◆ setEditTime()

Member Data Documentation

◆ colour

◆ enabled

◆ enabledParam

◆ maxHistoryTime

◆ state
