tracktion::engine::AutomatableParameter Class Reference

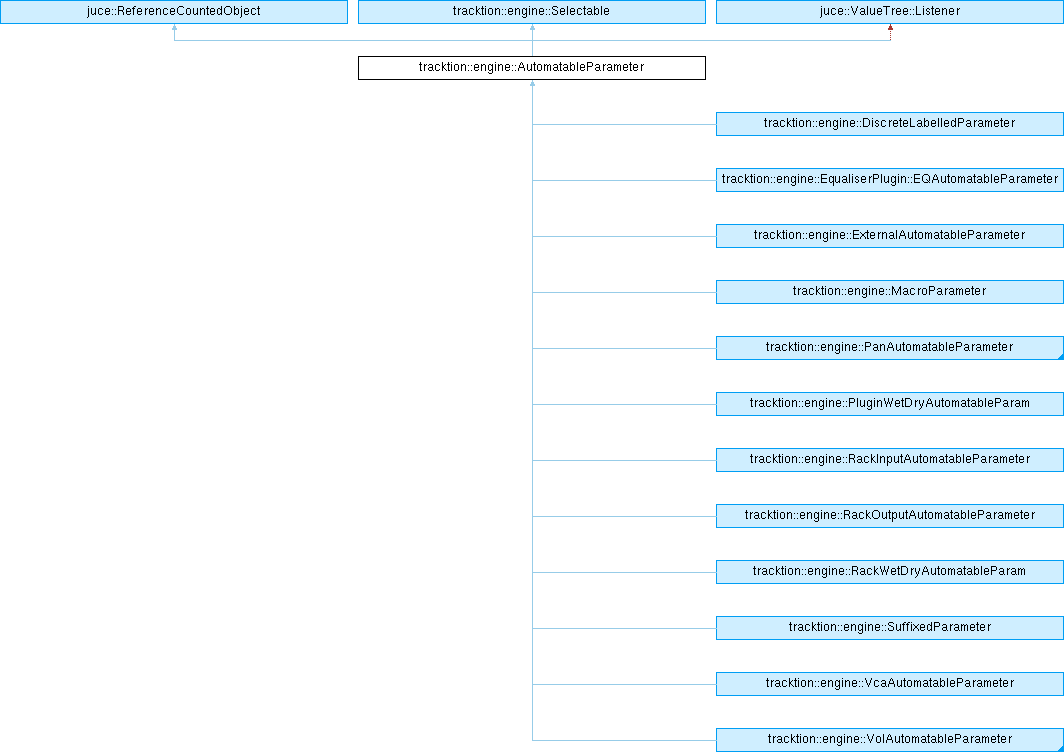

Inheritance diagram for tracktion::engine::AutomatableParameter:

Classes
struct	AttachedBoolValue
struct	AttachedFloatValue
struct	AttachedIntValue
struct	AttachedValue
struct	AutomationSourceList
struct	Listener
struct	ModifierAssignment
	Connects a modifier source to an AutomatableParameter. More...
struct	ModifierSource
	Base class for things that can be used to modify parameters. More...

Public Types
using	Ptr = juce::ReferenceCountedObjectPtr< AutomatableParameter >
using	Array = juce::ReferenceCountedArray< AutomatableParameter >
Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Public Member Functions
	AutomatableParameter (const juce::String &paramID, const juce::String &name, AutomatableEditItem &, juce::NormalisableRange< float > valueRange)
juce::Range< float >	getValueRange () const
Plugin *	getPlugin () const
Engine &	getEngine () const noexcept
Edit &	getEdit () const noexcept
Track *	getTrack () const noexcept
AutomationCurve &	getCurve () const noexcept
void	attachToCurrentValue (juce::CachedValue< float > &)
void	attachToCurrentValue (juce::CachedValue< int > &)
void	attachToCurrentValue (juce::CachedValue< bool > &)
void	updateFromAttachedValue ()
void	detachFromCurrentValue ()
virtual juce::String	getParameterName () const
virtual juce::String	getParameterShortName (int) const
virtual juce::String	getLabel ()
virtual juce::String	getPluginAndParamName () const
virtual juce::String	getFullName () const
Selectable *	getOwnerSelectable () const
	Returns the thing that you'd select if you wanted to show this param.
EditItemID	getOwnerID () const
	Returns the thing that you'd select if you wanted to show this param.
float	getCurrentValue () const noexcept
float	getCurrentNormalisedValue () const noexcept
virtual juce::String	valueToString (float value)
virtual float	stringToValue (const juce::String &s)
virtual juce::String	getCurrentValueAsString ()
juce::String	getCurrentValueAsStringWithLabel ()
virtual void	beginParameterChangeGesture ()
virtual void	endParameterChangeGesture ()
void	setParameter (float value, juce::NotificationType)
void	setNormalisedParameter (float value, juce::NotificationType)
void	updateToFollowCurve (TimePosition)
void	parameterChangeGestureBegin ()
	Call to indicate this parameter is about to be changed.
void	parameterChangeGestureEnd ()
	Call to indicate this parameter has stopped being to be changed.
bool	hasAutomationPoints () const noexcept
ModifierAssignment::Ptr	addModifier (ModifierSource &, float value=1.0f, float offset=0.0f, float curve=0.5f)
	Creates an assignment for a given source.
void	removeModifier (ModifierAssignment &)
	Removes an assignment.
void	removeModifier (ModifierSource &)
	Removes assignments for a ModifierSource.
bool	hasActiveModifierAssignments () const
	Returns true if any ModifierSources are currently in use by assignments.
juce::ReferenceCountedArray< ModifierAssignment >	getAssignments () const
	Returns all the current ModifierAssignments.
juce::Array< ModifierSource * >	getModifiers () const
	Returns all the current ModifierSources currently in use by assignments.
float	getCurrentExplicitValue () const
	This is the value that has been set explicity, either by calling setParameter or the plugin telling us one if its parameters has changed.
float	getCurrentBaseValue () const
	This is the current base value of the parameter i.e.
float	getCurrentModifierValue () const
	This is the ammount of the modifier that has been applied to the base value to give the current parameter value.
bool	isAutomationActive () const
	Returns true if the parameter is being dynamically changed somehow, either through automation or a ModifierAssignment.
void	updateStream ()
	Forces the parameter to update its automation stream for reading automation.
void	updateFromAutomationSources (TimePosition)
	Updates the parameter and modifier values from its current automation sources.
virtual bool	isParameterActive () const
virtual bool	isDiscrete () const
virtual int	getNumberOfStates () const
virtual float	getValueForState (int) const
virtual int	getStateForValue (float) const
virtual std::optional< float >	getDefaultValue () const
virtual bool	hasLabels () const
virtual juce::String	getLabelForValue (float) const
virtual float	snapToState (float val) const
virtual juce::StringArray	getAllLabels () const
bool	isCurrentlyRecording () const
	true if the parameter been moved while in an automation record mode.
void	resetRecordingStatus ()
	this is called before and after playback or recording.
void	midiControllerMoved (float newPosition)
void	midiControllerPressed ()
void	curveHasChanged ()
juce::String	getSelectableDescription () override
	Subclasses must return a description of what they are.
void	addListener (Listener *l)
void	removeListener (Listener *l)
Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept
void	decReferenceCount () noexcept
bool	decReferenceCountWithoutDeleting () noexcept
int	getReferenceCount () const noexcept
Public Member Functions inherited from tracktion::engine::Selectable
virtual void	selectionStatusChanged (bool isNowSelected)
	Can be overridden to tell this object that it has just been selected or deselected.
virtual void	changed ()
	This should be called to send a change notification to any SelectableListeners that are registered with this object.
virtual void	selectableAboutToBeDeleted ()
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.
void	addListener (SelectableListener *)
void	removeListener (SelectableListener *)
void	addSelectableListener (SelectableListener *)
void	removeSelectableListener (SelectableListener *)
void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.
void	deselect ()
void	propertiesChanged ()
void	notifyListenersOfDeletion ()
WeakRef	getWeakRef ()

Public Attributes
const juce::String	paramID
const juce::NormalisableRange< float >	valueRange
AutomatableEditItem &	automatableEditElement
std::function< juce::String(float)>	valueToStringFunction
std::function< float(const juce::String &)>	stringToValueFunction
const juce::String	paramName
juce::ValueTree	parentState
Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference

Protected Member Functions
AutomationSourceList &	getAutomationSourceList () const
void	setParameterValue (float value, bool isFollowingCurve)
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override
void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override
void	valueTreeChildRemoved (juce::ValueTree &, juce::ValueTree &, int) override
void	valueTreeChildOrderChanged (juce::ValueTree &, int, int) override
void	valueTreeParentChanged (juce::ValueTree &) override
void	valueTreeRedirected (juce::ValueTree &) override
virtual void	parameterChanged (float, bool)
Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept
	ReferenceCountedObject (ReferenceCountedObject &&) noexcept
ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept
ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept
void	resetReferenceCount () noexcept

Protected Attributes
std::unique_ptr< AttachedValue >	attachedValue
juce::ListenerList< Listener >	listeners
SafeSelectable< Edit >	editRef
Plugin *	plugin
Modifier *	modifierOwner
MacroParameterList *	macroOwner
std::unique_ptr< AutomationCurveSource >	curveSource
std::atomic< float >	currentValue
std::atomic< float >	currentParameterValue
std::atomic< float >	currentBaseValue
std::atomic< float >	currentModifierValue
std::atomic< bool >	isRecording
bool	updateParametersRecursionCheck
AsyncCaller	parameterChangedCaller
juce::ValueTree	modifiersState
std::unique_ptr< AutomationSourceList >	automationSourceList

Additional Inherited Members
Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()
static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.

Detailed Description

Definition at line 14 of file tracktion_AutomatableParameter.h.

Member Typedef Documentation

Array

using tracktion::engine::AutomatableParameter::Array = juce::ReferenceCountedArray<AutomatableParameter>

Definition at line 27 of file tracktion_AutomatableParameter.h.

Ptr

using tracktion::engine::AutomatableParameter::Ptr = juce::ReferenceCountedObjectPtr<AutomatableParameter>

Definition at line 26 of file tracktion_AutomatableParameter.h.

Constructor & Destructor Documentation

AutomatableParameter()

tracktion::engine::AutomatableParameter::AutomatableParameter	(	const juce::String &	paramID,
		const juce::String &	name,
		AutomatableEditItem &	owner,
		juce::NormalisableRange< float >	valueRange
	)

Definition at line 649 of file tracktion_AutomatableParameter.cpp.

~AutomatableParameter()

tracktion::engine::AutomatableParameter::~AutomatableParameter ( )

override

Definition at line 688 of file tracktion_AutomatableParameter.cpp.

Member Function Documentation

addListener()

void tracktion::engine::AutomatableParameter::addListener

(

Listener *

l

)

Definition at line 226 of file tracktion_AutomatableParameter.h.

addModifier()

AutomatableParameter::ModifierAssignment::Ptr tracktion::engine::AutomatableParameter::addModifier	(	ModifierSource &	source,
		float	value = 1.0f,
		float	offset = 0.0f,
		float	curve = 0.5f
	)

Creates an assignment for a given source.

Parameters

value	the value of the assignment 0 - 1
offset	the offset of the assignment 0 - 1
curve	the curve of the assignment 0 - 1 where 0.5 is a linear mapping

Definition at line 713 of file tracktion_AutomatableParameter.cpp.

attachToCurrentValue() [1/3]

void tracktion::engine::AutomatableParameter::attachToCurrentValue

(

juce::CachedValue< bool > &

v

)

Definition at line 926 of file tracktion_AutomatableParameter.cpp.

attachToCurrentValue() [2/3]

void tracktion::engine::AutomatableParameter::attachToCurrentValue

(

juce::CachedValue< float > &

v

)

Definition at line 910 of file tracktion_AutomatableParameter.cpp.

attachToCurrentValue() [3/3]

void tracktion::engine::AutomatableParameter::attachToCurrentValue

(

juce::CachedValue< int > &

v

)

Definition at line 918 of file tracktion_AutomatableParameter.cpp.

beginParameterChangeGesture()

virtual void tracktion::engine::AutomatableParameter::beginParameterChangeGesture ( )

virtual

Definition at line 78 of file tracktion_AutomatableParameter.h.

curveHasChanged()

void tracktion::engine::AutomatableParameter::curveHasChanged

(

)

Definition at line 1217 of file tracktion_AutomatableParameter.cpp.

detachFromCurrentValue()

void tracktion::engine::AutomatableParameter::detachFromCurrentValue

(

)

Definition at line 940 of file tracktion_AutomatableParameter.cpp.

endParameterChangeGesture()

virtual void tracktion::engine::AutomatableParameter::endParameterChangeGesture ( )

virtual

Definition at line 79 of file tracktion_AutomatableParameter.h.

getAllLabels()

virtual juce::StringArray tracktion::engine::AutomatableParameter::getAllLabels ( ) const

virtual

Definition at line 183 of file tracktion_AutomatableParameter.h.

getAssignments()

juce::ReferenceCountedArray< AutomatableParameter::ModifierAssignment > tracktion::engine::AutomatableParameter::getAssignments

(

)

const

Returns all the current ModifierAssignments.

Definition at line 780 of file tracktion_AutomatableParameter.cpp.

getAutomationSourceList()

AutomatableParameter::AutomationSourceList & tracktion::engine::AutomatableParameter::getAutomationSourceList ( ) const

protected

Definition at line 1140 of file tracktion_AutomatableParameter.cpp.

getCurrentBaseValue()

float tracktion::engine::AutomatableParameter::getCurrentBaseValue

(

)

const

This is the current base value of the parameter i.e.

either the explicit value or the automation curve value.

Definition at line 153 of file tracktion_AutomatableParameter.h.

getCurrentExplicitValue()

float tracktion::engine::AutomatableParameter::getCurrentExplicitValue

(

)

const

This is the value that has been set explicity, either by calling setParameter or the plugin telling us one if its parameters has changed.

Definition at line 148 of file tracktion_AutomatableParameter.h.

getCurrentModifierValue()

float tracktion::engine::AutomatableParameter::getCurrentModifierValue

(

)

const

This is the ammount of the modifier that has been applied to the base value to give the current parameter value.

Definition at line 158 of file tracktion_AutomatableParameter.h.

getCurrentNormalisedValue()

float tracktion::engine::AutomatableParameter::getCurrentNormalisedValue ( ) const

noexcept

Definition at line 67 of file tracktion_AutomatableParameter.h.

getCurrentValue()

float tracktion::engine::AutomatableParameter::getCurrentValue ( ) const

noexcept

Definition at line 66 of file tracktion_AutomatableParameter.h.

getCurrentValueAsString()

virtual juce::String tracktion::engine::AutomatableParameter::getCurrentValueAsString ( )

virtual

Definition at line 72 of file tracktion_AutomatableParameter.h.

getCurrentValueAsStringWithLabel()

juce::String tracktion::engine::AutomatableParameter::getCurrentValueAsStringWithLabel

(

)

Definition at line 1129 of file tracktion_AutomatableParameter.cpp.

getCurve()

AutomationCurve & tracktion::engine::AutomatableParameter::getCurve ( ) const

noexcept

Definition at line 966 of file tracktion_AutomatableParameter.cpp.

getDefaultValue()

std::optional< float > tracktion::engine::AutomatableParameter::getDefaultValue ( ) const

virtual

Definition at line 807 of file tracktion_AutomatableParameter.cpp.

getEdit()

Edit & tracktion::engine::AutomatableParameter::getEdit ( ) const

noexcept

Definition at line 954 of file tracktion_AutomatableParameter.cpp.

getEngine()

Engine & tracktion::engine::AutomatableParameter::getEngine ( ) const

noexcept

Definition at line 949 of file tracktion_AutomatableParameter.cpp.

getFullName()

juce::String tracktion::engine::AutomatableParameter::getFullName ( ) const

virtual

Definition at line 1014 of file tracktion_AutomatableParameter.cpp.

getLabel()

virtual juce::String tracktion::engine::AutomatableParameter::getLabel ( )

virtual

Definition at line 51 of file tracktion_AutomatableParameter.h.

getLabelForValue()

virtual juce::String tracktion::engine::AutomatableParameter::getLabelForValue ( float  ) const

virtual

Definition at line 181 of file tracktion_AutomatableParameter.h.

getModifiers()

juce::Array< AutomatableParameter::ModifierSource * > tracktion::engine::AutomatableParameter::getModifiers

(

)

const

Returns all the current ModifierSources currently in use by assignments.

Definition at line 791 of file tracktion_AutomatableParameter.cpp.

getNumberOfStates()

virtual int tracktion::engine::AutomatableParameter::getNumberOfStates ( ) const

virtual

Definition at line 175 of file tracktion_AutomatableParameter.h.

getOwnerID()

EditItemID tracktion::engine::AutomatableParameter::getOwnerID

(

)

const

Returns the thing that you'd select if you wanted to show this param.

Definition at line 982 of file tracktion_AutomatableParameter.cpp.

getOwnerSelectable()

Selectable * tracktion::engine::AutomatableParameter::getOwnerSelectable

(

)

const

Returns the thing that you'd select if you wanted to show this param.

Definition at line 971 of file tracktion_AutomatableParameter.cpp.

getParameterName()

virtual juce::String tracktion::engine::AutomatableParameter::getParameterName ( ) const

virtual

Definition at line 49 of file tracktion_AutomatableParameter.h.

getParameterShortName()

virtual juce::String tracktion::engine::AutomatableParameter::getParameterShortName ( int  ) const

virtual

Definition at line 50 of file tracktion_AutomatableParameter.h.

getPlugin()

Plugin * tracktion::engine::AutomatableParameter::getPlugin

(

)

const

Definition at line 34 of file tracktion_AutomatableParameter.h.

getPluginAndParamName()

juce::String tracktion::engine::AutomatableParameter::getPluginAndParamName ( ) const

virtual

Definition at line 1000 of file tracktion_AutomatableParameter.cpp.

getSelectableDescription()

juce::String tracktion::engine::AutomatableParameter::getSelectableDescription ( )

overridevirtual

Subclasses must return a description of what they are.

Implements tracktion::engine::Selectable.

Definition at line 201 of file tracktion_AutomatableParameter.h.

getStateForValue()

virtual int tracktion::engine::AutomatableParameter::getStateForValue ( float  ) const

virtual

Definition at line 177 of file tracktion_AutomatableParameter.h.

getTrack()

Track * tracktion::engine::AutomatableParameter::getTrack ( ) const

noexcept

Definition at line 959 of file tracktion_AutomatableParameter.cpp.

getValueForState()

virtual float tracktion::engine::AutomatableParameter::getValueForState ( int  ) const

virtual

Definition at line 176 of file tracktion_AutomatableParameter.h.

getValueRange()

juce::Range< float > tracktion::engine::AutomatableParameter::getValueRange

(

)

const

Definition at line 33 of file tracktion_AutomatableParameter.h.

hasActiveModifierAssignments()

bool tracktion::engine::AutomatableParameter::hasActiveModifierAssignments

(

)

const

Returns true if any ModifierSources are currently in use by assignments.

Definition at line 774 of file tracktion_AutomatableParameter.cpp.

hasAutomationPoints()

bool tracktion::engine::AutomatableParameter::hasAutomationPoints ( ) const

noexcept

Definition at line 92 of file tracktion_AutomatableParameter.h.

hasLabels()

virtual bool tracktion::engine::AutomatableParameter::hasLabels ( ) const

virtual

Definition at line 180 of file tracktion_AutomatableParameter.h.

isAutomationActive()

bool tracktion::engine::AutomatableParameter::isAutomationActive

(

)

const

Returns true if the parameter is being dynamically changed somehow, either through automation or a ModifierAssignment.

Definition at line 802 of file tracktion_AutomatableParameter.cpp.

isCurrentlyRecording()

bool tracktion::engine::AutomatableParameter::isCurrentlyRecording

(

)

const

true if the parameter been moved while in an automation record mode.

Definition at line 187 of file tracktion_AutomatableParameter.h.

isDiscrete()

virtual bool tracktion::engine::AutomatableParameter::isDiscrete ( ) const

virtual

Definition at line 174 of file tracktion_AutomatableParameter.h.

isParameterActive()

virtual bool tracktion::engine::AutomatableParameter::isParameterActive ( ) const

virtual

Definition at line 173 of file tracktion_AutomatableParameter.h.

midiControllerMoved()

void tracktion::engine::AutomatableParameter::midiControllerMoved

(

float

newPosition

)

Definition at line 1198 of file tracktion_AutomatableParameter.cpp.

midiControllerPressed()

void tracktion::engine::AutomatableParameter::midiControllerPressed

(

)

Definition at line 1203 of file tracktion_AutomatableParameter.cpp.

parameterChanged()

virtual void tracktion::engine::AutomatableParameter::parameterChanged ( float  , bool    )

protectedvirtual

Definition at line 262 of file tracktion_AutomatableParameter.h.

parameterChangeGestureBegin()

void tracktion::engine::AutomatableParameter::parameterChangeGestureBegin

(

)

Call to indicate this parameter is about to be changed.

Definition at line 1185 of file tracktion_AutomatableParameter.cpp.

parameterChangeGestureEnd()

void tracktion::engine::AutomatableParameter::parameterChangeGestureEnd

(

)

Call to indicate this parameter has stopped being to be changed.

Definition at line 1191 of file tracktion_AutomatableParameter.cpp.

removeListener()

void tracktion::engine::AutomatableParameter::removeListener

(

Listener *

l

)

Definition at line 227 of file tracktion_AutomatableParameter.h.

removeModifier() [1/2]

void tracktion::engine::AutomatableParameter::removeModifier

(

ModifierAssignment &

assignment

)

Removes an assignment.

N.B. the passed in assignment is likely to be deleted after this call.

Definition at line 754 of file tracktion_AutomatableParameter.cpp.

removeModifier() [2/2]

void tracktion::engine::AutomatableParameter::removeModifier

(

ModifierSource &

source

)

Removes assignments for a ModifierSource.

Definition at line 764 of file tracktion_AutomatableParameter.cpp.

resetRecordingStatus()

void tracktion::engine::AutomatableParameter::resetRecordingStatus

(

)

this is called before and after playback or recording.

Definition at line 1025 of file tracktion_AutomatableParameter.cpp.

setNormalisedParameter()

void tracktion::engine::AutomatableParameter::setNormalisedParameter	(	float	value,
		juce::NotificationType	nt
	)

Definition at line 1124 of file tracktion_AutomatableParameter.cpp.

setParameter()

void tracktion::engine::AutomatableParameter::setParameter	(	float	value,
		juce::NotificationType	nt
	)

Definition at line 1105 of file tracktion_AutomatableParameter.cpp.

setParameterValue()

void tracktion::engine::AutomatableParameter::setParameterValue ( float  value, bool  isFollowingCurve  )

protected

Definition at line 1031 of file tracktion_AutomatableParameter.cpp.

snapToState()

virtual float tracktion::engine::AutomatableParameter::snapToState ( float  val ) const

virtual

Definition at line 182 of file tracktion_AutomatableParameter.h.

stringToValue()

virtual float tracktion::engine::AutomatableParameter::stringToValue ( const juce::String &  s )

virtual

Definition at line 70 of file tracktion_AutomatableParameter.h.

updateFromAttachedValue()

void tracktion::engine::AutomatableParameter::updateFromAttachedValue

(

)

Definition at line 934 of file tracktion_AutomatableParameter.cpp.

updateFromAutomationSources()

void tracktion::engine::AutomatableParameter::updateFromAutomationSources

(

TimePosition

time

)

Updates the parameter and modifier values from its current automation sources.

Definition at line 820 of file tracktion_AutomatableParameter.cpp.

updateStream()

void tracktion::engine::AutomatableParameter::updateStream

(

)

Forces the parameter to update its automation stream for reading automation.

Definition at line 815 of file tracktion_AutomatableParameter.cpp.

updateToFollowCurve()

void tracktion::engine::AutomatableParameter::updateToFollowCurve

(

TimePosition

time

)

Definition at line 1148 of file tracktion_AutomatableParameter.cpp.

valueToString()

virtual juce::String tracktion::engine::AutomatableParameter::valueToString ( float  value )

virtual

Definition at line 69 of file tracktion_AutomatableParameter.h.

valueTreeChildAdded()

void tracktion::engine::AutomatableParameter::valueTreeChildAdded ( juce::ValueTree &  parent, juce::ValueTree &  newChild  )

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 886 of file tracktion_AutomatableParameter.cpp.

valueTreeChildOrderChanged()

void tracktion::engine::AutomatableParameter::valueTreeChildOrderChanged ( juce::ValueTree &  parent, int  , int    )

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 900 of file tracktion_AutomatableParameter.cpp.

valueTreeChildRemoved()

void tracktion::engine::AutomatableParameter::valueTreeChildRemoved ( juce::ValueTree &  parent, juce::ValueTree &  , int    )

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 894 of file tracktion_AutomatableParameter.cpp.

valueTreeParentChanged()

void tracktion::engine::AutomatableParameter::valueTreeParentChanged ( juce::ValueTree &  )

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 906 of file tracktion_AutomatableParameter.cpp.

valueTreePropertyChanged()

void tracktion::engine::AutomatableParameter::valueTreePropertyChanged ( juce::ValueTree &  v, const juce::Identifier &  i  )

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 866 of file tracktion_AutomatableParameter.cpp.

valueTreeRedirected()

void tracktion::engine::AutomatableParameter::valueTreeRedirected ( juce::ValueTree &  )

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 907 of file tracktion_AutomatableParameter.cpp.

Member Data Documentation

attachedValue

std::unique_ptr<AttachedValue> tracktion::engine::AutomatableParameter::attachedValue

protected

Definition at line 234 of file tracktion_AutomatableParameter.h.

automatableEditElement

AutomatableEditItem& tracktion::engine::AutomatableParameter::automatableEditElement

Definition at line 31 of file tracktion_AutomatableParameter.h.

automationSourceList

std::unique_ptr<AutomationSourceList> tracktion::engine::AutomatableParameter::automationSourceList

mutableprotected

Definition at line 249 of file tracktion_AutomatableParameter.h.

currentBaseValue

std::atomic<float> tracktion::engine::AutomatableParameter::currentBaseValue

protected

Definition at line 242 of file tracktion_AutomatableParameter.h.

currentModifierValue

std::atomic<float> tracktion::engine::AutomatableParameter::currentModifierValue

protected

Definition at line 242 of file tracktion_AutomatableParameter.h.

currentParameterValue

std::atomic<float> tracktion::engine::AutomatableParameter::currentParameterValue

protected

Definition at line 242 of file tracktion_AutomatableParameter.h.

currentValue

std::atomic<float> tracktion::engine::AutomatableParameter::currentValue

protected

Definition at line 242 of file tracktion_AutomatableParameter.h.

curveSource

std::unique_ptr<AutomationCurveSource> tracktion::engine::AutomatableParameter::curveSource

protected

Definition at line 241 of file tracktion_AutomatableParameter.h.

editRef

SafeSelectable<Edit> tracktion::engine::AutomatableParameter::editRef

protected

Definition at line 237 of file tracktion_AutomatableParameter.h.

isRecording

std::atomic<bool> tracktion::engine::AutomatableParameter::isRecording

protected

Definition at line 243 of file tracktion_AutomatableParameter.h.

listeners

juce::ListenerList<Listener> tracktion::engine::AutomatableParameter::listeners

protected

Definition at line 235 of file tracktion_AutomatableParameter.h.

macroOwner

MacroParameterList* tracktion::engine::AutomatableParameter::macroOwner

protected

Definition at line 240 of file tracktion_AutomatableParameter.h.

modifierOwner

Modifier* tracktion::engine::AutomatableParameter::modifierOwner

protected

Definition at line 239 of file tracktion_AutomatableParameter.h.

modifiersState

juce::ValueTree tracktion::engine::AutomatableParameter::modifiersState

protected

Definition at line 247 of file tracktion_AutomatableParameter.h.

parameterChangedCaller

AsyncCaller tracktion::engine::AutomatableParameter::parameterChangedCaller

protected

Definition at line 245 of file tracktion_AutomatableParameter.h.

paramID

const juce::String tracktion::engine::AutomatableParameter::paramID

Definition at line 29 of file tracktion_AutomatableParameter.h.

paramName

const juce::String tracktion::engine::AutomatableParameter::paramName

Definition at line 203 of file tracktion_AutomatableParameter.h.

parentState

juce::ValueTree tracktion::engine::AutomatableParameter::parentState

Definition at line 204 of file tracktion_AutomatableParameter.h.

plugin

Plugin* tracktion::engine::AutomatableParameter::plugin

protected

Definition at line 238 of file tracktion_AutomatableParameter.h.

stringToValueFunction

std::function<float(const juce::String&)> tracktion::engine::AutomatableParameter::stringToValueFunction

Definition at line 76 of file tracktion_AutomatableParameter.h.

updateParametersRecursionCheck

bool tracktion::engine::AutomatableParameter::updateParametersRecursionCheck

protected

Definition at line 244 of file tracktion_AutomatableParameter.h.

valueRange

const juce::NormalisableRange<float> tracktion::engine::AutomatableParameter::valueRange

Definition at line 30 of file tracktion_AutomatableParameter.h.

valueToStringFunction

std::function<juce::String(float)> tracktion::engine::AutomatableParameter::valueToStringFunction

Definition at line 75 of file tracktion_AutomatableParameter.h.

---

The documentation for this class was generated from the following files:

• tracktion_engine/model/automation/tracktion_AutomatableParameter.h
• tracktion_engine/model/automation/tracktion_AutomatableParameter.cpp
