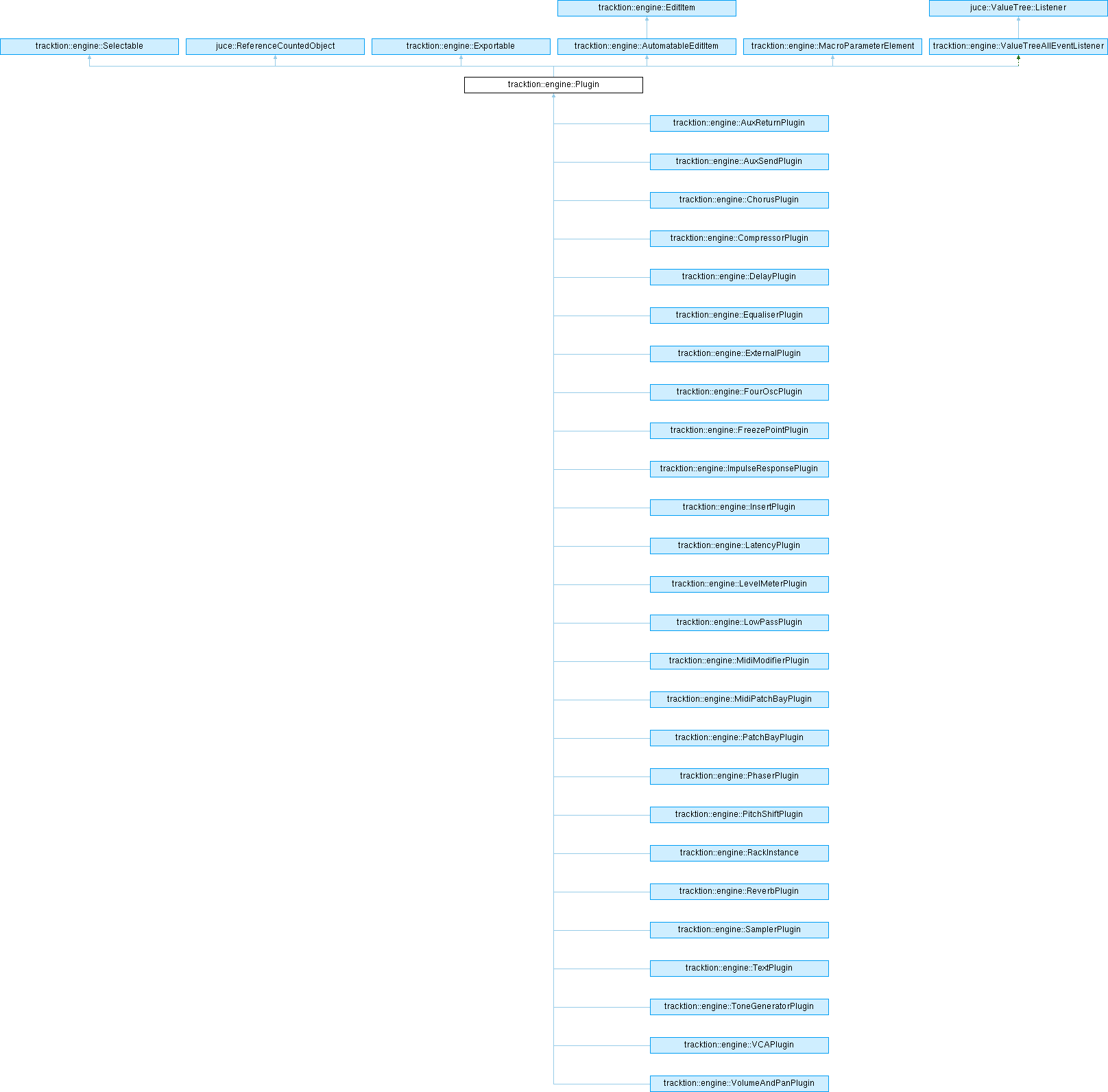

Inheritance diagram for tracktion::engine::Plugin:

Classes
struct	EditorComponent

struct	WindowState

struct	Wire

struct	WireList

Public Types
enum class	Type { allPlugins , folderTrackPlugins , effectPlugins }

using	Ptr = juce::ReferenceCountedObjectPtr< Plugin >

using	Array = juce::ReferenceCountedArray< Plugin >

Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Public Member Functions
	Plugin (PluginCreationInfo)

void	selectableAboutToBeDeleted () override
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

void	playStartedOrStopped ()
	called by the system to let the plugin manage its automation stuff

virtual void	initialiseFully ()
	Gives the plugin a chance to do extra initialisation when it's been added to an edit.

virtual void	flushPluginStateToValueTree () override

virtual juce::String	getName () const override=0
	The name of the type, e.g.

virtual juce::String	getPluginType ()=0

virtual juce::String	getVendor ()

virtual juce::String	getShortName (int)

virtual juce::String	getIdentifierString ()
	A unique string to idenitify plugin independant of install location.

virtual juce::String	getTooltip ()
	default returns the name, others can return special stuff if needed

virtual void	setEnabled (bool)
	Enable/disable the plugin.

bool	isEnabled () const noexcept

void	setFrozen (bool shouldBeFrozen)
	This is a bit different to being enabled as when frozen a plugin can't be interacted with.

bool	isFrozen () const noexcept

void	setProcessingEnabled (bool p)
	Enable/Disable processing.

bool	isProcessingEnabled () const noexcept

virtual void	initialise (const PluginInitialisationInfo &)=0
	Gives the plugin a chance to set itself up before being played.

virtual void	initialiseWithoutStopping (const PluginInitialisationInfo &)
	Tells the plugin that the audio graph has changed but the plugin isn't being re-initialised - i.e.

bool	isInitialising () const

virtual void	deinitialise ()=0
	Called after play stops to release resources.

virtual void	reset ()
	Should reset synth voices, tails, clear delay buffers, etc.

virtual void	trackPropertiesChanged ()
	Track name or colour has changed.

virtual void	applyToBuffer (const PluginRenderContext &)=0
	Process the next block of data.

virtual void	prepareForNextBlock (TimePosition)
	Called between successive rendering blocks.

void	applyToBufferWithAutomation (const PluginRenderContext &)

virtual bool	shoulMeasureCpuUsage () const noexcept
	Plugins can return false if they want to avoid the overhead of measuring the CPU usage.

double	getCpuUsage () const noexcept
	Returns the proportion of the current buffer size spent processing this plugin.

virtual int	getNumOutputChannelsGivenInputs (int numInputChannels)
	This must return the number of output channels that the plugin will produce, given a number of input channels.

virtual bool	producesAudioWhenNoAudioInput ()

virtual bool	noTail ()

virtual void	getChannelNames (juce::StringArray ins, juce::StringArray outs)

virtual bool	takesAudioInput ()

virtual bool	takesMidiInput ()

virtual bool	isSynth ()

virtual double	getLatencySeconds ()

virtual double	getTailLength () const

virtual bool	canSidechain ()

juce::StringArray	getInputChannelNames ()

juce::StringArray	getSidechainSourceNames (bool allowNone)

void	setSidechainSourceByName (const juce::String &name)

juce::String	getSidechainSourceName ()

void	guessSidechainRouting ()

int	getNumWires () const

Wire *	getWire (int index) const

void	makeConnection (int srcChannel, int dstChannel, juce::UndoManager *)

void	breakConnection (int srcChannel, int dstChannel)

virtual bool	hasNameForMidiNoteNumber (int note, int midiChannel, juce::String &name)
	If it's a synth that names its notes, this can return the name it uses for this note 0-127.

virtual bool	hasNameForMidiProgram (int programNum, int bank, juce::String &name)
	Returns the name for a midi program, if there is one.

virtual bool	hasNameForMidiBank (int bank, juce::String &name)

virtual bool	canBeAddedToClip ()

virtual bool	canBeAddedToRack ()

virtual bool	canBeAddedToFolderTrack ()

virtual bool	canBeAddedToMaster ()

virtual bool	canBeDisabled ()

virtual bool	canBeMoved ()

virtual bool	needsConstantBufferSize ()=0

virtual bool	isMissing ()
	for things like VSTs where the DLL is missing.

virtual bool	isDisabled ()
	Plugins can be disabled to avoid them crashing Edits.

bool	isInRack () const

juce::ReferenceCountedObjectPtr< RackType >	getOwnerRackType () const

bool	isClipEffectPlugin () const

virtual juce::AudioProcessor *	getWrappedAudioProcessor () const

AutomatableParameter::Ptr	getQuickControlParameter () const

void	setQuickControlParameter (AutomatableParameter *)

virtual void	deleteFromParent ()
	Attempts to delete this plugin, whether it's a master plugin, track plugin, etc.

void	removeFromParent ()
	Detaches the plugin from any parent it might be in.

Track *	getOwnerTrack () const
	Returns the track if it's a track or clip plugin.

Clip *	getOwnerClip () const
	Returns the clip if that's what it's in.

PluginList *	getOwnerList () const

Ptr	findPluginThatFeedsIntoThis () const

Ptr	findPluginThatThisFeedsInto () const

void	changed () override
	method from Selectable, that's been overridden here to also tell the edit that it's changed.

juce::Array< ReferencedItem >	getReferencedItems () override

void	reassignReferencedItem (const ReferencedItem &, ProjectItemID newID, double newStartTime) override

virtual void	sourceMediaChanged ()
	Called when ProjectItem sources are re-assigned so you can reload from the new source.

bool	setPluginToMirror (const Plugin::Ptr &)

virtual void	updateFromMirroredPluginIfNeeded (Plugin &)

Plugin::Ptr	getMirroredPlugin () const

bool	baseClassNeedsInitialising () const noexcept

void	baseClassInitialise (const PluginInitialisationInfo &)

void	baseClassDeinitialise ()

void	setSidechainSourceID (EditItemID newID)

EditItemID	getSidechainSourceID () const

virtual std::unique_ptr< EditorComponent >	createEditor ()

void	showWindowExplicitly ()

void	hideWindowForShutdown ()

juce::UndoManager *	getUndoManager () const noexcept

Public Member Functions inherited from tracktion::engine::Selectable
virtual juce::String	getSelectableDescription ()=0
	Subclasses must return a description of what they are.

virtual void	selectionStatusChanged (bool isNowSelected)
	Can be overridden to tell this object that it has just been selected or deselected.

void	addListener (SelectableListener *)

void	removeListener (SelectableListener *)

void	addSelectableListener (SelectableListener *)

void	removeSelectableListener (SelectableListener *)

void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.

void	deselect ()

void	propertiesChanged ()

void	notifyListenersOfDeletion ()

WeakRef	getWeakRef ()

Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept

void	decReferenceCount () noexcept

bool	decReferenceCountWithoutDeleting () noexcept

int	getReferenceCount () const noexcept

Public Member Functions inherited from tracktion::engine::AutomatableEditItem
	AutomatableEditItem (Edit &, const juce::ValueTree &)

virtual void	restorePluginStateFromValueTree (const juce::ValueTree &)

juce::Array< AutomatableParameter * >	getAutomatableParameters () const

int	getNumAutomatableParameters () const

AutomatableParameter::Ptr	getAutomatableParameter (int index) const

AutomatableParameter::Ptr	getAutomatableParameterByID (const juce::String &paramID) const

void	visitAllAutomatableParams (const std::function< void(AutomatableParameter &)> &visit) const

void	deleteParameter (AutomatableParameter *)

void	deleteAutomatableParameters ()

int	indexOfAutomatableParameter (const AutomatableParameter::Ptr &) const

AutomatableParameterTree &	getParameterTree () const

juce::ReferenceCountedArray< AutomatableParameter >	getFlattenedParameterTree () const

void	addParameterListChangeListener (ParameterListChangeListener *)

void	removeParameterListChangeListener (ParameterListChangeListener *)

bool	isAutomationNeeded () const noexcept

void	setAutomatableParamPosition (TimePosition)

bool	isBeingActivelyPlayed () const

virtual void	updateAutomatableParamPosition (TimePosition)
	Updates all the auto params to their positions at this time.

void	updateParameterStreams (TimePosition)
	Updates all the parameter streams to their positions at this time.

void	updateActiveParameters ()
	Iterates all the parameters to find out which ones need to be automated.

void	resetRecordingStatus ()
	Marks the end of an automation recording stream.

Public Member Functions inherited from tracktion::engine::EditItem
	EditItem (EditItemID, Edit &)

Public Member Functions inherited from tracktion::engine::MacroParameterElement
	MacroParameterElement (Edit &, const juce::ValueTree &)
	Constructor.

virtual	~MacroParameterElement ()=default
	Destructor.

MacroParameterList *	getMacroParameterList ()
	If no parameters have been created, this may return nullptr.

MacroParameterList &	getMacroParameterListForWriting ()
	This ensures that the list has been created.

juce::ReferenceCountedArray< MacroParameter >	getMacroParameters () const

Static Public Member Functions
static bool	areSelectedPluginsRackable (SelectionManager &)

static RackInstance *	wrapSelectedPluginsInRack (SelectionManager &)

static void	sortPlugins (Plugin::Array &)

static void	sortPlugins (std::vector< Plugin * > &)

Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()

static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.

Static Public Member Functions inherited from tracktion::engine::Exportable
static juce::Array< Exportable * >	addAllExportables (Edit &)
	Returns all the Exportables contained in an Edit.

Public Attributes
std::unique_ptr< WindowState >	windowState

Engine &	engine

juce::ValueTree	state

Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference

Public Attributes inherited from tracktion::engine::AutomatableEditItem
juce::ValueTree	elementState

juce::CachedValue< bool >	remapOnTempoChange

Public Attributes inherited from tracktion::engine::EditItem
Edit &	edit

const EditItemID	itemID
	Every EditItem has an ID which is unique within the edit.

Public Attributes inherited from tracktion::engine::MacroParameterElement
Edit &	ownerEdit

juce::ValueTree	parentStateForList

Protected Member Functions
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeChanged () override

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override

void	valueTreeChildRemoved (juce::ValueTree &, juce::ValueTree &, int) override

void	valueTreeParentChanged (juce::ValueTree &) override

virtual void	processingChanged ()

AutomatableParameter *	addParam (const juce::String &paramID, const juce::String &name, juce::NormalisableRange< float > valueRange)

AutomatableParameter *	addParam (const juce::String &paramID, const juce::String &name, juce::NormalisableRange< float > valueRange, std::function< juce::String(float)> valueToStringFunction, std::function< float(const juce::String &)> stringToValueFunction)

Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept

	ReferenceCountedObject (ReferenceCountedObject &&) noexcept

ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept

ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept

void	resetReferenceCount () noexcept

Protected Member Functions inherited from tracktion::engine::AutomatableEditItem
virtual void	buildParameterTree () const

void	updateLastPlaybackTime ()

void	clearParameterList ()

void	addAutomatableParameter (const AutomatableParameter::Ptr &)

void	rebuildParameterTree ()

void	saveChangedParametersToState ()
	Saves the explicit value of any parameters that have deviated to the state.

void	restoreChangedParametersFromState ()
	Restores the value of any explicitly set parameters.

Protected Member Functions inherited from tracktion::engine::ValueTreeAllEventListener
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override

void	valueTreeChildRemoved (juce::ValueTree &, juce::ValueTree &, int) override

void	valueTreeChildOrderChanged (juce::ValueTree &, int, int) override

void	valueTreeParentChanged (juce::ValueTree &) override

void	valueTreeRedirected (juce::ValueTree &) override

Static Protected Member Functions
static void	getLeftRightChannelNames (juce::StringArray ins, juce::StringArray outs)

static void	getLeftRightChannelNames (juce::StringArray *chans)

Protected Attributes
juce::CachedValue< AtomicWrapper< bool > >	enabled

juce::CachedValue< bool >	frozen

juce::CachedValue< bool >	processing

juce::CachedValue< juce::String >	quickParamName

juce::CachedValue< EditItemID >	masterPluginID

juce::CachedValue< EditItemID >	sidechainSourceID

double	sampleRate

int	blockSizeSamples

Detailed Description

Definition at line 108 of file tracktion_Plugin.h.

Member Typedef Documentation

◆ Array

using tracktion::engine::Plugin::Array = juce::ReferenceCountedArray<Plugin>

Definition at line 123 of file tracktion_Plugin.h.

◆ Ptr

using tracktion::engine::Plugin::Ptr = juce::ReferenceCountedObjectPtr<Plugin>

Definition at line 122 of file tracktion_Plugin.h.

Member Enumeration Documentation

◆ Type

enum class tracktion::engine::Plugin::Type

strong

Definition at line 355 of file tracktion_Plugin.h.

Constructor & Destructor Documentation

◆ Plugin()

tracktion::engine::Plugin::Plugin ( PluginCreationInfo info )

Definition at line 68 of file tracktion_Plugin.cpp.

◆ ~Plugin()

tracktion::engine::Plugin::~Plugin ( )

override

Definition at line 120 of file tracktion_Plugin.cpp.

Member Function Documentation

◆ addParam() [1/2]

AutomatableParameter * tracktion::engine::Plugin::addParam	(	const juce::String &	paramID,
		const juce::String &	name,
		juce::NormalisableRange< float >	valueRange
	)

protected

Definition at line 570 of file tracktion_Plugin.cpp.

◆ addParam() [2/2]

AutomatableParameter * tracktion::engine::Plugin::addParam	(	const juce::String &	paramID,
		const juce::String &	name,
		juce::NormalisableRange< float >	valueRange,
		std::function< juce::String(float)>	valueToStringFunction,
		std::function< float(const juce::String &)>	stringToValueFunction
	)

protected

Definition at line 578 of file tracktion_Plugin.cpp.

◆ applyToBuffer()

virtual void tracktion::engine::Plugin::applyToBuffer ( const PluginRenderContext & )

pure virtual

Process the next block of data.

The incoming buffer will have an unknown number of channels, and the plugin has to deal with them however it wants to.

The buffer should be resized to the number of output channels that the plugin wants to return (which should be the same or less than the number of output channel names it returns from getChannelNames() - never more than this).

◆ applyToBufferWithAutomation()

void tracktion::engine::Plugin::applyToBufferWithAutomation ( const PluginRenderContext & pc )

Definition at line 654 of file tracktion_Plugin.cpp.

◆ areSelectedPluginsRackable()

bool tracktion::engine::Plugin::areSelectedPluginsRackable ( SelectionManager & selectionManager )

static

Definition at line 830 of file tracktion_Plugin.cpp.

◆ baseClassDeinitialise()

void tracktion::engine::Plugin::baseClassDeinitialise ( )

Definition at line 493 of file tracktion_Plugin.cpp.

◆ baseClassInitialise()

void tracktion::engine::Plugin::baseClassInitialise ( const PluginInitialisationInfo & info )

Definition at line 447 of file tracktion_Plugin.cpp.

◆ baseClassNeedsInitialising()

bool tracktion::engine::Plugin::baseClassNeedsInitialising ( ) const

noexcept

Definition at line 363 of file tracktion_Plugin.h.

◆ breakConnection()

void tracktion::engine::Plugin::breakConnection	(	int	srcChannel,
		int	dstChannel
	)

Definition at line 189 of file tracktion_Plugin.cpp.

◆ canBeAddedToClip()

virtual bool tracktion::engine::Plugin::canBeAddedToClip ( )

virtual

Definition at line 281 of file tracktion_Plugin.h.

◆ canBeAddedToFolderTrack()

virtual bool tracktion::engine::Plugin::canBeAddedToFolderTrack ( )

virtual

Definition at line 283 of file tracktion_Plugin.h.

◆ canBeAddedToMaster()

virtual bool tracktion::engine::Plugin::canBeAddedToMaster ( )

virtual

Definition at line 284 of file tracktion_Plugin.h.

◆ canBeAddedToRack()

virtual bool tracktion::engine::Plugin::canBeAddedToRack ( )

virtual

Definition at line 282 of file tracktion_Plugin.h.

◆ canBeDisabled()

virtual bool tracktion::engine::Plugin::canBeDisabled ( )

virtual

Definition at line 285 of file tracktion_Plugin.h.

◆ canBeMoved()

virtual bool tracktion::engine::Plugin::canBeMoved ( )

virtual

Definition at line 286 of file tracktion_Plugin.h.

◆ canSidechain()

bool tracktion::engine::Plugin::canSidechain ( )

virtual

Definition at line 209 of file tracktion_Plugin.cpp.

◆ changed()

void tracktion::engine::Plugin::changed ( )

overridevirtual

method from Selectable, that's been overridden here to also tell the edit that it's changed.

Reimplemented from tracktion::engine::Selectable.

Definition at line 413 of file tracktion_Plugin.cpp.

◆ createEditor()

virtual std::unique_ptr< EditorComponent > tracktion::engine::Plugin::createEditor ( )

virtual

Definition at line 378 of file tracktion_Plugin.h.

◆ deinitialise()

virtual void tracktion::engine::Plugin::deinitialise ( )

pure virtual

Called after play stops to release resources.

Don't call this directly or the initialise count will become out of sync.

See also: baseClassDeinitialise

◆ deleteFromParent()

void tracktion::engine::Plugin::deleteFromParent ( )

virtual

Attempts to delete this plugin, whether it's a master plugin, track plugin, etc.

This will call removeFromParent but also hide any automation parameters etc. being shown on tracks and hide plugin windows etc. Use this method if the plugin is being fully deleted from the Edit.

Reimplemented in tracktion::engine::ExternalPlugin.

Definition at line 509 of file tracktion_Plugin.cpp.

◆ findPluginThatFeedsIntoThis()

Plugin::Ptr tracktion::engine::Plugin::findPluginThatFeedsIntoThis ( ) const

Definition at line 548 of file tracktion_Plugin.cpp.

◆ findPluginThatThisFeedsInto()

Plugin::Ptr tracktion::engine::Plugin::findPluginThatThisFeedsInto ( ) const

Definition at line 556 of file tracktion_Plugin.cpp.

◆ flushPluginStateToValueTree()

void tracktion::engine::Plugin::flushPluginStateToValueTree ( )

overridevirtual

Reimplemented from tracktion::engine::AutomatableEditItem.

Definition at line 922 of file tracktion_Plugin.cpp.

◆ getChannelNames()

void tracktion::engine::Plugin::getChannelNames	(	juce::StringArray *	ins,
		juce::StringArray *	outs
	)

virtual

Definition at line 313 of file tracktion_Plugin.cpp.

◆ getCpuUsage()

double tracktion::engine::Plugin::getCpuUsage ( ) const

noexcept

Returns the proportion of the current buffer size spent processing this plugin.

Definition at line 223 of file tracktion_Plugin.h.

◆ getIdentifierString()

virtual juce::String tracktion::engine::Plugin::getIdentifierString ( )

virtual

A unique string to idenitify plugin independant of install location.

Reimplemented in tracktion::engine::ExternalPlugin.

Definition at line 144 of file tracktion_Plugin.h.

◆ getInputChannelNames()

juce::StringArray tracktion::engine::Plugin::getInputChannelNames ( )

Definition at line 318 of file tracktion_Plugin.cpp.

◆ getLatencySeconds()

virtual double tracktion::engine::Plugin::getLatencySeconds ( )

virtual

Definition at line 242 of file tracktion_Plugin.h.

◆ getLeftRightChannelNames() [1/2]

void tracktion::engine::Plugin::getLeftRightChannelNames ( juce::StringArray * chans )

staticprotected

Definition at line 890 of file tracktion_Plugin.cpp.

◆ getLeftRightChannelNames() [2/2]

void tracktion::engine::Plugin::getLeftRightChannelNames	(	juce::StringArray *	ins,
		juce::StringArray *	outs
	)

staticprotected

Definition at line 899 of file tracktion_Plugin.cpp.

◆ getMirroredPlugin()

Plugin::Ptr tracktion::engine::Plugin::getMirroredPlugin ( ) const

Definition at line 771 of file tracktion_Plugin.cpp.

◆ getName()

virtual juce::String tracktion::engine::Plugin::getName ( ) const

overridepure virtual

The name of the type, e.g.

"Compressor"

Implements tracktion::engine::EditItem.

◆ getNumOutputChannelsGivenInputs()

int tracktion::engine::Plugin::getNumOutputChannelsGivenInputs ( int numInputChannels )

virtual

This must return the number of output channels that the plugin will produce, given a number of input channels.

E.g. some might be able to do mono, so will return 1 if the input is 1, 2 if it is 2, etc.

The default impl just returns the number of items that getChannelNames() returns.

Definition at line 140 of file tracktion_Plugin.cpp.

◆ getNumWires()

int tracktion::engine::Plugin::getNumWires ( ) const

Definition at line 147 of file tracktion_Plugin.cpp.

◆ getOwnerClip()

Clip * tracktion::engine::Plugin::getOwnerClip ( ) const

Returns the clip if that's what it's in.

Definition at line 527 of file tracktion_Plugin.cpp.

◆ getOwnerList()

PluginList * tracktion::engine::Plugin::getOwnerList ( ) const

Definition at line 564 of file tracktion_Plugin.cpp.

◆ getOwnerRackType()

RackType::Ptr tracktion::engine::Plugin::getOwnerRackType ( ) const

Definition at line 362 of file tracktion_Plugin.cpp.

◆ getOwnerTrack()

Track * tracktion::engine::Plugin::getOwnerTrack ( ) const

Returns the track if it's a track or clip plugin.

Definition at line 522 of file tracktion_Plugin.cpp.

◆ getQuickControlParameter()

AutomatableParameter::Ptr tracktion::engine::Plugin::getQuickControlParameter ( ) const

Definition at line 589 of file tracktion_Plugin.cpp.

◆ getReferencedItems()

juce::Array< Exportable::ReferencedItem > tracktion::engine::Plugin::getReferencedItems ( )

overridevirtual

Implements tracktion::engine::Exportable.

Definition at line 716 of file tracktion_Plugin.cpp.

◆ getShortName()

virtual juce::String tracktion::engine::Plugin::getShortName ( int )

virtual

Definition at line 141 of file tracktion_Plugin.h.

◆ getSidechainSourceID()

EditItemID tracktion::engine::Plugin::getSidechainSourceID ( ) const

Definition at line 369 of file tracktion_Plugin.h.

◆ getSidechainSourceName()

juce::String tracktion::engine::Plugin::getSidechainSourceName ( )

Definition at line 304 of file tracktion_Plugin.cpp.

◆ getSidechainSourceNames()

juce::StringArray tracktion::engine::Plugin::getSidechainSourceNames ( bool allowNone )

Definition at line 221 of file tracktion_Plugin.cpp.

◆ getTailLength()

virtual double tracktion::engine::Plugin::getTailLength ( ) const

virtual

Definition at line 243 of file tracktion_Plugin.h.

◆ getTooltip()

juce::String tracktion::engine::Plugin::getTooltip ( )

virtual

default returns the name, others can return special stuff if needed

Reimplemented in tracktion::engine::EqualiserPlugin, tracktion::engine::ExternalPlugin, tracktion::engine::FreezePointPlugin, tracktion::engine::LevelMeterPlugin, and tracktion::engine::RackInstance.

Definition at line 437 of file tracktion_Plugin.cpp.

◆ getUndoManager()

juce::UndoManager * tracktion::engine::Plugin::getUndoManager ( ) const

noexcept

Definition at line 326 of file tracktion_Plugin.cpp.

◆ getVendor()

virtual juce::String tracktion::engine::Plugin::getVendor ( )

virtual

Definition at line 140 of file tracktion_Plugin.h.

◆ getWire()

Plugin::Wire * tracktion::engine::Plugin::getWire ( int index ) const

Definition at line 155 of file tracktion_Plugin.cpp.

◆ getWrappedAudioProcessor()

virtual juce::AudioProcessor * tracktion::engine::Plugin::getWrappedAudioProcessor ( ) const

virtual

Definition at line 300 of file tracktion_Plugin.h.

◆ guessSidechainRouting()

void tracktion::engine::Plugin::guessSidechainRouting ( )

Definition at line 266 of file tracktion_Plugin.cpp.

◆ hasNameForMidiBank()

bool tracktion::engine::Plugin::hasNameForMidiBank	(	int	bank,
		juce::String &	name
	)

virtual

Definition at line 710 of file tracktion_Plugin.cpp.

◆ hasNameForMidiNoteNumber()

bool tracktion::engine::Plugin::hasNameForMidiNoteNumber	(	int	note,
		int	midiChannel,
		juce::String &	name
	)

virtual

If it's a synth that names its notes, this can return the name it uses for this note 0-127.

Midi channel is 1-16

Reimplemented in tracktion::engine::SamplerPlugin, and tracktion::engine::ExternalPlugin.

Definition at line 698 of file tracktion_Plugin.cpp.

◆ hasNameForMidiProgram()

bool tracktion::engine::Plugin::hasNameForMidiProgram	(	int	programNum,
		int	bank,
		juce::String &	name
	)

virtual

Returns the name for a midi program, if there is one.

programNum = 0 to 127.

Reimplemented in tracktion::engine::ExternalPlugin.

Definition at line 705 of file tracktion_Plugin.cpp.

◆ hideWindowForShutdown()

void tracktion::engine::Plugin::hideWindowForShutdown ( )

Definition at line 911 of file tracktion_Plugin.cpp.

◆ initialise()

virtual void tracktion::engine::Plugin::initialise ( const PluginInitialisationInfo & )

pure virtual

Gives the plugin a chance to set itself up before being played.

This won't be called concurrently with the process thread.

The sample rate and the average block size - although the blocks won't always be the same, and may be bigger.

Don't call this directly or the initialise count will become out of sync.

See also: baseClassInitialise [[ message_thread ]]

◆ initialiseFully()

void tracktion::engine::Plugin::initialiseFully ( )

virtual

Gives the plugin a chance to do extra initialisation when it's been added to an edit.

Reimplemented in tracktion::engine::ExternalPlugin, and tracktion::engine::FreezePointPlugin.

Definition at line 336 of file tracktion_Plugin.cpp.

◆ initialiseWithoutStopping()

virtual void tracktion::engine::Plugin::initialiseWithoutStopping ( const PluginInitialisationInfo & )

virtual

Tells the plugin that the audio graph has changed but the plugin isn't being re-initialised - i.e.

it's being re-used, maybe by being moved to a different track, etc. This can be called concurrently whilst the plugin is being processed so implementations of it must be thread safe. [[ message_thread ]]

Reimplemented in tracktion::engine::AuxSendPlugin, tracktion::engine::InsertPlugin, tracktion::engine::LevelMeterPlugin, and tracktion::engine::VolumeAndPanPlugin.

Definition at line 183 of file tracktion_Plugin.h.

◆ isClipEffectPlugin()

bool tracktion::engine::Plugin::isClipEffectPlugin ( ) const

Definition at line 370 of file tracktion_Plugin.cpp.

◆ isDisabled()

virtual bool tracktion::engine::Plugin::isDisabled ( )

virtual

Plugins can be disabled to avoid them crashing Edits.

Reimplemented in tracktion::engine::ExternalPlugin.

Definition at line 293 of file tracktion_Plugin.h.

◆ isEnabled()

bool tracktion::engine::Plugin::isEnabled ( ) const

noexcept

Definition at line 152 of file tracktion_Plugin.h.

◆ isFrozen()

bool tracktion::engine::Plugin::isFrozen ( ) const

noexcept

Definition at line 156 of file tracktion_Plugin.h.

◆ isInitialising()

bool tracktion::engine::Plugin::isInitialising ( ) const

Definition at line 185 of file tracktion_Plugin.h.

◆ isInRack()

bool tracktion::engine::Plugin::isInRack ( ) const

Definition at line 357 of file tracktion_Plugin.cpp.

◆ isMissing()

virtual bool tracktion::engine::Plugin::isMissing ( )

virtual

for things like VSTs where the DLL is missing.

Reimplemented in tracktion::engine::ExternalPlugin.

Definition at line 290 of file tracktion_Plugin.h.

◆ isProcessingEnabled()

bool tracktion::engine::Plugin::isProcessingEnabled ( ) const

noexcept

Definition at line 161 of file tracktion_Plugin.h.

◆ isSynth()

virtual bool tracktion::engine::Plugin::isSynth ( )

virtual

Definition at line 241 of file tracktion_Plugin.h.

◆ makeConnection()

void tracktion::engine::Plugin::makeConnection	(	int	srcChannel,
		int	dstChannel,
		juce::UndoManager *	um
	)

Definition at line 175 of file tracktion_Plugin.cpp.

◆ noTail()

virtual bool tracktion::engine::Plugin::noTail ( )

virtual

Definition at line 236 of file tracktion_Plugin.h.

◆ playStartedOrStopped()

void tracktion::engine::Plugin::playStartedOrStopped ( )

called by the system to let the plugin manage its automation stuff

Definition at line 331 of file tracktion_Plugin.cpp.

◆ prepareForNextBlock()

virtual void tracktion::engine::Plugin::prepareForNextBlock ( TimePosition )

virtual

Called between successive rendering blocks.

Reimplemented in tracktion::engine::RackInstance.

Definition at line 212 of file tracktion_Plugin.h.

◆ processingChanged()

void tracktion::engine::Plugin::processingChanged ( )

protectedvirtual

Definition at line 916 of file tracktion_Plugin.cpp.

◆ producesAudioWhenNoAudioInput()

virtual bool tracktion::engine::Plugin::producesAudioWhenNoAudioInput ( )

virtual

Definition at line 235 of file tracktion_Plugin.h.

◆ reassignReferencedItem()

void tracktion::engine::Plugin::reassignReferencedItem	(	const ReferencedItem &	,
		ProjectItemID	newID,
		double	newStartTime
	)

overridevirtual

Implements tracktion::engine::Exportable.

Definition at line 717 of file tracktion_Plugin.cpp.

◆ removeFromParent()

void tracktion::engine::Plugin::removeFromParent ( )

Detaches the plugin from any parent it might be in.

This is a little more complicated than just removing its ValueTree from its parent one. Use this method if the plugin is to be inserted somewhere else in the Edit.

Definition at line 341 of file tracktion_Plugin.cpp.

◆ reset()

void tracktion::engine::Plugin::reset ( )

virtual

Should reset synth voices, tails, clear delay buffers, etc.

Reimplemented in tracktion::engine::DelayPlugin, tracktion::engine::FourOscPlugin, tracktion::engine::ImpulseResponsePlugin, tracktion::engine::ReverbPlugin, and tracktion::engine::ExternalPlugin.

Definition at line 442 of file tracktion_Plugin.cpp.

◆ selectableAboutToBeDeleted()

void tracktion::engine::Plugin::selectableAboutToBeDeleted ( )

overridevirtual

Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

Reimplemented from tracktion::engine::Selectable.

Definition at line 131 of file tracktion_Plugin.cpp.

◆ setEnabled()

void tracktion::engine::Plugin::setEnabled ( bool b )

virtual

Enable/disable the plugin.

Reimplemented in tracktion::engine::ExternalPlugin.

Definition at line 421 of file tracktion_Plugin.cpp.

◆ setFrozen()

void tracktion::engine::Plugin::setFrozen ( bool shouldBeFrozen )

This is a bit different to being enabled as when frozen a plugin can't be interacted with.

Definition at line 429 of file tracktion_Plugin.cpp.

◆ setPluginToMirror()

bool tracktion::engine::Plugin::setPluginToMirror ( const Plugin::Ptr & newMaster )

Definition at line 731 of file tracktion_Plugin.cpp.

◆ setProcessingEnabled()

void tracktion::engine::Plugin::setProcessingEnabled ( bool p )

Enable/Disable processing.

If processing is disabled, plugin should minimize memory usage and release any resources possilbe

Definition at line 160 of file tracktion_Plugin.h.

◆ setQuickControlParameter()

void tracktion::engine::Plugin::setQuickControlParameter ( AutomatableParameter * param )

Definition at line 646 of file tracktion_Plugin.cpp.

◆ setSidechainSourceByName()

void tracktion::engine::Plugin::setSidechainSourceByName ( const juce::String & name )

Definition at line 241 of file tracktion_Plugin.cpp.

◆ setSidechainSourceID()

void tracktion::engine::Plugin::setSidechainSourceID ( EditItemID newID )

Definition at line 368 of file tracktion_Plugin.h.

◆ shoulMeasureCpuUsage()

virtual bool tracktion::engine::Plugin::shoulMeasureCpuUsage ( ) const

virtualnoexcept

Plugins can return false if they want to avoid the overhead of measuring the CPU usage.

It's a small overhead but with many tracks, the level meters and vol/pan plugins can make a difference.

Reimplemented in tracktion::engine::LevelMeterPlugin, and tracktion::engine::VolumeAndPanPlugin.

Definition at line 220 of file tracktion_Plugin.h.

◆ showWindowExplicitly()

void tracktion::engine::Plugin::showWindowExplicitly ( )

Definition at line 906 of file tracktion_Plugin.cpp.

◆ sortPlugins() [1/2]

void tracktion::engine::Plugin::sortPlugins ( Plugin::Array & plugins )

static

Definition at line 856 of file tracktion_Plugin.cpp.

◆ sortPlugins() [2/2]

void tracktion::engine::Plugin::sortPlugins ( std::vector< Plugin * > & plugins )

static

Definition at line 872 of file tracktion_Plugin.cpp.

◆ sourceMediaChanged()

virtual void tracktion::engine::Plugin::sourceMediaChanged ( )

virtual

Called when ProjectItem sources are re-assigned so you can reload from the new source.

Reimplemented in tracktion::engine::SamplerPlugin.

Definition at line 340 of file tracktion_Plugin.h.

◆ takesAudioInput()

virtual bool tracktion::engine::Plugin::takesAudioInput ( )

virtual

Definition at line 239 of file tracktion_Plugin.h.

◆ takesMidiInput()

virtual bool tracktion::engine::Plugin::takesMidiInput ( )

virtual

Definition at line 240 of file tracktion_Plugin.h.

◆ trackPropertiesChanged()

virtual void tracktion::engine::Plugin::trackPropertiesChanged ( )

virtual

Track name or colour has changed.

Reimplemented in tracktion::engine::ExternalPlugin.

Definition at line 197 of file tracktion_Plugin.h.

◆ updateFromMirroredPluginIfNeeded()

virtual void tracktion::engine::Plugin::updateFromMirroredPluginIfNeeded ( Plugin & )

virtual

Definition at line 351 of file tracktion_Plugin.h.

◆ valueTreeChanged()

void tracktion::engine::Plugin::valueTreeChanged ( )

overrideprotectedvirtual

Implements tracktion::engine::ValueTreeAllEventListener.

Definition at line 383 of file tracktion_Plugin.cpp.

◆ valueTreeChildAdded()

void tracktion::engine::Plugin::valueTreeChildAdded	(	juce::ValueTree &	,
		juce::ValueTree &	c
	)

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 388 of file tracktion_Plugin.cpp.

◆ valueTreeChildRemoved()

void tracktion::engine::Plugin::valueTreeChildRemoved	(	juce::ValueTree &	,
		juce::ValueTree &	c,
		int
	)

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 396 of file tracktion_Plugin.cpp.

◆ valueTreeParentChanged()

void tracktion::engine::Plugin::valueTreeParentChanged ( juce::ValueTree & v )

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 404 of file tracktion_Plugin.cpp.

◆ valueTreePropertyChanged()

void tracktion::engine::Plugin::valueTreePropertyChanged	(	juce::ValueTree &	,
		const juce::Identifier &	i
	)

overrideprotectedvirtual

Reimplemented from juce::ValueTree::Listener.

Definition at line 375 of file tracktion_Plugin.cpp.

◆ wrapSelectedPluginsInRack()

RackInstance * tracktion::engine::Plugin::wrapSelectedPluginsInRack ( SelectionManager & selectionManager )

static

Definition at line 835 of file tracktion_Plugin.cpp.

Member Data Documentation

◆ blockSizeSamples

int tracktion::engine::Plugin::blockSizeSamples

protected

Definition at line 411 of file tracktion_Plugin.h.

◆ enabled

juce::CachedValue<AtomicWrapper<bool> > tracktion::engine::Plugin::enabled

protected

Definition at line 405 of file tracktion_Plugin.h.

◆ engine

Engine& tracktion::engine::Plugin::engine

Definition at line 398 of file tracktion_Plugin.h.

◆ frozen

juce::CachedValue<bool> tracktion::engine::Plugin::frozen

protected

Definition at line 406 of file tracktion_Plugin.h.

◆ masterPluginID

juce::CachedValue<EditItemID> tracktion::engine::Plugin::masterPluginID

protected

Definition at line 408 of file tracktion_Plugin.h.

◆ processing

juce::CachedValue<bool> tracktion::engine::Plugin::processing

protected

Definition at line 406 of file tracktion_Plugin.h.

◆ quickParamName

juce::CachedValue<juce::String> tracktion::engine::Plugin::quickParamName

protected

Definition at line 407 of file tracktion_Plugin.h.

◆ sampleRate

double tracktion::engine::Plugin::sampleRate

protected

Definition at line 410 of file tracktion_Plugin.h.

◆ sidechainSourceID

juce::CachedValue<EditItemID> tracktion::engine::Plugin::sidechainSourceID

protected

Definition at line 408 of file tracktion_Plugin.h.

◆ state

juce::ValueTree tracktion::engine::Plugin::state

Definition at line 399 of file tracktion_Plugin.h.

◆ windowState

std::unique_ptr<WindowState> tracktion::engine::Plugin::windowState

Definition at line 392 of file tracktion_Plugin.h.

The documentation for this class was generated from the following files:

tracktion_engine/plugins/tracktion_Plugin.h
tracktion_engine/plugins/tracktion_Plugin.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Array

◆ Ptr

Member Enumeration Documentation

◆ Type

Constructor & Destructor Documentation

◆ Plugin()

◆ ~Plugin()

Member Function Documentation

◆ addParam() [1/2]

◆ addParam() [2/2]

◆ applyToBuffer()

◆ applyToBufferWithAutomation()

◆ areSelectedPluginsRackable()

◆ baseClassDeinitialise()

◆ baseClassInitialise()

◆ baseClassNeedsInitialising()

◆ breakConnection()

◆ canBeAddedToClip()

◆ canBeAddedToFolderTrack()

◆ canBeAddedToMaster()

◆ canBeAddedToRack()

◆ canBeDisabled()

◆ canBeMoved()

◆ canSidechain()

◆ changed()

◆ createEditor()

◆ deinitialise()

◆ deleteFromParent()

◆ findPluginThatFeedsIntoThis()

◆ findPluginThatThisFeedsInto()

◆ flushPluginStateToValueTree()

◆ getChannelNames()

◆ getCpuUsage()

◆ getIdentifierString()

◆ getInputChannelNames()

◆ getLatencySeconds()

◆ getLeftRightChannelNames() [1/2]

◆ getLeftRightChannelNames() [2/2]

◆ getMirroredPlugin()

◆ getName()

◆ getNumOutputChannelsGivenInputs()

◆ getNumWires()

◆ getOwnerClip()

◆ getOwnerList()

◆ getOwnerRackType()

◆ getOwnerTrack()

◆ getQuickControlParameter()

◆ getReferencedItems()

◆ getShortName()

◆ getSidechainSourceID()

◆ getSidechainSourceName()

◆ getSidechainSourceNames()

◆ getTailLength()

◆ getTooltip()

◆ getUndoManager()

◆ getVendor()

◆ getWire()

◆ getWrappedAudioProcessor()

◆ guessSidechainRouting()

◆ hasNameForMidiBank()

◆ hasNameForMidiNoteNumber()

◆ hasNameForMidiProgram()

◆ hideWindowForShutdown()

◆ initialise()

◆ initialiseFully()

◆ initialiseWithoutStopping()

◆ isClipEffectPlugin()

◆ isDisabled()

◆ isEnabled()

◆ isFrozen()
