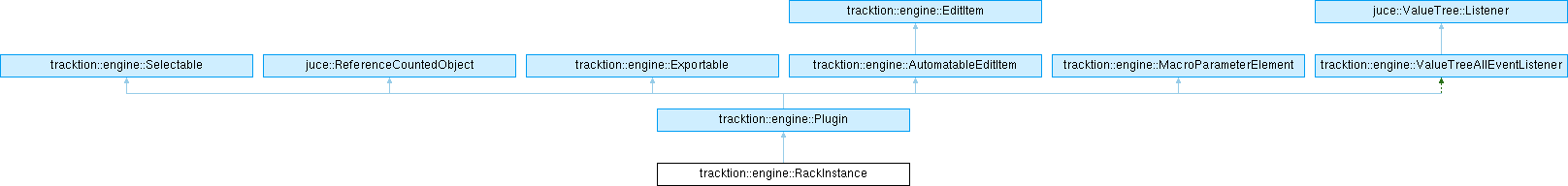

Inheritance diagram for tracktion::engine::RackInstance:

Public Types
enum	Channel { left , right }

Public Types inherited from tracktion::engine::Plugin
enum class	Type { allPlugins , folderTrackPlugins , effectPlugins }

using	Ptr = juce::ReferenceCountedObjectPtr< Plugin >

using	Array = juce::ReferenceCountedArray< Plugin >

Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Public Member Functions
	RackInstance (PluginCreationInfo)

juce::String	getName () const override
	The name of the type, e.g.

juce::String	getPluginType () override

juce::String	getTooltip () override
	default returns the name, others can return special stuff if needed

void	initialise (const PluginInitialisationInfo &) override
	Gives the plugin a chance to set itself up before being played.

void	deinitialise () override
	Called after play stops to release resources.

bool	takesAudioInput () override

bool	takesMidiInput () override

bool	producesAudioWhenNoAudioInput () override

bool	isSynth () override

bool	canBeAddedToRack () override

int	getNumOutputChannelsGivenInputs (int) override
	This must return the number of output channels that the plugin will produce, given a number of input channels.

double	getLatencySeconds () override

bool	needsConstantBufferSize () override

void	prepareForNextBlock (TimePosition) override
	Called between successive rendering blocks.

void	applyToBuffer (const PluginRenderContext &) override
	Process the next block of data.

void	updateAutomatableParamPosition (TimePosition) override
	Updates all the auto params to their positions at this time.

juce::String	getSelectableDescription () override
	Subclasses must return a description of what they are.

void	replaceRackWithPluginSequence (SelectionManager *)

juce::StringArray	getInputChoices (bool includeNumberPrefix)

juce::StringArray	getOutputChoices (bool includeNumberPrefix)

juce::String	getNoPinName ()

void	setInputName (Channel, const juce::String &inputName)

void	setOutputName (Channel, const juce::String &outputName)

void	setInputLevel (Channel, float)

void	setOutputLevel (Channel, float)

juce::String	getInputName (Channel)

juce::String	getOutputName (Channel)

Public Member Functions inherited from tracktion::engine::Plugin
	Plugin (PluginCreationInfo)

void	selectableAboutToBeDeleted () override
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

void	playStartedOrStopped ()
	called by the system to let the plugin manage its automation stuff

virtual void	initialiseFully ()
	Gives the plugin a chance to do extra initialisation when it's been added to an edit.

virtual void	flushPluginStateToValueTree () override

virtual juce::String	getVendor ()

virtual juce::String	getShortName (int)

virtual juce::String	getIdentifierString ()
	A unique string to idenitify plugin independant of install location.

virtual void	setEnabled (bool)
	Enable/disable the plugin.

bool	isEnabled () const noexcept

void	setFrozen (bool shouldBeFrozen)
	This is a bit different to being enabled as when frozen a plugin can't be interacted with.

bool	isFrozen () const noexcept

void	setProcessingEnabled (bool p)
	Enable/Disable processing.

bool	isProcessingEnabled () const noexcept

virtual void	initialiseWithoutStopping (const PluginInitialisationInfo &)
	Tells the plugin that the audio graph has changed but the plugin isn't being re-initialised - i.e.

bool	isInitialising () const

virtual void	reset ()
	Should reset synth voices, tails, clear delay buffers, etc.

virtual void	trackPropertiesChanged ()
	Track name or colour has changed.

void	applyToBufferWithAutomation (const PluginRenderContext &)

virtual bool	shoulMeasureCpuUsage () const noexcept
	Plugins can return false if they want to avoid the overhead of measuring the CPU usage.

double	getCpuUsage () const noexcept
	Returns the proportion of the current buffer size spent processing this plugin.

virtual bool	noTail ()

virtual void	getChannelNames (juce::StringArray ins, juce::StringArray outs)

virtual double	getTailLength () const

virtual bool	canSidechain ()

juce::StringArray	getInputChannelNames ()

juce::StringArray	getSidechainSourceNames (bool allowNone)

void	setSidechainSourceByName (const juce::String &name)

juce::String	getSidechainSourceName ()

void	guessSidechainRouting ()

int	getNumWires () const

Wire *	getWire (int index) const

void	makeConnection (int srcChannel, int dstChannel, juce::UndoManager *)

void	breakConnection (int srcChannel, int dstChannel)

virtual bool	hasNameForMidiNoteNumber (int note, int midiChannel, juce::String &name)
	If it's a synth that names its notes, this can return the name it uses for this note 0-127.

virtual bool	hasNameForMidiProgram (int programNum, int bank, juce::String &name)
	Returns the name for a midi program, if there is one.

virtual bool	hasNameForMidiBank (int bank, juce::String &name)

virtual bool	canBeAddedToClip ()

virtual bool	canBeAddedToFolderTrack ()

virtual bool	canBeAddedToMaster ()

virtual bool	canBeDisabled ()

virtual bool	canBeMoved ()

virtual bool	isMissing ()
	for things like VSTs where the DLL is missing.

virtual bool	isDisabled ()
	Plugins can be disabled to avoid them crashing Edits.

bool	isInRack () const

juce::ReferenceCountedObjectPtr< RackType >	getOwnerRackType () const

bool	isClipEffectPlugin () const

virtual juce::AudioProcessor *	getWrappedAudioProcessor () const

AutomatableParameter::Ptr	getQuickControlParameter () const

void	setQuickControlParameter (AutomatableParameter *)

virtual void	deleteFromParent ()
	Attempts to delete this plugin, whether it's a master plugin, track plugin, etc.

void	removeFromParent ()
	Detaches the plugin from any parent it might be in.

Track *	getOwnerTrack () const
	Returns the track if it's a track or clip plugin.

Clip *	getOwnerClip () const
	Returns the clip if that's what it's in.

PluginList *	getOwnerList () const

Ptr	findPluginThatFeedsIntoThis () const

Ptr	findPluginThatThisFeedsInto () const

void	changed () override
	method from Selectable, that's been overridden here to also tell the edit that it's changed.

juce::Array< ReferencedItem >	getReferencedItems () override

void	reassignReferencedItem (const ReferencedItem &, ProjectItemID newID, double newStartTime) override

virtual void	sourceMediaChanged ()
	Called when ProjectItem sources are re-assigned so you can reload from the new source.

bool	setPluginToMirror (const Plugin::Ptr &)

virtual void	updateFromMirroredPluginIfNeeded (Plugin &)

Plugin::Ptr	getMirroredPlugin () const

bool	baseClassNeedsInitialising () const noexcept

void	baseClassInitialise (const PluginInitialisationInfo &)

void	baseClassDeinitialise ()

void	setSidechainSourceID (EditItemID newID)

EditItemID	getSidechainSourceID () const

virtual std::unique_ptr< EditorComponent >	createEditor ()

void	showWindowExplicitly ()

void	hideWindowForShutdown ()

juce::UndoManager *	getUndoManager () const noexcept

Public Member Functions inherited from tracktion::engine::Selectable
virtual void	selectionStatusChanged (bool isNowSelected)
	Can be overridden to tell this object that it has just been selected or deselected.

void	addListener (SelectableListener *)

void	removeListener (SelectableListener *)

void	addSelectableListener (SelectableListener *)

void	removeSelectableListener (SelectableListener *)

void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.

void	deselect ()

void	propertiesChanged ()

void	notifyListenersOfDeletion ()

WeakRef	getWeakRef ()

Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept

void	decReferenceCount () noexcept

bool	decReferenceCountWithoutDeleting () noexcept

int	getReferenceCount () const noexcept

Public Member Functions inherited from tracktion::engine::AutomatableEditItem
	AutomatableEditItem (Edit &, const juce::ValueTree &)

virtual void	restorePluginStateFromValueTree (const juce::ValueTree &)

juce::Array< AutomatableParameter * >	getAutomatableParameters () const

int	getNumAutomatableParameters () const

AutomatableParameter::Ptr	getAutomatableParameter (int index) const

AutomatableParameter::Ptr	getAutomatableParameterByID (const juce::String &paramID) const

void	visitAllAutomatableParams (const std::function< void(AutomatableParameter &)> &visit) const

void	deleteParameter (AutomatableParameter *)

void	deleteAutomatableParameters ()

int	indexOfAutomatableParameter (const AutomatableParameter::Ptr &) const

AutomatableParameterTree &	getParameterTree () const

juce::ReferenceCountedArray< AutomatableParameter >	getFlattenedParameterTree () const

void	addParameterListChangeListener (ParameterListChangeListener *)

void	removeParameterListChangeListener (ParameterListChangeListener *)

bool	isAutomationNeeded () const noexcept

void	setAutomatableParamPosition (TimePosition)

bool	isBeingActivelyPlayed () const

void	updateParameterStreams (TimePosition)
	Updates all the parameter streams to their positions at this time.

void	updateActiveParameters ()
	Iterates all the parameters to find out which ones need to be automated.

void	resetRecordingStatus ()
	Marks the end of an automation recording stream.

Public Member Functions inherited from tracktion::engine::EditItem
	EditItem (EditItemID, Edit &)

Public Member Functions inherited from tracktion::engine::MacroParameterElement
	MacroParameterElement (Edit &, const juce::ValueTree &)
	Constructor.

virtual	~MacroParameterElement ()=default
	Destructor.

MacroParameterList *	getMacroParameterList ()
	If no parameters have been created, this may return nullptr.

MacroParameterList &	getMacroParameterListForWriting ()
	This ensures that the list has been created.

juce::ReferenceCountedArray< MacroParameter >	getMacroParameters () const

Static Public Member Functions
static juce::ValueTree	create (RackType &)

Static Public Member Functions inherited from tracktion::engine::Plugin
static bool	areSelectedPluginsRackable (SelectionManager &)

static RackInstance *	wrapSelectedPluginsInRack (SelectionManager &)

static void	sortPlugins (Plugin::Array &)

static void	sortPlugins (std::vector< Plugin * > &)

Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()

static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.

Static Public Member Functions inherited from tracktion::engine::Exportable
static juce::Array< Exportable * >	addAllExportables (Edit &)
	Returns all the Exportables contained in an Edit.

Public Attributes
const EditItemID	rackTypeID

const RackType::Ptr	type

bool	linkInputs

bool	linkOutputs

juce::CachedValue< int >	leftInputGoesTo

juce::CachedValue< int >	rightInputGoesTo

juce::CachedValue< int >	leftOutputComesFrom

juce::CachedValue< int >	rightOutputComesFrom

juce::CachedValue< float >	dryValue

juce::CachedValue< float >	wetValue

juce::CachedValue< float >	leftInValue

juce::CachedValue< float >	rightInValue

juce::CachedValue< float >	leftOutValue

juce::CachedValue< float >	rightOutValue

AutomatableParameter::Ptr	dryGain

AutomatableParameter::Ptr	wetGain

AutomatableParameter::Ptr	leftInDb

AutomatableParameter::Ptr	rightInDb

AutomatableParameter::Ptr	leftOutDb

AutomatableParameter::Ptr	rightOutDb

Public Attributes inherited from tracktion::engine::Plugin
std::unique_ptr< WindowState >	windowState

Engine &	engine

juce::ValueTree	state

Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference

Public Attributes inherited from tracktion::engine::AutomatableEditItem
juce::ValueTree	elementState

juce::CachedValue< bool >	remapOnTempoChange

Public Attributes inherited from tracktion::engine::EditItem
Edit &	edit

const EditItemID	itemID
	Every EditItem has an ID which is unique within the edit.

Public Attributes inherited from tracktion::engine::MacroParameterElement
Edit &	ownerEdit

juce::ValueTree	parentStateForList

Static Public Attributes
static const char *	xmlTypeName

static constexpr double	rackMinDb

static constexpr double	rackMaxDb

Additional Inherited Members
Protected Member Functions inherited from tracktion::engine::Plugin
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeChanged () override

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override

void	valueTreeChildRemoved (juce::ValueTree &, juce::ValueTree &, int) override

void	valueTreeParentChanged (juce::ValueTree &) override

virtual void	processingChanged ()

AutomatableParameter *	addParam (const juce::String &paramID, const juce::String &name, juce::NormalisableRange< float > valueRange)

AutomatableParameter *	addParam (const juce::String &paramID, const juce::String &name, juce::NormalisableRange< float > valueRange, std::function< juce::String(float)> valueToStringFunction, std::function< float(const juce::String &)> stringToValueFunction)

Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept

	ReferenceCountedObject (ReferenceCountedObject &&) noexcept

ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept

ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept

void	resetReferenceCount () noexcept

Protected Member Functions inherited from tracktion::engine::AutomatableEditItem
virtual void	buildParameterTree () const

void	updateLastPlaybackTime ()

void	clearParameterList ()

void	addAutomatableParameter (const AutomatableParameter::Ptr &)

void	rebuildParameterTree ()

void	saveChangedParametersToState ()
	Saves the explicit value of any parameters that have deviated to the state.

void	restoreChangedParametersFromState ()
	Restores the value of any explicitly set parameters.

Protected Member Functions inherited from tracktion::engine::ValueTreeAllEventListener
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override

void	valueTreeChildRemoved (juce::ValueTree &, juce::ValueTree &, int) override

void	valueTreeChildOrderChanged (juce::ValueTree &, int, int) override

void	valueTreeParentChanged (juce::ValueTree &) override

void	valueTreeRedirected (juce::ValueTree &) override

Static Protected Member Functions inherited from tracktion::engine::Plugin
static void	getLeftRightChannelNames (juce::StringArray ins, juce::StringArray outs)

static void	getLeftRightChannelNames (juce::StringArray *chans)

Protected Attributes inherited from tracktion::engine::Plugin
juce::CachedValue< AtomicWrapper< bool > >	enabled

juce::CachedValue< bool >	frozen

juce::CachedValue< bool >	processing

juce::CachedValue< juce::String >	quickParamName

juce::CachedValue< EditItemID >	masterPluginID

juce::CachedValue< EditItemID >	sidechainSourceID

double	sampleRate

int	blockSizeSamples

Detailed Description

Definition at line 14 of file tracktion_RackInstance.h.

Member Enumeration Documentation

◆ Channel

enum tracktion::engine::RackInstance::Channel

Definition at line 50 of file tracktion_RackInstance.h.

Constructor & Destructor Documentation

◆ RackInstance()

tracktion::engine::RackInstance::RackInstance ( PluginCreationInfo info )

Definition at line 76 of file tracktion_RackInstance.cpp.

◆ ~RackInstance()

tracktion::engine::RackInstance::~RackInstance ( )

override

Definition at line 112 of file tracktion_RackInstance.cpp.

Member Function Documentation

◆ applyToBuffer()

void tracktion::engine::RackInstance::applyToBuffer ( const PluginRenderContext & )

overridevirtual

Process the next block of data.

The incoming buffer will have an unknown number of channels, and the plugin has to deal with them however it wants to.

The buffer should be resized to the number of output channels that the plugin wants to return (which should be the same or less than the number of output channel names it returns from getChannelNames() - never more than this).

Implements tracktion::engine::Plugin.

Definition at line 319 of file tracktion_RackInstance.cpp.

◆ canBeAddedToRack()

bool tracktion::engine::RackInstance::canBeAddedToRack ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 36 of file tracktion_RackInstance.h.

◆ create()

juce::ValueTree tracktion::engine::RackInstance::create ( RackType & type )

static

Definition at line 124 of file tracktion_RackInstance.cpp.

◆ deinitialise()

void tracktion::engine::RackInstance::deinitialise ( )

overridevirtual

Called after play stops to release resources.

Don't call this directly or the initialise count will become out of sync.

See also: baseClassDeinitialise

Implements tracktion::engine::Plugin.

Definition at line 296 of file tracktion_RackInstance.cpp.

◆ getInputChoices()

juce::StringArray tracktion::engine::RackInstance::getInputChoices ( bool includeNumberPrefix )

Definition at line 207 of file tracktion_RackInstance.cpp.

◆ getInputName()

juce::String tracktion::engine::RackInstance::getInputName ( Channel c )

Definition at line 354 of file tracktion_RackInstance.cpp.

◆ getLatencySeconds()

double tracktion::engine::RackInstance::getLatencySeconds ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 310 of file tracktion_RackInstance.cpp.

◆ getName()

juce::String tracktion::engine::RackInstance::getName ( ) const

overridevirtual

The name of the type, e.g.

"Compressor"

Implements tracktion::engine::Plugin.

Definition at line 141 of file tracktion_RackInstance.cpp.

◆ getNoPinName()

juce::String tracktion::engine::RackInstance::getNoPinName ( )

Definition at line 249 of file tracktion_RackInstance.cpp.

◆ getNumOutputChannelsGivenInputs()

int tracktion::engine::RackInstance::getNumOutputChannelsGivenInputs ( int numInputChannels )

overridevirtual

This must return the number of output channels that the plugin will produce, given a number of input channels.

E.g. some might be able to do mono, so will return 1 if the input is 1, 2 if it is 2, etc.

The default impl just returns the number of items that getChannelNames() returns.

Reimplemented from tracktion::engine::Plugin.

Definition at line 37 of file tracktion_RackInstance.h.

◆ getOutputChoices()

juce::StringArray tracktion::engine::RackInstance::getOutputChoices ( bool includeNumberPrefix )

Definition at line 228 of file tracktion_RackInstance.cpp.

◆ getOutputName()

juce::String tracktion::engine::RackInstance::getOutputName ( Channel c )

Definition at line 364 of file tracktion_RackInstance.cpp.

◆ getPluginType()

juce::String tracktion::engine::RackInstance::getPluginType ( )

overridevirtual

Implements tracktion::engine::Plugin.

Definition at line 26 of file tracktion_RackInstance.h.

◆ getSelectableDescription()

juce::String tracktion::engine::RackInstance::getSelectableDescription ( )

overridevirtual

Subclasses must return a description of what they are.

Implements tracktion::engine::Selectable.

Definition at line 323 of file tracktion_RackInstance.cpp.

◆ getTooltip()

juce::String tracktion::engine::RackInstance::getTooltip ( )

overridevirtual

default returns the name, others can return special stuff if needed

Reimplemented from tracktion::engine::Plugin.

Definition at line 131 of file tracktion_RackInstance.cpp.

◆ initialise()

void tracktion::engine::RackInstance::initialise ( const PluginInitialisationInfo & )

overridevirtual

Gives the plugin a chance to set itself up before being played.

This won't be called concurrently with the process thread.

The sample rate and the average block size - although the blocks won't always be the same, and may be bigger.

Don't call this directly or the initialise count will become out of sync.

See also: baseClassInitialise [[ message_thread ]]

Implements tracktion::engine::Plugin.

Definition at line 290 of file tracktion_RackInstance.cpp.

◆ isSynth()

bool tracktion::engine::RackInstance::isSynth ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 35 of file tracktion_RackInstance.h.

◆ needsConstantBufferSize()

bool tracktion::engine::RackInstance::needsConstantBufferSize ( )

overridevirtual

Implements tracktion::engine::Plugin.

Definition at line 39 of file tracktion_RackInstance.h.

◆ prepareForNextBlock()

void tracktion::engine::RackInstance::prepareForNextBlock ( TimePosition )

overridevirtual

Called between successive rendering blocks.

Reimplemented from tracktion::engine::Plugin.

Definition at line 315 of file tracktion_RackInstance.cpp.

◆ producesAudioWhenNoAudioInput()

bool tracktion::engine::RackInstance::producesAudioWhenNoAudioInput ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 34 of file tracktion_RackInstance.h.

◆ replaceRackWithPluginSequence()

void tracktion::engine::RackInstance::replaceRackWithPluginSequence ( SelectionManager * sm )

Definition at line 147 of file tracktion_RackInstance.cpp.

◆ setInputLevel()

void tracktion::engine::RackInstance::setInputLevel	(	Channel	c,
		float	v
	)

Definition at line 328 of file tracktion_RackInstance.cpp.

◆ setInputName()

void tracktion::engine::RackInstance::setInputName	(	Channel	c,
		const juce::String &	inputName
	)

Definition at line 254 of file tracktion_RackInstance.cpp.

◆ setOutputLevel()

void tracktion::engine::RackInstance::setOutputLevel	(	Channel	c,
		float	v
	)

Definition at line 341 of file tracktion_RackInstance.cpp.

◆ setOutputName()

void tracktion::engine::RackInstance::setOutputName	(	Channel	c,
		const juce::String &	outputName
	)

Definition at line 272 of file tracktion_RackInstance.cpp.

◆ takesAudioInput()

bool tracktion::engine::RackInstance::takesAudioInput ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 32 of file tracktion_RackInstance.h.

◆ takesMidiInput()

bool tracktion::engine::RackInstance::takesMidiInput ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 33 of file tracktion_RackInstance.h.

◆ updateAutomatableParamPosition()

void tracktion::engine::RackInstance::updateAutomatableParamPosition ( TimePosition time )

overridevirtual

Updates all the auto params to their positions at this time.

Reimplemented from tracktion::engine::AutomatableEditItem.

Definition at line 302 of file tracktion_RackInstance.cpp.

Member Data Documentation

◆ dryGain

AutomatableParameter::Ptr tracktion::engine::RackInstance::dryGain

Definition at line 67 of file tracktion_RackInstance.h.

◆ dryValue

juce::CachedValue<float> tracktion::engine::RackInstance::dryValue

Definition at line 65 of file tracktion_RackInstance.h.

◆ leftInDb

AutomatableParameter::Ptr tracktion::engine::RackInstance::leftInDb

Definition at line 68 of file tracktion_RackInstance.h.

◆ leftInputGoesTo

juce::CachedValue<int> tracktion::engine::RackInstance::leftInputGoesTo

Definition at line 64 of file tracktion_RackInstance.h.

◆ leftInValue

juce::CachedValue<float> tracktion::engine::RackInstance::leftInValue

Definition at line 65 of file tracktion_RackInstance.h.

◆ leftOutDb

AutomatableParameter::Ptr tracktion::engine::RackInstance::leftOutDb

Definition at line 68 of file tracktion_RackInstance.h.

◆ leftOutputComesFrom

juce::CachedValue<int> tracktion::engine::RackInstance::leftOutputComesFrom

Definition at line 64 of file tracktion_RackInstance.h.

◆ leftOutValue

juce::CachedValue<float> tracktion::engine::RackInstance::leftOutValue

Definition at line 65 of file tracktion_RackInstance.h.

◆ linkInputs

bool tracktion::engine::RackInstance::linkInputs

Definition at line 63 of file tracktion_RackInstance.h.

◆ linkOutputs

bool tracktion::engine::RackInstance::linkOutputs

Definition at line 63 of file tracktion_RackInstance.h.

◆ rackMaxDb

constexpr double tracktion::engine::RackInstance::rackMaxDb

staticconstexpr

Definition at line 77 of file tracktion_RackInstance.h.

◆ rackMinDb

constexpr double tracktion::engine::RackInstance::rackMinDb

staticconstexpr

Definition at line 76 of file tracktion_RackInstance.h.

◆ rackTypeID

const EditItemID tracktion::engine::RackInstance::rackTypeID

Definition at line 60 of file tracktion_RackInstance.h.

◆ rightInDb

AutomatableParameter::Ptr tracktion::engine::RackInstance::rightInDb

Definition at line 68 of file tracktion_RackInstance.h.

◆ rightInputGoesTo

juce::CachedValue<int> tracktion::engine::RackInstance::rightInputGoesTo

Definition at line 64 of file tracktion_RackInstance.h.

◆ rightInValue

juce::CachedValue<float> tracktion::engine::RackInstance::rightInValue

Definition at line 65 of file tracktion_RackInstance.h.

◆ rightOutDb

AutomatableParameter::Ptr tracktion::engine::RackInstance::rightOutDb

Definition at line 68 of file tracktion_RackInstance.h.

◆ rightOutputComesFrom

juce::CachedValue<int> tracktion::engine::RackInstance::rightOutputComesFrom

Definition at line 64 of file tracktion_RackInstance.h.

◆ rightOutValue

juce::CachedValue<float> tracktion::engine::RackInstance::rightOutValue

Definition at line 65 of file tracktion_RackInstance.h.

◆ type

const RackType::Ptr tracktion::engine::RackInstance::type

Definition at line 61 of file tracktion_RackInstance.h.

◆ wetGain

AutomatableParameter::Ptr tracktion::engine::RackInstance::wetGain

Definition at line 67 of file tracktion_RackInstance.h.

◆ wetValue

juce::CachedValue<float> tracktion::engine::RackInstance::wetValue

Definition at line 65 of file tracktion_RackInstance.h.

◆ xmlTypeName

const char * tracktion::engine::RackInstance::xmlTypeName

static

Definition at line 23 of file tracktion_RackInstance.h.

The documentation for this class was generated from the following files:

tracktion_engine/plugins/internal/tracktion_RackInstance.h
tracktion_engine/plugins/internal/tracktion_RackInstance.cpp

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Channel

Constructor & Destructor Documentation

◆ RackInstance()

◆ ~RackInstance()

Member Function Documentation

◆ applyToBuffer()

◆ canBeAddedToRack()

◆ create()

◆ deinitialise()

◆ getInputChoices()

◆ getInputName()

◆ getLatencySeconds()

◆ getName()

◆ getNoPinName()

◆ getNumOutputChannelsGivenInputs()

◆ getOutputChoices()

◆ getOutputName()

◆ getPluginType()

◆ getSelectableDescription()

◆ getTooltip()

◆ initialise()

◆ isSynth()

◆ needsConstantBufferSize()

◆ prepareForNextBlock()

◆ producesAudioWhenNoAudioInput()

◆ replaceRackWithPluginSequence()

◆ setInputLevel()

◆ setInputName()

◆ setOutputLevel()

◆ setOutputName()

◆ takesAudioInput()

◆ takesMidiInput()

◆ updateAutomatableParamPosition()

Member Data Documentation

◆ dryGain

◆ dryValue

◆ leftInDb

◆ leftInputGoesTo

◆ leftInValue

◆ leftOutDb

◆ leftOutputComesFrom

◆ leftOutValue

◆ linkInputs

◆ linkOutputs

◆ rackMaxDb

◆ rackMinDb

◆ rackTypeID

◆ rightInDb

◆ rightInputGoesTo

◆ rightInValue

◆ rightOutDb

◆ rightOutputComesFrom

◆ rightOutValue

◆ type

◆ wetGain

◆ wetValue

◆ xmlTypeName
