tracktion::engine::ContainerClip Class Reference

A clip that can contain multiple other clips and mix their output together. More...

#include "tracktion_ContainerClip.h"

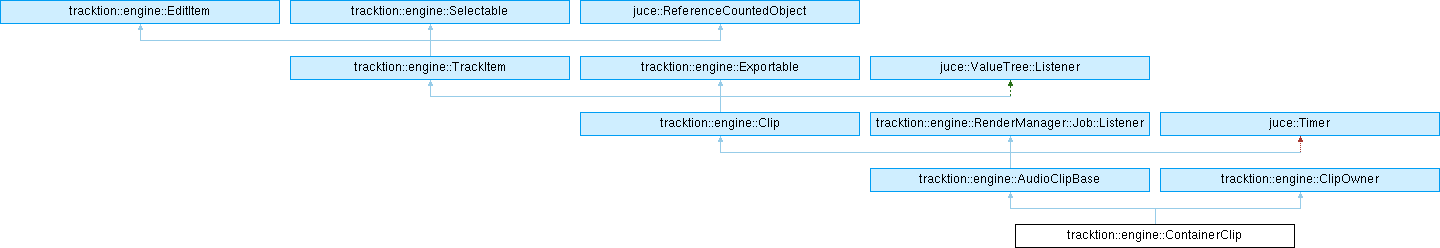

Inheritance diagram for tracktion::engine::ContainerClip:

Public Types
using	Ptr = juce::ReferenceCountedObjectPtr< ContainerClip >
Public Types inherited from tracktion::engine::AudioClipBase
enum	FadeBehaviour { gainFade , speedRamp }
	Describes the fade behaviour. More...
enum	AutoPitchMode { pitchTrack , chordTrackMono , chordTrackPoly }
	Defines the auto pitch mode. More...
enum class	ClipDirection { previous , next , none }
	Defines a prevous/next direction. More...
using	Ptr = juce::ReferenceCountedObjectPtr< AudioClipBase >
Public Types inherited from tracktion::engine::Clip
enum class	FollowActionDurationType { beats , loops }
	Defines the types of duration follow actions can use. More...
enum	SyncType { syncBarsBeats , syncAbsolute }
	Determines the clip sync type. More...
using	Ptr = juce::ReferenceCountedObjectPtr< Clip >
using	Array = juce::ReferenceCountedArray< Clip >
Public Types inherited from tracktion::engine::TrackItem
enum class	Type {   unknown , wave , midi , edit ,   step , marker , pitch , timeSig ,   collection , video , recording , chord ,   arranger , container }
	Defines the types of item that can live on Track[s]. More...
Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Public Member Functions
	ContainerClip (const juce::ValueTree &, EditItemID, ClipOwner &)
	Creates a ContainerClip from a given state.
	~ContainerClip () override
	Destructor.
juce::ValueTree &	getClipOwnerState () override
	Must return the state of this ClipOwner.
EditItemID	getClipOwnerID () override
	Must return the ID of this ClipOwner.
Selectable *	getClipOwnerSelectable () override
	Must return the selectable if this ClipOwner is one.
Edit &	getClipOwnerEdit () override
	Must return the Edit this ClipOwner belongs to.
juce::File	getOriginalFile () const override
	Must return the file that the source ProjectItemID refers to.
bool	isUsingFile (const AudioFile &) override
	Should return true if the clip is referencing the file in any way.
void	initialise () override
	Initialises the Clip.
void	cloneFrom (Clip *) override
	Clones the given clip to this clip.
juce::String	getSelectableDescription () override
	Subclasses must return a description of what they are.
bool	isMidi () const override
	Returns true if this is a MidiClip.
TimeDuration	getSourceLength () const override
	Must return the length in seconds of the source material e.g.
HashCode	getHash () const override
	Must return a unique hash for this clip's source.
void	setLoopDefaults () override
	Override this to fill in the LoopInfo structure as best fits the source.
void	setLoopRangeBeats (BeatRange) override
	Sets the loop range the clip should use in beats.
void	flushStateToValueTree () override
	Can be overridden to ensure any state (e.g.
void	pitchTempoTrackChanged () override
	Called when there are pitch or tempo changes made which might require clips to adjust timing information.
Public Member Functions inherited from tracktion::engine::AudioClipBase
	AudioClipBase (const juce::ValueTree &, EditItemID, Type, ClipOwner &)
	Creates a basic AudioClip.
	~AudioClipBase () override
	Destructor.
TimeDuration	getMaximumLength () override
	Returns the maximum length for this clip.
virtual AudioFile	getAudioFile () const
	Returns the file used to play back the source and will get proxied etc.
AudioFile	getPlaybackFile ()
	Returns the current AudioFile being used by the Clip, either the original source or a proxy.
virtual AudioFileInfo	getWaveInfo ()
	Returns the WaveInfo for a clip.
void	markAsDirty ()
	Resets the dirty flag so that a new render will be attempted.
void	updateSourceFile ()
	Checks the current source file to see if it's up to date and then triggers a source render if needed.
virtual bool	needsRender () const
	Subclasses should override this to return true if they need the rest of the render callbacks.
virtual RenderManager::Job::Ptr	getRenderJob (const AudioFile &)
	Subclasses should override this to return a RenderJob suitable for rendering its source file.
virtual void	renderComplete ()
	Callback to indicate that the render has completed.
virtual juce::String	getRenderMessage ()
	Override this to return a custom message to be displayed over waveforms during rendering.
virtual juce::String	getClipMessage ()
	Override this to return a custom message to display over the clip where the "file missing" text usually goes.
void	cancelCurrentRender ()
	If a render is in progress, this will cancel it.
void	setGainDB (float dB)
	Sets the gain of the clip in dB.
float	getGainDB () const noexcept
	Returns the gain of the clip in dB.
float	getGain () const noexcept
	Returns the gain of the clip.
void	setPan (float pan)
	Sets the pan of the clip.
float	getPan () const noexcept
	Returns the pan of the clip from -1 to 1.
void	setMuted (bool shouldBeMuted) override
	Mutes or unmutes the clip.
bool	isMuted () const override
	Returns true if the clip is muted.
LiveClipLevel	getLiveClipLevel ()
	Returns a LiveClipLevel which can be used to read the gain, pan and mute statuses.
void	setLeftChannelActive (bool)
	Enables the left channel of the clip.
bool	isLeftChannelActive () const
	Returns whether the left channel of the clip is enabled.
void	setRightChannelActive (bool)
	Enables the right channel of the clip.
bool	isRightChannelActive () const
	Returns whether the right channel of the clip is enabled.
juce::AudioChannelSet	getActiveChannels () const
	Returns the layout of the active channels.
bool	setFadeIn (TimeDuration length)
	Sets the fade in duration in seconds.
TimeDuration	getFadeIn () const
	Returns the fade in duration in seconds.
bool	setFadeOut (TimeDuration length)
	Sets the fade out duration in seconds.
TimeDuration	getFadeOut () const
	Returns the fade out duration in seconds.
void	setFadeInType (AudioFadeCurve::Type)
	Sets the curve shape for the fade in to use.
AudioFadeCurve::Type	getFadeInType () const
	Returns the curve shape for the fade in to use.
void	setFadeOutType (AudioFadeCurve::Type newType)
	Sets the curve shape for the fade out to use.
AudioFadeCurve::Type	getFadeOutType () const
	Returns the curve shape for the fade out to use.
void	setAutoCrossfade (bool shouldAutoCrossfade)
	Enables/disables auto-crossfading.
bool	getAutoCrossfade () const noexcept
	Returns whether auto-crossfade is enabled.
void	updateAutoCrossfadesAsync (bool updateOverlapped)
	Triggers an update of the auto-crossfades.
void	applyEdgeFades ()
	Sets the fade in/out lengths to be 0.03s to avoid any clicks at the start/end of th clip.
void	copyFadeToAutomation (bool fadeIn, bool removeClipFade)
	Copies the fade in curve to a volume automation curve.
void	setFadeInBehaviour (FadeBehaviour newBehaviour)
	Sets the fade in behaviour.
FadeBehaviour	getFadeInBehaviour () const
	Returns the fade in behaviour.
void	setFadeOutBehaviour (FadeBehaviour newBehaviour)
	Sets the fade out behaviour.
FadeBehaviour	getFadeOutBehaviour () const
	Returns the fade out behaviour.
void	setLoopInfo (const LoopInfo &)
	Sets a LoopInfo to describe this clip's tempo, time sig etc.
const LoopInfo &	getLoopInfo () const
	Returns the LoopInfo being used to describe this clip.
LoopInfo &	getLoopInfo ()
	Returns the LoopInfo being used to describe this clip.
TimeRange	getLoopRange () const
	Returns the loop range in seconds.
bool	canLoop () const override
	Returns true if this clip is capable of looping.
bool	isLooping () const override
	Returns true if this clip is currently looping.
bool	beatBasedLooping () const override
	Returns true if this clip's looping is based on beats or false if absolute time.
void	setNumberOfLoops (int num) override
	Sets the clip looping a number of times.
void	disableLooping () override
	Disables all looping.
BeatPosition	getLoopStartBeats () const override
	Returns the beat position of the loop start point.
TimePosition	getLoopStart () const override
	Returns the start time of the loop start point.
BeatDuration	getLoopLengthBeats () const override
	Returns the length of loop in beats.
TimeDuration	getLoopLength () const override
	Returns the length of loop in seconds.
void	setLoopRange (TimeRange) override
	Sets the loop range the clip should use in seconds.
void	setAutoDetectBeats (bool)
	Enables auto-detection of beats.
bool	getAutoDetectBeats () const
	Returns true if auto-detect of beats is enabled.
void	setBeatSensitivity (float s)
	Sets the beat sensitivity, triggering a LoopInfo update if auto-detect is enabled.
float	getBeatSensitivity () const
	Returns the beat sensitivity.
void	setSpeedRatio (double newSpeed) override
	Sets a speed ratio i.e.
void	setTimeStretchMode (TimeStretcher::Mode mode)
	Sets a time-stretch mode to use.
TimeStretcher::Mode	getTimeStretchMode () const noexcept
	Returns the time-stretch mode that has been set.
TimeStretcher::Mode	getActualTimeStretchMode () const noexcept
	Returns the time-stretch mode that is in use.
void	setAutoTempo (bool shouldUseAutoTempo)
	Enables/disables auto-tempo.
bool	getAutoTempo () const
	Returns true if auto-tempo has been set.
void	setAutoPitch (bool shouldUseAutoPitch)
	Enables/disables auto-pitch.
bool	getAutoPitch () const
	Returns true if auto-pitch has been set.
void	setAutoPitchMode (AutoPitchMode m)
	Sets the AutoPitchMode to use.
AutoPitchMode	getAutoPitchMode ()
	Returns the AutoPitchMode in use.
void	setWarpTime (bool shouldUseWarpTime)
	Enables/disables warp time.
bool	getWarpTime () const
	Returns true if warp time is enabled.
WarpTimeManager &	getWarpTimeManager () const
	Returns the WarpTimeManager for this clip used to maipluate warp markers.
void	setTranspose (int numSemitones)
	Sets the number of semitones to transpose the clip by.
int	getTransposeSemiTones (bool includeAutoPitch) const
	Returns the number of semitones this clip will be changed by.
void	setPitchChange (float semitones)
	Sets the number of semitones to transpose the clip by.
float	getPitchChange () const
	Returns the number of semitones to transpose the clip by.
float	getPitchRatio () const
	Returns the pitch change as a normalised ratio.
void	setIsReversed (bool shouldBeReversed)
	Enables reversing of the clip's source material.
bool	getIsReversed () const noexcept
	Returns true if the clip's source material is reversed.
LoopInfo	autoDetectBeatMarkers (const LoopInfo &current, bool autoBeat, float sensitivity) const
	Scans the current source file for any beats and adds them to the LoopInfo returned.
bool	performTempoDetect ()
	Performs a tempo-detection task and if successful sets the clip's LoopInfo tempo to this.
juce::StringArray	getPitchChoices ()
	Returns an array describng what pitch each semitone change will be.
virtual bool	canHaveEffects () const
	Returns true if this clip can have ClipEffects added to it.
void	enableEffects (bool enable, bool warn)
	Enables/disables ClipEffects for this clip.
bool	effectsEnabled () const
	Returns true if ClipEffects are enabled.
void	addEffect (const juce::ValueTree &effectsTree)
	Adds a ClipEffect to this clip.
void	setEffectsVisible (bool b)
	Sets the effectsVisible flag for this clip.
bool	getEffectsVisible () const
	Returns true if the effectsVisible flag is set for this clip.
ClipEffects *	getClipEffects () const noexcept
	Returns the ClipEffects for this clip if it has been enabled.
bool	canSnapToOriginalBWavTime ()
	Returns true if source file has a bwav time reference metadata property.
void	snapToOriginalBWavTime ()
	Moves the clip to the bwav time reference metadata property time.
virtual juce::Array< ProjectItemID >	getTakes () const
	Returns the ProjectItemID of the clip's takes.
juce::String	canAddClipPlugin (const Plugin::Ptr &) const
	Returns an empty string if this plugin can be added, otherwise an error message due to the clip plugin being an incorrect type (e.g.
AudioFile	getProxyFileToCreate (bool renderTimestretched)
	Returns the AudioFile to create to play this clip back.
void	setUsesProxy (bool canUseProxy) noexcept
	Can be used to disable proxy file generation for this clip.
bool	canUseProxy () const noexcept
	Retuns true if this clip can use a proxy file.
bool	usesTimeStretchedProxy () const
	Retuns true if this clip use a proxy file due to timestretching.
std::unique_ptr< ProxyRenderingInfo >	createProxyRenderingInfo ()
	Creates a ProxyRenderingInfo object to decribe the stretch segements of this clip.
HashCode	getProxyHash ()
	Returns a hash identifying the proxy settings.
void	beginRenderingNewProxyIfNeeded ()
	Triggers creation of a new proxy file if one is required.
const AudioSegmentList &	getAudioSegmentList ()
	Returns an AudioSegmentList describing this file if it is using auto-tempo.
void	setResamplingQuality (ResamplingQuality)
	Sets the resampling qulity to use.
ResamplingQuality	getResamplingQuality () const
	Returns the resampling quality to the be used.
void	reverseLoopPoints ()
	Reverses the loop points to expose the same section of the source file but reversed.
void	checkFadeLengthsForOverrun ()
	Trims the fade in out lengths to avoid any overlap between them.
AudioClipBase *	getOverlappingClip (ClipDirection) const
	Returns the previous/next overlapping clip if one exists.
bool	isUsingMelodyne () const
	Returns true if this clip is using Melodyne.
void	showMelodyneWindow ()
	Shows the Melodyne window if this clip is using Melodyne.
void	hideMelodyneWindow ()
	Hides the Melodyne window if this clip is using Melodyne.
void	melodyneConvertToMIDI ()
	If this clip is using Melodyne, this will create a new MIDI clip based on the Melodyne analysis.
void	loadMelodyneState ()
bool	setupARA (bool dontPopupErrorMessages)
	This internal method is used solely to find out if createAudioNode() should return nullptr or not.
void	setParent (ClipOwner *) override
bool	canBeAddedTo (ClipOwner &) override
	Tests whether this clip can go on the given parent.
void	changed () override
	This should be called to send a change notification to any SelectableListeners that are registered with this object.
juce::Colour	getDefaultColour () const override
	Returns the default colour for this clip.
PatternGenerator *	getPatternGenerator () override
	Returns the PatternGenerator for this clip if it has one.
void	addMark (TimePosition relCursorPos)
void	moveMarkTo (TimePosition relCursorPos)
void	deleteMark (TimePosition relCursorPos)
void	getRescaledMarkPoints (juce::Array< TimePosition > &rescaled, juce::Array< int > &orig) const
juce::Array< TimePosition >	getRescaledMarkPoints () const override
	Returns the mark points relative to the start of the clip, rescaled to the current speed.
juce::Array< ReferencedItem >	getReferencedItems () override
void	reassignReferencedItem (const ReferencedItem &, ProjectItemID newID, double newStartTime) override
std::shared_ptr< LaunchHandle >	getLaunchHandle () override
	Some clip types can be launched, if that's possible, this returns a handle to trigger starting/stopping the clip.
void	setUsesGlobalLaunchQuatisation (bool useGlobal) override
	Some clip types can be launched, if that's possible, this sets whether the clip's quantisation or the global quantisation should be used.
bool	usesGlobalLaunchQuatisation () override
	Some clip types can be launched, if that's possible, this returns whether the clip's quantisation or the global quantisation should be used.
LaunchQuantisation *	getLaunchQuantisation () override
	Some clip types can be launched, if that's possible, this returns a quantisation that can be used for this clip.
FollowActions *	getFollowActions () override
	Some clip types can be launched, if that's possible, this can be used to determine the action to perform after a clip has played.
bool	addClipPlugin (const Plugin::Ptr &, SelectionManager &) override
	Adds a plugin to the clip.
Plugin::Array	getAllPlugins () override
	Returns all the plugins on the clip.
void	sendMirrorUpdateToAllPlugins (Plugin &) const override
	Sends an update to all plugins mirroing the one passed in.
PluginList *	getPluginList () override
	Returns the PluginList for this clip if it has one.
Public Member Functions inherited from tracktion::engine::Clip
	Clip (const juce::ValueTree &, ClipOwner &, EditItemID, Type)
	Creates a clip of a given type from a ValueTree state.
	~Clip () override
	Destructor.
virtual void	sourceMediaChanged ()
	Called when the source media file reference (attribute "source") has changed - i.e.
virtual juce::String	getName () const override
	Returns the name of the clip.
void	setName (const juce::String &newName)
	Sets a new name for a clip.
virtual bool	usesSourceFile () const
	True if it references a source file - i.e.
SourceFileReference &	getSourceFileReference ()
	Returns the SourceFileReference of the Clip.
juce::File	getCurrentSourceFile () const
	Returns the current source file, this is different to the SourceFileReference as it could be a temporary comp file, clipFX, reverse render etc.
juce::Array< ReferencedItem >	getReferencedItems () override
	Returns an array of any ReferencedItem[s] e.g.
void	reassignReferencedItem (const ReferencedItem &, ProjectItemID, double) override
	Should be implemented to change the underlying source to a new ProjectItemID.
ClipPosition	getPosition () const override
	Returns the ClipPosition on the parent Track.
BeatPosition	getContentBeatAtTime (TimePosition) const
	Returns the beat number (with offset) at the given time.
TimePosition	getTimeOfContentBeat (BeatPosition) const
	Returns time of a beat number.
virtual juce::Array< TimePosition >	getInterestingTimes ()
	Returns times for snapping to, relative to the Edit.
TimePosition	getSpottingPoint () const
	Returns the first marked time in the source file which can be used for syncronising newly added clips.
TimeRange	getLoopRange () const
	Returns the loop range in seconds.
BeatRange	getLoopRangeBeats () const
	Returns the loop range in beats.
virtual void	setSyncType (SyncType sync)
	Sets the sync type for the clip.
SyncType	getSyncType () const
	Returns the sync type clip is using.
void	setPosition (ClipPosition newPosition)
	Sets the position of the clip.
void	setStart (TimePosition newStart, bool preserveSync, bool keepLength)
	Sets the start time of the clip.
void	setLength (TimeDuration newLength, bool preserveSync)
	Sets the length of the clip.
void	setEnd (TimePosition newEnd, bool preserveSync)
	Sets the end of the clip.
void	setOffset (TimeDuration newOffset)
	Sets the offset of the clip, i.e.
void	trimAwayOverlap (TimeRange editRangeToTrim)
	Trims away any part of the clip that overlaps this region.
void	removeFromParent ()
	Removes this clip from the parent track or container clip.
bool	moveTo (ClipOwner &)
	Moves the clip to a new parent (if possible).
double	getSpeedRatio () const noexcept
	Returns the speed ratio i.e.
virtual void	rescale (TimePosition pivotTimeInEdit, double factor)
	stretches and scales this clip relative to a fixed point in the edit.
bool	isGrouped () const override
	Returns true if the clip is part of a group.
TrackItem *	getGroupParent () const override
	Returns the parent TrackItem if part of a group.
void	setGroup (EditItemID newGroupID)
	Sets the clip to be part of a group.
EditItemID	getGroupID () const noexcept
	Returns the ID of the group.
CollectionClip *	getGroupClip () const
	Returns this as a CollectionClip if it is one.
bool	isLinked () const
	Returns true if this clip is linked with any others.
void	setLinkGroupID (juce::String newLinkID)
	Sets the link ID to link this clip with others.
juce::String	getLinkGroupID () const
	Returns the link ID of this clip.
ClipOwner *	getParent () const
	Returns the parent ClipOwner this clip is on.
ClipTrack *	getClipTrack () const
	Returns the parent ClipTrack this clip is on (if any).
Track *	getTrack () const override
	Returns the parent Track this clip is on (if any).
ClipSlot *	getClipSlot () const
	Returns the parent ClipSlot this clip is on (if any).
virtual juce::Colour	getColour () const
	Returns the colour property of this clip.
void	setColour (juce::Colour col)
	Sets the colour property of this clip.
virtual void	removePlugin (const Plugin::Ptr &)
	Removes the given plugin from the clip if the clip supports plugins.
virtual void	clearTakes ()
	Clears any takes this clip has.
virtual bool	hasAnyTakes () const
	Returns true if this clip has any takes.
virtual juce::StringArray	getTakeDescriptions () const
	Returns the descriptions of any takes.
virtual void	setCurrentTake (int)
	Sets a given take index to be the current take.
virtual int	getCurrentTake () const
	Returns the current take index.
virtual int	getNumTakes (bool)
	Returns the total number of takes.
virtual bool	isCurrentTakeComp ()
	Returns true if the current take is a comp.
virtual void	setShowingTakes (bool shouldShow)
	Sets whether the clip should be showing takes.
virtual bool	isShowingTakes () const
	Returns true if the clip is showing takes.
virtual Clip::Array	unpackTakes (bool)
	Attempts to unpack the takes to new clips.
void	updateLinkedClips ()
	Triggers a call to cloneFrom for all clips with the same linkID.
void	addListener (Listener *)
	Adds a Listener.
void	removeListener (Listener *)
	Removes a Listener.
juce::ListenerList< Listener > &	getListeners ()
	Returns the listener list so Nodes can manually call them.
void	changed () override
	This should be called to send a change notification to any SelectableListeners that are registered with this object.
juce::UndoManager *	getUndoManager () const
	Returns the UndoManager.
Public Member Functions inherited from tracktion::engine::TrackItem
	TrackItem (Edit &, EditItemID, Type)
	Creates a TrackItem with an ID and type.
	~TrackItem ()
	Destructor.
TimeRange	getEditTimeRange () const
	Returns the time range of this item.
BeatRange	getEditBeatRange () const
	Returns the beat range of this item.
BeatPosition	getStartBeat () const
	Returns the start beat in the Edit of this item.
BeatPosition	getContentStartBeat () const
	Returns the start beat of the content in the Edit of this item.
BeatPosition	getEndBeat () const
	Returns the end beat in the Edit of this item.
BeatDuration	getLengthInBeats () const
	Returns the duration in beats the of this item.
TimePosition	getTimeOfRelativeBeat (BeatDuration) const
	Returns an Edit time point for a given number of beats from the start of this item.
BeatPosition	getBeatOfRelativeTime (TimeDuration) const
	Returns an Edit beat point for a given number of seconds from the start of this item.
BeatDuration	getOffsetInBeats () const
	Returns an the offset of this item in beats.
EditItemID	getTrackID () const
	Returns the ID of the Track this item lives on.
Public Member Functions inherited from tracktion::engine::EditItem
	EditItem (EditItemID, Edit &)
Public Member Functions inherited from tracktion::engine::Selectable
virtual void	selectionStatusChanged (bool isNowSelected)
	Can be overridden to tell this object that it has just been selected or deselected.
virtual void	selectableAboutToBeDeleted ()
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.
void	addListener (SelectableListener *)
void	removeListener (SelectableListener *)
void	addSelectableListener (SelectableListener *)
void	removeSelectableListener (SelectableListener *)
void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.
void	deselect ()
void	propertiesChanged ()
void	notifyListenersOfDeletion ()
WeakRef	getWeakRef ()
Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept
void	decReferenceCount () noexcept
bool	decReferenceCountWithoutDeleting () noexcept
int	getReferenceCount () const noexcept
Public Member Functions inherited from tracktion::engine::RenderManager::Job::Listener
virtual void	jobStarted (RenderManager::Job &)
Public Member Functions inherited from tracktion::engine::ClipOwner
	ClipOwner ()
	Constructs an empty ClipOwner.
virtual	~ClipOwner ()
	Destructor.
const juce::Array< Clip * > &	getClips () const
	Returns the clips this owner contains.

Additional Inherited Members
Static Public Member Functions inherited from tracktion::engine::AudioClipBase
static juce::StringArray	getRootNoteChoices (Engine &)
	Returns an array of the root note choices e.g.
Static Public Member Functions inherited from tracktion::engine::Clip
static bool	isClipState (const juce::ValueTree &)
	Checks whether a ValueTree is some kind of clip state.
static bool	isClipState (const juce::Identifier &)
	Checks whether a ValueTree type is some kind of clip state.
static Ptr	createClipForState (const juce::ValueTree &, ClipOwner &targetParent)
	Creates a clip for a given ValueTree representation.
Static Public Member Functions inherited from tracktion::engine::TrackItem
static const char *	typeToString (Type)
	Returns the string version of a TrackItem::Type.
static juce::Identifier	clipTypeToXMLType (Type)
	Returns an Identifier version of a TrackItem::Type.
static TrackItem::Type	xmlTagToType (juce::StringRef)
	Returns the TrackItem::Type of a type string.
static TrackItem::Type	stringToType (const juce::String &)
	Returns the TrackItem::Type of a type string.
static juce::String	getSuggestedNameForNewItem (Type)
	Returns a text string for a new clip of the given type.
template<typename ArrayType >
static void	sortByTime (ArrayType &items)
	Helper function to sort an array of TrackItem[s] by their start time.
template<typename ArrayType >
static void	stableSortByTime (ArrayType &items)
	Helper function to sort an array of TrackItem[s] by their start time without changing the order of items at the same time.
Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()
static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.
Static Public Member Functions inherited from tracktion::engine::Exportable
static juce::Array< Exportable * >	addAllExportables (Edit &)
	Returns all the Exportables contained in an Edit.
Public Attributes inherited from tracktion::engine::AudioClipBase
juce::ReferenceCountedObjectPtr< MelodyneFileReader >	melodyneProxy
	The MelodyneFileReader proxy if this clip is using Melodyne.
juce::CachedValue< TimeStretcher::ElastiqueProOptions >	elastiqueProOptions
	The ElastiqueProOptions for fine tuning Elastique (if available).
Public Attributes inherited from tracktion::engine::Clip
juce::CachedValue< FollowActionDurationType >	followActionDurationType
	The type of duration to use for when to trigger the follow action.
juce::CachedValue< BeatDuration >	followActionBeats
	Determines the time for which a launched clip will play before a follow action is taken.
juce::CachedValue< double >	followActionNumLoops
	Determines the number of loops for which a launched clip will play before a follow action is taken.
juce::ValueTree	state
	The ValueTree of the Clip state.
juce::CachedValue< juce::Colour >	colour
	The colour property.
juce::CachedValue< bool >	disabled
	Whether the Clip is disabled or not.
Public Attributes inherited from tracktion::engine::TrackItem
const Type	type
	The type of this item.
Public Attributes inherited from tracktion::engine::EditItem
Edit &	edit
const EditItemID	itemID
	Every EditItem has an ID which is unique within the edit.
Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference
Protected Member Functions inherited from tracktion::engine::AudioClipBase
void	updateLeftRightChannelActivenessFlags ()
void	createNewProxyAsync ()
	Triggers a source or proxy render after a timeout.
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override
void	valueTreeChildAdded (juce::ValueTree &parent, juce::ValueTree &) override
void	valueTreeChildRemoved (juce::ValueTree &parent, juce::ValueTree &, int) override
void	valueTreeChildOrderChanged (juce::ValueTree &, int, int) override
void	valueTreeParentChanged (juce::ValueTree &) override
Protected Member Functions inherited from tracktion::engine::Clip
void	setCurrentSourceFile (const juce::File &)
	Sets a new source file for this clip.
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override
void	valueTreeParentChanged (juce::ValueTree &) override
Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept
	ReferenceCountedObject (ReferenceCountedObject &&) noexcept
ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept
ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept
void	resetReferenceCount () noexcept
Protected Member Functions inherited from juce::ValueTree::Listener
virtual void	valueTreeRedirected (ValueTree &treeWhichHasBeenChanged)
Protected Member Functions inherited from tracktion::engine::ClipOwner
void	initialiseClipOwner (Edit &, juce::ValueTree clipParentState)
	Must be called once from the subclass constructor to init the clip owner.
Protected Attributes inherited from tracktion::engine::AudioClipBase
std::shared_ptr< ClipLevel >	level
juce::CachedValue< juce::String >	channels
juce::CachedValue< TimeDuration >	fadeIn
juce::CachedValue< TimeDuration >	fadeOut
TimeDuration	autoFadeIn
TimeDuration	autoFadeOut
juce::CachedValue< AudioFadeCurve::Type >	fadeInType
juce::CachedValue< AudioFadeCurve::Type >	fadeOutType
juce::CachedValue< bool >	autoCrossfade
juce::CachedValue< FadeBehaviour >	fadeInBehaviour
juce::CachedValue< FadeBehaviour >	fadeOutBehaviour
juce::CachedValue< ResamplingQuality >	resamplingQuality
juce::CachedValue< TimePosition >	loopStart
juce::CachedValue< TimeDuration >	loopLength
juce::CachedValue< BeatPosition >	loopStartBeats
juce::CachedValue< BeatDuration >	loopLengthBeats
juce::CachedValue< int >	proxyAllowed
juce::CachedValue< int >	transpose
juce::CachedValue< float >	pitchChange
LoopInfo	loopInfo
juce::CachedValue< float >	beatSensitivity
juce::CachedValue< TimeStretcher::Mode >	timeStretchMode
juce::CachedValue< bool >	autoPitch
juce::CachedValue< bool >	autoTempo
juce::CachedValue< bool >	isReversed
juce::CachedValue< bool >	autoDetectBeats
juce::CachedValue< bool >	warpTime
juce::CachedValue< bool >	clipEffectsVisible
juce::CachedValue< AutoPitchMode >	autoPitchMode
WarpTimeManager::Ptr	warpTimeManager
std::unique_ptr< AudioSegmentList >	audioSegmentList
std::unique_ptr< ClipEffects >	clipEffects
AsyncFunctionCaller	asyncFunctionCaller
juce::AudioChannelSet	activeChannels
PluginList	pluginList
bool	lastRenderJobFailed
RenderManager::Job::Ptr	renderJob
AudioFile	lastProxy
Protected Attributes inherited from tracktion::engine::Clip
bool	isInitialised
bool	cloneInProgress
juce::CachedValue< juce::String >	clipName
ClipOwner *	parent
juce::CachedValue< TimePosition >	clipStart
juce::CachedValue< TimeDuration >	length
juce::CachedValue< TimeDuration >	offset
juce::CachedValue< double >	speedRatio
SourceFileReference	sourceFileReference
juce::CachedValue< EditItemID >	groupID
juce::CachedValue< juce::String >	linkID
juce::File	currentSourceFile
juce::CachedValue< SyncType >	syncType
juce::CachedValue< bool >	showingTakes
std::unique_ptr< PatternGenerator >	patternGenerator
AsyncCaller	updateLinkedClipsCaller
juce::ListenerList< Listener >	listeners

Detailed Description

A clip that can contain multiple other clips and mix their output together.

This makes it possible to group, move, add effects etc. to a number of clips easily.

Definition at line 21 of file tracktion_ContainerClip.h.

Member Typedef Documentation

Ptr

using tracktion::engine::ContainerClip::Ptr = juce::ReferenceCountedObjectPtr<ContainerClip>

Definition at line 31 of file tracktion_ContainerClip.h.

Constructor & Destructor Documentation

ContainerClip()

tracktion::engine::ContainerClip::ContainerClip	(	const juce::ValueTree &	v,
		EditItemID	clipID,
		ClipOwner &	targetParent
	)

Creates a ContainerClip from a given state.

See also

ClipOwner::insertWaveClip.

Definition at line 14 of file tracktion_ContainerClip.cpp.

~ContainerClip()

tracktion::engine::ContainerClip::~ContainerClip ( )

override

Destructor.

Definition at line 19 of file tracktion_ContainerClip.cpp.

Member Function Documentation

cloneFrom()

void tracktion::engine::ContainerClip::cloneFrom ( Clip *  c )

overridevirtual

Clones the given clip to this clip.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 33 of file tracktion_ContainerClip.cpp.

flushStateToValueTree()

void tracktion::engine::ContainerClip::flushStateToValueTree ( )

overridevirtual

Can be overridden to ensure any state (e.g.

clip plugins) is flushed to the ValueTree ready for saving.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 110 of file tracktion_ContainerClip.cpp.

getClipOwnerEdit()

Edit & tracktion::engine::ContainerClip::getClipOwnerEdit ( )

overridevirtual

Must return the Edit this ClipOwner belongs to.

Implements tracktion::engine::ClipOwner.

Definition at line 142 of file tracktion_ContainerClip.cpp.

getClipOwnerID()

EditItemID tracktion::engine::ContainerClip::getClipOwnerID ( )

overridevirtual

Must return the ID of this ClipOwner.

Implements tracktion::engine::ClipOwner.

Definition at line 132 of file tracktion_ContainerClip.cpp.

getClipOwnerSelectable()

Selectable * tracktion::engine::ContainerClip::getClipOwnerSelectable ( )

overridevirtual

Must return the selectable if this ClipOwner is one.

Implements tracktion::engine::ClipOwner.

Definition at line 137 of file tracktion_ContainerClip.cpp.

getClipOwnerState()

juce::ValueTree & tracktion::engine::ContainerClip::getClipOwnerState ( )

overridevirtual

Must return the state of this ClipOwner.

Implements tracktion::engine::ClipOwner.

Definition at line 127 of file tracktion_ContainerClip.cpp.

getHash()

HashCode tracktion::engine::ContainerClip::getHash ( ) const

overridevirtual

Must return a unique hash for this clip's source.

This should be the same until the clip changes as it is used to determine if the proxy needs regenerating.

Implements tracktion::engine::AudioClipBase.

Definition at line 70 of file tracktion_ContainerClip.cpp.

getOriginalFile()

juce::File tracktion::engine::ContainerClip::getOriginalFile ( ) const

overridevirtual

Must return the file that the source ProjectItemID refers to.

Implements tracktion::engine::AudioClipBase.

Definition at line 45 of file tracktion_ContainerClip.h.

getSelectableDescription()

juce::String tracktion::engine::ContainerClip::getSelectableDescription ( )

overridevirtual

Subclasses must return a description of what they are.

Implements tracktion::engine::Selectable.

Definition at line 46 of file tracktion_ContainerClip.cpp.

getSourceLength()

TimeDuration tracktion::engine::ContainerClip::getSourceLength ( ) const

overridevirtual

Must return the length in seconds of the source material e.g.

the length of the audio file or edit.

Implements tracktion::engine::AudioClipBase.

Definition at line 60 of file tracktion_ContainerClip.cpp.

initialise()

void tracktion::engine::ContainerClip::initialise ( )

overridevirtual

Initialises the Clip.

Called once automatically after construction.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 25 of file tracktion_ContainerClip.cpp.

isMidi()

bool tracktion::engine::ContainerClip::isMidi ( ) const

overridevirtual

Returns true if this is a MidiClip.

Implements tracktion::engine::Clip.

Definition at line 51 of file tracktion_ContainerClip.cpp.

isUsingFile()

bool tracktion::engine::ContainerClip::isUsingFile ( const AudioFile &  af )

overridevirtual

Should return true if the clip is referencing the file in any way.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 148 of file tracktion_ContainerClip.cpp.

pitchTempoTrackChanged()

void tracktion::engine::ContainerClip::pitchTempoTrackChanged ( )

overridevirtual

Called when there are pitch or tempo changes made which might require clips to adjust timing information.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 118 of file tracktion_ContainerClip.cpp.

setLoopDefaults()

void tracktion::engine::ContainerClip::setLoopDefaults ( )

overridevirtual

Override this to fill in the LoopInfo structure as best fits the source.

Implements tracktion::engine::AudioClipBase.

Definition at line 80 of file tracktion_ContainerClip.cpp.

setLoopRangeBeats()

void tracktion::engine::ContainerClip::setLoopRangeBeats ( BeatRange  )

overridevirtual

Sets the loop range the clip should use in beats.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 95 of file tracktion_ContainerClip.cpp.

---

The documentation for this class was generated from the following files:

• tracktion_engine/model/clips/tracktion_ContainerClip.h
• tracktion_engine/model/clips/tracktion_ContainerClip.cpp
