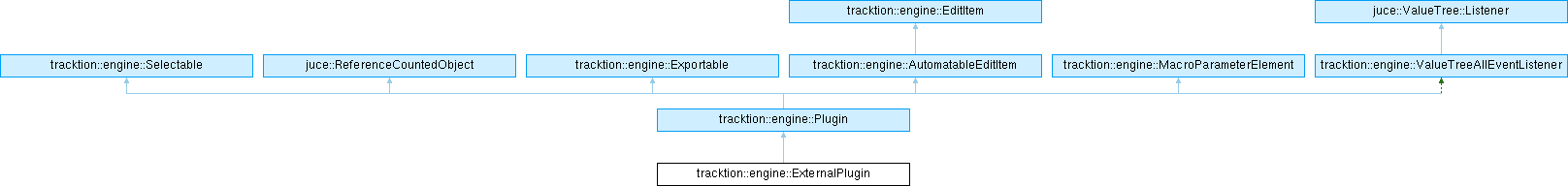

Inheritance diagram for tracktion::engine::ExternalPlugin:

Classes
struct	MPEChannelRemapper

class	PluginPlayHead

struct	ProcessorChangedManager

Public Types
using	Ptr = juce::ReferenceCountedObjectPtr< ExternalPlugin >

Public Types inherited from tracktion::engine::Plugin
enum class	Type { allPlugins , folderTrackPlugins , effectPlugins }

using	Ptr = juce::ReferenceCountedObjectPtr< Plugin >

using	Array = juce::ReferenceCountedArray< Plugin >

Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Public Member Functions
	ExternalPlugin (PluginCreationInfo)

juce::String	getIdentifierString () override
	A unique string to idenitify plugin independant of install location.

void	selectableAboutToBeDeleted () override
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

void	processingChanged () override

void	initialiseFully () override
	Gives the plugin a chance to do extra initialisation when it's been added to an edit.

void	forceFullReinitialise ()

juce::String	getLoadError ()

void	flushPluginStateToValueTree () override

void	flushBusesLayoutToValueTree ()

void	restorePluginStateFromValueTree (const juce::ValueTree &) override

void	getPluginStateFromTree (juce::MemoryBlock &)

void	updateFromMirroredPluginIfNeeded (Plugin &) override

void	initialise (const PluginInitialisationInfo &) override
	Gives the plugin a chance to set itself up before being played.

void	deinitialise () override
	Called after play stops to release resources.

void	reset () override
	Should reset synth voices, tails, clear delay buffers, etc.

void	setEnabled (bool enabled) override
	Enable/disable the plugin.

juce::Array< Exportable::ReferencedItem >	getReferencedItems () override

void	reassignReferencedItem (const ReferencedItem &, ProjectItemID newID, double newStartTime) override

void	applyToBuffer (const PluginRenderContext &) override
	Process the next block of data.

bool	producesAudioWhenNoAudioInput () override

int	getNumOutputChannelsGivenInputs (int numInputs) override
	This must return the number of output channels that the plugin will produce, given a number of input channels.

void	getChannelNames (juce::StringArray ins, juce::StringArray outs) override

bool	isVST () const noexcept

bool	isVST3 () const noexcept

bool	isAU () const noexcept

juce::String	getName () const override
	The name of the type, e.g.

juce::String	getVendor () override

juce::String	getTooltip () override
	default returns the name, others can return special stuff if needed

juce::String	getPluginType () override

bool	isSynth () override

bool	takesMidiInput () override

bool	takesAudioInput () override

bool	isMissing () override
	for things like VSTs where the DLL is missing.

bool	isDisabled () override
	Plugins can be disabled to avoid them crashing Edits.

double	getLatencySeconds () override

bool	noTail () override

double	getTailLength () const override

bool	needsConstantBufferSize () override

void	trackPropertiesChanged () override
	Track name or colour has changed.

juce::AudioProcessor *	getWrappedAudioProcessor () const override

void	deleteFromParent () override
	Attempts to delete this plugin, whether it's a master plugin, track plugin, etc.

juce::String	getSelectableDescription () override
	Subclasses must return a description of what they are.

juce::File	getFile () const

juce::String	getPluginUID () const

const char *	getDebugName () const noexcept

int	getNumInputs () const

int	getNumOutputs () const

bool	setBusesLayout (juce::AudioProcessor::BusesLayout)
	Attempts to change the layout of the plugin.

bool	setBusLayout (juce::AudioChannelSet, bool isInput, int busIndex)
	Attempts to change the layout of the plugin.

int	getNumPrograms () const

int	getCurrentProgram () const

juce::String	getProgramName (int index)

juce::String	getNumberedProgramName (int i)

juce::String	getCurrentProgramName ()

void	setCurrentProgram (int index, bool sendChangeMessage)

void	setCurrentProgramName (const juce::String &name)

bool	hasNameForMidiProgram (int programNum, int bank, juce::String &name) override
	Returns the name for a midi program, if there is one.

bool	hasNameForMidiNoteNumber (int note, int midiChannel, juce::String &name) override
	If it's a synth that names its notes, this can return the name it uses for this note 0-127.

const VSTXML *	getVSTXML () const noexcept

juce::AudioPluginInstance *	getAudioPluginInstance () const

ActiveNoteList	getActiveNotes () const

std::unique_ptr< EditorComponent >	createEditor () override

Public Member Functions inherited from tracktion::engine::Plugin
	Plugin (PluginCreationInfo)

void	selectableAboutToBeDeleted () override
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

void	playStartedOrStopped ()
	called by the system to let the plugin manage its automation stuff

virtual juce::String	getShortName (int)

bool	isEnabled () const noexcept

void	setFrozen (bool shouldBeFrozen)
	This is a bit different to being enabled as when frozen a plugin can't be interacted with.

bool	isFrozen () const noexcept

void	setProcessingEnabled (bool p)
	Enable/Disable processing.

bool	isProcessingEnabled () const noexcept

virtual void	initialiseWithoutStopping (const PluginInitialisationInfo &)
	Tells the plugin that the audio graph has changed but the plugin isn't being re-initialised - i.e.

bool	isInitialising () const

virtual void	prepareForNextBlock (TimePosition)
	Called between successive rendering blocks.

void	applyToBufferWithAutomation (const PluginRenderContext &)

virtual bool	shoulMeasureCpuUsage () const noexcept
	Plugins can return false if they want to avoid the overhead of measuring the CPU usage.

double	getCpuUsage () const noexcept
	Returns the proportion of the current buffer size spent processing this plugin.

virtual bool	canSidechain ()

juce::StringArray	getInputChannelNames ()

juce::StringArray	getSidechainSourceNames (bool allowNone)

void	setSidechainSourceByName (const juce::String &name)

juce::String	getSidechainSourceName ()

void	guessSidechainRouting ()

int	getNumWires () const

Wire *	getWire (int index) const

void	makeConnection (int srcChannel, int dstChannel, juce::UndoManager *)

void	breakConnection (int srcChannel, int dstChannel)

virtual bool	hasNameForMidiBank (int bank, juce::String &name)

virtual bool	canBeAddedToClip ()

virtual bool	canBeAddedToRack ()

virtual bool	canBeAddedToFolderTrack ()

virtual bool	canBeAddedToMaster ()

virtual bool	canBeDisabled ()

virtual bool	canBeMoved ()

bool	isInRack () const

juce::ReferenceCountedObjectPtr< RackType >	getOwnerRackType () const

bool	isClipEffectPlugin () const

AutomatableParameter::Ptr	getQuickControlParameter () const

void	setQuickControlParameter (AutomatableParameter *)

void	removeFromParent ()
	Detaches the plugin from any parent it might be in.

Track *	getOwnerTrack () const
	Returns the track if it's a track or clip plugin.

Clip *	getOwnerClip () const
	Returns the clip if that's what it's in.

PluginList *	getOwnerList () const

Ptr	findPluginThatFeedsIntoThis () const

Ptr	findPluginThatThisFeedsInto () const

void	changed () override
	method from Selectable, that's been overridden here to also tell the edit that it's changed.

juce::Array< ReferencedItem >	getReferencedItems () override

void	reassignReferencedItem (const ReferencedItem &, ProjectItemID newID, double newStartTime) override

virtual void	sourceMediaChanged ()
	Called when ProjectItem sources are re-assigned so you can reload from the new source.

bool	setPluginToMirror (const Plugin::Ptr &)

Plugin::Ptr	getMirroredPlugin () const

bool	baseClassNeedsInitialising () const noexcept

void	baseClassInitialise (const PluginInitialisationInfo &)

void	baseClassDeinitialise ()

void	setSidechainSourceID (EditItemID newID)

EditItemID	getSidechainSourceID () const

void	showWindowExplicitly ()

void	hideWindowForShutdown ()

juce::UndoManager *	getUndoManager () const noexcept

Public Member Functions inherited from tracktion::engine::Selectable
virtual void	selectionStatusChanged (bool isNowSelected)
	Can be overridden to tell this object that it has just been selected or deselected.

void	addListener (SelectableListener *)

void	removeListener (SelectableListener *)

void	addSelectableListener (SelectableListener *)

void	removeSelectableListener (SelectableListener *)

void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.

void	deselect ()

void	propertiesChanged ()

void	notifyListenersOfDeletion ()

WeakRef	getWeakRef ()

Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept

void	decReferenceCount () noexcept

bool	decReferenceCountWithoutDeleting () noexcept

int	getReferenceCount () const noexcept

Public Member Functions inherited from tracktion::engine::AutomatableEditItem
	AutomatableEditItem (Edit &, const juce::ValueTree &)

juce::Array< AutomatableParameter * >	getAutomatableParameters () const

int	getNumAutomatableParameters () const

AutomatableParameter::Ptr	getAutomatableParameter (int index) const

AutomatableParameter::Ptr	getAutomatableParameterByID (const juce::String &paramID) const

void	visitAllAutomatableParams (const std::function< void(AutomatableParameter &)> &visit) const

void	deleteParameter (AutomatableParameter *)

void	deleteAutomatableParameters ()

int	indexOfAutomatableParameter (const AutomatableParameter::Ptr &) const

AutomatableParameterTree &	getParameterTree () const

juce::ReferenceCountedArray< AutomatableParameter >	getFlattenedParameterTree () const

void	addParameterListChangeListener (ParameterListChangeListener *)

void	removeParameterListChangeListener (ParameterListChangeListener *)

bool	isAutomationNeeded () const noexcept

void	setAutomatableParamPosition (TimePosition)

bool	isBeingActivelyPlayed () const

virtual void	updateAutomatableParamPosition (TimePosition)
	Updates all the auto params to their positions at this time.

void	updateParameterStreams (TimePosition)
	Updates all the parameter streams to their positions at this time.

void	updateActiveParameters ()
	Iterates all the parameters to find out which ones need to be automated.

void	resetRecordingStatus ()
	Marks the end of an automation recording stream.

Public Member Functions inherited from tracktion::engine::EditItem
	EditItem (EditItemID, Edit &)

Public Member Functions inherited from tracktion::engine::MacroParameterElement
	MacroParameterElement (Edit &, const juce::ValueTree &)
	Constructor.

virtual	~MacroParameterElement ()=default
	Destructor.

MacroParameterList *	getMacroParameterList ()
	If no parameters have been created, this may return nullptr.

MacroParameterList &	getMacroParameterListForWriting ()
	This ensures that the list has been created.

juce::ReferenceCountedArray< MacroParameter >	getMacroParameters () const

Static Public Member Functions
static juce::ValueTree	create (Engine &, const juce::PluginDescription &)

Static Public Member Functions inherited from tracktion::engine::Plugin
static bool	areSelectedPluginsRackable (SelectionManager &)

static RackInstance *	wrapSelectedPluginsInRack (SelectionManager &)

static void	sortPlugins (Plugin::Array &)

static void	sortPlugins (std::vector< Plugin * > &)

Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()

static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.

Static Public Member Functions inherited from tracktion::engine::Exportable
static juce::Array< Exportable * >	addAllExportables (Edit &)
	Returns all the Exportables contained in an Edit.

Public Attributes
juce::PluginDescription	desc

juce::CachedValue< float >	dryValue

juce::CachedValue< float >	wetValue

AutomatableParameter::Ptr	dryGain

AutomatableParameter::Ptr	wetGain

Public Attributes inherited from tracktion::engine::Plugin
std::unique_ptr< WindowState >	windowState

Engine &	engine

juce::ValueTree	state

Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference

Public Attributes inherited from tracktion::engine::AutomatableEditItem
juce::ValueTree	elementState

juce::CachedValue< bool >	remapOnTempoChange

Public Attributes inherited from tracktion::engine::EditItem
Edit &	edit

const EditItemID	itemID
	Every EditItem has an ID which is unique within the edit.

Public Attributes inherited from tracktion::engine::MacroParameterElement
Edit &	ownerEdit

juce::ValueTree	parentStateForList

Static Public Attributes
static const char *	xmlTypeName

Additional Inherited Members
Protected Member Functions inherited from tracktion::engine::Plugin
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeChanged () override

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override

void	valueTreeChildRemoved (juce::ValueTree &, juce::ValueTree &, int) override

void	valueTreeParentChanged (juce::ValueTree &) override

AutomatableParameter *	addParam (const juce::String &paramID, const juce::String &name, juce::NormalisableRange< float > valueRange)

AutomatableParameter *	addParam (const juce::String &paramID, const juce::String &name, juce::NormalisableRange< float > valueRange, std::function< juce::String(float)> valueToStringFunction, std::function< float(const juce::String &)> stringToValueFunction)

Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept

	ReferenceCountedObject (ReferenceCountedObject &&) noexcept

ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept

ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept

void	resetReferenceCount () noexcept

Protected Member Functions inherited from tracktion::engine::AutomatableEditItem
void	updateLastPlaybackTime ()

void	clearParameterList ()

void	addAutomatableParameter (const AutomatableParameter::Ptr &)

void	rebuildParameterTree ()

void	saveChangedParametersToState ()
	Saves the explicit value of any parameters that have deviated to the state.

void	restoreChangedParametersFromState ()
	Restores the value of any explicitly set parameters.

Protected Member Functions inherited from tracktion::engine::ValueTreeAllEventListener
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override

void	valueTreeChildRemoved (juce::ValueTree &, juce::ValueTree &, int) override

void	valueTreeChildOrderChanged (juce::ValueTree &, int, int) override

void	valueTreeParentChanged (juce::ValueTree &) override

void	valueTreeRedirected (juce::ValueTree &) override

Static Protected Member Functions inherited from tracktion::engine::Plugin
static void	getLeftRightChannelNames (juce::StringArray ins, juce::StringArray outs)

static void	getLeftRightChannelNames (juce::StringArray *chans)

Protected Attributes inherited from tracktion::engine::Plugin
juce::CachedValue< AtomicWrapper< bool > >	enabled

juce::CachedValue< bool >	frozen

juce::CachedValue< bool >	processing

juce::CachedValue< juce::String >	quickParamName

juce::CachedValue< EditItemID >	masterPluginID

juce::CachedValue< EditItemID >	sidechainSourceID

double	sampleRate

int	blockSizeSamples

Detailed Description

Definition at line 19 of file tracktion_ExternalPlugin.h.

Member Typedef Documentation

◆ Ptr

using tracktion::engine::ExternalPlugin::Ptr = juce::ReferenceCountedObjectPtr<ExternalPlugin>

Definition at line 27 of file tracktion_ExternalPlugin.h.

Constructor & Destructor Documentation

◆ ExternalPlugin()

tracktion::engine::ExternalPlugin::ExternalPlugin ( PluginCreationInfo info )

Definition at line 1079 of file tracktion_ExternalPlugin.cpp.

◆ ~ExternalPlugin()

tracktion::engine::ExternalPlugin::~ExternalPlugin ( )

override

Definition at line 1105 of file tracktion_ExternalPlugin.cpp.

Member Function Documentation

◆ applyToBuffer()

void tracktion::engine::ExternalPlugin::applyToBuffer ( const PluginRenderContext & )

overridevirtual

Process the next block of data.

The incoming buffer will have an unknown number of channels, and the plugin has to deal with them however it wants to.

The buffer should be resized to the number of output channels that the plugin wants to return (which should be the same or less than the number of output channel names it returns from getChannelNames() - never more than this).

Implements tracktion::engine::Plugin.

Definition at line 1301 of file tracktion_ExternalPlugin.cpp.

◆ create()

juce::ValueTree tracktion::engine::ExternalPlugin::create	(	Engine &	e,
		const juce::PluginDescription &	desc
	)

static

Definition at line 517 of file tracktion_ExternalPlugin.cpp.

◆ createEditor()

std::unique_ptr< Plugin::EditorComponent > tracktion::engine::ExternalPlugin::createEditor ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 1925 of file tracktion_ExternalPlugin.cpp.

◆ deinitialise()

void tracktion::engine::ExternalPlugin::deinitialise ( )

overridevirtual

Called after play stops to release resources.

Don't call this directly or the initialise count will become out of sync.

See also: baseClassDeinitialise

Implements tracktion::engine::Plugin.

Definition at line 1173 of file tracktion_ExternalPlugin.cpp.

◆ deleteFromParent()

void tracktion::engine::ExternalPlugin::deleteFromParent ( )

overridevirtual

Attempts to delete this plugin, whether it's a master plugin, track plugin, etc.

This will call removeFromParent but also hide any automation parameters etc. being shown on tracks and hide plugin windows etc. Use this method if the plugin is being fully deleted from the Edit.

Reimplemented from tracktion::engine::Plugin.

Definition at line 1801 of file tracktion_ExternalPlugin.cpp.

◆ flushBusesLayoutToValueTree()

void tracktion::engine::ExternalPlugin::flushBusesLayoutToValueTree ( )

Definition at line 903 of file tracktion_ExternalPlugin.cpp.

◆ flushPluginStateToValueTree()

void tracktion::engine::ExternalPlugin::flushPluginStateToValueTree ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 864 of file tracktion_ExternalPlugin.cpp.

◆ forceFullReinitialise()

void tracktion::engine::ExternalPlugin::forceFullReinitialise ( )

Definition at line 560 of file tracktion_ExternalPlugin.cpp.

◆ getActiveNotes()

ActiveNoteList tracktion::engine::ExternalPlugin::getActiveNotes ( ) const

Definition at line 126 of file tracktion_ExternalPlugin.h.

◆ getAudioPluginInstance()

juce::AudioPluginInstance * tracktion::engine::ExternalPlugin::getAudioPluginInstance ( ) const

Definition at line 1807 of file tracktion_ExternalPlugin.cpp.

◆ getChannelNames()

void tracktion::engine::ExternalPlugin::getChannelNames	(	juce::StringArray *	ins,
		juce::StringArray *	outs
	)

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 1458 of file tracktion_ExternalPlugin.cpp.

◆ getCurrentProgram()

int tracktion::engine::ExternalPlugin::getCurrentProgram ( ) const

Definition at line 1532 of file tracktion_ExternalPlugin.cpp.

◆ getCurrentProgramName()

juce::String tracktion::engine::ExternalPlugin::getCurrentProgramName ( )

Definition at line 1587 of file tracktion_ExternalPlugin.cpp.

◆ getDebugName()

const char * tracktion::engine::ExternalPlugin::getDebugName ( ) const

noexcept

Definition at line 93 of file tracktion_ExternalPlugin.h.

◆ getFile()

juce::File tracktion::engine::ExternalPlugin::getFile ( ) const

Definition at line 1508 of file tracktion_ExternalPlugin.cpp.

◆ getIdentifierString()

juce::String tracktion::engine::ExternalPlugin::getIdentifierString ( )

overridevirtual

A unique string to idenitify plugin independant of install location.

Reimplemented from tracktion::engine::Plugin.

Definition at line 25 of file tracktion_ExternalPlugin.h.

◆ getLatencySeconds()

double tracktion::engine::ExternalPlugin::getLatencySeconds ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 76 of file tracktion_ExternalPlugin.h.

◆ getLoadError()

juce::String tracktion::engine::ExternalPlugin::getLoadError ( )

Definition at line 533 of file tracktion_ExternalPlugin.cpp.

◆ getName()

juce::String tracktion::engine::ExternalPlugin::getName ( ) const

overridevirtual

The name of the type, e.g.

"Compressor"

Implements tracktion::engine::Plugin.

Definition at line 67 of file tracktion_ExternalPlugin.h.

◆ getNumberedProgramName()

juce::String tracktion::engine::ExternalPlugin::getNumberedProgramName ( int i )

Definition at line 1577 of file tracktion_ExternalPlugin.cpp.

◆ getNumInputs()

int tracktion::engine::ExternalPlugin::getNumInputs ( ) const

Definition at line 1638 of file tracktion_ExternalPlugin.cpp.

◆ getNumOutputChannelsGivenInputs()

int tracktion::engine::ExternalPlugin::getNumOutputChannelsGivenInputs ( int numInputChannels )

overridevirtual

This must return the number of output channels that the plugin will produce, given a number of input channels.

E.g. some might be able to do mono, so will return 1 if the input is 1, 2 if it is 2, etc.

The default impl just returns the number of items that getChannelNames() returns.

Reimplemented from tracktion::engine::Plugin.

Definition at line 1453 of file tracktion_ExternalPlugin.cpp.

◆ getNumOutputs()

int tracktion::engine::ExternalPlugin::getNumOutputs ( ) const

Definition at line 1639 of file tracktion_ExternalPlugin.cpp.

◆ getNumPrograms()

int tracktion::engine::ExternalPlugin::getNumPrograms ( ) const

Definition at line 1527 of file tracktion_ExternalPlugin.cpp.

◆ getPluginStateFromTree()

void tracktion::engine::ExternalPlugin::getPluginStateFromTree ( juce::MemoryBlock & mb )

Definition at line 957 of file tracktion_ExternalPlugin.cpp.

◆ getPluginType()

juce::String tracktion::engine::ExternalPlugin::getPluginType ( )

overridevirtual

Implements tracktion::engine::Plugin.

Definition at line 70 of file tracktion_ExternalPlugin.h.

◆ getPluginUID()

juce::String tracktion::engine::ExternalPlugin::getPluginUID ( ) const

Definition at line 91 of file tracktion_ExternalPlugin.h.

◆ getProgramName()

juce::String tracktion::engine::ExternalPlugin::getProgramName ( int index )

Definition at line 1537 of file tracktion_ExternalPlugin.cpp.

◆ getReferencedItems()

juce::Array< Exportable::ReferencedItem > tracktion::engine::ExternalPlugin::getReferencedItems ( )

overridevirtual

Implements tracktion::engine::Exportable.

Definition at line 1833 of file tracktion_ExternalPlugin.cpp.

◆ getSelectableDescription()

juce::String tracktion::engine::ExternalPlugin::getSelectableDescription ( )

overridevirtual

Subclasses must return a description of what they are.

Implements tracktion::engine::Selectable.

Definition at line 1518 of file tracktion_ExternalPlugin.cpp.

◆ getTailLength()

double tracktion::engine::ExternalPlugin::getTailLength ( ) const

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 1501 of file tracktion_ExternalPlugin.cpp.

◆ getTooltip()

juce::String tracktion::engine::ExternalPlugin::getTooltip ( )

overridevirtual

default returns the name, others can return special stuff if needed

Reimplemented from tracktion::engine::Plugin.

Definition at line 69 of file tracktion_ExternalPlugin.h.

◆ getVendor()

juce::String tracktion::engine::ExternalPlugin::getVendor ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 68 of file tracktion_ExternalPlugin.h.

◆ getVSTXML()

const VSTXML * tracktion::engine::ExternalPlugin::getVSTXML ( ) const

noexcept

Definition at line 117 of file tracktion_ExternalPlugin.h.

◆ getWrappedAudioProcessor()

juce::AudioProcessor * tracktion::engine::ExternalPlugin::getWrappedAudioProcessor ( ) const

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 82 of file tracktion_ExternalPlugin.h.

◆ hasNameForMidiNoteNumber()

bool tracktion::engine::ExternalPlugin::hasNameForMidiNoteNumber	(	int	note,
		int	midiChannel,
		juce::String &	name
	)

overridevirtual

If it's a synth that names its notes, this can return the name it uses for this note 0-127.

Midi channel is 1-16

Reimplemented from tracktion::engine::Plugin.

Definition at line 1548 of file tracktion_ExternalPlugin.cpp.

◆ hasNameForMidiProgram()

bool tracktion::engine::ExternalPlugin::hasNameForMidiProgram	(	int	programNum,
		int	bank,
		juce::String &	name
	)

overridevirtual

Returns the name for a midi program, if there is one.

programNum = 0 to 127.

Reimplemented from tracktion::engine::Plugin.

Definition at line 1560 of file tracktion_ExternalPlugin.cpp.

◆ initialise()

void tracktion::engine::ExternalPlugin::initialise ( const PluginInitialisationInfo & )

overridevirtual

Gives the plugin a chance to set itself up before being played.

This won't be called concurrently with the process thread.

The sample rate and the average block size - although the blocks won't always be the same, and may be bigger.

Don't call this directly or the initialise count will become out of sync.

See also: baseClassInitialise [[ message_thread ]]

Implements tracktion::engine::Plugin.

Definition at line 1121 of file tracktion_ExternalPlugin.cpp.

◆ initialiseFully()

void tracktion::engine::ExternalPlugin::initialiseFully ( )

overridevirtual

Gives the plugin a chance to do extra initialisation when it's been added to an edit.

Reimplemented from tracktion::engine::Plugin.

Definition at line 546 of file tracktion_ExternalPlugin.cpp.

◆ isAU()

bool tracktion::engine::ExternalPlugin::isAU ( ) const

noexcept

Definition at line 66 of file tracktion_ExternalPlugin.h.

◆ isDisabled()

bool tracktion::engine::ExternalPlugin::isDisabled ( )

overridevirtual

Plugins can be disabled to avoid them crashing Edits.

Reimplemented from tracktion::engine::Plugin.

Definition at line 1633 of file tracktion_ExternalPlugin.cpp.

◆ isMissing()

bool tracktion::engine::ExternalPlugin::isMissing ( )

overridevirtual

for things like VSTs where the DLL is missing.

Reimplemented from tracktion::engine::Plugin.

Definition at line 1628 of file tracktion_ExternalPlugin.cpp.

◆ isSynth()

bool tracktion::engine::ExternalPlugin::isSynth ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 71 of file tracktion_ExternalPlugin.h.

◆ isVST()

bool tracktion::engine::ExternalPlugin::isVST ( ) const

noexcept

Definition at line 64 of file tracktion_ExternalPlugin.h.

◆ isVST3()

bool tracktion::engine::ExternalPlugin::isVST3 ( ) const

noexcept

Definition at line 65 of file tracktion_ExternalPlugin.h.

◆ needsConstantBufferSize()

bool tracktion::engine::ExternalPlugin::needsConstantBufferSize ( )

overridevirtual

Implements tracktion::engine::Plugin.

Definition at line 79 of file tracktion_ExternalPlugin.h.

◆ noTail()

bool tracktion::engine::ExternalPlugin::noTail ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 1495 of file tracktion_ExternalPlugin.cpp.

◆ processingChanged()

void tracktion::engine::ExternalPlugin::processingChanged ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 773 of file tracktion_ExternalPlugin.cpp.

◆ producesAudioWhenNoAudioInput()

bool tracktion::engine::ExternalPlugin::producesAudioWhenNoAudioInput ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 60 of file tracktion_ExternalPlugin.h.

◆ reassignReferencedItem()

void tracktion::engine::ExternalPlugin::reassignReferencedItem	(	const ReferencedItem &	itm,
		ProjectItemID	newID,
		double	newStartTime
	)

overridevirtual

Implements tracktion::engine::Exportable.

Definition at line 1838 of file tracktion_ExternalPlugin.cpp.

◆ reset()

void tracktion::engine::ExternalPlugin::reset ( )

overridevirtual

Should reset synth voices, tails, clear delay buffers, etc.

Reimplemented from tracktion::engine::Plugin.

Definition at line 1187 of file tracktion_ExternalPlugin.cpp.

◆ restorePluginStateFromValueTree()

void tracktion::engine::ExternalPlugin::restorePluginStateFromValueTree ( const juce::ValueTree & v )

overridevirtual

Reimplemented from tracktion::engine::AutomatableEditItem.

Definition at line 921 of file tracktion_ExternalPlugin.cpp.

◆ selectableAboutToBeDeleted()

void tracktion::engine::ExternalPlugin::selectableAboutToBeDeleted ( )

overridevirtual

Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

Reimplemented from tracktion::engine::Selectable.

Definition at line 854 of file tracktion_ExternalPlugin.cpp.

◆ setBusesLayout()

bool tracktion::engine::ExternalPlugin::setBusesLayout ( juce::AudioProcessor::BusesLayout layout )

Attempts to change the layout of the plugin.

Definition at line 1641 of file tracktion_ExternalPlugin.cpp.

◆ setBusLayout()

bool tracktion::engine::ExternalPlugin::setBusLayout	(	juce::AudioChannelSet	set,
		bool	isInput,
		int	busIndex
	)

Attempts to change the layout of the plugin.

Definition at line 1674 of file tracktion_ExternalPlugin.cpp.

◆ setCurrentProgram()

void tracktion::engine::ExternalPlugin::setCurrentProgram	(	int	index,
		bool	sendChangeMessage
	)

Definition at line 1601 of file tracktion_ExternalPlugin.cpp.

◆ setCurrentProgramName()

void tracktion::engine::ExternalPlugin::setCurrentProgramName ( const juce::String & name )

Definition at line 1593 of file tracktion_ExternalPlugin.cpp.

◆ setEnabled()

void tracktion::engine::ExternalPlugin::setEnabled ( bool b )

overridevirtual

Enable/disable the plugin.

Reimplemented from tracktion::engine::Plugin.

Definition at line 1197 of file tracktion_ExternalPlugin.cpp.

◆ takesAudioInput()

bool tracktion::engine::ExternalPlugin::takesAudioInput ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 73 of file tracktion_ExternalPlugin.h.

◆ takesMidiInput()

bool tracktion::engine::ExternalPlugin::takesMidiInput ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 1623 of file tracktion_ExternalPlugin.cpp.

◆ trackPropertiesChanged()

void tracktion::engine::ExternalPlugin::trackPropertiesChanged ( )

overridevirtual

Track name or colour has changed.

Reimplemented from tracktion::engine::Plugin.

Definition at line 836 of file tracktion_ExternalPlugin.cpp.

◆ updateFromMirroredPluginIfNeeded()

void tracktion::engine::ExternalPlugin::updateFromMirroredPluginIfNeeded ( Plugin & changedPlugin )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 966 of file tracktion_ExternalPlugin.cpp.

Member Data Documentation

◆ desc

juce::PluginDescription tracktion::engine::ExternalPlugin::desc

Definition at line 121 of file tracktion_ExternalPlugin.h.

◆ dryGain

AutomatableParameter::Ptr tracktion::engine::ExternalPlugin::dryGain

Definition at line 124 of file tracktion_ExternalPlugin.h.

◆ dryValue

juce::CachedValue<float> tracktion::engine::ExternalPlugin::dryValue

Definition at line 123 of file tracktion_ExternalPlugin.h.

◆ wetGain

AutomatableParameter::Ptr tracktion::engine::ExternalPlugin::wetGain

Definition at line 124 of file tracktion_ExternalPlugin.h.

◆ wetValue

juce::CachedValue<float> tracktion::engine::ExternalPlugin::wetValue

Definition at line 123 of file tracktion_ExternalPlugin.h.

◆ xmlTypeName

const char * tracktion::engine::ExternalPlugin::xmlTypeName

static

Definition at line 41 of file tracktion_ExternalPlugin.h.

The documentation for this class was generated from the following files:

tracktion_engine/plugins/external/tracktion_ExternalPlugin.h
tracktion_engine/plugins/external/tracktion_ExternalPlugin.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Ptr

Constructor & Destructor Documentation

◆ ExternalPlugin()

◆ ~ExternalPlugin()

Member Function Documentation

◆ applyToBuffer()

◆ create()

◆ createEditor()

◆ deinitialise()

◆ deleteFromParent()

◆ flushBusesLayoutToValueTree()

◆ flushPluginStateToValueTree()

◆ forceFullReinitialise()

◆ getActiveNotes()

◆ getAudioPluginInstance()

◆ getChannelNames()

◆ getCurrentProgram()

◆ getCurrentProgramName()

◆ getDebugName()

◆ getFile()

◆ getIdentifierString()

◆ getLatencySeconds()

◆ getLoadError()

◆ getName()

◆ getNumberedProgramName()

◆ getNumInputs()

◆ getNumOutputChannelsGivenInputs()

◆ getNumOutputs()

◆ getNumPrograms()

◆ getPluginStateFromTree()

◆ getPluginType()

◆ getPluginUID()

◆ getProgramName()

◆ getReferencedItems()

◆ getSelectableDescription()

◆ getTailLength()

◆ getTooltip()

◆ getVendor()

◆ getVSTXML()

◆ getWrappedAudioProcessor()

◆ hasNameForMidiNoteNumber()

◆ hasNameForMidiProgram()

◆ initialise()

◆ initialiseFully()

◆ isAU()

◆ isDisabled()

◆ isMissing()

◆ isSynth()

◆ isVST()

◆ isVST3()

◆ needsConstantBufferSize()

◆ noTail()

◆ processingChanged()

◆ producesAudioWhenNoAudioInput()

◆ reassignReferencedItem()

◆ reset()

◆ restorePluginStateFromValueTree()

◆ selectableAboutToBeDeleted()

◆ setBusesLayout()

◆ setBusLayout()

◆ setCurrentProgram()

◆ setCurrentProgramName()

◆ setEnabled()

◆ takesAudioInput()

◆ takesMidiInput()

◆ trackPropertiesChanged()

◆ updateFromMirroredPluginIfNeeded()

Member Data Documentation

◆ desc

◆ dryGain

◆ dryValue
