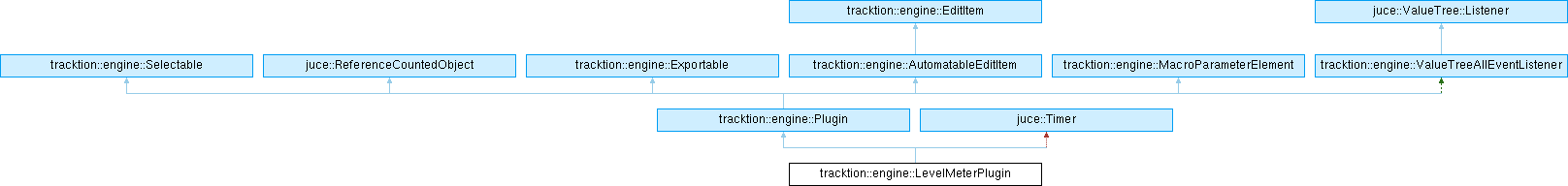

Inheritance diagram for tracktion::engine::LevelMeterPlugin:

Public Member Functions
	LevelMeterPlugin (PluginCreationInfo)

juce::String	getName () const override
	The name of the type, e.g.

juce::String	getPluginType () override

juce::String	getShortName (int) override

juce::String	getTooltip () override
	default returns the name, others can return special stuff if needed

bool	canBeDisabled () override

bool	needsConstantBufferSize () override

bool	shoulMeasureCpuUsage () const noexcept final
	Plugins can return false if they want to avoid the overhead of measuring the CPU usage.

int	getNumOutputChannelsGivenInputs (int numInputChannels) override
	This must return the number of output channels that the plugin will produce, given a number of input channels.

juce::String	getSelectableDescription () override
	Subclasses must return a description of what they are.

void	initialise (const PluginInitialisationInfo &) override
	Gives the plugin a chance to set itself up before being played.

void	initialiseWithoutStopping (const PluginInitialisationInfo &) override
	Tells the plugin that the audio graph has changed but the plugin isn't being re-initialised - i.e.

void	deinitialise () override
	Called after play stops to release resources.

void	applyToBuffer (const PluginRenderContext &) override
	Process the next block of data.

void	timerCallback () override

void	restorePluginStateFromValueTree (const juce::ValueTree &) override

Public Member Functions inherited from tracktion::engine::Plugin
	Plugin (PluginCreationInfo)

void	selectableAboutToBeDeleted () override
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

void	playStartedOrStopped ()
	called by the system to let the plugin manage its automation stuff

virtual void	initialiseFully ()
	Gives the plugin a chance to do extra initialisation when it's been added to an edit.

virtual void	flushPluginStateToValueTree () override

virtual juce::String	getVendor ()

virtual juce::String	getIdentifierString ()
	A unique string to idenitify plugin independant of install location.

virtual void	setEnabled (bool)
	Enable/disable the plugin.

bool	isEnabled () const noexcept

void	setFrozen (bool shouldBeFrozen)
	This is a bit different to being enabled as when frozen a plugin can't be interacted with.

bool	isFrozen () const noexcept

void	setProcessingEnabled (bool p)
	Enable/Disable processing.

bool	isProcessingEnabled () const noexcept

bool	isInitialising () const

virtual void	reset ()
	Should reset synth voices, tails, clear delay buffers, etc.

virtual void	trackPropertiesChanged ()
	Track name or colour has changed.

virtual void	prepareForNextBlock (TimePosition)
	Called between successive rendering blocks.

void	applyToBufferWithAutomation (const PluginRenderContext &)

double	getCpuUsage () const noexcept
	Returns the proportion of the current buffer size spent processing this plugin.

virtual bool	producesAudioWhenNoAudioInput ()

virtual bool	noTail ()

virtual void	getChannelNames (juce::StringArray ins, juce::StringArray outs)

virtual bool	takesAudioInput ()

virtual bool	takesMidiInput ()

virtual bool	isSynth ()

virtual double	getLatencySeconds ()

virtual double	getTailLength () const

virtual bool	canSidechain ()

juce::StringArray	getInputChannelNames ()

juce::StringArray	getSidechainSourceNames (bool allowNone)

void	setSidechainSourceByName (const juce::String &name)

juce::String	getSidechainSourceName ()

void	guessSidechainRouting ()

int	getNumWires () const

Wire *	getWire (int index) const

void	makeConnection (int srcChannel, int dstChannel, juce::UndoManager *)

void	breakConnection (int srcChannel, int dstChannel)

virtual bool	hasNameForMidiNoteNumber (int note, int midiChannel, juce::String &name)
	If it's a synth that names its notes, this can return the name it uses for this note 0-127.

virtual bool	hasNameForMidiProgram (int programNum, int bank, juce::String &name)
	Returns the name for a midi program, if there is one.

virtual bool	hasNameForMidiBank (int bank, juce::String &name)

virtual bool	canBeAddedToClip ()

virtual bool	canBeAddedToRack ()

virtual bool	canBeAddedToFolderTrack ()

virtual bool	canBeAddedToMaster ()

virtual bool	canBeMoved ()

virtual bool	isMissing ()
	for things like VSTs where the DLL is missing.

virtual bool	isDisabled ()
	Plugins can be disabled to avoid them crashing Edits.

bool	isInRack () const

juce::ReferenceCountedObjectPtr< RackType >	getOwnerRackType () const

bool	isClipEffectPlugin () const

virtual juce::AudioProcessor *	getWrappedAudioProcessor () const

AutomatableParameter::Ptr	getQuickControlParameter () const

void	setQuickControlParameter (AutomatableParameter *)

virtual void	deleteFromParent ()
	Attempts to delete this plugin, whether it's a master plugin, track plugin, etc.

void	removeFromParent ()
	Detaches the plugin from any parent it might be in.

Track *	getOwnerTrack () const
	Returns the track if it's a track or clip plugin.

Clip *	getOwnerClip () const
	Returns the clip if that's what it's in.

PluginList *	getOwnerList () const

Ptr	findPluginThatFeedsIntoThis () const

Ptr	findPluginThatThisFeedsInto () const

void	changed () override
	method from Selectable, that's been overridden here to also tell the edit that it's changed.

juce::Array< ReferencedItem >	getReferencedItems () override

void	reassignReferencedItem (const ReferencedItem &, ProjectItemID newID, double newStartTime) override

virtual void	sourceMediaChanged ()
	Called when ProjectItem sources are re-assigned so you can reload from the new source.

bool	setPluginToMirror (const Plugin::Ptr &)

virtual void	updateFromMirroredPluginIfNeeded (Plugin &)

Plugin::Ptr	getMirroredPlugin () const

bool	baseClassNeedsInitialising () const noexcept

void	baseClassInitialise (const PluginInitialisationInfo &)

void	baseClassDeinitialise ()

void	setSidechainSourceID (EditItemID newID)

EditItemID	getSidechainSourceID () const

virtual std::unique_ptr< EditorComponent >	createEditor ()

void	showWindowExplicitly ()

void	hideWindowForShutdown ()

juce::UndoManager *	getUndoManager () const noexcept

Public Member Functions inherited from tracktion::engine::Selectable
virtual void	selectionStatusChanged (bool isNowSelected)
	Can be overridden to tell this object that it has just been selected or deselected.

void	addListener (SelectableListener *)

void	removeListener (SelectableListener *)

void	addSelectableListener (SelectableListener *)

void	removeSelectableListener (SelectableListener *)

void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.

void	deselect ()

void	propertiesChanged ()

void	notifyListenersOfDeletion ()

WeakRef	getWeakRef ()

Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept

void	decReferenceCount () noexcept

bool	decReferenceCountWithoutDeleting () noexcept

int	getReferenceCount () const noexcept

Public Member Functions inherited from tracktion::engine::AutomatableEditItem
	AutomatableEditItem (Edit &, const juce::ValueTree &)

juce::Array< AutomatableParameter * >	getAutomatableParameters () const

int	getNumAutomatableParameters () const

AutomatableParameter::Ptr	getAutomatableParameter (int index) const

AutomatableParameter::Ptr	getAutomatableParameterByID (const juce::String &paramID) const

void	visitAllAutomatableParams (const std::function< void(AutomatableParameter &)> &visit) const

void	deleteParameter (AutomatableParameter *)

void	deleteAutomatableParameters ()

int	indexOfAutomatableParameter (const AutomatableParameter::Ptr &) const

AutomatableParameterTree &	getParameterTree () const

juce::ReferenceCountedArray< AutomatableParameter >	getFlattenedParameterTree () const

void	addParameterListChangeListener (ParameterListChangeListener *)

void	removeParameterListChangeListener (ParameterListChangeListener *)

bool	isAutomationNeeded () const noexcept

void	setAutomatableParamPosition (TimePosition)

bool	isBeingActivelyPlayed () const

virtual void	updateAutomatableParamPosition (TimePosition)
	Updates all the auto params to their positions at this time.

void	updateParameterStreams (TimePosition)
	Updates all the parameter streams to their positions at this time.

void	updateActiveParameters ()
	Iterates all the parameters to find out which ones need to be automated.

void	resetRecordingStatus ()
	Marks the end of an automation recording stream.

Public Member Functions inherited from tracktion::engine::EditItem
	EditItem (EditItemID, Edit &)

Public Member Functions inherited from tracktion::engine::MacroParameterElement
	MacroParameterElement (Edit &, const juce::ValueTree &)
	Constructor.

virtual	~MacroParameterElement ()=default
	Destructor.

MacroParameterList *	getMacroParameterList ()
	If no parameters have been created, this may return nullptr.

MacroParameterList &	getMacroParameterListForWriting ()
	This ensures that the list has been created.

juce::ReferenceCountedArray< MacroParameter >	getMacroParameters () const

Static Public Member Functions
static juce::ValueTree	create ()

static const char *	getPluginName ()

Static Public Member Functions inherited from tracktion::engine::Plugin
static bool	areSelectedPluginsRackable (SelectionManager &)

static RackInstance *	wrapSelectedPluginsInRack (SelectionManager &)

static void	sortPlugins (Plugin::Array &)

static void	sortPlugins (std::vector< Plugin * > &)

Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()

static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.

Static Public Member Functions inherited from tracktion::engine::Exportable
static juce::Array< Exportable * >	addAllExportables (Edit &)
	Returns all the Exportables contained in an Edit.

Public Attributes
LevelMeasurer	measurer

juce::CachedValue< bool >	showMidiActivity

Public Attributes inherited from tracktion::engine::Plugin
std::unique_ptr< WindowState >	windowState

Engine &	engine

juce::ValueTree	state

Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference

Public Attributes inherited from tracktion::engine::AutomatableEditItem
juce::ValueTree	elementState

juce::CachedValue< bool >	remapOnTempoChange

Public Attributes inherited from tracktion::engine::EditItem
Edit &	edit

const EditItemID	itemID
	Every EditItem has an ID which is unique within the edit.

Public Attributes inherited from tracktion::engine::MacroParameterElement
Edit &	ownerEdit

juce::ValueTree	parentStateForList

Static Public Attributes
static const char *	xmlTypeName

Additional Inherited Members
Public Types inherited from tracktion::engine::Plugin
enum class	Type { allPlugins , folderTrackPlugins , effectPlugins }

using	Ptr = juce::ReferenceCountedObjectPtr< Plugin >

using	Array = juce::ReferenceCountedArray< Plugin >

Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Protected Member Functions inherited from tracktion::engine::Plugin
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeChanged () override

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override

void	valueTreeChildRemoved (juce::ValueTree &, juce::ValueTree &, int) override

void	valueTreeParentChanged (juce::ValueTree &) override

virtual void	processingChanged ()

AutomatableParameter *	addParam (const juce::String &paramID, const juce::String &name, juce::NormalisableRange< float > valueRange)

AutomatableParameter *	addParam (const juce::String &paramID, const juce::String &name, juce::NormalisableRange< float > valueRange, std::function< juce::String(float)> valueToStringFunction, std::function< float(const juce::String &)> stringToValueFunction)

Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept

	ReferenceCountedObject (ReferenceCountedObject &&) noexcept

ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept

ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept

void	resetReferenceCount () noexcept

Protected Member Functions inherited from tracktion::engine::AutomatableEditItem
virtual void	buildParameterTree () const

void	updateLastPlaybackTime ()

void	clearParameterList ()

void	addAutomatableParameter (const AutomatableParameter::Ptr &)

void	rebuildParameterTree ()

void	saveChangedParametersToState ()
	Saves the explicit value of any parameters that have deviated to the state.

void	restoreChangedParametersFromState ()
	Restores the value of any explicitly set parameters.

Protected Member Functions inherited from tracktion::engine::ValueTreeAllEventListener
void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override

void	valueTreeChildRemoved (juce::ValueTree &, juce::ValueTree &, int) override

void	valueTreeChildOrderChanged (juce::ValueTree &, int, int) override

void	valueTreeParentChanged (juce::ValueTree &) override

void	valueTreeRedirected (juce::ValueTree &) override

Static Protected Member Functions inherited from tracktion::engine::Plugin
static void	getLeftRightChannelNames (juce::StringArray ins, juce::StringArray outs)

static void	getLeftRightChannelNames (juce::StringArray *chans)

Protected Attributes inherited from tracktion::engine::Plugin
juce::CachedValue< AtomicWrapper< bool > >	enabled

juce::CachedValue< bool >	frozen

juce::CachedValue< bool >	processing

juce::CachedValue< juce::String >	quickParamName

juce::CachedValue< EditItemID >	masterPluginID

juce::CachedValue< EditItemID >	sidechainSourceID

double	sampleRate

int	blockSizeSamples

Detailed Description

Definition at line 14 of file tracktion_LevelMeter.h.

Constructor & Destructor Documentation

◆ LevelMeterPlugin()

tracktion::engine::LevelMeterPlugin::LevelMeterPlugin ( PluginCreationInfo info )

Definition at line 14 of file tracktion_LevelMeter.cpp.

◆ ~LevelMeterPlugin()

tracktion::engine::LevelMeterPlugin::~LevelMeterPlugin ( )

override

Definition at line 21 of file tracktion_LevelMeter.cpp.

Member Function Documentation

◆ applyToBuffer()

void tracktion::engine::LevelMeterPlugin::applyToBuffer ( const PluginRenderContext & )

overridevirtual

Process the next block of data.

The incoming buffer will have an unknown number of channels, and the plugin has to deal with them however it wants to.

The buffer should be resized to the number of output channels that the plugin wants to return (which should be the same or less than the number of output channel names it returns from getChannelNames() - never more than this).

Implements tracktion::engine::Plugin.

Definition at line 62 of file tracktion_LevelMeter.cpp.

◆ canBeDisabled()

bool tracktion::engine::LevelMeterPlugin::canBeDisabled ( )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 31 of file tracktion_LevelMeter.h.

◆ create()

juce::ValueTree tracktion::engine::LevelMeterPlugin::create ( )

static

Definition at line 26 of file tracktion_LevelMeter.cpp.

◆ deinitialise()

void tracktion::engine::LevelMeterPlugin::deinitialise ( )

overridevirtual

Called after play stops to release resources.

Don't call this directly or the initialise count will become out of sync.

See also: baseClassDeinitialise

Implements tracktion::engine::Plugin.

Definition at line 56 of file tracktion_LevelMeter.cpp.

◆ getName()

juce::String tracktion::engine::LevelMeterPlugin::getName ( ) const

overridevirtual

The name of the type, e.g.

"Compressor"

Implements tracktion::engine::Plugin.

Definition at line 27 of file tracktion_LevelMeter.h.

◆ getNumOutputChannelsGivenInputs()

int tracktion::engine::LevelMeterPlugin::getNumOutputChannelsGivenInputs ( int numInputChannels )

overridevirtual

This must return the number of output channels that the plugin will produce, given a number of input channels.

E.g. some might be able to do mono, so will return 1 if the input is 1, 2 if it is 2, etc.

The default impl just returns the number of items that getChannelNames() returns.

Reimplemented from tracktion::engine::Plugin.

Definition at line 35 of file tracktion_LevelMeter.h.

◆ getPluginName()

static const char * tracktion::engine::LevelMeterPlugin::getPluginName ( )

static

Definition at line 24 of file tracktion_LevelMeter.h.

◆ getPluginType()

juce::String tracktion::engine::LevelMeterPlugin::getPluginType ( )

overridevirtual

Implements tracktion::engine::Plugin.

Definition at line 28 of file tracktion_LevelMeter.h.

◆ getSelectableDescription()

juce::String tracktion::engine::LevelMeterPlugin::getSelectableDescription ( )

overridevirtual

Subclasses must return a description of what they are.

Implements tracktion::engine::Selectable.

Definition at line 37 of file tracktion_LevelMeter.h.

◆ getShortName()

juce::String tracktion::engine::LevelMeterPlugin::getShortName ( int )

overridevirtual

Reimplemented from tracktion::engine::Plugin.

Definition at line 29 of file tracktion_LevelMeter.h.

◆ getTooltip()

juce::String tracktion::engine::LevelMeterPlugin::getTooltip ( )

overridevirtual

default returns the name, others can return special stuff if needed

Reimplemented from tracktion::engine::Plugin.

Definition at line 30 of file tracktion_LevelMeter.h.

◆ initialise()

void tracktion::engine::LevelMeterPlugin::initialise ( const PluginInitialisationInfo & )

overridevirtual

Gives the plugin a chance to set itself up before being played.

This won't be called concurrently with the process thread.

The sample rate and the average block size - although the blocks won't always be the same, and may be bigger.

Don't call this directly or the initialise count will become out of sync.

See also: baseClassInitialise [[ message_thread ]]

Implements tracktion::engine::Plugin.

Definition at line 35 of file tracktion_LevelMeter.cpp.

◆ initialiseWithoutStopping()

void tracktion::engine::LevelMeterPlugin::initialiseWithoutStopping ( const PluginInitialisationInfo & )

overridevirtual

Tells the plugin that the audio graph has changed but the plugin isn't being re-initialised - i.e.

it's being re-used, maybe by being moved to a different track, etc. This can be called concurrently whilst the plugin is being processed so implementations of it must be thread safe. [[ message_thread ]]

Reimplemented from tracktion::engine::Plugin.

Definition at line 41 of file tracktion_LevelMeter.cpp.

◆ needsConstantBufferSize()

bool tracktion::engine::LevelMeterPlugin::needsConstantBufferSize ( )

overridevirtual

Implements tracktion::engine::Plugin.

Definition at line 32 of file tracktion_LevelMeter.h.

◆ restorePluginStateFromValueTree()

void tracktion::engine::LevelMeterPlugin::restorePluginStateFromValueTree ( const juce::ValueTree & v )

overridevirtual

Reimplemented from tracktion::engine::AutomatableEditItem.

Definition at line 90 of file tracktion_LevelMeter.cpp.

◆ shoulMeasureCpuUsage()

bool tracktion::engine::LevelMeterPlugin::shoulMeasureCpuUsage ( ) const

finalvirtualnoexcept

Plugins can return false if they want to avoid the overhead of measuring the CPU usage.

It's a small overhead but with many tracks, the level meters and vol/pan plugins can make a difference.

Reimplemented from tracktion::engine::Plugin.

Definition at line 33 of file tracktion_LevelMeter.h.

◆ timerCallback()

void tracktion::engine::LevelMeterPlugin::timerCallback ( )

overridevirtual

Implements juce::Timer.

Definition at line 76 of file tracktion_LevelMeter.cpp.

Member Data Documentation

◆ measurer

LevelMeasurer tracktion::engine::LevelMeterPlugin::measurer

Definition at line 47 of file tracktion_LevelMeter.h.

◆ showMidiActivity

juce::CachedValue<bool> tracktion::engine::LevelMeterPlugin::showMidiActivity

Definition at line 49 of file tracktion_LevelMeter.h.

◆ xmlTypeName

const char * tracktion::engine::LevelMeterPlugin::xmlTypeName

static

Definition at line 25 of file tracktion_LevelMeter.h.

The documentation for this class was generated from the following files:

tracktion_engine/plugins/internal/tracktion_LevelMeter.h
tracktion_engine/plugins/internal/tracktion_LevelMeter.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LevelMeterPlugin()

◆ ~LevelMeterPlugin()

Member Function Documentation

◆ applyToBuffer()

◆ canBeDisabled()

◆ create()

◆ deinitialise()

◆ getName()

◆ getNumOutputChannelsGivenInputs()

◆ getPluginName()

◆ getPluginType()

◆ getSelectableDescription()

◆ getShortName()

◆ getTooltip()

◆ initialise()

◆ initialiseWithoutStopping()

◆ needsConstantBufferSize()

◆ restorePluginStateFromValueTree()

◆ shoulMeasureCpuUsage()

◆ timerCallback()

Member Data Documentation

◆ measurer

◆ showMidiActivity

◆ xmlTypeName
