An audio clip that uses an audio file as its source. More...

#include "tracktion_WaveAudioClip.h"

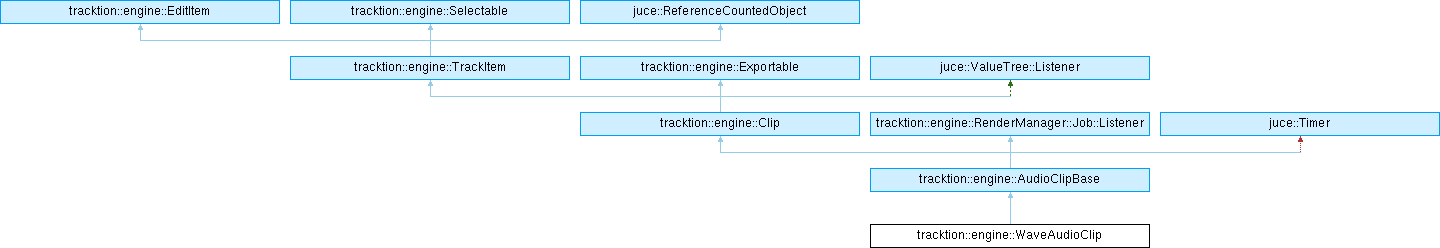

Inheritance diagram for tracktion::engine::WaveAudioClip:

Public Types
using	Ptr = juce::ReferenceCountedObjectPtr< WaveAudioClip >

Public Types inherited from tracktion::engine::AudioClipBase
enum	FadeBehaviour { gainFade , speedRamp }
	Describes the fade behaviour. More...

enum	AutoPitchMode { pitchTrack , chordTrackMono , chordTrackPoly }
	Defines the auto pitch mode. More...

enum class	ClipDirection { previous , next , none }
	Defines a prevous/next direction. More...

using	Ptr = juce::ReferenceCountedObjectPtr< AudioClipBase >

Public Types inherited from tracktion::engine::Clip
enum class	FollowActionDurationType { beats , loops }
	Defines the types of duration follow actions can use. More...

enum	SyncType { syncBarsBeats , syncAbsolute }
	Determines the clip sync type. More...

using	Ptr = juce::ReferenceCountedObjectPtr< Clip >

using	Array = juce::ReferenceCountedArray< Clip >

Public Types inherited from tracktion::engine::TrackItem
enum class	Type { unknown , wave , midi , edit , step , marker , pitch , timeSig , collection , video , recording , chord , arranger , container }
	Defines the types of item that can live on Track[s]. More...

Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Public Member Functions
	WaveAudioClip (const juce::ValueTree &, EditItemID, ClipOwner &)
	Creates a WaveAudioClip from a given state.

	~WaveAudioClip () override
	Destructor.

void	addTake (ProjectItemID)
	Adds a new take with the ProjectItemID as the source.

void	addTake (const juce::File &)
	Adds a new take with the given file as the source.

void	deleteAllUnusedTakes (bool deleteSourceFiles)
	Deletes all but the current takes.

void	deleteAllUnusedTakesConfirmingWithUser (bool deleteSourceFiles)
	Deletes all but the current takes but shows a confirmation dialog first.

WaveCompManager &	getCompManager ()
	Returns the WaveCompManager for this clip.

bool	needsRender () const override
	Subclasses should override this to return true if they need the rest of the render callbacks.

RenderManager::Job::Ptr	getRenderJob (const AudioFile &destFile) override
	Subclasses should override this to return a RenderJob suitable for rendering its source file.

juce::String	getRenderMessage () override
	Override this to return a custom message to be displayed over waveforms during rendering.

void	renderComplete () override
	Callback to indicate that the render has completed.

bool	isUsingFile (const AudioFile &) override
	Should return true if the clip is referencing the file in any way.

void	initialise () override
	Initialises the Clip.

void	cloneFrom (Clip *) override
	Clones the given clip to this clip.

juce::String	getSelectableDescription () override
	Subclasses must return a description of what they are.

bool	isMidi () const override
	Returns true if this is a MidiClip.

bool	usesSourceFile () const override
	True if it references a source file - i.e.

TimeDuration	getSourceLength () const override
	Must return the length in seconds of the source material e.g.

void	sourceMediaChanged () override
	Called when the source media file reference (attribute "source") has changed - i.e.

juce::File	getOriginalFile () const override
	Must return the file that the source ProjectItemID refers to.

HashCode	getHash () const override
	Must return a unique hash for this clip's source.

void	setLoopDefaults () override
	Override this to fill in the LoopInfo structure as best fits the source.

juce::StringArray	getTakeDescriptions () const override
	Returns the descriptions of any takes.

bool	hasAnyTakes () const override
	Returns true if this clip has any takes.

int	getNumTakes (bool includeComps) override
	Returns the total number of takes.

juce::Array< ProjectItemID >	getTakes () const override
	Returns the ProjectItemID of the clip's takes.

void	clearTakes () override
	Clears any takes this clip has.

int	getCurrentTake () const override
	Returns the current take index.

void	setCurrentTake (int takeIndex) override
	Sets a given take index to be the current take.

bool	isCurrentTakeComp () override
	Returns true if the current take is a comp.

Clip::Array	unpackTakes (bool toNewTracks) override
	Attempts to unpack the takes to new clips.

void	reassignReferencedItem (const ReferencedItem &, ProjectItemID newID, double newStartTime) override

Public Member Functions inherited from tracktion::engine::AudioClipBase
	AudioClipBase (const juce::ValueTree &, EditItemID, Type, ClipOwner &)
	Creates a basic AudioClip.

	~AudioClipBase () override
	Destructor.

TimeDuration	getMaximumLength () override
	Returns the maximum length for this clip.

virtual AudioFile	getAudioFile () const
	Returns the file used to play back the source and will get proxied etc.

AudioFile	getPlaybackFile ()
	Returns the current AudioFile being used by the Clip, either the original source or a proxy.

virtual AudioFileInfo	getWaveInfo ()
	Returns the WaveInfo for a clip.

void	markAsDirty ()
	Resets the dirty flag so that a new render will be attempted.

void	updateSourceFile ()
	Checks the current source file to see if it's up to date and then triggers a source render if needed.

virtual juce::String	getClipMessage ()
	Override this to return a custom message to display over the clip where the "file missing" text usually goes.

void	cancelCurrentRender ()
	If a render is in progress, this will cancel it.

void	setGainDB (float dB)
	Sets the gain of the clip in dB.

float	getGainDB () const noexcept
	Returns the gain of the clip in dB.

float	getGain () const noexcept
	Returns the gain of the clip.

void	setPan (float pan)
	Sets the pan of the clip.

float	getPan () const noexcept
	Returns the pan of the clip from -1 to 1.

void	setMuted (bool shouldBeMuted) override
	Mutes or unmutes the clip.

bool	isMuted () const override
	Returns true if the clip is muted.

LiveClipLevel	getLiveClipLevel ()
	Returns a LiveClipLevel which can be used to read the gain, pan and mute statuses.

void	setLeftChannelActive (bool)
	Enables the left channel of the clip.

bool	isLeftChannelActive () const
	Returns whether the left channel of the clip is enabled.

void	setRightChannelActive (bool)
	Enables the right channel of the clip.

bool	isRightChannelActive () const
	Returns whether the right channel of the clip is enabled.

juce::AudioChannelSet	getActiveChannels () const
	Returns the layout of the active channels.

bool	setFadeIn (TimeDuration length)
	Sets the fade in duration in seconds.

TimeDuration	getFadeIn () const
	Returns the fade in duration in seconds.

bool	setFadeOut (TimeDuration length)
	Sets the fade out duration in seconds.

TimeDuration	getFadeOut () const
	Returns the fade out duration in seconds.

void	setFadeInType (AudioFadeCurve::Type)
	Sets the curve shape for the fade in to use.

AudioFadeCurve::Type	getFadeInType () const
	Returns the curve shape for the fade in to use.

void	setFadeOutType (AudioFadeCurve::Type newType)
	Sets the curve shape for the fade out to use.

AudioFadeCurve::Type	getFadeOutType () const
	Returns the curve shape for the fade out to use.

void	setAutoCrossfade (bool shouldAutoCrossfade)
	Enables/disables auto-crossfading.

bool	getAutoCrossfade () const noexcept
	Returns whether auto-crossfade is enabled.

void	updateAutoCrossfadesAsync (bool updateOverlapped)
	Triggers an update of the auto-crossfades.

void	applyEdgeFades ()
	Sets the fade in/out lengths to be 0.03s to avoid any clicks at the start/end of th clip.

void	copyFadeToAutomation (bool fadeIn, bool removeClipFade)
	Copies the fade in curve to a volume automation curve.

void	setFadeInBehaviour (FadeBehaviour newBehaviour)
	Sets the fade in behaviour.

FadeBehaviour	getFadeInBehaviour () const
	Returns the fade in behaviour.

void	setFadeOutBehaviour (FadeBehaviour newBehaviour)
	Sets the fade out behaviour.

FadeBehaviour	getFadeOutBehaviour () const
	Returns the fade out behaviour.

void	setLoopInfo (const LoopInfo &)
	Sets a LoopInfo to describe this clip's tempo, time sig etc.

const LoopInfo &	getLoopInfo () const
	Returns the LoopInfo being used to describe this clip.

LoopInfo &	getLoopInfo ()
	Returns the LoopInfo being used to describe this clip.

TimeRange	getLoopRange () const
	Returns the loop range in seconds.

bool	canLoop () const override
	Returns true if this clip is capable of looping.

bool	isLooping () const override
	Returns true if this clip is currently looping.

bool	beatBasedLooping () const override
	Returns true if this clip's looping is based on beats or false if absolute time.

void	setNumberOfLoops (int num) override
	Sets the clip looping a number of times.

void	disableLooping () override
	Disables all looping.

BeatPosition	getLoopStartBeats () const override
	Returns the beat position of the loop start point.

TimePosition	getLoopStart () const override
	Returns the start time of the loop start point.

BeatDuration	getLoopLengthBeats () const override
	Returns the length of loop in beats.

TimeDuration	getLoopLength () const override
	Returns the length of loop in seconds.

void	setLoopRange (TimeRange) override
	Sets the loop range the clip should use in seconds.

void	setLoopRangeBeats (BeatRange) override
	Sets the loop range the clip should use in beats.

void	setAutoDetectBeats (bool)
	Enables auto-detection of beats.

bool	getAutoDetectBeats () const
	Returns true if auto-detect of beats is enabled.

void	setBeatSensitivity (float s)
	Sets the beat sensitivity, triggering a LoopInfo update if auto-detect is enabled.

float	getBeatSensitivity () const
	Returns the beat sensitivity.

void	pitchTempoTrackChanged () override
	Called when there are pitch or tempo changes made which might require clips to adjust timing information.

void	setSpeedRatio (double newSpeed) override
	Sets a speed ratio i.e.

void	setTimeStretchMode (TimeStretcher::Mode mode)
	Sets a time-stretch mode to use.

TimeStretcher::Mode	getTimeStretchMode () const noexcept
	Returns the time-stretch mode that has been set.

TimeStretcher::Mode	getActualTimeStretchMode () const noexcept
	Returns the time-stretch mode that is in use.

void	setAutoTempo (bool shouldUseAutoTempo)
	Enables/disables auto-tempo.

bool	getAutoTempo () const
	Returns true if auto-tempo has been set.

void	setAutoPitch (bool shouldUseAutoPitch)
	Enables/disables auto-pitch.

bool	getAutoPitch () const
	Returns true if auto-pitch has been set.

void	setAutoPitchMode (AutoPitchMode m)
	Sets the AutoPitchMode to use.

AutoPitchMode	getAutoPitchMode ()
	Returns the AutoPitchMode in use.

void	setWarpTime (bool shouldUseWarpTime)
	Enables/disables warp time.

bool	getWarpTime () const
	Returns true if warp time is enabled.

WarpTimeManager &	getWarpTimeManager () const
	Returns the WarpTimeManager for this clip used to maipluate warp markers.

void	setTranspose (int numSemitones)
	Sets the number of semitones to transpose the clip by.

int	getTransposeSemiTones (bool includeAutoPitch) const
	Returns the number of semitones this clip will be changed by.

void	setPitchChange (float semitones)
	Sets the number of semitones to transpose the clip by.

float	getPitchChange () const
	Returns the number of semitones to transpose the clip by.

float	getPitchRatio () const
	Returns the pitch change as a normalised ratio.

void	setIsReversed (bool shouldBeReversed)
	Enables reversing of the clip's source material.

bool	getIsReversed () const noexcept
	Returns true if the clip's source material is reversed.

LoopInfo	autoDetectBeatMarkers (const LoopInfo &current, bool autoBeat, float sensitivity) const
	Scans the current source file for any beats and adds them to the LoopInfo returned.

bool	performTempoDetect ()
	Performs a tempo-detection task and if successful sets the clip's LoopInfo tempo to this.

juce::StringArray	getPitchChoices ()
	Returns an array describng what pitch each semitone change will be.

virtual bool	canHaveEffects () const
	Returns true if this clip can have ClipEffects added to it.

void	enableEffects (bool enable, bool warn)
	Enables/disables ClipEffects for this clip.

bool	effectsEnabled () const
	Returns true if ClipEffects are enabled.

void	addEffect (const juce::ValueTree &effectsTree)
	Adds a ClipEffect to this clip.

void	setEffectsVisible (bool b)
	Sets the effectsVisible flag for this clip.

bool	getEffectsVisible () const
	Returns true if the effectsVisible flag is set for this clip.

ClipEffects *	getClipEffects () const noexcept
	Returns the ClipEffects for this clip if it has been enabled.

bool	canSnapToOriginalBWavTime ()
	Returns true if source file has a bwav time reference metadata property.

void	snapToOriginalBWavTime ()
	Moves the clip to the bwav time reference metadata property time.

juce::String	canAddClipPlugin (const Plugin::Ptr &) const
	Returns an empty string if this plugin can be added, otherwise an error message due to the clip plugin being an incorrect type (e.g.

AudioFile	getProxyFileToCreate (bool renderTimestretched)
	Returns the AudioFile to create to play this clip back.

void	setUsesProxy (bool canUseProxy) noexcept
	Can be used to disable proxy file generation for this clip.

bool	canUseProxy () const noexcept
	Retuns true if this clip can use a proxy file.

bool	usesTimeStretchedProxy () const
	Retuns true if this clip use a proxy file due to timestretching.

std::unique_ptr< ProxyRenderingInfo >	createProxyRenderingInfo ()
	Creates a ProxyRenderingInfo object to decribe the stretch segements of this clip.

HashCode	getProxyHash ()
	Returns a hash identifying the proxy settings.

void	beginRenderingNewProxyIfNeeded ()
	Triggers creation of a new proxy file if one is required.

const AudioSegmentList &	getAudioSegmentList ()
	Returns an AudioSegmentList describing this file if it is using auto-tempo.

void	setResamplingQuality (ResamplingQuality)
	Sets the resampling qulity to use.

ResamplingQuality	getResamplingQuality () const
	Returns the resampling quality to the be used.

void	reverseLoopPoints ()
	Reverses the loop points to expose the same section of the source file but reversed.

void	checkFadeLengthsForOverrun ()
	Trims the fade in out lengths to avoid any overlap between them.

AudioClipBase *	getOverlappingClip (ClipDirection) const
	Returns the previous/next overlapping clip if one exists.

bool	isUsingMelodyne () const
	Returns true if this clip is using Melodyne.

void	showMelodyneWindow ()
	Shows the Melodyne window if this clip is using Melodyne.

void	hideMelodyneWindow ()
	Hides the Melodyne window if this clip is using Melodyne.

void	melodyneConvertToMIDI ()
	If this clip is using Melodyne, this will create a new MIDI clip based on the Melodyne analysis.

void	loadMelodyneState ()

bool	setupARA (bool dontPopupErrorMessages)
	This internal method is used solely to find out if createAudioNode() should return nullptr or not.

void	flushStateToValueTree () override
	Can be overridden to ensure any state (e.g.

void	setParent (ClipOwner *) override

bool	canBeAddedTo (ClipOwner &) override
	Tests whether this clip can go on the given parent.

void	changed () override
	This should be called to send a change notification to any SelectableListeners that are registered with this object.

juce::Colour	getDefaultColour () const override
	Returns the default colour for this clip.

PatternGenerator *	getPatternGenerator () override
	Returns the PatternGenerator for this clip if it has one.

void	addMark (TimePosition relCursorPos)

void	moveMarkTo (TimePosition relCursorPos)

void	deleteMark (TimePosition relCursorPos)

void	getRescaledMarkPoints (juce::Array< TimePosition > &rescaled, juce::Array< int > &orig) const

juce::Array< TimePosition >	getRescaledMarkPoints () const override
	Returns the mark points relative to the start of the clip, rescaled to the current speed.

juce::Array< ReferencedItem >	getReferencedItems () override

std::shared_ptr< LaunchHandle >	getLaunchHandle () override
	Some clip types can be launched, if that's possible, this returns a handle to trigger starting/stopping the clip.

void	setUsesGlobalLaunchQuatisation (bool useGlobal) override
	Some clip types can be launched, if that's possible, this sets whether the clip's quantisation or the global quantisation should be used.

bool	usesGlobalLaunchQuatisation () override
	Some clip types can be launched, if that's possible, this returns whether the clip's quantisation or the global quantisation should be used.

LaunchQuantisation *	getLaunchQuantisation () override
	Some clip types can be launched, if that's possible, this returns a quantisation that can be used for this clip.

FollowActions *	getFollowActions () override
	Some clip types can be launched, if that's possible, this can be used to determine the action to perform after a clip has played.

bool	addClipPlugin (const Plugin::Ptr &, SelectionManager &) override
	Adds a plugin to the clip.

Plugin::Array	getAllPlugins () override
	Returns all the plugins on the clip.

void	sendMirrorUpdateToAllPlugins (Plugin &) const override
	Sends an update to all plugins mirroing the one passed in.

PluginList *	getPluginList () override
	Returns the PluginList for this clip if it has one.

Public Member Functions inherited from tracktion::engine::Clip
	Clip (const juce::ValueTree &, ClipOwner &, EditItemID, Type)
	Creates a clip of a given type from a ValueTree state.

	~Clip () override
	Destructor.

virtual juce::String	getName () const override
	Returns the name of the clip.

void	setName (const juce::String &newName)
	Sets a new name for a clip.

SourceFileReference &	getSourceFileReference ()
	Returns the SourceFileReference of the Clip.

juce::File	getCurrentSourceFile () const
	Returns the current source file, this is different to the SourceFileReference as it could be a temporary comp file, clipFX, reverse render etc.

juce::Array< ReferencedItem >	getReferencedItems () override
	Returns an array of any ReferencedItem[s] e.g.

ClipPosition	getPosition () const override
	Returns the ClipPosition on the parent Track.

BeatPosition	getContentBeatAtTime (TimePosition) const
	Returns the beat number (with offset) at the given time.

TimePosition	getTimeOfContentBeat (BeatPosition) const
	Returns time of a beat number.

virtual juce::Array< TimePosition >	getInterestingTimes ()
	Returns times for snapping to, relative to the Edit.

TimePosition	getSpottingPoint () const
	Returns the first marked time in the source file which can be used for syncronising newly added clips.

TimeRange	getLoopRange () const
	Returns the loop range in seconds.

BeatRange	getLoopRangeBeats () const
	Returns the loop range in beats.

virtual void	setSyncType (SyncType sync)
	Sets the sync type for the clip.

SyncType	getSyncType () const
	Returns the sync type clip is using.

void	setPosition (ClipPosition newPosition)
	Sets the position of the clip.

void	setStart (TimePosition newStart, bool preserveSync, bool keepLength)
	Sets the start time of the clip.

void	setLength (TimeDuration newLength, bool preserveSync)
	Sets the length of the clip.

void	setEnd (TimePosition newEnd, bool preserveSync)
	Sets the end of the clip.

void	setOffset (TimeDuration newOffset)
	Sets the offset of the clip, i.e.

void	trimAwayOverlap (TimeRange editRangeToTrim)
	Trims away any part of the clip that overlaps this region.

void	removeFromParent ()
	Removes this clip from the parent track or container clip.

bool	moveTo (ClipOwner &)
	Moves the clip to a new parent (if possible).

double	getSpeedRatio () const noexcept
	Returns the speed ratio i.e.

virtual void	rescale (TimePosition pivotTimeInEdit, double factor)
	stretches and scales this clip relative to a fixed point in the edit.

bool	isGrouped () const override
	Returns true if the clip is part of a group.

TrackItem *	getGroupParent () const override
	Returns the parent TrackItem if part of a group.

void	setGroup (EditItemID newGroupID)
	Sets the clip to be part of a group.

EditItemID	getGroupID () const noexcept
	Returns the ID of the group.

CollectionClip *	getGroupClip () const
	Returns this as a CollectionClip if it is one.

bool	isLinked () const
	Returns true if this clip is linked with any others.

void	setLinkGroupID (juce::String newLinkID)
	Sets the link ID to link this clip with others.

juce::String	getLinkGroupID () const
	Returns the link ID of this clip.

ClipOwner *	getParent () const
	Returns the parent ClipOwner this clip is on.

ClipTrack *	getClipTrack () const
	Returns the parent ClipTrack this clip is on (if any).

Track *	getTrack () const override
	Returns the parent Track this clip is on (if any).

ClipSlot *	getClipSlot () const
	Returns the parent ClipSlot this clip is on (if any).

virtual juce::Colour	getColour () const
	Returns the colour property of this clip.

void	setColour (juce::Colour col)
	Sets the colour property of this clip.

virtual void	removePlugin (const Plugin::Ptr &)
	Removes the given plugin from the clip if the clip supports plugins.

virtual void	setShowingTakes (bool shouldShow)
	Sets whether the clip should be showing takes.

virtual bool	isShowingTakes () const
	Returns true if the clip is showing takes.

void	updateLinkedClips ()
	Triggers a call to cloneFrom for all clips with the same linkID.

void	addListener (Listener *)
	Adds a Listener.

void	removeListener (Listener *)
	Removes a Listener.

juce::ListenerList< Listener > &	getListeners ()
	Returns the listener list so Nodes can manually call them.

void	changed () override
	This should be called to send a change notification to any SelectableListeners that are registered with this object.

juce::UndoManager *	getUndoManager () const
	Returns the UndoManager.

Public Member Functions inherited from tracktion::engine::TrackItem
	TrackItem (Edit &, EditItemID, Type)
	Creates a TrackItem with an ID and type.

	~TrackItem ()
	Destructor.

TimeRange	getEditTimeRange () const
	Returns the time range of this item.

BeatRange	getEditBeatRange () const
	Returns the beat range of this item.

BeatPosition	getStartBeat () const
	Returns the start beat in the Edit of this item.

BeatPosition	getContentStartBeat () const
	Returns the start beat of the content in the Edit of this item.

BeatPosition	getEndBeat () const
	Returns the end beat in the Edit of this item.

BeatDuration	getLengthInBeats () const
	Returns the duration in beats the of this item.

TimePosition	getTimeOfRelativeBeat (BeatDuration) const
	Returns an Edit time point for a given number of beats from the start of this item.

BeatPosition	getBeatOfRelativeTime (TimeDuration) const
	Returns an Edit beat point for a given number of seconds from the start of this item.

BeatDuration	getOffsetInBeats () const
	Returns an the offset of this item in beats.

EditItemID	getTrackID () const
	Returns the ID of the Track this item lives on.

Public Member Functions inherited from tracktion::engine::EditItem
	EditItem (EditItemID, Edit &)

Public Member Functions inherited from tracktion::engine::Selectable
virtual void	selectionStatusChanged (bool isNowSelected)
	Can be overridden to tell this object that it has just been selected or deselected.

virtual void	selectableAboutToBeDeleted ()
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

void	addListener (SelectableListener *)

void	removeListener (SelectableListener *)

void	addSelectableListener (SelectableListener *)

void	removeSelectableListener (SelectableListener *)

void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.

void	deselect ()

void	propertiesChanged ()

void	notifyListenersOfDeletion ()

WeakRef	getWeakRef ()

Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept

void	decReferenceCount () noexcept

bool	decReferenceCountWithoutDeleting () noexcept

int	getReferenceCount () const noexcept

Public Member Functions inherited from tracktion::engine::RenderManager::Job::Listener
virtual void	jobStarted (RenderManager::Job &)

Additional Inherited Members
Static Public Member Functions inherited from tracktion::engine::AudioClipBase
static juce::StringArray	getRootNoteChoices (Engine &)
	Returns an array of the root note choices e.g.

Static Public Member Functions inherited from tracktion::engine::Clip
static bool	isClipState (const juce::ValueTree &)
	Checks whether a ValueTree is some kind of clip state.

static bool	isClipState (const juce::Identifier &)
	Checks whether a ValueTree type is some kind of clip state.

static Ptr	createClipForState (const juce::ValueTree &, ClipOwner &targetParent)
	Creates a clip for a given ValueTree representation.

Static Public Member Functions inherited from tracktion::engine::TrackItem
static const char *	typeToString (Type)
	Returns the string version of a TrackItem::Type.

static juce::Identifier	clipTypeToXMLType (Type)
	Returns an Identifier version of a TrackItem::Type.

static TrackItem::Type	xmlTagToType (juce::StringRef)
	Returns the TrackItem::Type of a type string.

static TrackItem::Type	stringToType (const juce::String &)
	Returns the TrackItem::Type of a type string.

static juce::String	getSuggestedNameForNewItem (Type)
	Returns a text string for a new clip of the given type.

template<typename ArrayType >
static void	sortByTime (ArrayType &items)
	Helper function to sort an array of TrackItem[s] by their start time.

template<typename ArrayType >
static void	stableSortByTime (ArrayType &items)
	Helper function to sort an array of TrackItem[s] by their start time without changing the order of items at the same time.

Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()

static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.

Static Public Member Functions inherited from tracktion::engine::Exportable
static juce::Array< Exportable * >	addAllExportables (Edit &)
	Returns all the Exportables contained in an Edit.

Public Attributes inherited from tracktion::engine::AudioClipBase
juce::ReferenceCountedObjectPtr< MelodyneFileReader >	melodyneProxy
	The MelodyneFileReader proxy if this clip is using Melodyne.

juce::CachedValue< TimeStretcher::ElastiqueProOptions >	elastiqueProOptions
	The ElastiqueProOptions for fine tuning Elastique (if available).

Public Attributes inherited from tracktion::engine::Clip
juce::CachedValue< FollowActionDurationType >	followActionDurationType
	The type of duration to use for when to trigger the follow action.

juce::CachedValue< BeatDuration >	followActionBeats
	Determines the time for which a launched clip will play before a follow action is taken.

juce::CachedValue< double >	followActionNumLoops
	Determines the number of loops for which a launched clip will play before a follow action is taken.

juce::ValueTree	state
	The ValueTree of the Clip state.

juce::CachedValue< juce::Colour >	colour
	The colour property.

juce::CachedValue< bool >	disabled
	Whether the Clip is disabled or not.

Public Attributes inherited from tracktion::engine::TrackItem
const Type	type
	The type of this item.

Public Attributes inherited from tracktion::engine::EditItem
Edit &	edit

const EditItemID	itemID
	Every EditItem has an ID which is unique within the edit.

Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference

Protected Member Functions inherited from tracktion::engine::AudioClipBase
void	updateLeftRightChannelActivenessFlags ()

void	createNewProxyAsync ()
	Triggers a source or proxy render after a timeout.

void	valueTreeParentChanged (juce::ValueTree &) override

Protected Member Functions inherited from tracktion::engine::Clip
void	setCurrentSourceFile (const juce::File &)
	Sets a new source file for this clip.

void	valueTreeParentChanged (juce::ValueTree &) override

Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept

	ReferenceCountedObject (ReferenceCountedObject &&) noexcept

ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept

ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept

void	resetReferenceCount () noexcept

Protected Member Functions inherited from juce::ValueTree::Listener
virtual void	valueTreeRedirected (ValueTree &treeWhichHasBeenChanged)

Protected Attributes inherited from tracktion::engine::AudioClipBase
std::shared_ptr< ClipLevel >	level

juce::CachedValue< juce::String >	channels

juce::CachedValue< TimeDuration >	fadeIn

juce::CachedValue< TimeDuration >	fadeOut

TimeDuration	autoFadeIn

TimeDuration	autoFadeOut

juce::CachedValue< AudioFadeCurve::Type >	fadeInType

juce::CachedValue< AudioFadeCurve::Type >	fadeOutType

juce::CachedValue< bool >	autoCrossfade

juce::CachedValue< FadeBehaviour >	fadeInBehaviour

juce::CachedValue< FadeBehaviour >	fadeOutBehaviour

juce::CachedValue< ResamplingQuality >	resamplingQuality

juce::CachedValue< TimePosition >	loopStart

juce::CachedValue< TimeDuration >	loopLength

juce::CachedValue< BeatPosition >	loopStartBeats

juce::CachedValue< BeatDuration >	loopLengthBeats

juce::CachedValue< int >	proxyAllowed

juce::CachedValue< int >	transpose

juce::CachedValue< float >	pitchChange

LoopInfo	loopInfo

juce::CachedValue< float >	beatSensitivity

juce::CachedValue< TimeStretcher::Mode >	timeStretchMode

juce::CachedValue< bool >	autoPitch

juce::CachedValue< bool >	autoTempo

juce::CachedValue< bool >	isReversed

juce::CachedValue< bool >	autoDetectBeats

juce::CachedValue< bool >	warpTime

juce::CachedValue< bool >	clipEffectsVisible

juce::CachedValue< AutoPitchMode >	autoPitchMode

WarpTimeManager::Ptr	warpTimeManager

std::unique_ptr< AudioSegmentList >	audioSegmentList

std::unique_ptr< ClipEffects >	clipEffects

AsyncFunctionCaller	asyncFunctionCaller

juce::AudioChannelSet	activeChannels

PluginList	pluginList

bool	lastRenderJobFailed

RenderManager::Job::Ptr	renderJob

AudioFile	lastProxy

Protected Attributes inherited from tracktion::engine::Clip
bool	isInitialised

bool	cloneInProgress

juce::CachedValue< juce::String >	clipName

ClipOwner *	parent

juce::CachedValue< TimePosition >	clipStart

juce::CachedValue< TimeDuration >	length

juce::CachedValue< TimeDuration >	offset

juce::CachedValue< double >	speedRatio

SourceFileReference	sourceFileReference

juce::CachedValue< EditItemID >	groupID

juce::CachedValue< juce::String >	linkID

juce::File	currentSourceFile

juce::CachedValue< SyncType >	syncType

juce::CachedValue< bool >	showingTakes

std::unique_ptr< PatternGenerator >	patternGenerator

AsyncCaller	updateLinkedClipsCaller

juce::ListenerList< Listener >	listeners

Detailed Description

An audio clip that uses an audio file as its source.

Definition at line 18 of file tracktion_WaveAudioClip.h.

Member Typedef Documentation

◆ Ptr

using tracktion::engine::WaveAudioClip::Ptr = juce::ReferenceCountedObjectPtr<WaveAudioClip>

Definition at line 27 of file tracktion_WaveAudioClip.h.

Constructor & Destructor Documentation

◆ WaveAudioClip()

tracktion::engine::WaveAudioClip::WaveAudioClip	(	const juce::ValueTree &	v,
		EditItemID	clipID,
		ClipOwner &	co
	)

Creates a WaveAudioClip from a given state.

See also: ClipTrack::insertWaveClip.

Definition at line 14 of file tracktion_WaveAudioClip.cpp.

◆ ~WaveAudioClip()

tracktion::engine::WaveAudioClip::~WaveAudioClip ( )

override

Destructor.

Definition at line 19 of file tracktion_WaveAudioClip.cpp.

Member Function Documentation

◆ addTake() [1/2]

void tracktion::engine::WaveAudioClip::addTake ( const juce::File & f )

Adds a new take with the given file as the source.

Definition at line 177 of file tracktion_WaveAudioClip.cpp.

◆ addTake() [2/2]

void tracktion::engine::WaveAudioClip::addTake ( ProjectItemID id )

Adds a new take with the ProjectItemID as the source.

Definition at line 167 of file tracktion_WaveAudioClip.cpp.

◆ clearTakes()

void tracktion::engine::WaveAudioClip::clearTakes ( )

overridevirtual

Clears any takes this clip has.

Reimplemented from tracktion::engine::Clip.

Definition at line 213 of file tracktion_WaveAudioClip.cpp.

◆ cloneFrom()

void tracktion::engine::WaveAudioClip::cloneFrom ( Clip * c )

overridevirtual

Clones the given clip to this clip.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 37 of file tracktion_WaveAudioClip.cpp.

◆ deleteAllUnusedTakes()

void tracktion::engine::WaveAudioClip::deleteAllUnusedTakes ( bool deleteSourceFiles )

Deletes all but the current takes.

Parameters

deleteSourceFiles If true, also deletes the source files

Definition at line 414 of file tracktion_WaveAudioClip.cpp.

◆ deleteAllUnusedTakesConfirmingWithUser()

void tracktion::engine::WaveAudioClip::deleteAllUnusedTakesConfirmingWithUser ( bool deleteSourceFiles )

Deletes all but the current takes but shows a confirmation dialog first.

Parameters

deleteSourceFiles If true, also deletes the source files

Definition at line 341 of file tracktion_WaveAudioClip.cpp.

◆ getCompManager()

WaveCompManager & tracktion::engine::WaveAudioClip::getCompManager ( )

Returns the WaveCompManager for this clip.

Definition at line 508 of file tracktion_WaveAudioClip.cpp.

◆ getCurrentTake()

int tracktion::engine::WaveAudioClip::getCurrentTake ( ) const

overridevirtual

Returns the current take index.

Reimplemented from tracktion::engine::Clip.

Definition at line 223 of file tracktion_WaveAudioClip.cpp.

◆ getHash()

HashCode tracktion::engine::WaveAudioClip::getHash ( ) const

overridevirtual

Must return a unique hash for this clip's source.

This should be the same until the clip changes as it is used to determine if the proxy needs regenerating.

Implements tracktion::engine::AudioClipBase.

Definition at line 100 of file tracktion_WaveAudioClip.cpp.

◆ getNumTakes()

int tracktion::engine::WaveAudioClip::getNumTakes ( bool )

overridevirtual

Returns the total number of takes.

Parameters

includeComps Whether comps should be included in the count

Reimplemented from tracktion::engine::Clip.

Definition at line 192 of file tracktion_WaveAudioClip.cpp.

◆ getOriginalFile()

juce::File tracktion::engine::WaveAudioClip::getOriginalFile ( ) const

overridevirtual

Must return the file that the source ProjectItemID refers to.

Implements tracktion::engine::AudioClipBase.

Definition at line 85 of file tracktion_WaveAudioClip.cpp.

◆ getRenderJob()

RenderManager::Job::Ptr tracktion::engine::WaveAudioClip::getRenderJob ( const AudioFile & )

overridevirtual

Subclasses should override this to return a RenderJob suitable for rendering its source file.

Note that because we can only render one source this should also check to see if the source should be reversed and do so accordingly. This will be called on the message thread so should complete quickly, if your source needs some time consuming setup (e.g. loading Edits) then make sure your render job does this in its render thread.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 528 of file tracktion_WaveAudioClip.cpp.

◆ getRenderMessage()

juce::String tracktion::engine::WaveAudioClip::getRenderMessage ( )

overridevirtual

Override this to return a custom message to be displayed over waveforms during rendering.

This is called periodically once a render has started. Once you are done, this should return an empty string to let the AudioStripBase know to stop updating.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 560 of file tracktion_WaveAudioClip.cpp.

◆ getSelectableDescription()

juce::String tracktion::engine::WaveAudioClip::getSelectableDescription ( )

overridevirtual

Subclasses must return a description of what they are.

Implements tracktion::engine::Selectable.

Definition at line 50 of file tracktion_WaveAudioClip.cpp.

◆ getSourceLength()

TimeDuration tracktion::engine::WaveAudioClip::getSourceLength ( ) const

overridevirtual

Must return the length in seconds of the source material e.g.

the length of the audio file or edit.

Implements tracktion::engine::AudioClipBase.

Definition at line 55 of file tracktion_WaveAudioClip.cpp.

◆ getTakeDescriptions()

juce::StringArray tracktion::engine::WaveAudioClip::getTakeDescriptions ( ) const

overridevirtual

Returns the descriptions of any takes.

Reimplemented from tracktion::engine::Clip.

Definition at line 314 of file tracktion_WaveAudioClip.cpp.

◆ getTakes()

juce::Array< ProjectItemID > tracktion::engine::WaveAudioClip::getTakes ( ) const

overridevirtual

Returns the ProjectItemID of the clip's takes.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 200 of file tracktion_WaveAudioClip.cpp.

◆ hasAnyTakes()

bool tracktion::engine::WaveAudioClip::hasAnyTakes ( ) const

overridevirtual

Returns true if this clip has any takes.

Reimplemented from tracktion::engine::Clip.

Definition at line 94 of file tracktion_WaveAudioClip.h.

◆ initialise()

void tracktion::engine::WaveAudioClip::initialise ( )

overridevirtual

Initialises the Clip.

Called once automatically after construction.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 25 of file tracktion_WaveAudioClip.cpp.

◆ isCurrentTakeComp()

bool tracktion::engine::WaveAudioClip::isCurrentTakeComp ( )

overridevirtual

Returns true if the current take is a comp.

Reimplemented from tracktion::engine::Clip.

Definition at line 306 of file tracktion_WaveAudioClip.cpp.

◆ isMidi()

bool tracktion::engine::WaveAudioClip::isMidi ( ) const

overridevirtual

Returns true if this is a MidiClip.

Implements tracktion::engine::Clip.

Definition at line 73 of file tracktion_WaveAudioClip.h.

◆ isUsingFile()

bool tracktion::engine::WaveAudioClip::isUsingFile ( const AudioFile & af )

overridevirtual

Should return true if the clip is referencing the file in any way.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 577 of file tracktion_WaveAudioClip.cpp.

◆ needsRender()

bool tracktion::engine::WaveAudioClip::needsRender ( ) const

overridevirtual

Subclasses should override this to return true if they need the rest of the render callbacks.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 93 of file tracktion_WaveAudioClip.cpp.

◆ reassignReferencedItem()

void tracktion::engine::WaveAudioClip::reassignReferencedItem	(	const ReferencedItem &	item,
		ProjectItemID	newID,
		double	newStartTime
	)

overridevirtual

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 129 of file tracktion_WaveAudioClip.cpp.

◆ renderComplete()

void tracktion::engine::WaveAudioClip::renderComplete ( )

overridevirtual

Callback to indicate that the render has completed.

If you override this, make sure to call the base class implementation first.

Reimplemented from tracktion::engine::AudioClipBase.

Definition at line 108 of file tracktion_WaveAudioClip.cpp.

◆ setCurrentTake()

void tracktion::engine::WaveAudioClip::setCurrentTake ( int )

overridevirtual

Sets a given take index to be the current take.

Reimplemented from tracktion::engine::Clip.

Definition at line 283 of file tracktion_WaveAudioClip.cpp.

◆ setLoopDefaults()

void tracktion::engine::WaveAudioClip::setLoopDefaults ( )

overridevirtual

Override this to fill in the LoopInfo structure as best fits the source.

Implements tracktion::engine::AudioClipBase.

Definition at line 114 of file tracktion_WaveAudioClip.cpp.

◆ sourceMediaChanged()

void tracktion::engine::WaveAudioClip::sourceMediaChanged ( )

overridevirtual

Called when the source media file reference (attribute "source") has changed - i.e.

when the clip has a new ProjectItemID assigned, not when the file itself changes.

Reimplemented from tracktion::engine::Clip.

Definition at line 71 of file tracktion_WaveAudioClip.cpp.

◆ unpackTakes()

Clip::Array tracktion::engine::WaveAudioClip::unpackTakes ( bool )

overridevirtual

Attempts to unpack the takes to new clips.

Parameters

toNewTracks If true this will create new tracks for the new clips, otherwise they'll be placed on existing tracks

Reimplemented from tracktion::engine::Clip.

Definition at line 462 of file tracktion_WaveAudioClip.cpp.

◆ usesSourceFile()

bool tracktion::engine::WaveAudioClip::usesSourceFile ( ) const

overridevirtual

True if it references a source file - i.e.

audio clips do, midi doesn't.

Reimplemented from tracktion::engine::Clip.

Definition at line 75 of file tracktion_WaveAudioClip.h.

The documentation for this class was generated from the following files:

tracktion_engine/model/clips/tracktion_WaveAudioClip.h
tracktion_engine/model/clips/tracktion_WaveAudioClip.cpp

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Ptr

Constructor & Destructor Documentation

◆ WaveAudioClip()

◆ ~WaveAudioClip()

Member Function Documentation

◆ addTake() [1/2]

◆ addTake() [2/2]

◆ clearTakes()

◆ cloneFrom()

◆ deleteAllUnusedTakes()

◆ deleteAllUnusedTakesConfirmingWithUser()

◆ getCompManager()

◆ getCurrentTake()

◆ getHash()

◆ getNumTakes()

◆ getOriginalFile()

◆ getRenderJob()

◆ getRenderMessage()

◆ getSelectableDescription()

◆ getSourceLength()

◆ getTakeDescriptions()

◆ getTakes()

◆ hasAnyTakes()

◆ initialise()

◆ isCurrentTakeComp()

◆ isMidi()

◆ isUsingFile()

◆ needsRender()

◆ reassignReferencedItem()

◆ renderComplete()

◆ setCurrentTake()

◆ setLoopDefaults()

◆ sourceMediaChanged()

◆ unpackTakes()

◆ usesSourceFile()
