specialised AutomatableParameter for wet/dry. More...

#include "tracktion_ExternalPlugin.h"

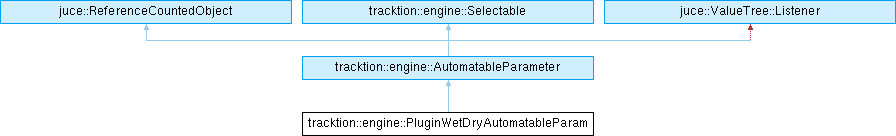

Inheritance diagram for tracktion::engine::PluginWetDryAutomatableParam:

Public Member Functions
	PluginWetDryAutomatableParam (const juce::String &xmlTag, const juce::String &name, Plugin &)

juce::String	valueToString (float value) override

float	stringToValue (const juce::String &s) override

Public Member Functions inherited from tracktion::engine::AutomatableParameter
	AutomatableParameter (const juce::String &paramID, const juce::String &name, AutomatableEditItem &, juce::NormalisableRange< float > valueRange)

juce::Range< float >	getValueRange () const

Plugin *	getPlugin () const

Engine &	getEngine () const noexcept

Edit &	getEdit () const noexcept

Track *	getTrack () const noexcept

AutomationCurve &	getCurve () const noexcept

void	attachToCurrentValue (juce::CachedValue< float > &)

void	attachToCurrentValue (juce::CachedValue< int > &)

void	attachToCurrentValue (juce::CachedValue< bool > &)

void	updateFromAttachedValue ()

void	detachFromCurrentValue ()

virtual juce::String	getParameterName () const

virtual juce::String	getParameterShortName (int) const

virtual juce::String	getLabel ()

virtual juce::String	getPluginAndParamName () const

virtual juce::String	getFullName () const

Selectable *	getOwnerSelectable () const
	Returns the thing that you'd select if you wanted to show this param.

EditItemID	getOwnerID () const
	Returns the thing that you'd select if you wanted to show this param.

float	getCurrentValue () const noexcept

float	getCurrentNormalisedValue () const noexcept

virtual juce::String	getCurrentValueAsString ()

juce::String	getCurrentValueAsStringWithLabel ()

virtual void	beginParameterChangeGesture ()

virtual void	endParameterChangeGesture ()

void	setParameter (float value, juce::NotificationType)

void	setNormalisedParameter (float value, juce::NotificationType)

void	updateToFollowCurve (TimePosition)

void	parameterChangeGestureBegin ()
	Call to indicate this parameter is about to be changed.

void	parameterChangeGestureEnd ()
	Call to indicate this parameter has stopped being to be changed.

bool	hasAutomationPoints () const noexcept

ModifierAssignment::Ptr	addModifier (ModifierSource &, float value=1.0f, float offset=0.0f, float curve=0.5f)
	Creates an assignment for a given source.

void	removeModifier (ModifierAssignment &)
	Removes an assignment.

void	removeModifier (ModifierSource &)
	Removes assignments for a ModifierSource.

bool	hasActiveModifierAssignments () const
	Returns true if any ModifierSources are currently in use by assignments.

juce::ReferenceCountedArray< ModifierAssignment >	getAssignments () const
	Returns all the current ModifierAssignments.

juce::Array< ModifierSource * >	getModifiers () const
	Returns all the current ModifierSources currently in use by assignments.

float	getCurrentExplicitValue () const
	This is the value that has been set explicity, either by calling setParameter or the plugin telling us one if its parameters has changed.

float	getCurrentBaseValue () const
	This is the current base value of the parameter i.e.

float	getCurrentModifierValue () const
	This is the ammount of the modifier that has been applied to the base value to give the current parameter value.

bool	isAutomationActive () const
	Returns true if the parameter is being dynamically changed somehow, either through automation or a ModifierAssignment.

void	updateStream ()
	Forces the parameter to update its automation stream for reading automation.

void	updateFromAutomationSources (TimePosition)
	Updates the parameter and modifier values from its current automation sources.

virtual bool	isParameterActive () const

virtual bool	isDiscrete () const

virtual int	getNumberOfStates () const

virtual float	getValueForState (int) const

virtual int	getStateForValue (float) const

virtual std::optional< float >	getDefaultValue () const

virtual bool	hasLabels () const

virtual juce::String	getLabelForValue (float) const

virtual float	snapToState (float val) const

virtual juce::StringArray	getAllLabels () const

bool	isCurrentlyRecording () const
	true if the parameter been moved while in an automation record mode.

void	resetRecordingStatus ()
	this is called before and after playback or recording.

void	midiControllerMoved (float newPosition)

void	midiControllerPressed ()

void	curveHasChanged ()

juce::String	getSelectableDescription () override
	Subclasses must return a description of what they are.

void	addListener (Listener *l)

void	removeListener (Listener *l)

Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept

void	decReferenceCount () noexcept

bool	decReferenceCountWithoutDeleting () noexcept

int	getReferenceCount () const noexcept

Public Member Functions inherited from tracktion::engine::Selectable
virtual void	selectionStatusChanged (bool isNowSelected)
	Can be overridden to tell this object that it has just been selected or deselected.

virtual void	changed ()
	This should be called to send a change notification to any SelectableListeners that are registered with this object.

virtual void	selectableAboutToBeDeleted ()
	Called just before the selectable is about to be deleted so any subclasses should still be valid at this point.

void	addListener (SelectableListener *)

void	removeListener (SelectableListener *)

void	addSelectableListener (SelectableListener *)

void	removeSelectableListener (SelectableListener *)

void	cancelAnyPendingUpdates ()
	If changed() has been called, this will cancel any pending async change notificaions.

void	deselect ()

void	propertiesChanged ()

void	notifyListenersOfDeletion ()

WeakRef	getWeakRef ()

Additional Inherited Members
Public Types inherited from tracktion::engine::AutomatableParameter
using	Ptr = juce::ReferenceCountedObjectPtr< AutomatableParameter >

using	Array = juce::ReferenceCountedArray< AutomatableParameter >

Public Types inherited from tracktion::engine::Selectable
using	WeakRef = juce::WeakReference< Selectable >

Static Public Member Functions inherited from tracktion::engine::Selectable
static void	initialise ()

static bool	isSelectableValid (const Selectable *) noexcept
	checks whether this object has been deleted.

Public Attributes inherited from tracktion::engine::AutomatableParameter
const juce::String	paramID

const juce::NormalisableRange< float >	valueRange

AutomatableEditItem &	automatableEditElement

std::function< juce::String(float)>	valueToStringFunction

std::function< float(const juce::String &)>	stringToValueFunction

const juce::String	paramName

juce::ValueTree	parentState

Public Attributes inherited from tracktion::engine::Selectable
WeakRef::Master	masterReference

Protected Member Functions inherited from tracktion::engine::AutomatableParameter
AutomationSourceList &	getAutomationSourceList () const

void	setParameterValue (float value, bool isFollowingCurve)

void	valueTreePropertyChanged (juce::ValueTree &, const juce::Identifier &) override

void	valueTreeChildAdded (juce::ValueTree &, juce::ValueTree &) override

void	valueTreeChildRemoved (juce::ValueTree &, juce::ValueTree &, int) override

void	valueTreeChildOrderChanged (juce::ValueTree &, int, int) override

void	valueTreeParentChanged (juce::ValueTree &) override

void	valueTreeRedirected (juce::ValueTree &) override

virtual void	parameterChanged (float, bool)

Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept

	ReferenceCountedObject (ReferenceCountedObject &&) noexcept

ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept

ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept

void	resetReferenceCount () noexcept

Protected Attributes inherited from tracktion::engine::AutomatableParameter
std::unique_ptr< AttachedValue >	attachedValue

juce::ListenerList< Listener >	listeners

SafeSelectable< Edit >	editRef

Plugin *	plugin

Modifier *	modifierOwner

MacroParameterList *	macroOwner

std::unique_ptr< AutomationCurveSource >	curveSource

std::atomic< float >	currentValue

std::atomic< float >	currentParameterValue

std::atomic< float >	currentBaseValue

std::atomic< float >	currentModifierValue

std::atomic< bool >	isRecording

bool	updateParametersRecursionCheck

AsyncCaller	parameterChangedCaller

juce::ValueTree	modifiersState

std::unique_ptr< AutomationSourceList >	automationSourceList

Detailed Description

specialised AutomatableParameter for wet/dry.

Having a subclass just lets it label itself more nicely.

Definition at line 193 of file tracktion_ExternalPlugin.h.

Constructor & Destructor Documentation

◆ PluginWetDryAutomatableParam()

tracktion::engine::PluginWetDryAutomatableParam::PluginWetDryAutomatableParam	(	const juce::String &	xmlTag,
		const juce::String &	name,
		Plugin &	owner
	)
